Ryzee119

Wireless XBox 360 Controllers On the Og XBoX

Recommended Posts

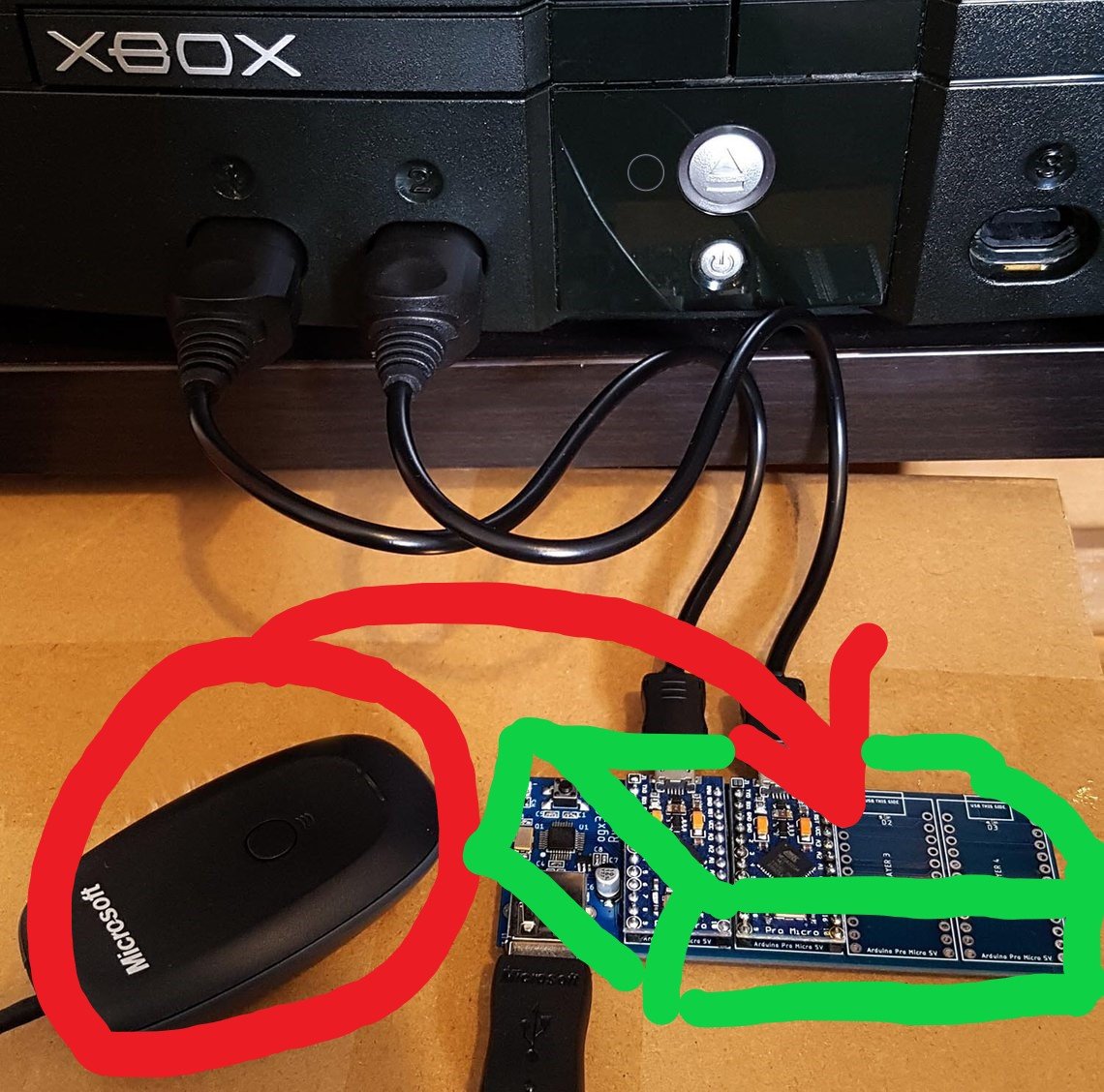

Is there potential that you could simply remove the components from inside the MS receiver and install them into an enclosed plastic case with your board?

Please login or register to see this attachment.

Share this post


Link to post
Share on other sites
29 minutes ago, TEK Nemesis said:

Is there potential that you could simply remove the components from inside the MS receiver and install them into an enclosed plastic case with your board?

Sure why not. Still need to plug the receiver into the USB port or solder the wires from the receiver to behind the usb port for a smaller finish.

Add a hole to access the sync button and it should work fine.

  • Like 2

Share this post


Link to post
Share on other sites

Please login or register to see this link.

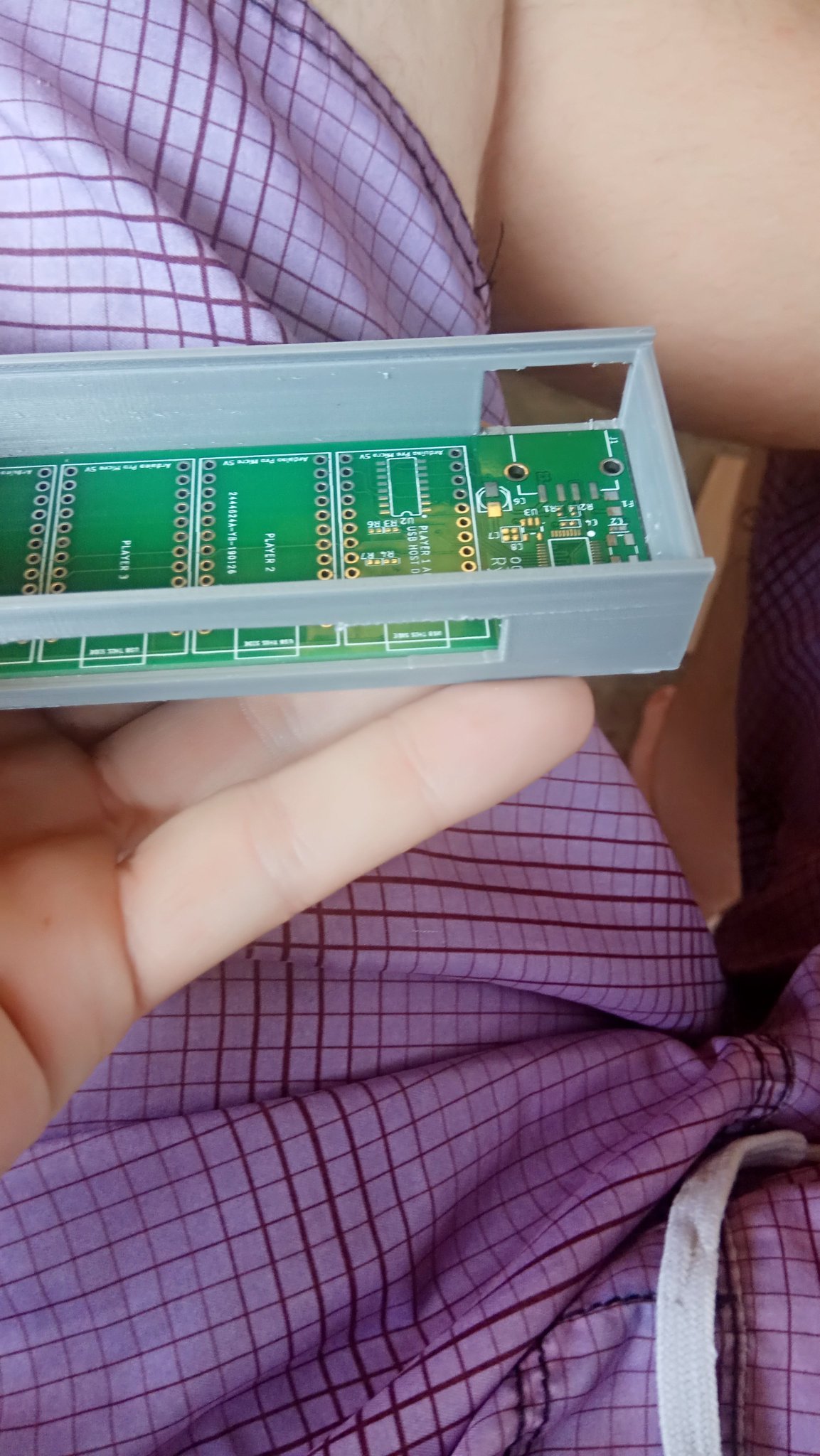

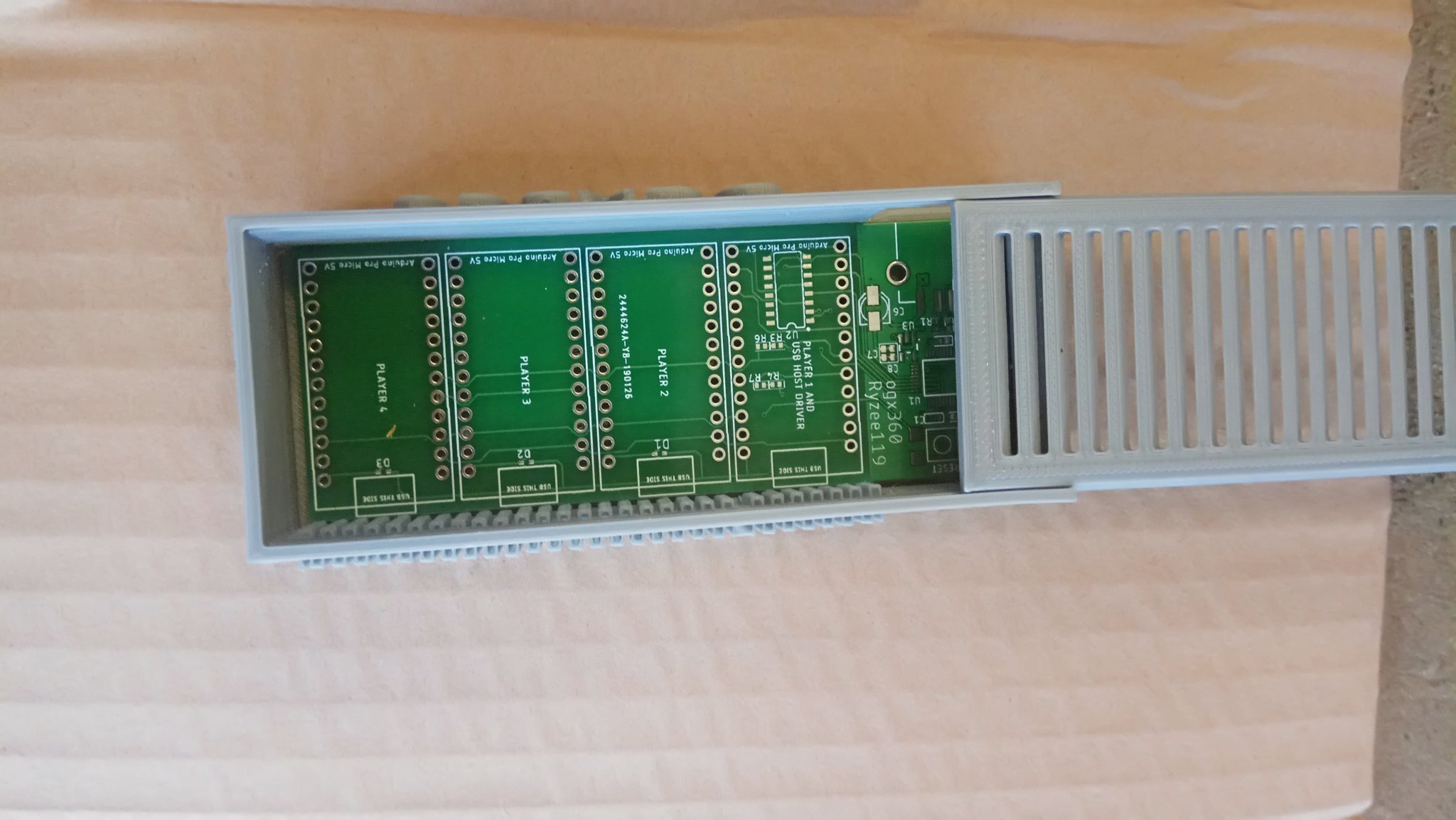

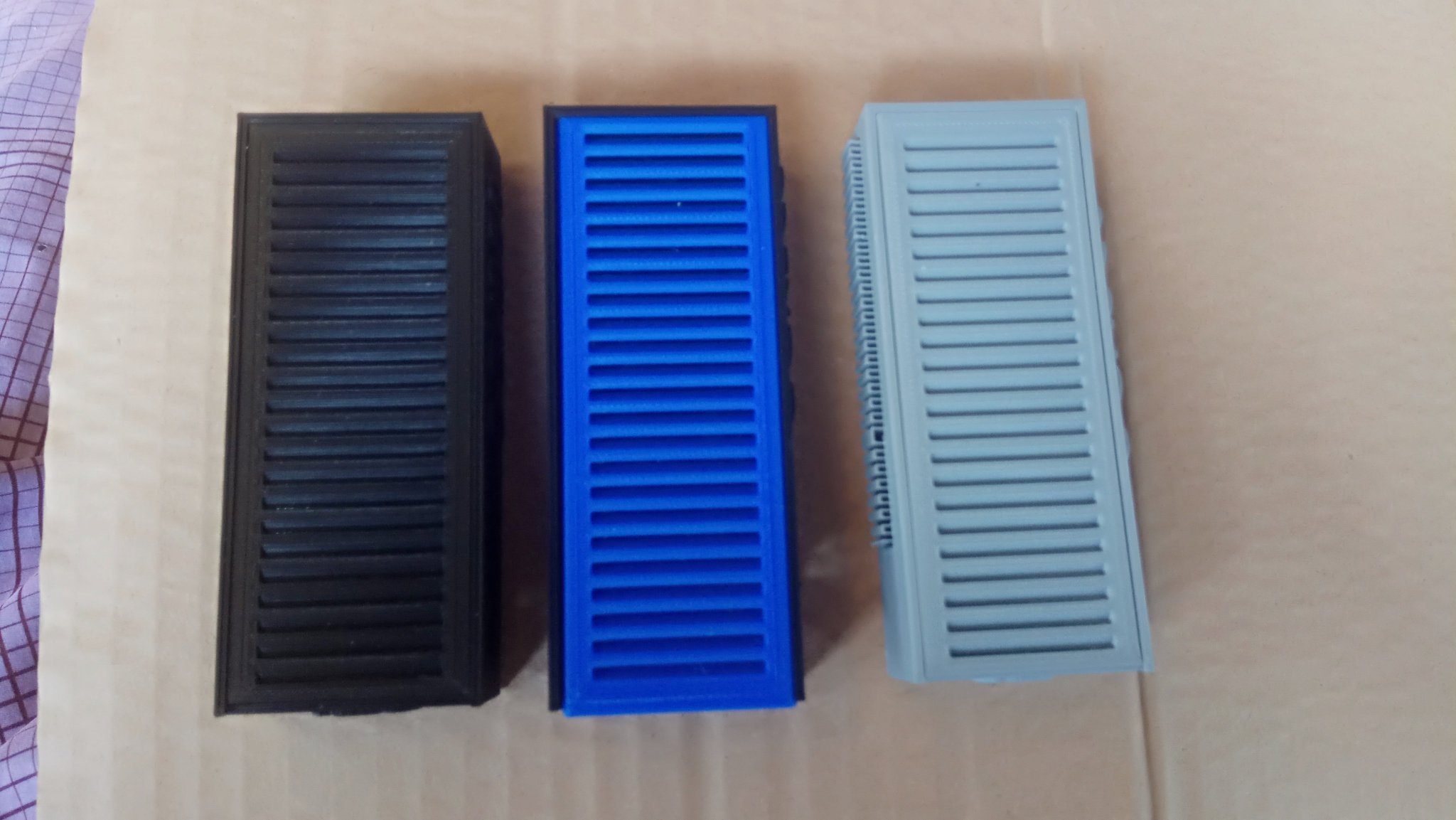

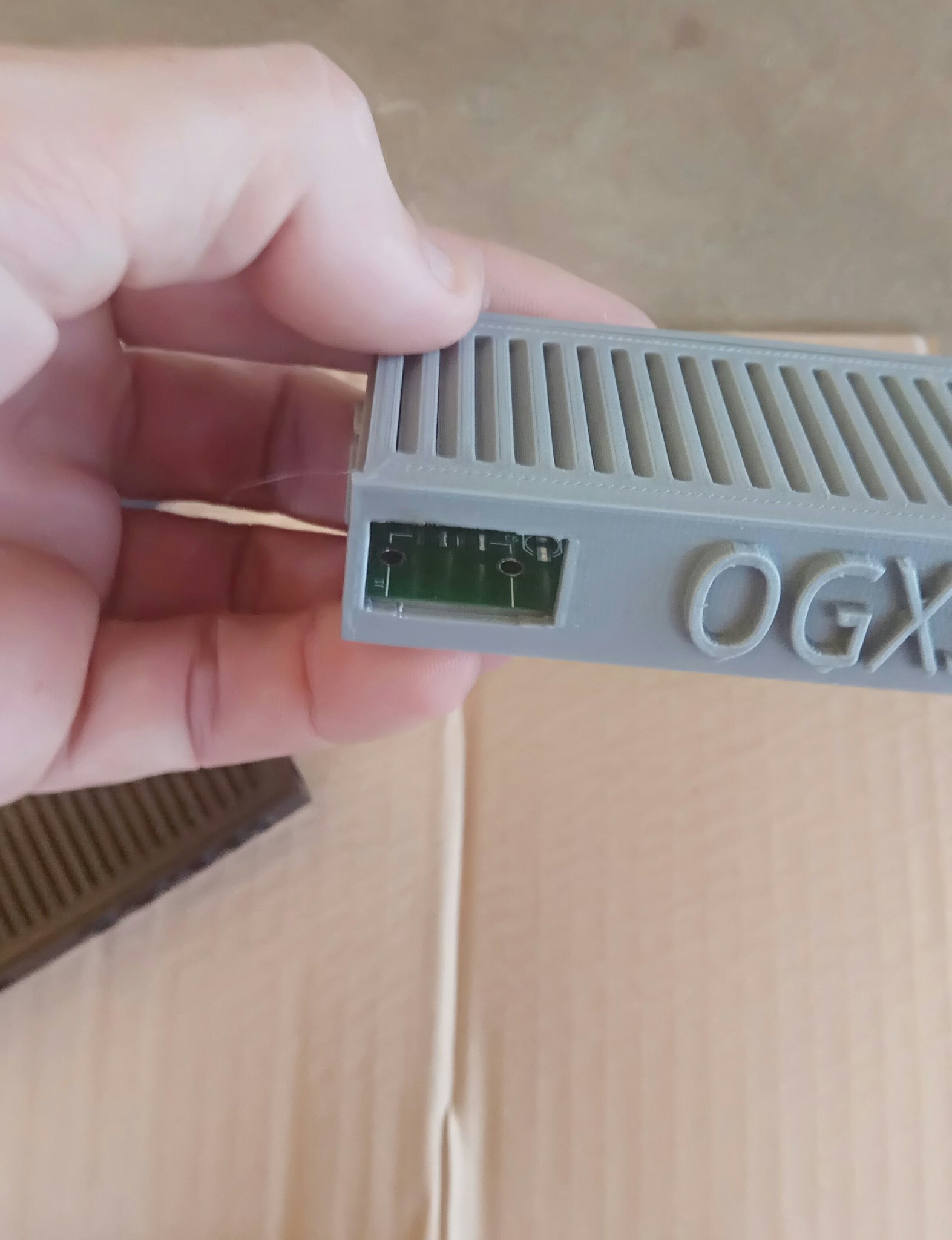

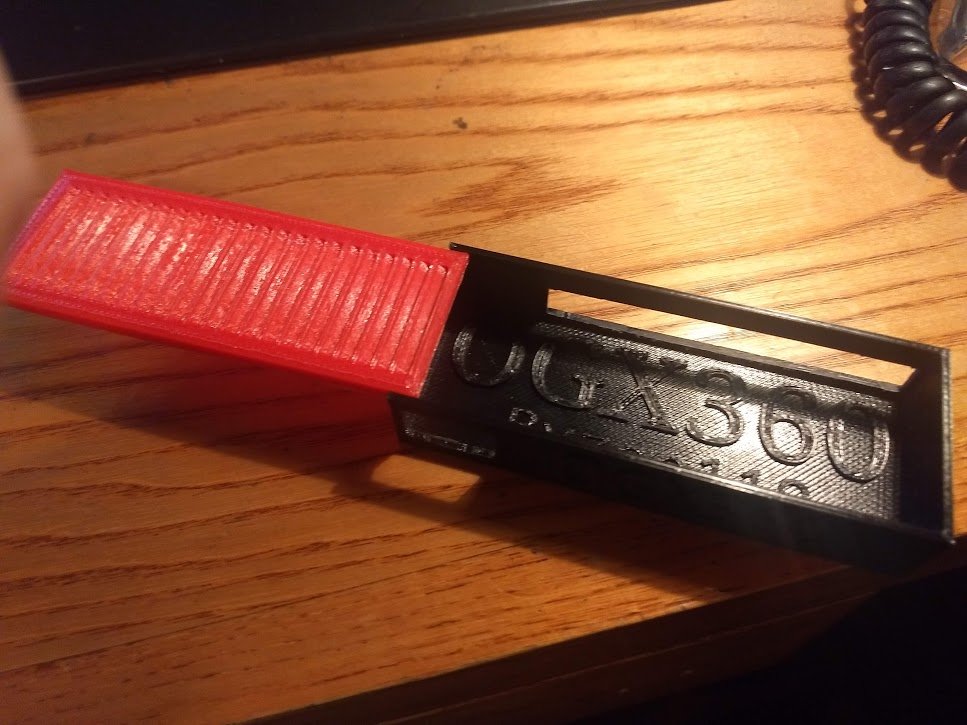

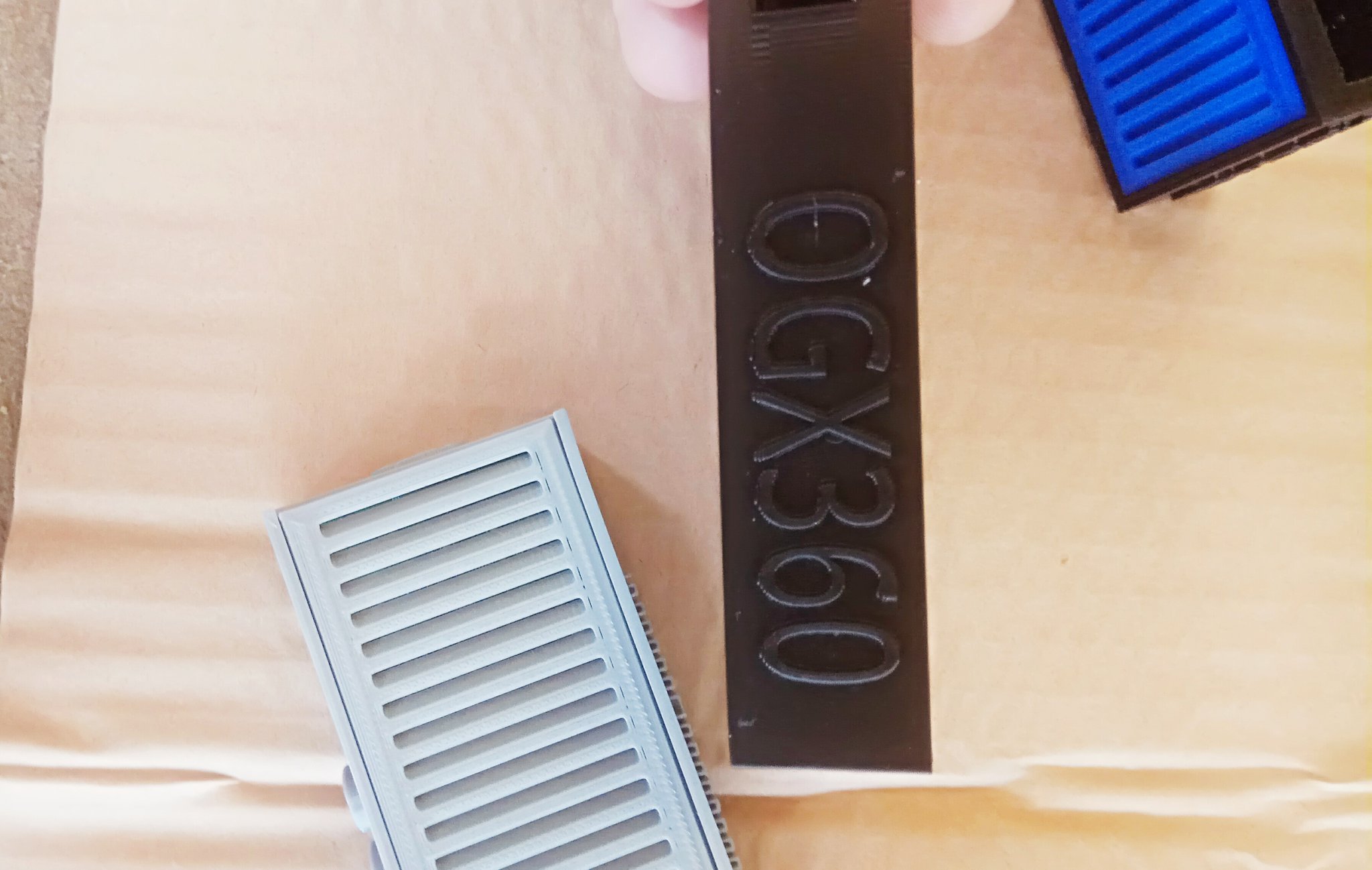

3d printed case and lid for ryzee119's OGX360

print details

layer height 1-2mm

infil 20%-100% any where in between still prints fine but 100% is more sturdy

4-6 solid bottem layers

4-6 perimeter shells

4-6 solid top layers

215c extruder temp

65c bed temp

#the Case does need to print with supports#

A big shout out to ryzee119 for all his hard work 🍻🍻🍻



Please login or register to see this attachment.

Please login or register to see this attachment.

Please login or register to see this attachment.

Please login or register to see this attachment.

Please login or register to see this attachment.

  • Like 4

Share this post


Link to post
Share on other sites

Nicely done.

Once I get my workshop straight Im planning to start the internal solution, with 3D printed bits where needed.

The boards came back from the fabricators bundled up with my boards for my Amiga project days ago.....

Still waiting on some components for the build. The pain is, some for the board are here but nothing I can install with out causing problems later, same goes for the Amiga boards.



  • Like 2

Share this post


Link to post
Share on other sites
6 minutes ago, big F said:

Nicely done.

Once I get my workshop straight Im planning to start the internal solution, with 3D printed bits where needed.

The boards came back from the fabricators bundled up with my boards for my Amiga project days ago.....

Still waiting on some components for the build. The pain is, some for the board are here but nothing I can install with out causing problems later, same goes for the Amiga

that sounds like a bloody good idea mate. ahhh the snail mail waiting game I've played this one a few times

it's quite painful

Share this post


Link to post
Share on other sites

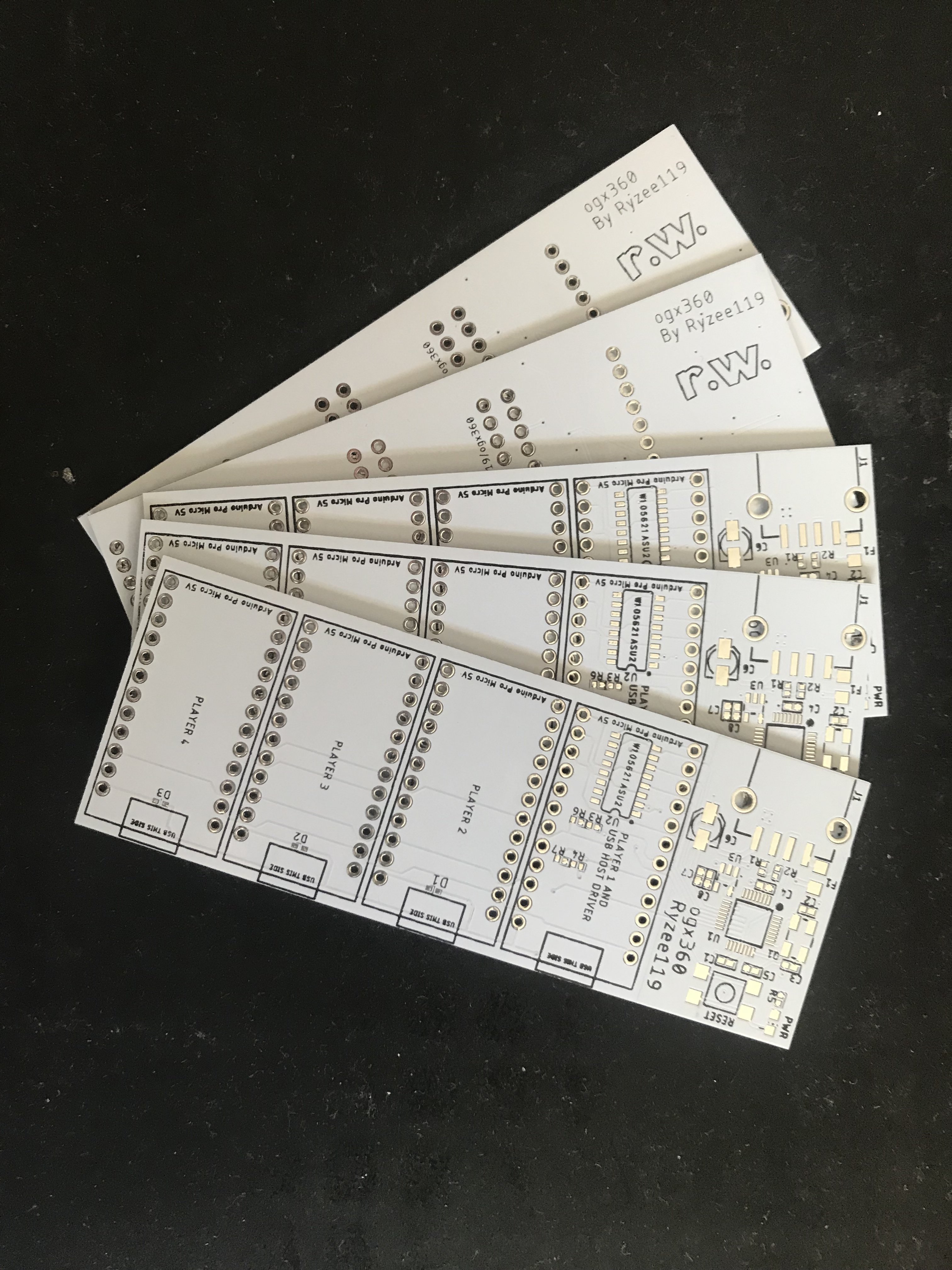

Well here are my boards patiently waiting the delivery of the components. May well start the mock up process without them though since I can calculate the size with everything soldered on. Plus no worries for static on an empty board.

Please login or register to see this attachment.

They are white as the rest of my order is also white. It should look great in my clear Xbox :)

Edited by big F
  • Like 4

Share this post


Link to post
Share on other sites

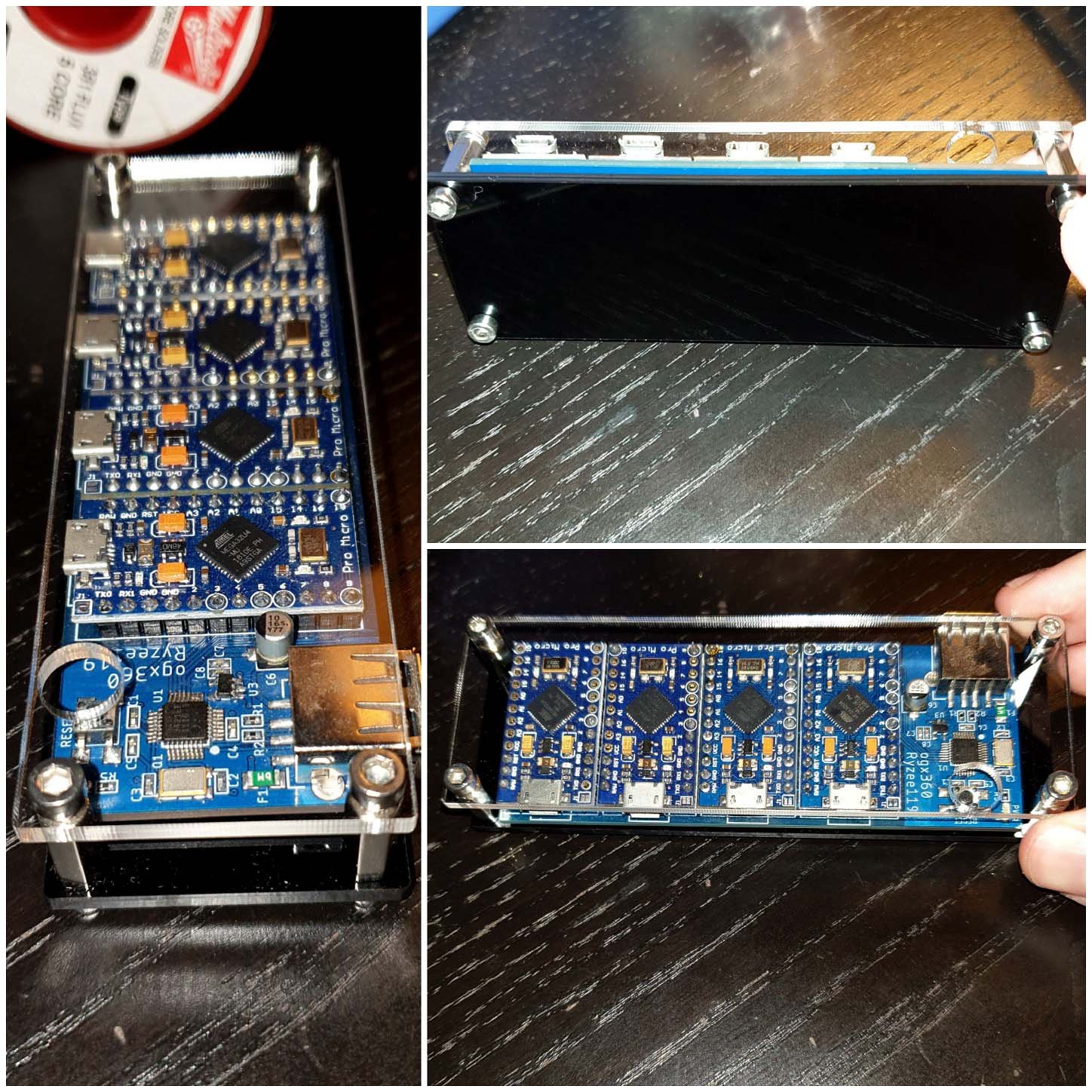

This is a simple case that I put together which I just got laser cut.
3mm acrylic sheets laser cut using cap head screws and hex standoffs. Ogx360 is supported with thick double sided foam adhesive tape.

I probably won't sell them as the logistics are too hard for me at the moment, but I will upload the DWG files to my github soon for laser cutting from your local hackerspace or online



Please login or register to see this attachment.



Please login or register to see this attachment.

Edited by Ryzee119
  • Like 2

Share this post


Link to post
Share on other sites
41 minutes ago, Ryzee119 said:

@big F That white 😍, just need matching Arduino modules somehow

Yeah that would be awesome. I’m unsure why this has never been an option already. For the price that you can buy them at the likes of AliExpress. They mint them out on panels dozens at a time. It wouldn’t cost anymore.

 The couple of companies I use for board fabbing don’t really care what colour you want the board finished in, they are more interested in Gold finishing or assembling it for you.

There is IMO a whole market there for coloured boards, it’s only laminate lacquer after all.

I can go to the local DIY store with a piece of cloth, soil or what ever and they can match it and make me some paint, so why not with pcbs etc.

  • Like 1

Share this post


Link to post
Share on other sites
7 minutes ago, big F said:

Yeah that would be awesome. I’m unsure why this has never been an option already. For the price that you can buy them at the likes of AliExpress. They mint them out on panels dozens at a time. It wouldn’t cost anymore.

Im sure there is a seller on Ali who would do a run of a custom colour for you. Although the MOQ might be a bit
My quote for a custom Xbox to MicroUSB cable for this project was MOQ of 1000 units ($840 USD FYI) never proceeded with the quote.

Edited by Ryzee119

Share this post


Link to post
Share on other sites
17.03.2019 в 05:06 Ryzee119 сказал:

Получил немного etsy сейчас  Please login or register to see this link.

Hello, are you sending your gadget to Russia?

Edited by irlandez

Share this post


Link to post
Share on other sites
5 hours ago, Tony Kuberka said:

Thanks for the design @bluemeanie23

Please login or register to see this attachment.



here's the link for the 3d model in Tinkercad u can personalize it yourself quite easily thru your browser enjoy  🍻

Please login or register to see this link.

  • Like 2

Share this post


Link to post
Share on other sites

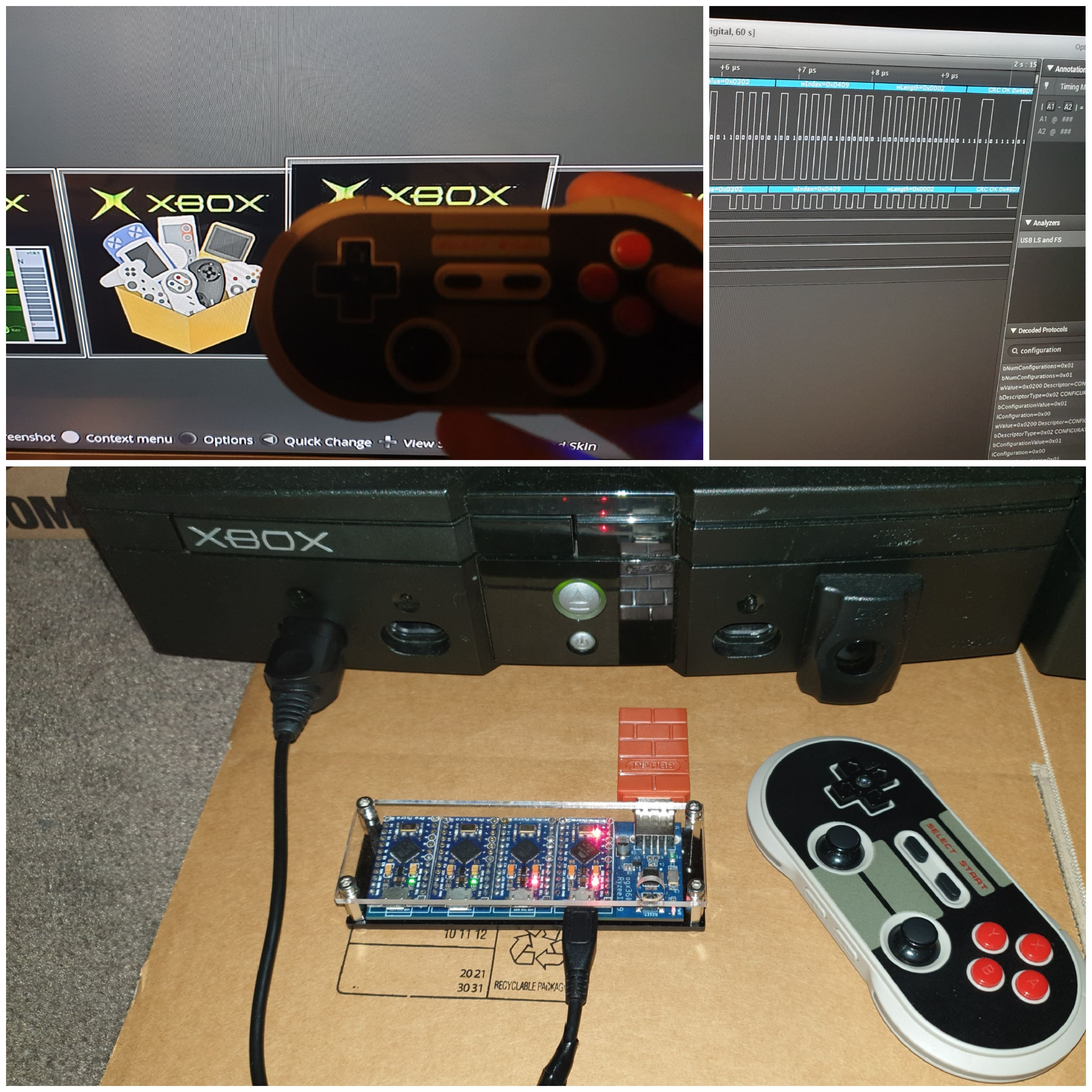

Working on 8bitdo usb adaptor support!

It was very picky and needed a sequence of usb packets on initialisation to keep it active.

Still testing but should support everything the 8bitdo website says. (Bluetooth xbone, ps3, ps4 all 8bitdo controllers etc.)

Please login or register to see this attachment.

  • Like 5

Share this post


Link to post
Share on other sites
1 hour ago, Ryzee119 said:

Working on 8bitdo usb adaptor support!

Will it support 4 controllers connected to it at one time? Put me down for one when you get it going!! I would love to use my 8bitdo controllers on my xbox!! :D

Edited by Tony Kuberka
  • Like 1

Share this post


Link to post
Share on other sites

Seems like the 8bitdo adaptor only supports one controller at a time. If I go to sync another it just drops the first one.. Looks like this will be one player only.

(Unless you use a USB hub and multiple 8bitdo adapters, which should work in theory but untested)

I will post an update here when ive finished testing and added it to github. Just a firmware update required to existing units.
