Tsop Flash Guide


OGXbox Admin
 Share

Recommended Posts

This guide and pictures taken from: http://www.biline.ca/xbox_solder.htm

TSOP Flashing Unlock points

if you are unsure which Xbox version you have click
Here

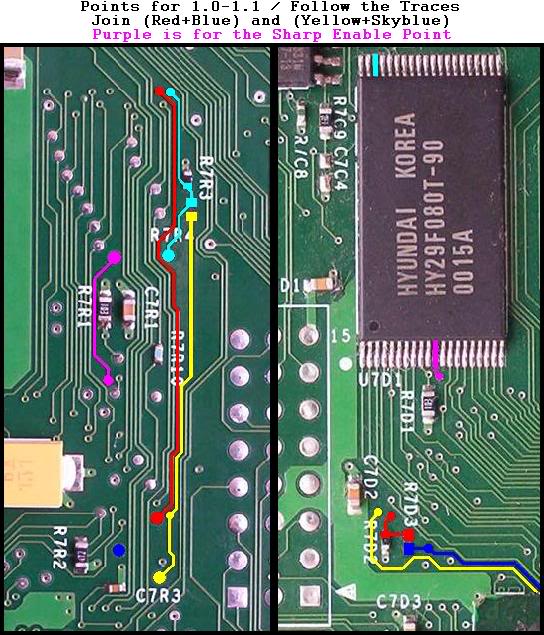

TSOP unlock points for version 1.0/1.1 Xbox

This is the top of the motherboard
Connect the two solder pads at R7D3 as in photo above.

This is the bottom side of motherboard
Connect the two solder pads at R7R3 as in photo above.

All Ver 1.0/1.1 Xbox's with a 'SHARP' TSOP chip must also connect the additional red wire as in the photo above. All other TSOP's DO NOT require this step.

TSOP Unlock points for all Versions 1.2/1.3/1.4/1.5/ Xbox's

This is the top side of the motherboard
These Xbox's have both points located on the top of the motherboard, for the first point connect the two solder pads at R7D10 as in photo above. For the second point locate the junction between R7D2 and R7D1 and connect the two solder pads as in the photo above.

After the solder points are completed you should re-assemble your xbox (but leave the top cover off) when the power button is pressed it should boot normally as it did before you started.

Note if you get the message TSOP write protected while attempting to Flash the TSOP you might need to check and resolder the points to ensure a good connection was m while attempting to Flash the TSOP you might need to check and resolder the points to ensure a good connection was made.

To split Split a 1MB TSOP (v1.0, v1.1) into 4 banks of 256k, the following picture explains how to accomplish this:

18119596_10158609993585230_3227203422163568690_n.jpg.47192df1b9d339e47efa3310d8a1ced0.jpg

Note: If you have a 1.6/1.6b Xbox, it has no TSOP and therefore you cannot flash it. You will have to install a modchip or softmod.


  • Thanks 2
Link to comment
Share on other sites

Just an additional note for Blake's post, you can split the TSOP in the 2-way split to have two 512k halves. if you complete this, it is recommended that you cut the A19 trace shortly after your solder point to keep the chip it is connected to from getting too hot.





  • Like 1
Link to comment
Share on other sites

I take a speaker wire, strip out one tiny strand of copper, tin it, and lay that across the write points and solder it down.  Then I wiggle the excess till it breaks off. Never pulled a pad using this method and it takes much less time.



I don't use alt points though

Edited by barnito
Link to comment
Share on other sites

  • 5 months later...

I’ve used 30awg kynar because I was using a crappy iron. Now I use a good iron and learned the air bridge technique and can do it in 5 seconds per bridge.

the wire method is a safe way to go for beginners and as long as it gets the job done. Glad this guide was reposted, had to bridge the alternate points on a board with missing pads.  Using 30 awg kynar it was a breeze.

using wire on the alternate points is actually quite easy to do.

.





  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...
  • 1 month later...
On 1/6/2018 at 11:48 PM, wikati said:

elaborating further,

what does the boot look like after this soldering job is done?
how do we proceed with unsigned code?

"flashing the tsop"; is that done with hexen?

which bios works best for 1.0/1.1 VS 1.2-1.5... any difference at all?

Thank you kindly for this thread,

I successfully TSOP flashed my 1.4 on the weekend!!!

used ind-5003 67


Stupid me didnt realize you need to softmod it then tsop it, which is just SO MUCH FREAKING FUN!!!!

really it was, so far this seems even better than a modchipped box. Why? some kind of placebo thats making it emulate better.

Edited by wikati
