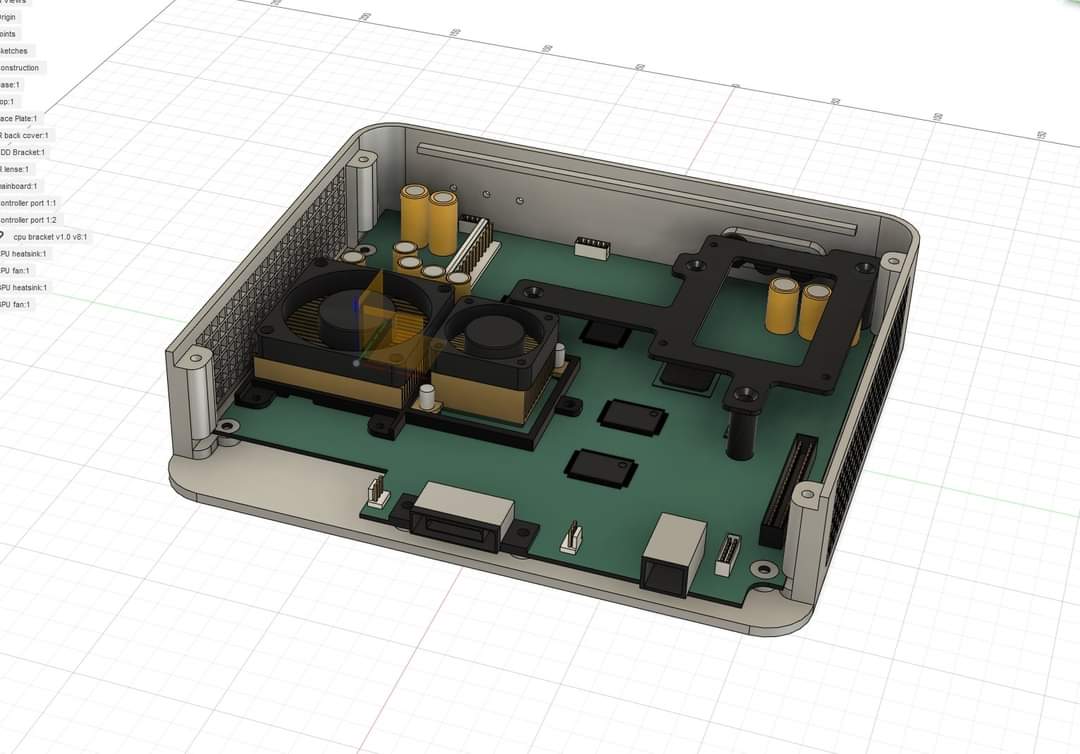

Hi all,   I built an xbox mini a few years ago and designed a case based loosely on ghostavels well known xbox mini. I had it laser cut from plexiglass and it turned out ok, but could be bet

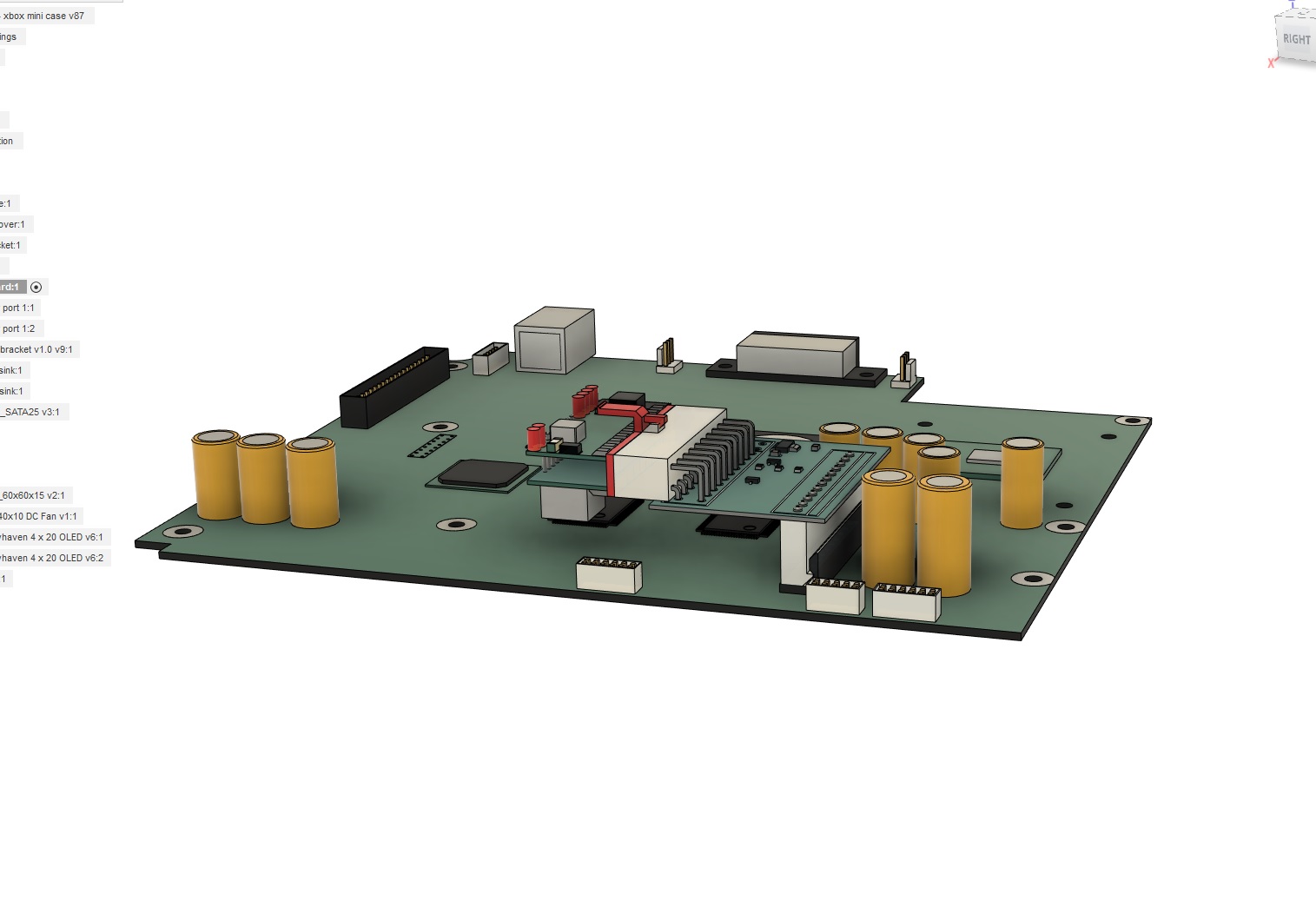

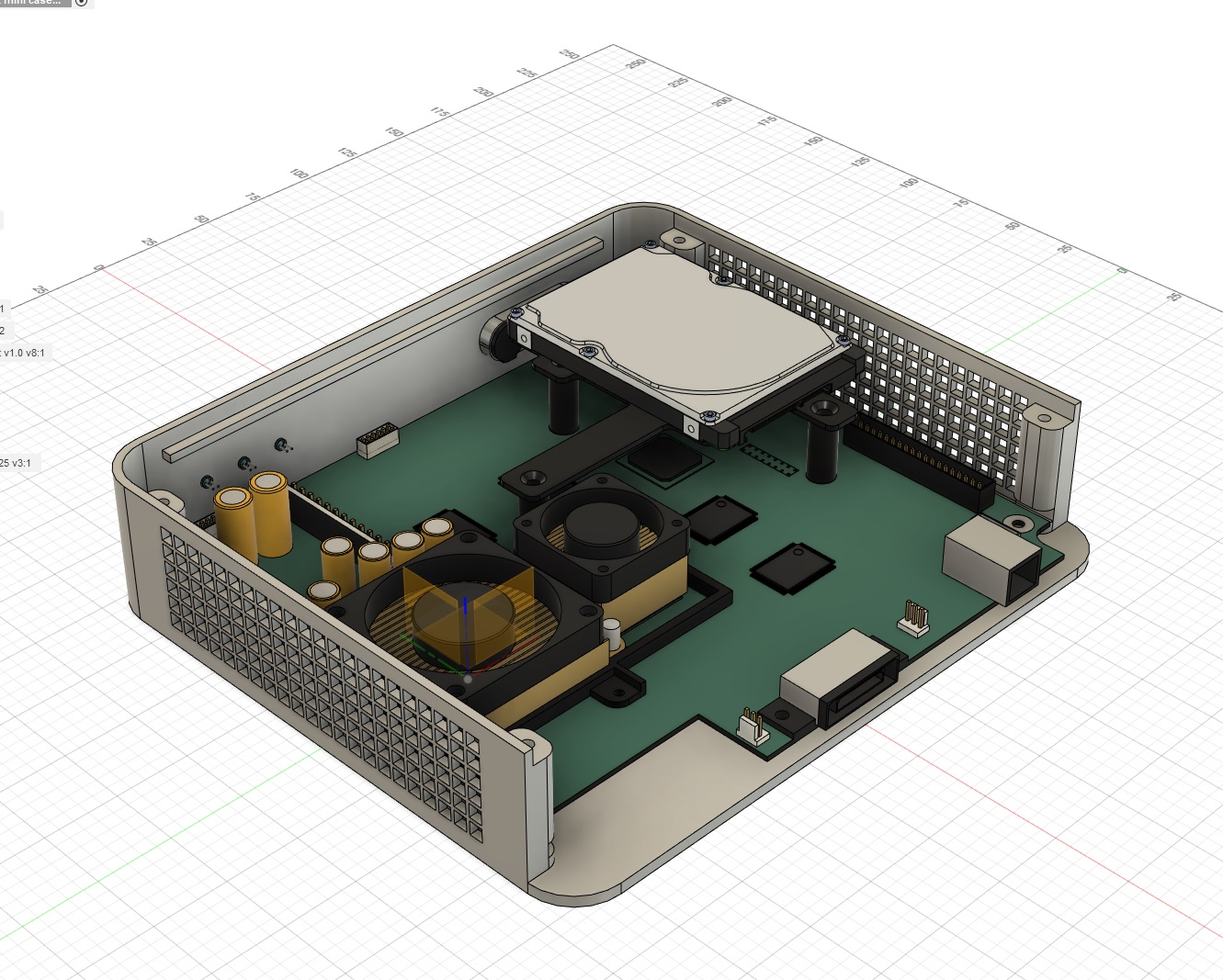

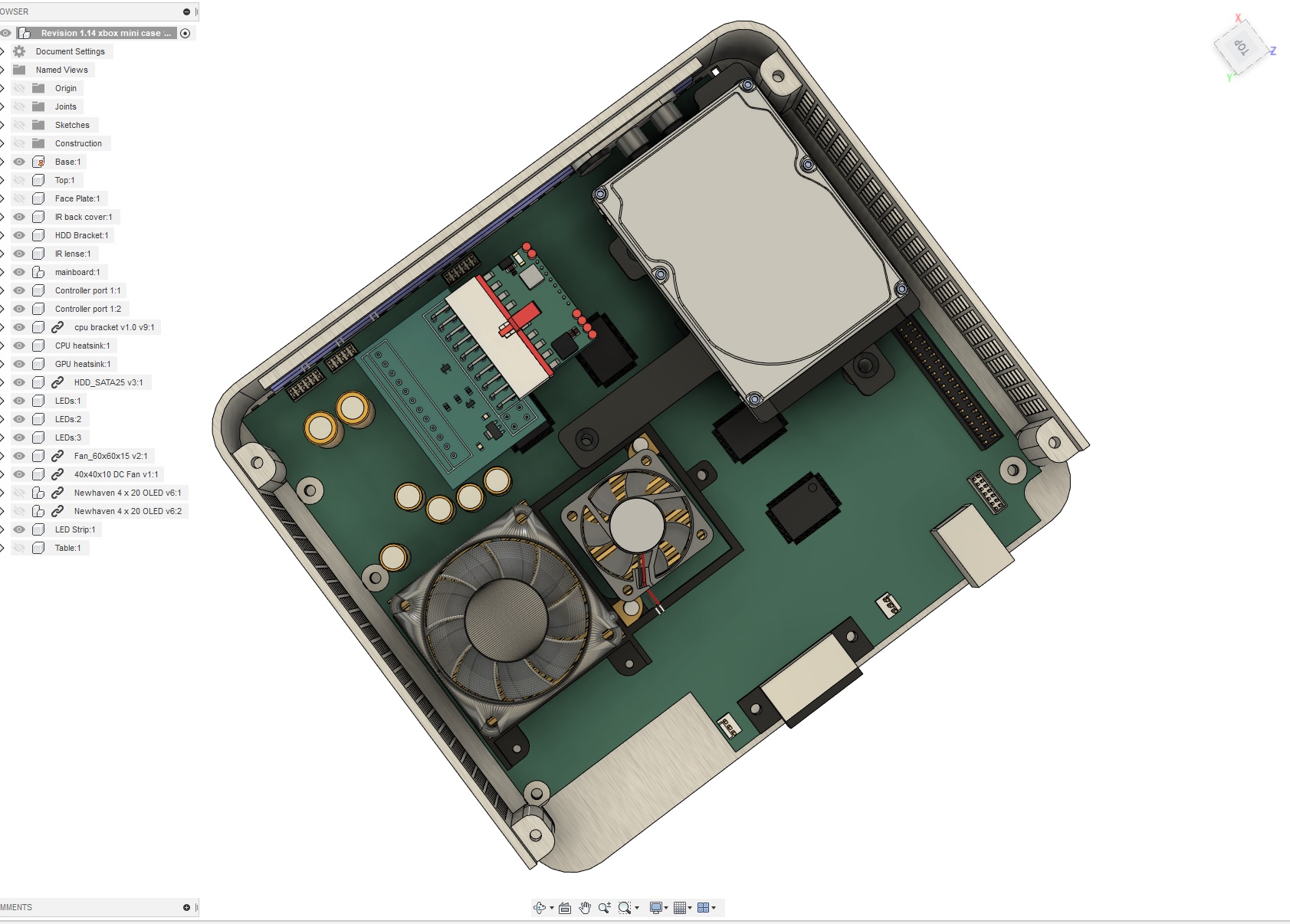

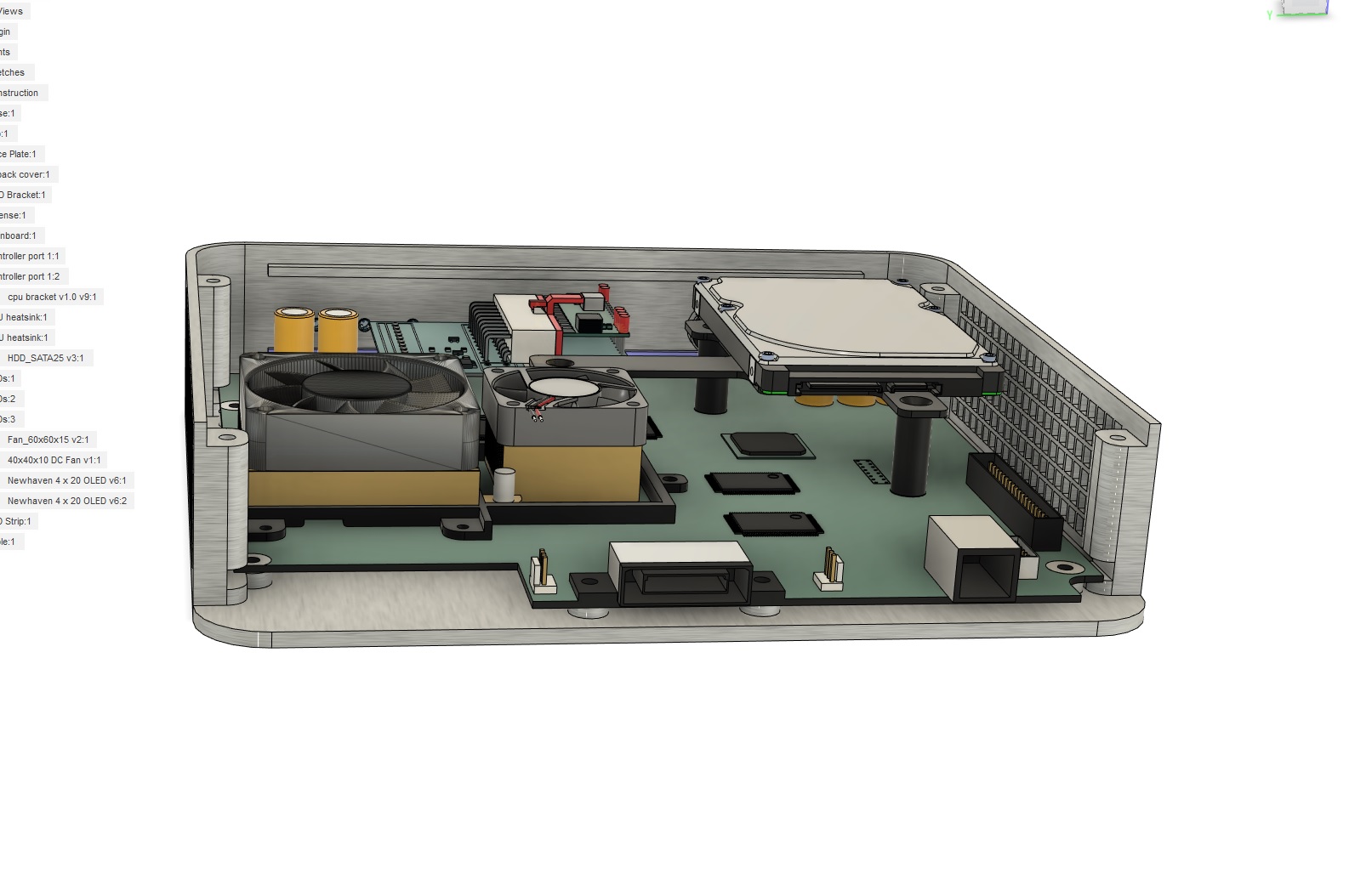

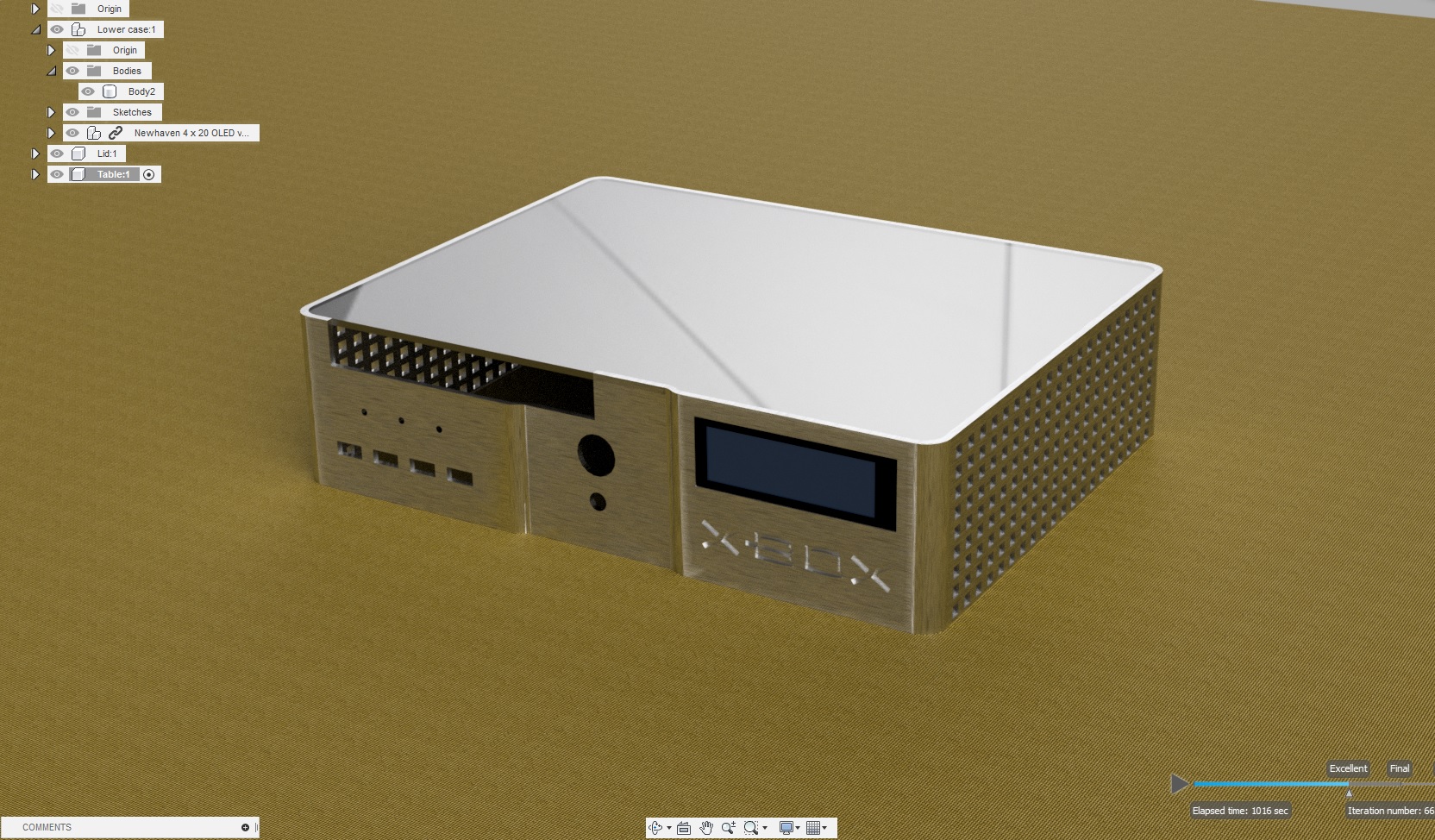

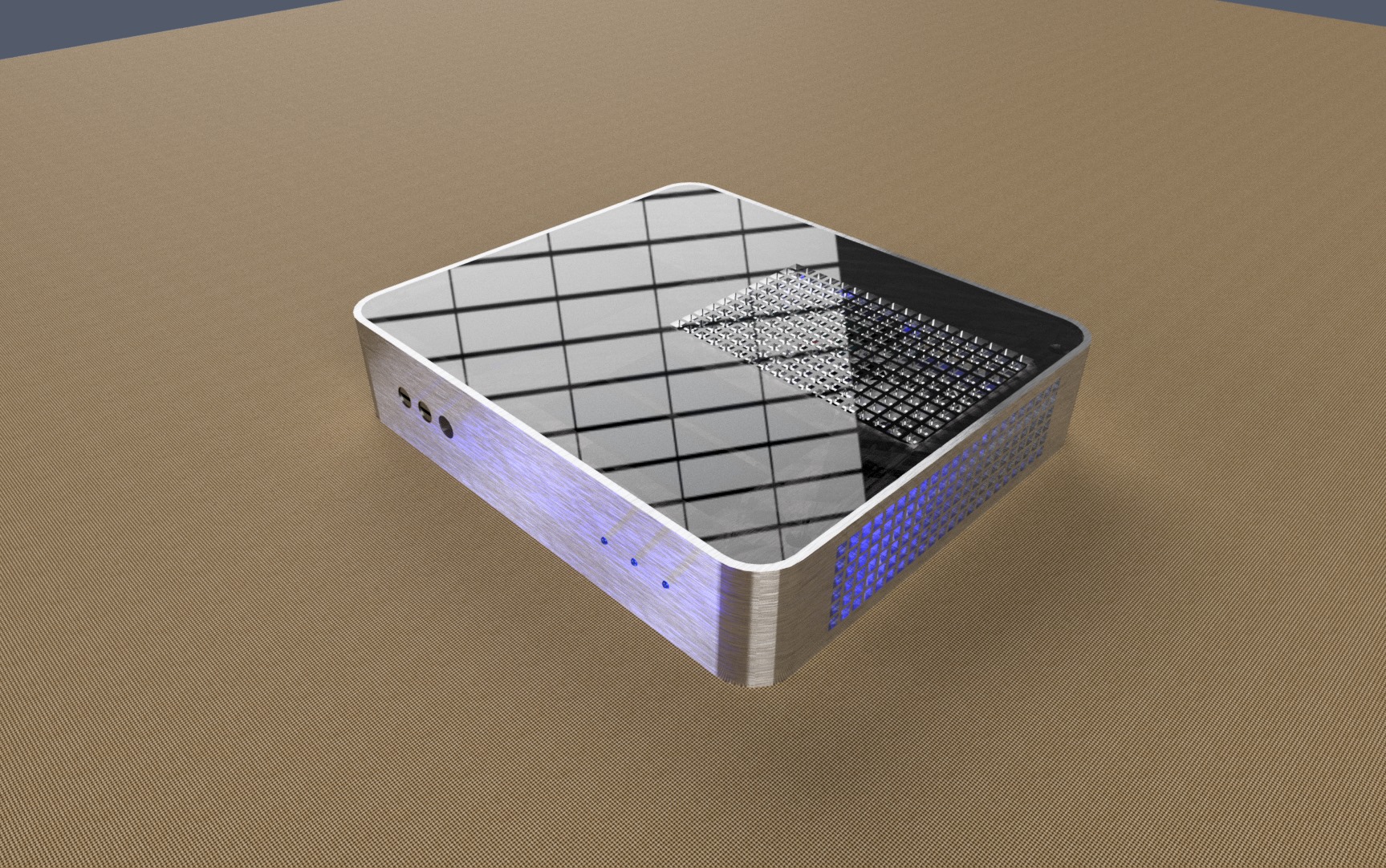

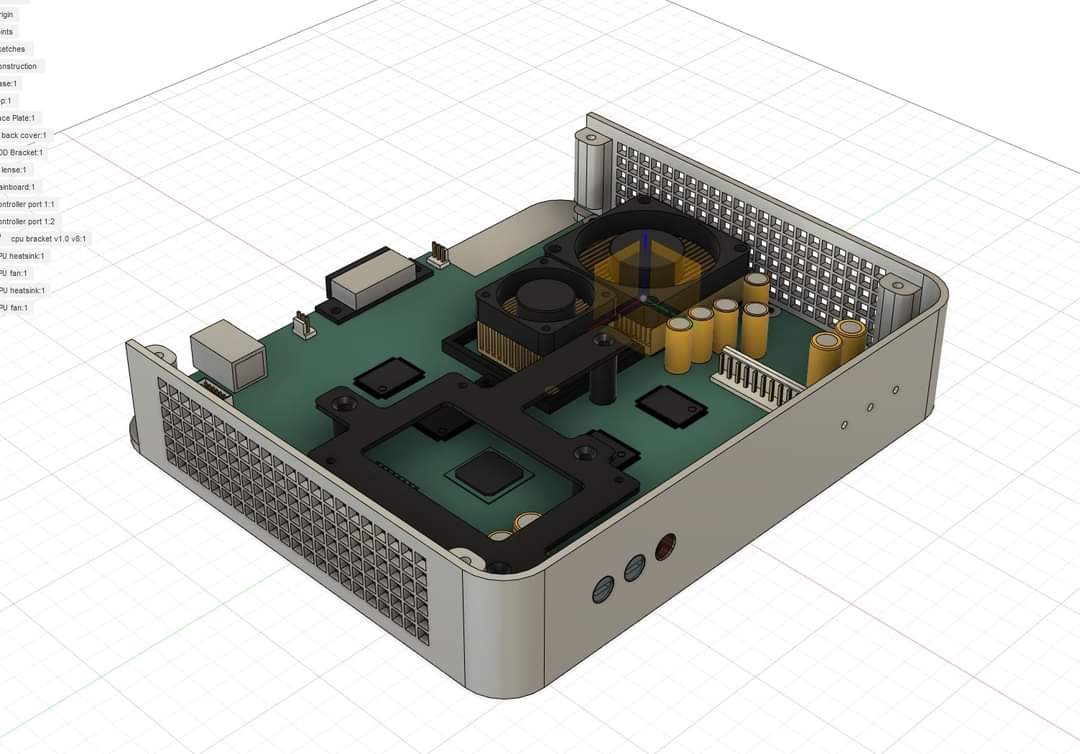

So it's been a while but I've done a bit more work on this case and intend on releasing the design files so anyone can 3d print one if they choose to (once it's finalised). I've been 3d modelling

So the laser cut top pieces arrived but I forgot to allow for tolerances so I have to sand the edges a bit. I have now amended the .dxf so that it takes fit tolerances into consideration.  I've a

Posted Images

  • 3 weeks later...

Would you be willing to share the 3d printer files once you are done with that? I am working on a slim system myself.

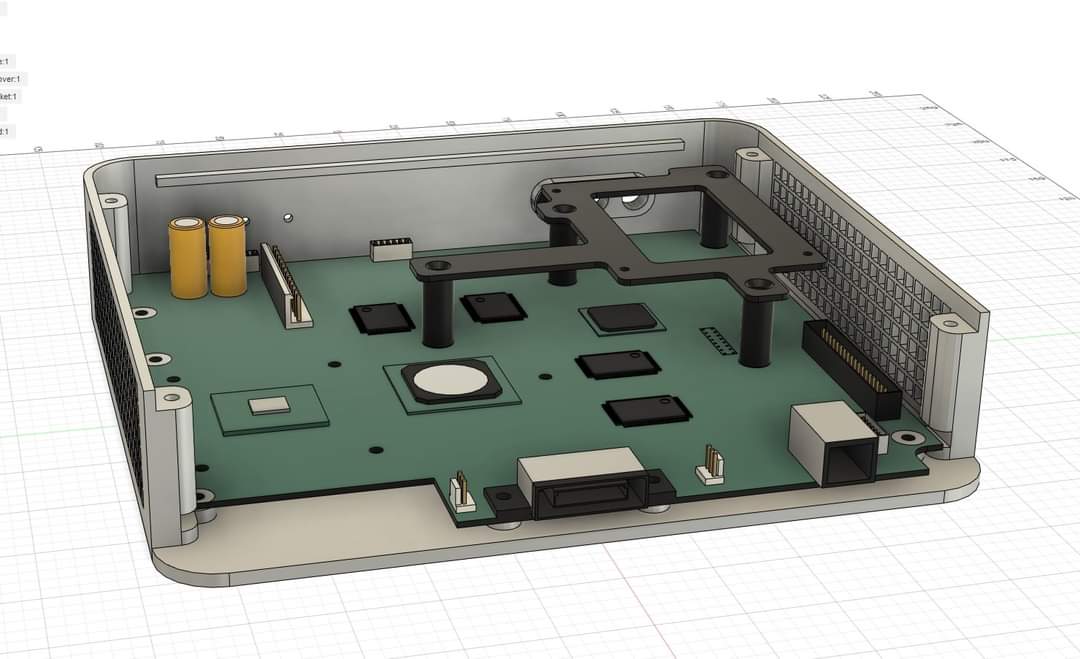

Testing heatsink fitting and dvd pcb placement. (I have since ordered the openxenium dvd elimination pcb)

https://imgur.com/gallery/RAI03qp


These are parts I have ordered for once the DVD elimination pcb shows up so I can build a right angle adapter and directly connect my drive to the board without the bulky IDE cable.

https://imgur.com/a/ih4uzjQ

Link to post
Share on other sites
15 hours ago, spotopolis said:

Would you be willing to share the 3d printer files once you are done with that? I am working on a slim system myself.



Testing heatsink fitting and dvd pcb placement. (I have since ordered the openxenium dvd elimination pcb)

https://imgur.com/gallery/RAI03qp


These are parts I have ordered for once the DVD elimination pcb shows up so I can build a right angle adapter and directly connect my drive to the board without the bulky IDE cable.

https://imgur.com/a/ih4uzjQ

I plan on releasing the design files with the community once i've tested fitment and structural integrity.

Regarding the disc drive I am using a no dvd bios which is TSOP flashed to the board. I've done this before with no issues, The HDD will be set up with a dashboard so I can just FTP anything over to it.

Can I ask where you got your heatsinks from? I've designed a replacement bracket to use a Star Tech 1U server heatsink and fan for the CPU and a smaller generic 40mm heatsink and fan for the GPU.

Link to post
Share on other sites
3 hours ago, ShinGoutetsu said:

I plan on releasing the design files with the community once i've tested fitment and structural integrity.

Regarding the disc drive I am using a no dvd bios which is TSOP flashed to the board. I've done this before with no issues, The HDD will be set up with a dashboard so I can just FTP anything over to it.

Can I ask where you got your heatsinks from? I've designed a replacement bracket to use a Star Tech 1U server heatsink and fan for the CPU and a smaller generic 40mm heatsink and fan for the GPU.

I got the heatsinks off ebay the heatsink is the "Titan ATI/NVIDIA Copper VGA Cooler TTC-CUV3AB"



Im doing all this for a 1.6 xbox, but the more I dig into it, the harder having a 1.6 is making it. Im trying to find ATX to Xbox power adapters and they are all for 1.0-1.5 Xboxs. I may have to try and revive yet another Xbox to downgrade to something other than a 1.6 to get all this working. I just didnt want to deal with a clock cap.

Link to post
Share on other sites

Thanks for the link, im trying several different heatsink setups to determine the most effective and efficient ones.

To be honest 1.6's have a lot of negative points. You can't tsop flash, you can't ram upgrade, you have to rebuild the lpc to install a modchip and the video encoder isn't the best either. They do still have clock caps, its near the IDE port I think but I've not heard anything about them failing, I assume because they used a better capacitor. I prefer 1.1's myself.

Link to post
Share on other sites
