RF Shielding, what do you do with yours?


nikeymikey
 Share

Recommended Posts

So peeps, The metal RF sheilding in your xbox's, do you keep yours, throw it, paint it or something else??



I used to throw mine away if they were rusty but just recently I have painted a couple and I am pleasantly surprised with the results.

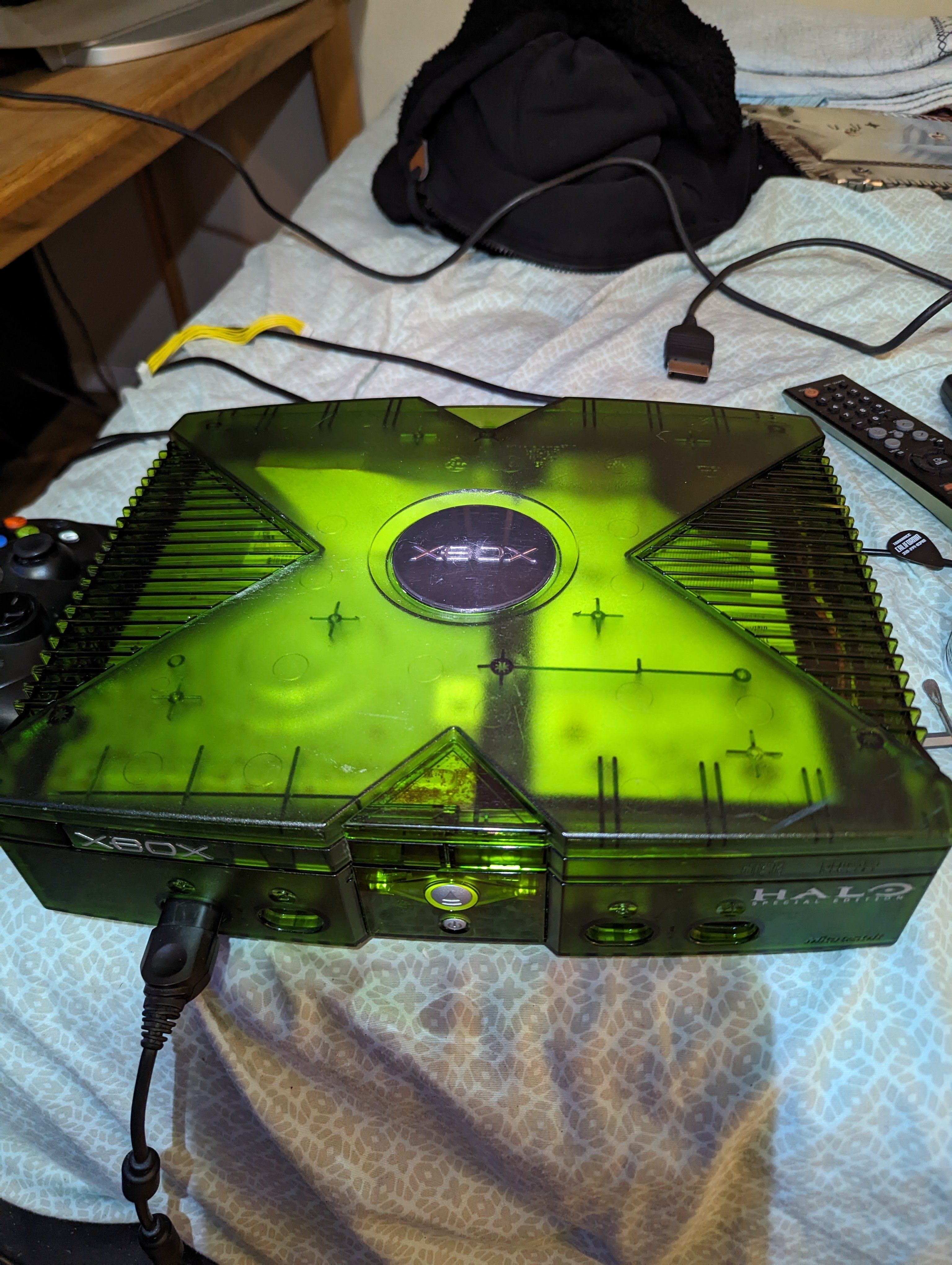

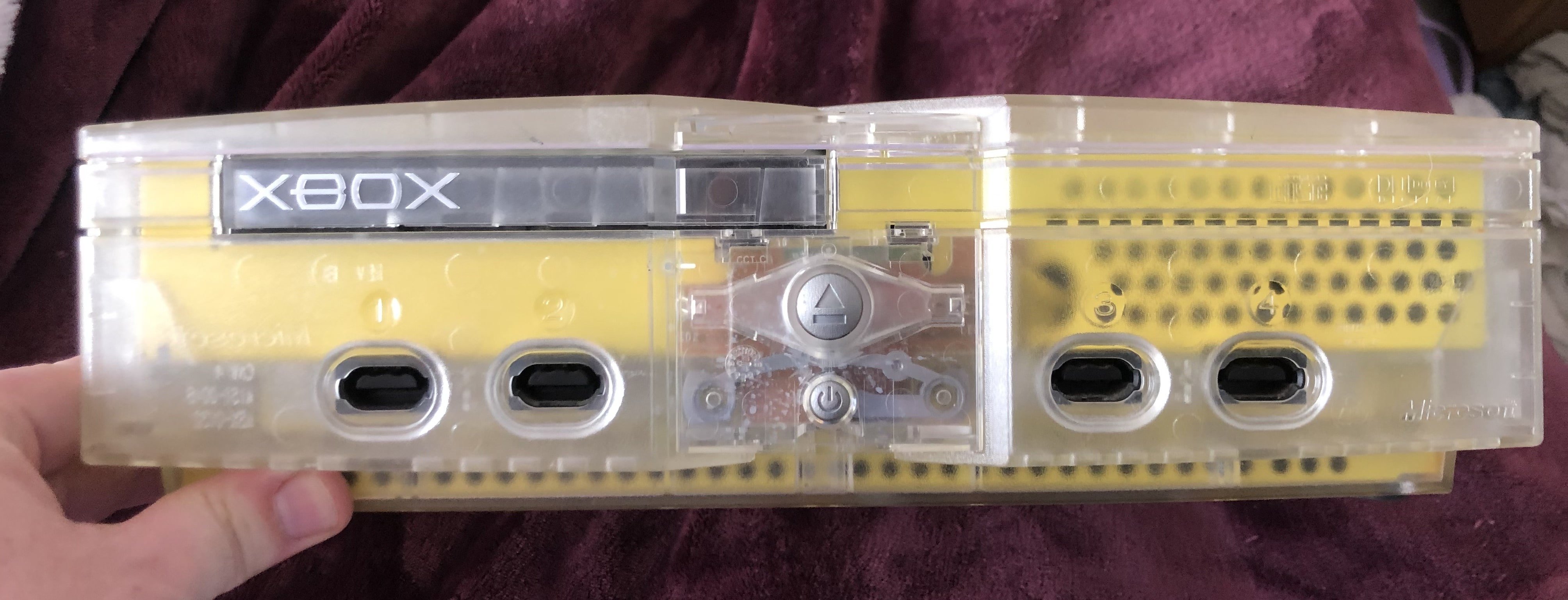

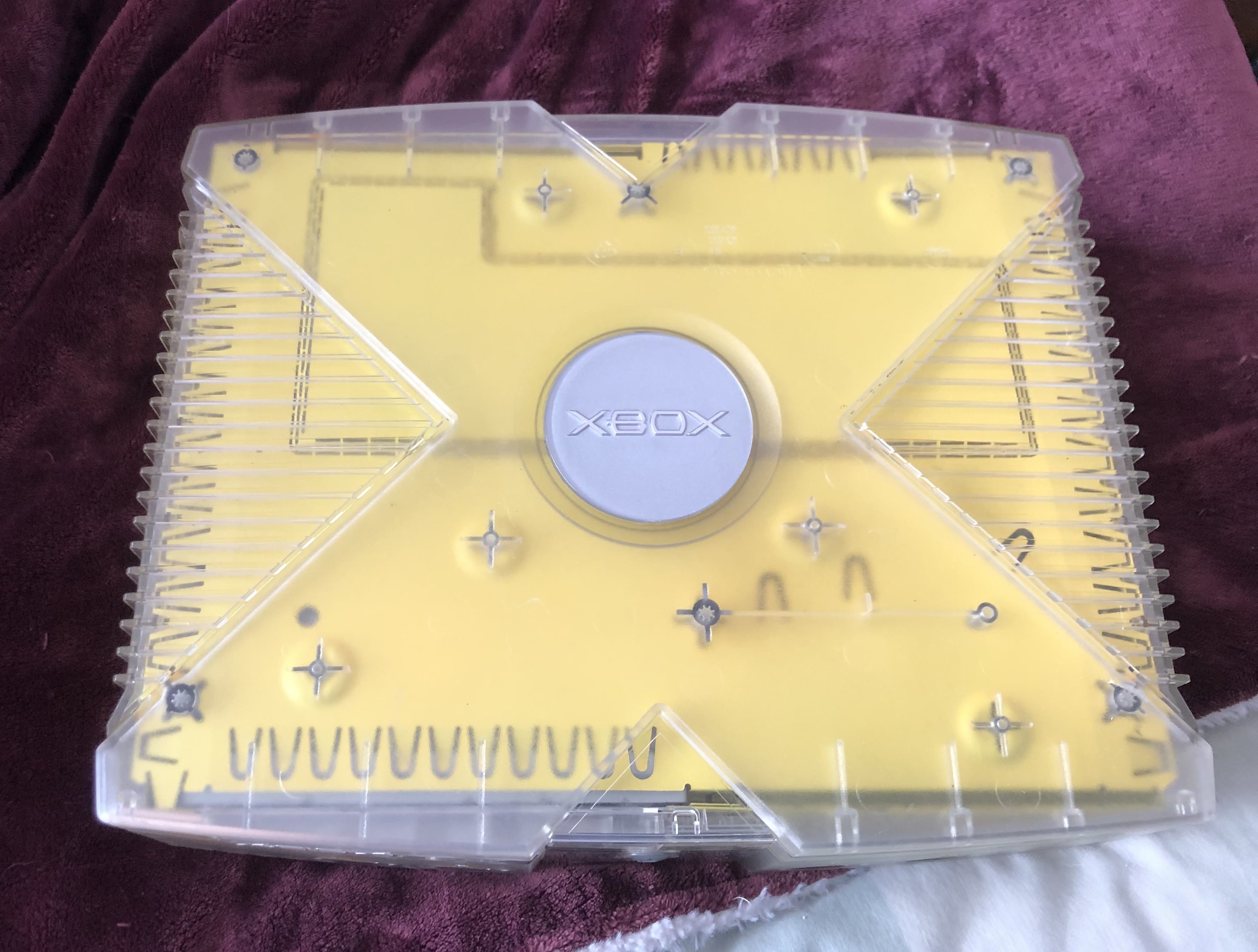

Here one where I used a Canary Yellow...









Will be adding a yellow ring of light to this one and swapping out the power leds for yellow too. This box currently has red leds in the control ports too. Might change those to yellow too....



Edited by nikeymikey
Added pics
  • Like 2
Link to comment
Share on other sites

3 minutes ago, SakisTheDrifter said:

Never remove the shield from the box. Doing so will harm the airflow direction,increasing temperatures in the proccess

Any scientific proof of this dude? Even if it did make a diff it has to be extremely minimal!!!



There is no channeling or anything on the shielding, nothing that directs airflow in any way, it has many vents in it but thats all.

Surely the shielding is for the old rf signal interference regs only and nothing to do with airflow.... I've run my x3 box for about 3/4 years now with no shielding and not noticed any temp difference at all.

  • Like 1
Link to comment
Share on other sites

Yup the tinware is purely to do with RF regs and more over that the USA regs are a little tighter, than the EU and Asia.

Be thank full you don't have an external “extra” ground like they used to insist back in the dark ages (1980’s). You were supposed to ground it as well as the ground in the mains  plug.

Been running boxes for years with out the tinware no issues on cooling and nothing noticeable regarding RF TX and RX.

  • Like 1
Link to comment
Share on other sites

1 hour ago, big F said:

Yup the tinware is purely to do with RF regs and more over that the USA regs are a little tighter, than the EU and Asia.

Be thank full you don't have an external “extra” ground like they used to insist back in the dark ages (1980’s). You were supposed to ground it as well as the ground in the mains  plug.

Been running boxes for years with out the tinware no issues on cooling and nothing noticeable regarding RF TX and RX.

Agreed, i think the guys just a little paranoid :)

Maybe he wears a tinfoil hat too :P

Link to comment
Share on other sites

I've not removed the RF shield from an Xbox but I do recall hearing about a problem if removed on v1.6 Xboxes.  Theu use the RF shield to provide a ground connection to  some parts of the motherboard.  Without it, IIRC, the there's no ground connection made to the AV port or some other circuitry in that area.  However, I could be remembering the problem wrong when it is removed from a v1.6 Xbox.

Link to comment
Share on other sites

Come to think of it I remember something like that.  I have a 1.2 and 1.6 running like that though so maybe its just certain connection types or Boards.  That said a strap link would be simple enough to tack on.

Edited by big F
Link to comment
Share on other sites

That maybe the case with the bottom shielding.  I did have a 1.6 with no top shielding and had no issues with it running. It has since been sold to a mate and he still uses it without issue afaik. Next time i get a 1.6 I'm gonna have to keep it, ram mod it and test out this shielding theory too :)

Normally I get rid of them asap.

Link to comment
Share on other sites

44 minutes ago, big F said:

Come to think of it I remember something like that.  I have a 1.2 and 1.6 running like that though so maybe its just certain connection types or Boards.  That said a strap link would be simple enough to tack on.

It's the bottom shield that makes the ground connection.  The top can be removed without a problem.  However if it's a black console, I see no reason to remove it.  On a translucent case, that's a different case!

  • Like 1
Link to comment
Share on other sites

18 minutes ago, KaosEngineer said:

It's the bottom shield that makes the ground connection.  The top can be removed without a problem.  However if it's a black console, I see no reason to remove it.  On a translucent case, that's a different case!

Yeah its mainly crystals that I used to remove it on, but seeing as the paint job came out well, i will now end up with a rainbow of colours of shielding going forward :)

Link to comment
Share on other sites

On 6/13/2022 at 4:58 PM, nikeymikey said:

Agreed, i think the guys just a little paranoid :)

Maybe he wears a tinfoil hat too :P

It also cools the incoming air down. When the air hits the cold shield it gets cooler,making more work on the warm components inside. It also acts like a heatsing since it makes contact with both the motherboard and the psu from the bottom side,absorbing their heat. I also dont like someone naming myself "paranoid" after i only said my opinion

Link to comment
Share on other sites

2 hours ago, SakisTheDrifter said:

It also cools the incoming air down. When the air hits the cold shield it gets cooler, making more work on the warm components inside. It also acts like a heatsink since it makes contact with both the motherboard and the psu from the bottom side, absorbing their heat. I also don ' t like someone naming myself "paranoid" after I only said my opinion

No offence meant dude! .

Also if the xbox has been sat in a room for a good length of time then it will be at the ambient room temp when switched on, same temp as the air around it.

As it gets hotter the shield obviously absorbs some of the heat (its metal) therefore becoming slightly warmer than the ambient room temp. So how does this make the ambient air being pulled through it cool down?

Seems backwards to me that one. Maybe its just me tho.

Still think the shielding has little to no impact as in my own test I see no difference in two Xbox's running the same setup for 2 hrs next to each other. One has shielding, one does not. Temps did not differ by more than one degree for the entire test.

People including myself have been running this systems for years with no shielding and never had any issues.

  • Like 1
Link to comment
Share on other sites

It could act as a heat sink if it was thicker as it would allow more sinking of the heat, which would create wider difference from ambient to heated which will actively pull heat from the sink. 1mm tin plated steel is not enough. It will pull some heat but nothing really notable.  To make effective it would need to be actively chilled. If you went there you’d be better to just chill the Cooler directly. You then get into the realms of Peltier and phase change cooling.
I would love to see an Xbox running phase change with a cpu temp struggling to get to 20c under load.

mmm may be I should raid my spares and build one for giggles.

Link to comment
Share on other sites

5 hours ago, nikeymikey said:

No offence meant dude! .

Also if the xbox has been sat in a room for a good length of time then it will be at the ambient room temp when switched on, same temp as the air around it.

As it gets hotter the shield obviously absorbs some of the heat (its metal) therefore becoming slightly warmer than the ambient room temp. So how does this make the ambient air being pulled through it cool down?

Seems backwards to me that one. Maybe its just me tho.

Still think the shielding has little to no impact as in my own test I see no difference in two Xbox's running the same setup for 2 hrs next to each other. One has shielding, one does not. Temps did not differ by more than one degree for the entire test.

People including myself have been running this systems for years with no shielding and never had any issues.

The bottom of the shield gets warm. The sides are were its cool(From where the air comes in). And of course i didnt mean that the difference will be big, i only wanted to say that it does make a difference,even a tiny one.

Link to comment
Share on other sites
