Problem After Flashing Custom Evox Bios

Recommended Posts

i flash custom evox bios, after that it just not boot, and switches to stock bios.

i use raincoat to flash.

board is 1.6 and i use evox.m8plus.v16.fc.137.bin from aid 4.5.3

i have no idea what i do wrong.

i then reflash it with hexen 2017 and it work OK.

Share this post


Link to post
Share on other sites
6 minutes ago, sweetdarkdestiny said:

Maybe your boot order is wrong or you point to the wrong direction for the dash the xbox should boot.

Post a screen of your custom settings in Evoxtool



xbox don't even turn on. It's not path problem.

Share this post


Link to post
Share on other sites
54 minutes ago, prtscn said:

i flash custom evox bios, after that it just not boot, and switches to stock bios.

i use raincoat to flash.

board is 1.6 and i use evox.m8plus.v16.fc.137.bin from aid 4.5.3

i have no idea what i do wrong.

i then reflash it with hexen 2017 and it work OK.



30 minutes ago, prtscn said:

xbox don't even turn on. It's not path problem.

Stupid question: I don't want to sound rude but, when we don't see your config for your bios or raincoat or even get full infos, how can we see whats wrong? And you didn't wrote that your box didn't turn on in the first place. You wrote it's booting to the MS Dash.

Share this post


Link to post
Share on other sites

Being a custom BIOS the EVTool could have changed the boot priority or, as most BIOS do, booted C:\xboxdash.xbe when it didn't find the AID/SID installed expected main dash/location and name: C:\evoxdash.xbe.

EvoxM8+ default boot priority:-

C:\evoxdash.xbe

C:\avadash.xbe

C:\nexgen.xbe

C:\xboxdash.xbe

Seems highly likely to me that if the AID EvoxM8+ BIOS installed maintains that default priority if C:\evoxdash.xbe wasn't present you wouldn't have either of the next two. So the Xbox would boot C:\xboxdash.xbe which, on a chipped dashboard installation, is still the original MS dash.

That fits what was originally said is happening.

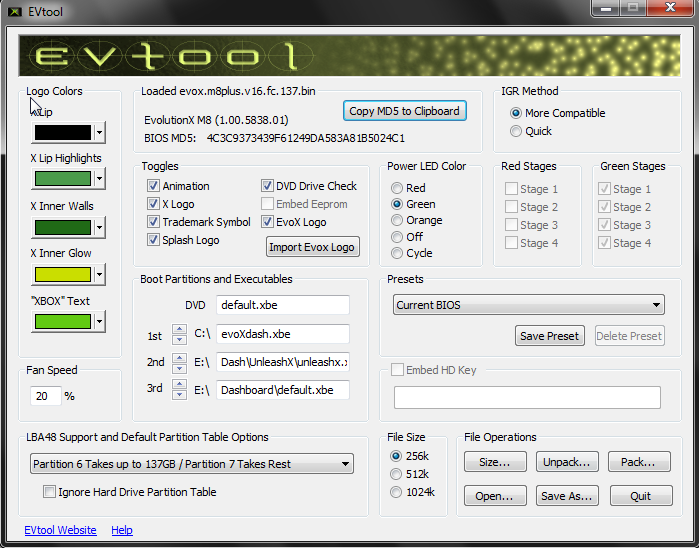

Just Checked and this is was the same BIOS from my AID V4.53 reports using the EVTool:-

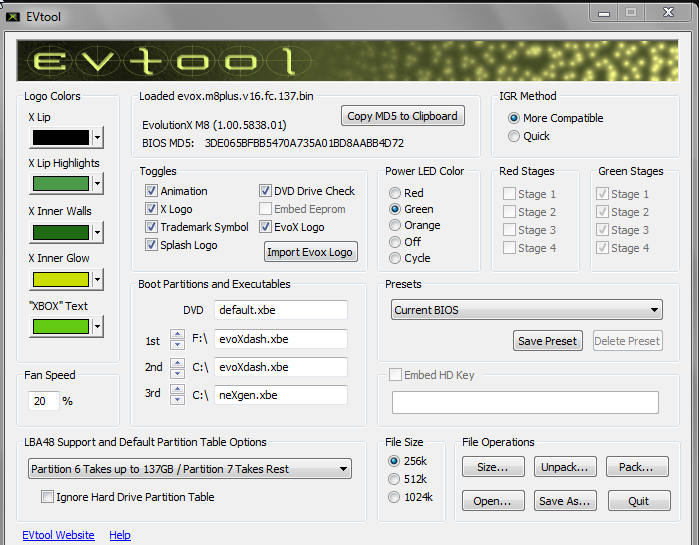

This is the equivalent from HeXEn 2017: the boot priority change is the very obvious dfference:-


As a side issue: odd that the DVD drive check is ticked in both cases. That presumably means the check is enabled. Yes?

Edited by HDShadow

Share this post


Link to post
Share on other sites
26 minutes ago, HDShadow said:

Being a custom BIOS the EVTool could have changed the boot priority or, as most BIOS do, booted C:\xboxdash.xbe when it didn't find the AID/SID installed expected main dash/location and name: C:\evoxdash.xbe.

EvoxM8+ default boot priority:-

C:\evoxdash.xbe

C:\avadash.xbe

C:\nexgen.xbe

C:\xboxdash.xbe

Seems highly likely to me that if the AID EvoxM8+ BIOS installed maintains that default priority if C:\evoxdash.xbe wasn't present you wouldn't have either of the next two. So the Xbox would boot C:\xboxdash.xbe which, on a chipped dashboard installation, is still the original MS dash.

That fits what was originally said is happening.

Just Checked and this is was the same BIOS from my AID V4.53 reports using the EVTool:-

Please login or register to see this link.

This is the equivalent from HeXEn 2017: the boot priority change is the very obvious dfference:-

Please login or register to see this link.

As a side issue: odd that the DVD drive check is ticked in both cases. That presumably means the check is enabled. Yes?

problem is i don't get to see bios boot screen, xbox just restarts few times and then loads stock bios chip.

boot partition executables are not important, because xbox don't even starts.

Share this post


Link to post
Share on other sites
8 hours ago, prtscn said:

i flash custom evox bios, after that it just not boot, and switches to stock bios.

i use raincoat to flash.

board is 1.6 and i use evox.m8plus.v16.fc.137.bin from aid 4.5.3

i have no idea what i do wrong.

i then reflash it with hexen 2017 and it work OK.

All I can think is the the 1st file has became corrupt.

What mod chip have the version 1.6 got?



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Share this post


Link to post
Share on other sites

I still can't work out what is actually happening.

prtscn said that when it was reflashed with HeXen 2017 it works OK. Does that just mean the reflashing seemed to go OK?

Is the chip still just booting to the MS dash as seems to be what is being said now?

If so and there's no EvoX logo then surely the chip is either not working properly or the BIOS is corrupted as SS_Dave suggested.

Is the HDD locked? If it is then with a malfunctioning chip it would boot to the MS dash.

Share this post


Link to post
Share on other sites
12 hours ago, prtscn said:

i flash custom evox bios, after that it just not boot, and switches to stock bios.

i use raincoat to flash.

board is 1.6 and i use evox.m8plus.v16.fc.137.bin from aid 4.5.3

i have no idea what i do wrong.

i then reflash it with hexen 2017 and it work OK.

What chip do you have installed?

Why did you use raincoat to flash your modchip? Typically that is only used for WInbond TSOPs.

Share this post


Link to post
Share on other sites
45 minutes ago, OGXbox Admin said:

What chip do you have installed?

Why did you use raincoat to flash your modchip? Typically that is only used for WInbond TSOPs.

yes, i used raincoat, because easy to upload bios, i also used xblast and same thing happened. It's alladin chip, not sure what version,  since it's hardsoldered to the board. White color chip, seems og legit.

I reflash by hotswap method, since it not booting at all - frags.

Share this post


Link to post
Share on other sites
3 hours ago, prtscn said:

yes, i used raincoat, because easy to upload bios, i also used xblast and same thing happened. It's alladin chip, not sure what version,  since it's hardsoldered to the board. White color chip, seems og legit.

I reflash by hotswap method, since it not booting at all - frags.

Which modchip is installed?



Share this post


Link to post
Share on other sites
13 minutes ago, KaosEngineer said:

Which modchip is installed?



aladdin, white color board. It's hardsoldered so i cant flip it.

I extracted hexen and edited hexen bios with custom boot logo, then i created hexen disk with my bios inside. if this fails, i don't know anything better.

Share this post


Link to post
Share on other sites

Ok, next question: what's the part number of the flash memory chip on the white Aladdin modchip?

SST 49LF020A or 49LF020

Edit: Oh, so you can't see the parts on the other side of the PCB, only the back of the modchip is visible?

Share this post


Link to post
Share on other sites


Does it look something like this one?

Can you post a picture of your modchip and LPC rebuild PCB?  Does it have a rebuild PCB installed?

From the Wayback Machine capture of Please login or register to see this link. :

Merry X'Mas with Xenochip XT White Version

The greatest season of the year are coming. We prepare the special things for celebrate. Special version of Xenochip XT are coming with the white PCB.

Xenochip XT White PCB available in Lite and Pro Version for this special event only.

Share this post


Link to post
Share on other sites
1 hour ago, KaosEngineer said:


Does it look something like this one?

Can you post a picture of your modchip and LPC rebuild PCB?  Does it have a rebuild PCB installed?

From the Wayback Machine capture of Please login or register to see this link. :

Merry X'Mas with Xenochip XT White Version

The greatest season of the year are coming. We prepare the special things for celebrate. Special version of Xenochip XT are coming with the white PCB.

Xenochip XT White PCB available in Lite and Pro Version for this special event only.

this one, can someone recommend me a bios flash tool. because my bios won't show on hexen evox bios tool, i guess i need to add config entry about my new bios.

chip works ok, it can be flashed with hexen disc. But i want to have custom bios logo. + i want fast IGR.

Edited by prtscn

Share this post


Link to post
Share on other sites

Try this version or raincoat it has the "49LF020A"  added in the INI file.



Please login or register to see this link.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

  • Like 1

Share this post


Link to post
Share on other sites

Use Evolution-X dashboard, evoxdash (aka Remotex) don't use a hexen disc simply run it from the hard drive.

EvolutionX dashboard +3935 download link:
Please login or register to see this link.

Upload the extracted content to e:\apps\evoxdash\ or f:\apps\evoxdash\.  Rename the file evoxdash.xbe to default.xbe.

If not already present, create a bios subfolder and upload your custom bios's dot bin file into it.  Power cycle the console to rebuild the applications menu of the default replacement dashboard.

Run RemoteX from the Applications menu. (RemoteX is the XBE Title in evolutionx's default.xbe file header).

Use the D-pad to highlight the menu options below then press A to select / enter each submenu function:

  • System Utils
    • Flash BIOS
      • Select the BIOS file you wish to flash from the list of available files
        • Finally, press Y to verify that you are ready to flash this BIOS file to the modchip.

Press B to go back a level in the menu.

  • Like 1

Share this post


Link to post
Share on other sites
