pmp174

2 Fan Setup

Recommended Posts

Hello Everyone

I am looking to do a slim xbox mod. I noticed some people add two fans to their xbox slim systems to keep the system cool. TechnoOnTop on youtube for example put mesh over holes he had cut on the top of his case and added a second fan. Does anyone know if this is necessary. And if so, are there good splitters to connect both fans to the motherboard.

I was thinking something like this. Please login or register to see this link.



Please give me feedback on temperatures and cooling on an og xbox slim. What has worked for others who have done this?

Share this post


Link to post
Share on other sites

There's an unused fan connector in quadrant 6A on the back edge of the motherboard between the Ethernet jack and AV connector.

On 1.0 maybe a 1.1, a connector is already installed while on 1.2-1.5 no connector is present.  This connector was used to power the GPU fan on a 1.0 console.

Share this post


Link to post
Share on other sites

With all that said, the second fan won't do much. You aren't doing your system favors if you blow air in harder than you pull air out. So you could only hope to push air in at the same speed as the exhaust is blowing out.... the problem with that is you're doing nothing. To blow air out, the exhaust fan creates negative pressure in the case which draws air in on its own.

The only real reason for fan intakes is to make sure most of the air drawn in is from this particular point and thus the airflow must be directed across certain components in the case.
The Xbox's design was actually very good for this and an intake is just not necessary.



  • Like 1

Share this post


Link to post
Share on other sites
9 hours ago, OGXbox Admin said:

With all that said, the second fan won't do much. You aren't doing your system favors if you blow air in harder than you pull air out. So you could only hope to push air in at the same speed as the exhaust is blowing out.... the problem with that is you're doing nothing. To blow air out, the exhaust fan creates negative pressure in the case which draws air in on its own.

The only real reason for fan intakes is to make sure most of the air drawn in is from this particular point and thus the airflow must be directed across certain components in the case.
The Xbox's design was actually very good for this and an intake is just not necessary.



So... Should I add a second fan or just leave the system as is when I do the slim mod? has anyone had there system overheat/get damaged?



Share this post


Link to post
Share on other sites
19 hours ago, pmp174 said:

So... Should I add a second fan or just leave the system as is when I do the slim mod? has anyone had there system overheat/get damaged?



Let's try this.
Why are you thinking of adding the second fan?

Share this post


Link to post
Share on other sites
1 hour ago, OGXbox Admin said:

Let's try this.
Why are you thinking of adding the second fan?

I'd like to add one to bring cool air in and one to pull hot air out. I just want to know if a second fan is necessary for a slim mod, and if it is, what my options are.

Edited by pmp174

Share this post


Link to post
Share on other sites

If you are removing the hot air from the inside of the Xbox with a fan ,Air from outside will be sucked in to fill the void left in side the Xbox.

1 fan is all you need but to satisfy your self set it up with one fan and check the temp's.



SS Dave



Those who can hard-mod, Those who can’t soft-mod.

Share this post


Link to post
Share on other sites
19 hours ago, pmp174 said:

I'd like to add one to bring cool air in and one to pull hot air out. I just want to know if a second fan is necessary for a slim mod, and if it is, what my options are.

I already explained this in my post above. Let's try it a different way.

If you don't have a fan blowing cool air in, what do you think happens? Do you think the exhaust fan blows all the air out of the inside of the case and then there just isn't any anymore?

Share this post


Link to post
Share on other sites

Alright let's try it this way.

I am doing an Xbox slim mod. Essentially cutting off the area in the disk drive to make the Xbox slimmer because it's too big.

A person on the forum told me an effective way to keep it cool is to cut a hole in the Jewel and add a fan. I've also seen videos on YouTube where another modder made holes in his case, added mesh, and a second fan to keep it cool.

If anyone has done a slim mod, and hasn't had to add an extra fan, please let me know.

That way I won't waste my time and any more money adding an additional fan.

Edited by pmp174

Share this post


Link to post
Share on other sites

Like I said try it with 1 fan and check the temperature of the CPU if you think it's running to hot  try different fan speeds or maybe try some other types of fans and if all else fails add a 2nd fan.



SS Dave




Those who can hard-mod, Those who can’t soft-mod.

  • Like 2

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

Sign in to follow this

  • Similar Content

    • By Ninja Dog
      Hi all! I think I'm in the right place. First bought this awesome console back in May 2002 as a gift to myself for finishing college (4 years late but I finished!) Became a big video game fan on and off ever since. Having this in 02 made me buy a PS2 as a birthday gift that summer. I'm a Sony and MS game console guy. Just recently picked up my OG Xbox from ebay and now I watched some videos to take it apart. I got a 1.6 and wanted to check how its guts look. I want to post pics to get opinions or a diagnosis from you experst if I should go any further with taking it apart. It's playing fine and hooked up to my 1080p Vizio via HDMI. Hope to talk to some of you and get some direction where to post my pics. Thanks!
    • By shaokhann
      Hello, everyone,
      I have updated xbmc4gamers to include it on partition F.
      I also downloaded the FanArt package for xbox games but even though they are active only 2 games have images.
      Where can I see the partition where the FanArt was downloaded, and especially where should I place them to have all the images and covers of my xbox titles?
      Thanks to everyone.
    • By big F
      So I was looking back at some of my modding info I have saved from the net over the years.

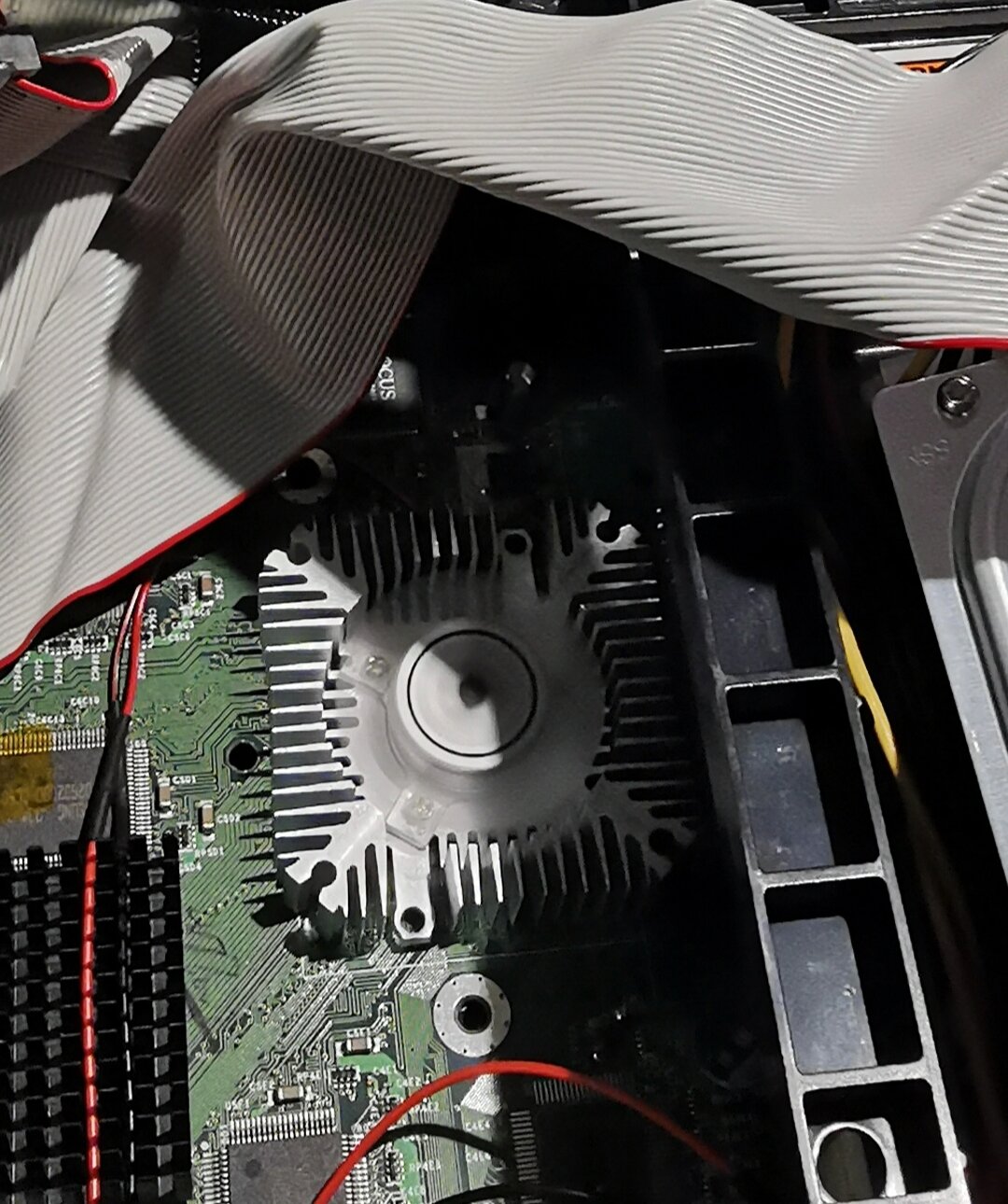

      With regards of cpu and gpu coolers, we have all put larger fans on the stock coolers and 80mm fan mods.
