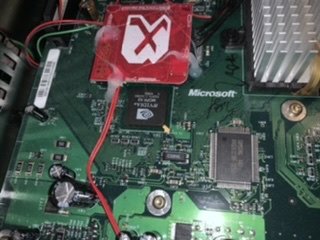

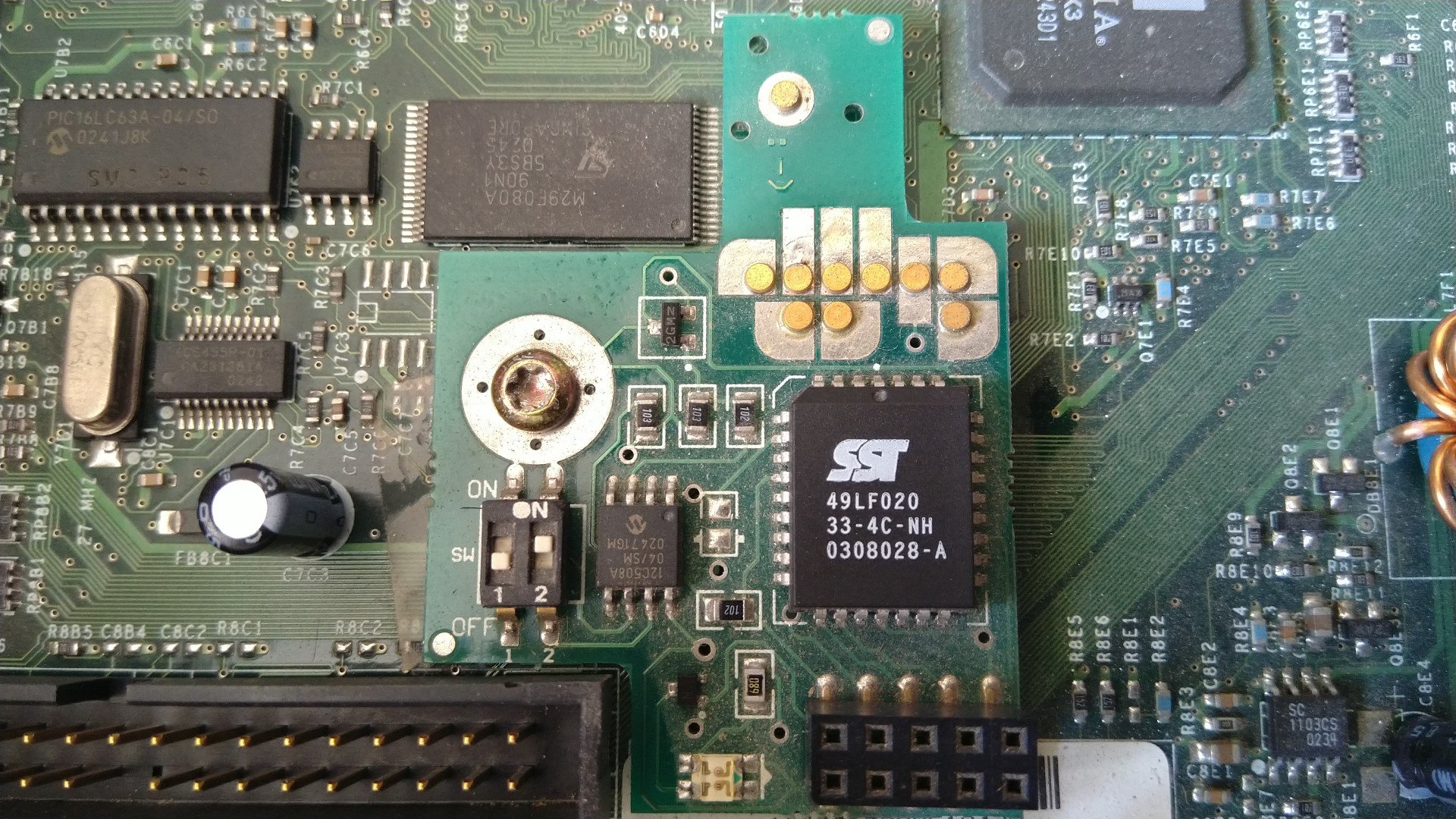

This machine boots and runs. I've been trying to find a wiring diagram to find out where this gray wire is supposed to be. I'm not 100% but I believe this is an old 2 piece execute chip. Any help would be appreciated
Please login or register to see this attachment.

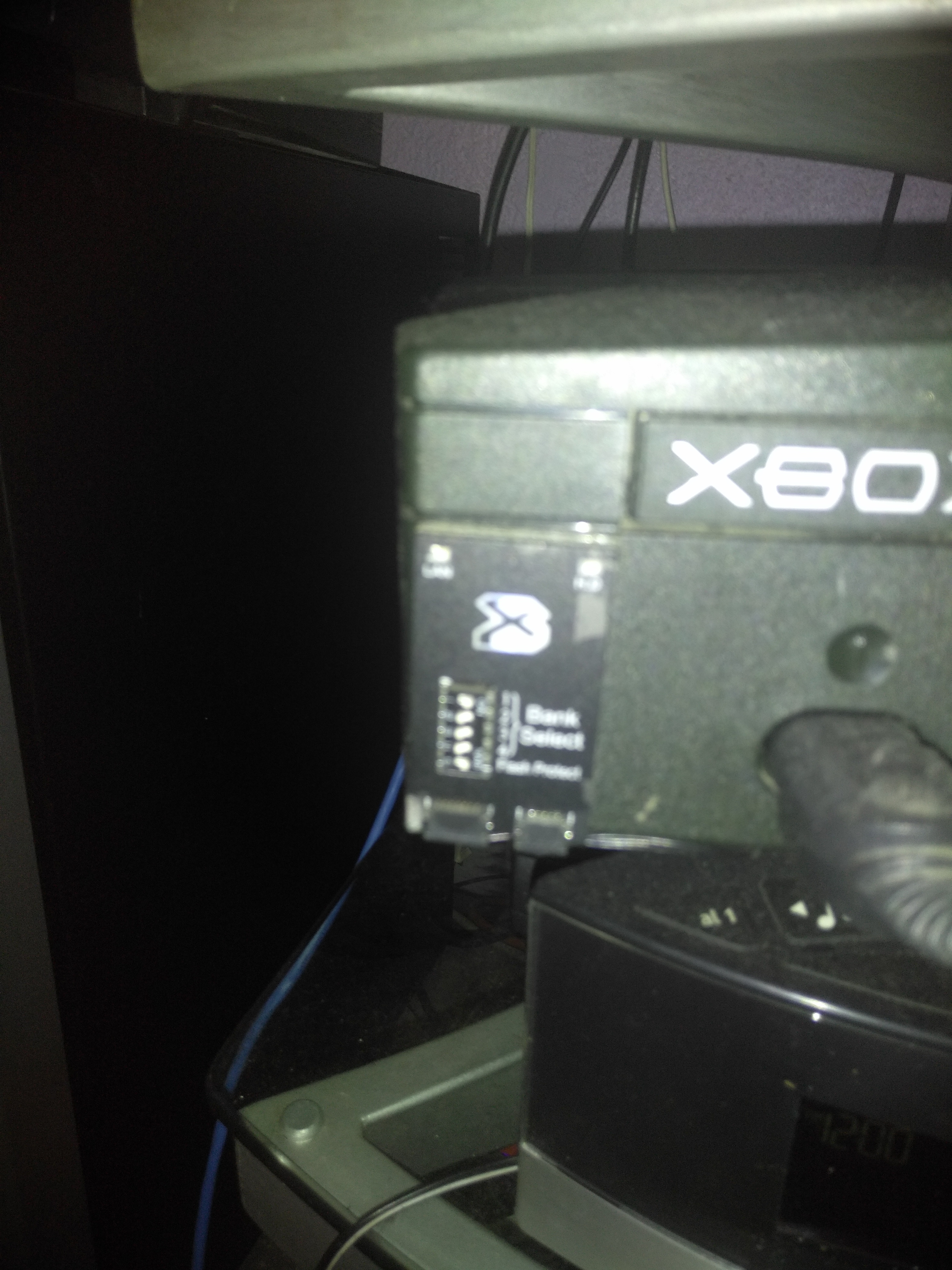

Reaching out as i was hoping you could help.

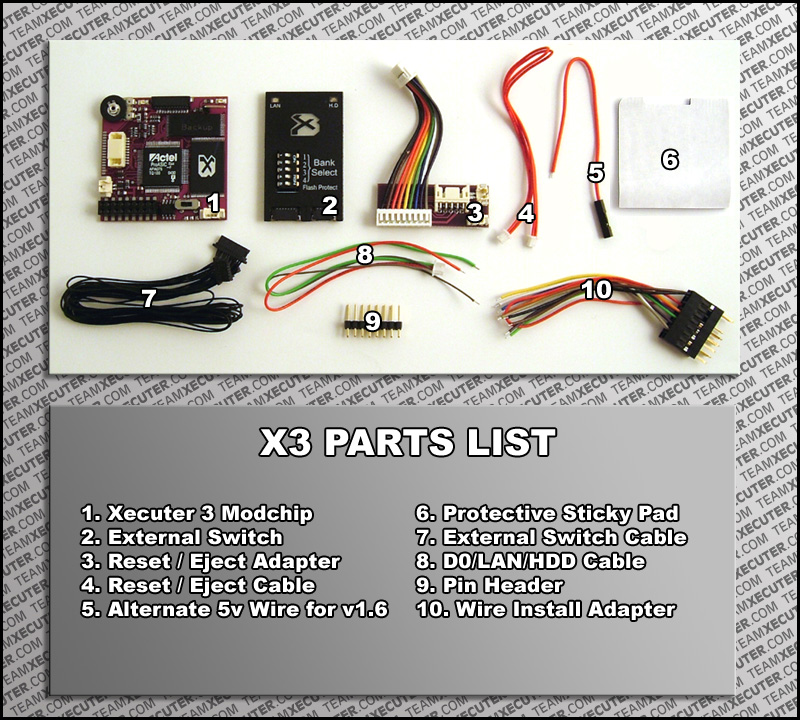

A couple years back i bought another x3 modded xbox and it turned out the chip was faulty. Recently i have decided to revisit this and see if its possible to get this chip working.
It is installed in a 1.6 version xbox. So far i have swapped the x3 from another 1.6 box and was able to transfer the fault between machines so i know its the modchip.
I am getting the 3.3v and 5v lights on the chip, and the bank switcher lights and button functions are working. I cannot get onto the backup nand either. I have a feeling the previous owner corrupted the main nand as I am unable to flash any bios to the chip. xblastos detects the chip as an xecuter 3 but no other apps can see it.
Just wondering what is left to do? is there a utility that defaults the nand or can recover from a suspected bad flash?
Out of my depth here now, as i've owned numerous x3 boxes over the years but none have ever given me any hassle.
Hope you guys can help.
