Why Are XBox Power Supply Upgrades Neglected?

Recommended Posts

I am reposting this topic again because i think the topic was pulled down.  I asked a question?, To all the owners, modder's, collector's whatever, whoever.  The God knowledge CPU upgraders...ETC

Why is the Power supply upgrade neglected?  Come on guys make your system better than ever,   the ultimate original xbox

Power Is the single most vital none motherboard component in you hybrid pc game console that can be improved really easy if you wanted to.  Give your system a larger deeper well of wattage to draw water from, so your system will run more efficiently then ever before because not a single watt asked for is not given to it immediately with ease of operation.

Have your fan's run faster and at full speed effortlessly,  Open the possibility for other hardware mods or definitely other cooling mods.  Power is important,

not to big ...'

not to small

but just the right oversized power supply,

  Bigger than the manufacturer's  But not too big.  Any flex atx will do with modification.  Or heavy modification depending on what your skill set is and what equipment you have to work with.  Message me with questions and i will give you my email.. Console power supplies suck.    Power was limited by the space in witch the power supply had to go into at the time of current technology of consoles.  Consoles are computer's dummed down.  Anyway point being always and i mean always upgrade the consoles power supply first then the rest of the crap.

  Cpu upgrade, ram upgrade, mod chip upgrade,  lights upgrade, cooling upgrade.  Blah Blah Blah,

What do all of these mods have in common?

More Power consumption of the system.  They are all almost worthless without the larger wattage well to draw from...  Upgrade your power supplies to these amazing modded consoles.

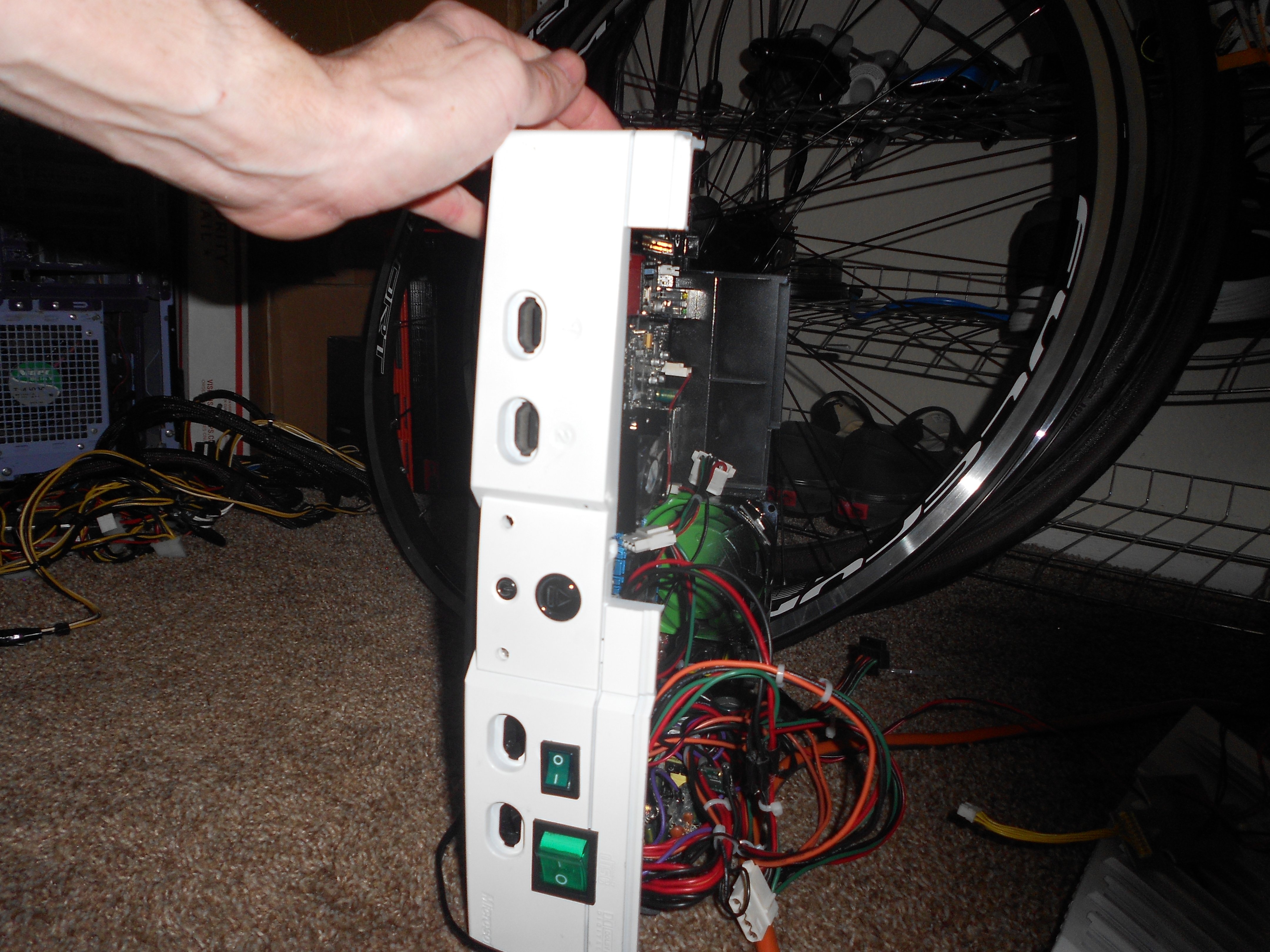

Compliment your ram upgrade, cpu, upgrade, mod chip upgrade, lights upgrade, etc with a better atx power supply.  Any flex atx will do see my photos on mine. Also i am selling on ebay 4 fat model ps2's custom painted with a double size power supply riged in it.  It runs better than ever.  Despite maximum wattage use.  That is based on an inadequate power supply that is small enough to fit in a compact space.  Now uh days we have 1U server power supplies that deliver up to 1000 watts, Flex atx, standard 1u flex atx, tfx, sfx...ETC U name it... it exist now... Compact power punching power supplies.  It just takes a little creativity and a little desire to upgrade.  Remember the xbox uses a 3.3 standby mode.  So you have to mod you small power supply to do this.  Easy money,  just get a step down transformer tiny logic board.  Convert 5 volt volt stand by VSB to 3.3 VSB.  USING A BUCK CONVERTER.

Please login or register to see this attachment.

Please login or register to see this attachment.

Share this post


Link to post
Share on other sites

It has been deleted because it keeps getting reported. You sound like Billy Mays trying to sell some garbage on an infomercial. Everyone knows that they don't need to "upgrade" their power supply unless they are adding a ton of lighting or some such thing. Give it a rest or buy a vendor slot.

Share this post


Link to post
Share on other sites

In my case I am just happy upgrading my USA PSU 110v to a 220v PAL PSU, that N64freak sent me. I needed this because in my country Chile we have 220v but NTSC format. Sadly customs charged me almost 35 dollars in TAX, because according to them, it was a console...



I am still happy though, custom bastards won't take away my happyness :) (the problem was that N64freak sent me 4 PSU, that's the other reason I got taxed...)



Cheers to all.

Share this post


Link to post
Share on other sites
1 hour ago, Hector Hidalgo said:

In my case I am just happy upgrading my USA PSU 110v to a 220v PAL PSU, that N64freak sent me. I needed this because in my country Chile we have 220v but NTSC format. Sadly customs charged me almost 35 dollars in TAX, because according to them, it was a console...



I am still happy though, custom bastards won't take away my happyness :) (the problem was that N64freak sent me 4 PSU, that's the other reason I got taxed...)



Cheers to all.

So was that 100% tax or close to it.

The government has to make money some how.

It probably should have been marked as spare parts.



Cheers

SS Dave





Those that can hard-mod, Those that can’t soft-mod.

Share this post


Link to post
Share on other sites
10 minutes ago, SS_Dave said:

So was that 100% tax or close to it.

The government has to make money some how.

It probably should have been marked as spare parts.



Cheers

SS Dave





Those that can hard-mod, Those that can’t soft-mod.

Mostly the government stealing money from me, about 33 dollars exactly, and they marked my power supplies like they costed 100 dollars the package and from that completely fictitous number, they charged the TAX.



By the way SS Dave, I am doing my replacement of the power supply right at this moment. Do you know wich PSU is better? I have 3 Delta PSU's and 1 Tuscany. The only difference is that the Tuscany seems to have more copper resistors and staff.



Any idea of which is a better brand? Thank you Dave! You are super helpfull :)



Edited by Hector Hidalgo

Share this post


Link to post
Share on other sites

I have found that all the power supply's are about the same but in saying that the Foxlink one interferes with my Ham radio if it's near (1 meter + away) the radio and the top is off the xbox where's the Delta one' s don't.

I had a quick look around here and 2 of the box's I am working on have Delta supply's and the Xbox in the Man cave has a Foxlink and I have a Tuscany in a untested box.

One thing I have noticed that the power supply's get warm even when in standby from memory around 38 degrees Celsius after 1 hour of no usage measured with a non-contact temperature gauge room temp around 20 deg.

I use a auto power board for the man cave one that removes all powers but the master outlet which is has the TV plugged in to that. Saves power but more importantly no heat in the power supply when not in use. the others I switch off at the wall when not in use.



Cheers



SS Dave



Those who can hard-mod, Those who can’t soft-mod.

Share this post


Link to post
Share on other sites
2 hours ago, SS_Dave said:

I have found that all the power supply's are about the same but in saying that the Foxlink one interferes with my Ham radio if it's near (1 meter + away) the radio and the top is off the xbox where's the Delta one' s don't.

I had a quick look around here and 2 of the box's I am working on have Delta supply's and the Xbox in the Man cave has a Foxlink and I have a Tuscany in a untested box.

One thing I have noticed that the power supply's get warm even when in standby from memory around 38 degrees Celsius after 1 hour of no usage measured with a non-contact temperature gauge room temp around 20 deg.

I use a auto power board for the man cave one that removes all powers but the master outlet which is has the TV plugged in to that. Saves power but more importantly no heat in the power supply when not in use. the others I switch off at the wall when not in use.



Cheers



SS Dave



Those who can hard-mod, Those who can’t soft-mod.

So you are saying ALL (Tuscany, Delta, etc) PSU's get warm while only plugged in to the wall? And with the Xbox turned off?



It would be a bummer, because I bought this PSU in hopes of simply keeping it plugged in to the wall all the time without having to worry... and of course so I don't have to use a heavy and noisy power down converter (110v to 220v).

And thank you Dave for your always amazing and constructive feedback ;) Is always nice to read your experiences on the matter, is cool.





Edited by Hector Hidalgo

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

Sign in to follow this

  • Similar Content

    • By aries
      Have a NTSC xbox 1.0 console but live in Italy here is the 220v current,you can mod the PSU to 110v to 220v? at the moment use a step down converter and works fine.
    • By ttsgeb
      This is going to start out as just being copied directly over  from my thread on BitBuilt about the project.
      Please login or register to see this link.

      The xbox has some mildly odd power requirements. It uses the same 20 pin Molex MiniFit Jr connector that an ATX PSU output, however the pinout is completely different.

      As it stands, the typical solution is to use a PicoPSU, a small ATX PSU, a modify it to work with the original xbox.  PicoPSUs can be had for around $15, the power supplies for them can be had for around $10.  It's a very inexpensive solution.  Traditionally when this is done, the Power OK and Power On lines are ignored, the PSU is set to always on, and the wires are run all catywumpus to get to where they need to go.  While this solution works, it's definitely a hack, and I believe we can do better.

      So what are the xbox's actual power requirements?
      While I haven't actually cut up a power supply and tried to get the xbox to full load while measuring the current draw, I have a V1.1 PSU here that handily has the power requirements right on the label.
      Max Output Power: 96W
      DC Output:
      +5V -- 13.2A
      +3.3V -- 4.8A
      +12V --1.2A
      +3VSB -- 0.045A
      I hope it's safe to assume that further revisions of the xbox had similar or lower power draw.  Regardless, this seems like a good starting point.

      So, how do I plan to accomplish this?
      With 4x LM2678 Regulators from Texas Instruments.
      Please login or register to see this link.
      Why 4 regulators for 3 voltages?
      The LM2678 is a 5A regulator. I need 13.2A on the 5V line.  Having looked at the specs for the PicoPSUs that seem to work just fine, they're rated for 8A on the 5V line. This leads me to believe that 10A should suffice, so I'll need two regulators for 5V.
      I'll also need a 12V regulator, as I plan to run this off of an easily obtainable laptop power supply rather than needing to source an 8A 12V supply.
      I will also be designing a smaller footprint alternative that runs off of 12v for when space is of the highest concern.  I'll likely also break down the xbox's power requirements even further at some point to see if I can't design a PSU that allows for aggressive trimming, but that's much further down the road.
      --------------------------------------------

      I've designed the first iteration of the 24v board, it's 60*32mm. Now that it's done, I don't like it for a variety of reasons. I'm going to try again, putting the low profile components on the backside of the board and the tall components on the topside of it. Maybe I'll be able to squish it down a bit more in the process.
      --------------------------------------------

      There, that's a little better.
      27.5*49.25 mm
      --------------------------------------------
      Oh, hey, I worked on this a bit.
      I ditched the 12v regulator and changed it to 12v in. I also had to source different inductors, which are sadly larger, so the whole board got a couple of mm wider in the process.

      26.5mm*57.2mm

      I think I'm gonna actually order this one, and see if it works.
      --------------------------------------------
      I've since looked at the most recent revision and noticed a couple of flaws in it. I've repaired those flaws, and I'm gonna sleep on it again, look at it with fresh eyes tomorrow, and probably order it.
    • By sweetdarkdestiny
      Like the titel say...

      Source: https://www.theverge.com/2020/5/21/21265995/xbox-source-code-leak-original-console-windows-3-5

      Have a nice day guys.

Board Life Status


Board startup date: April 23, 2017 12:45:48
×
×
