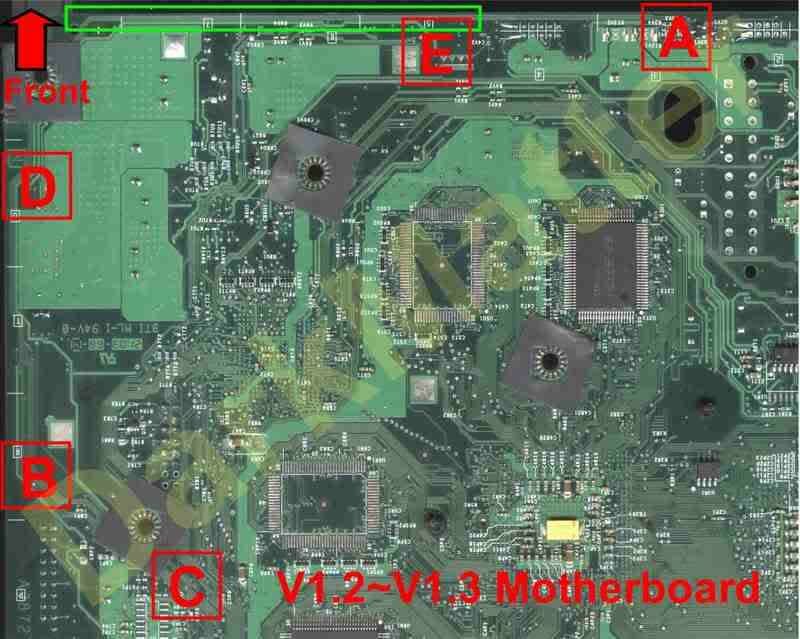

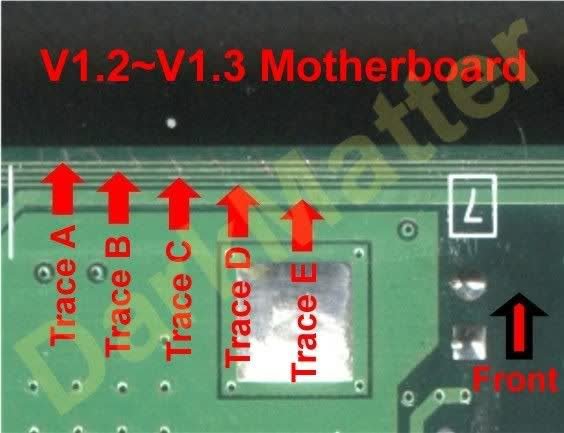

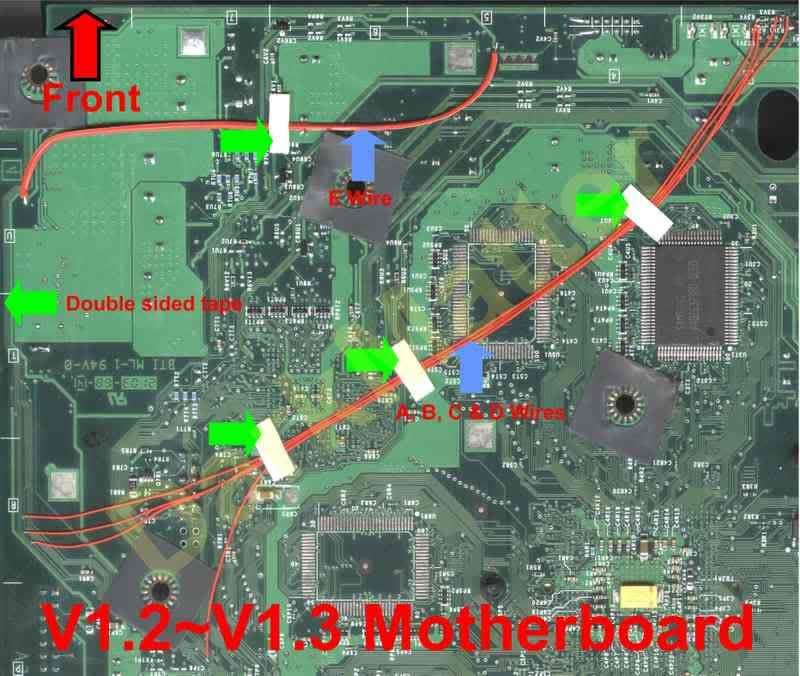

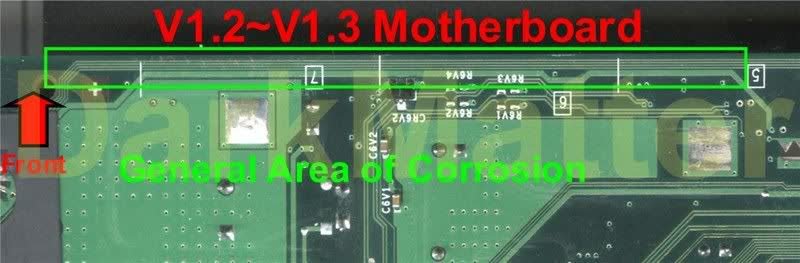

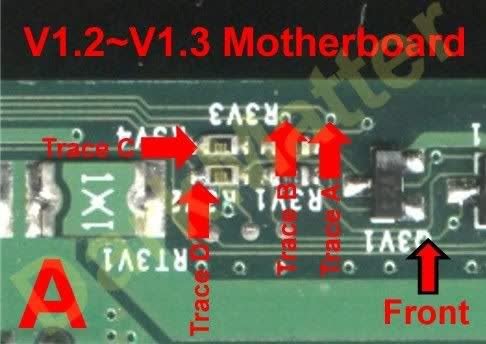

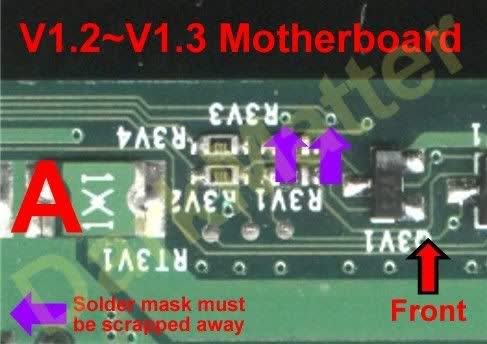

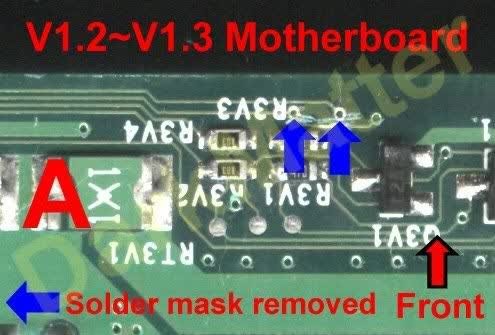

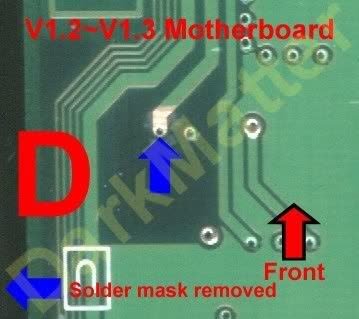

T2Steve Posted April 26, 2017 Report Share Posted April 26, 2017 Here's the first article - stolen from ISOZONE where it was stolen from XBOX-Scene symptoms of this include the xbox powering on automatically as soon as plugged in, as well as not responding to power button presses, or randomly powering on/off. I got a request by a member from another Forum to do a tutorial on the V1.2~V1.3 motherboards on the trace corrosion issue. I will pretty much use the same words as the previous tutorial, as it will save me some time. Here it goes: Disclaimer: I take no responsibility if you damage your motherboard, X-Box or person when doing this tutorial. Do so at your own risk. It has been pointed out by chunkhead from the afterdawn.com and llama.com Forums that some X-Box motherboards have a corrosion problem on some traces. This corrosion is due to some sort of contamination from the factory. Due to this corrosion, it was found that some X-Boxes affected can produce the following symptoms: (1) The X-Box fails to power down using the power on/off button on the front panel. The power cord has to be pulled out to shut it down. (2) As soon as the power cord is plugged in, the X-Box powers up without pressing either the on/off or eject buttons. (3) While the X-Box is on for a certain amount of time, it shuts down by itself for no reason. The time factor before shut down can vary wildly. Corrosion on traces will cause less current flow due to part of the copper in a trace being eaten away and the copper itself changing its chemical composition, almost turning it into a resistor. Just cleaning the trace from this contamination will not fix the problem. You may be lucky enough that it will work, but it will more than likely fail once again at a later stage. This tutorial will show how you can bypass the affected traces using kynar wire. It wouldn’t hurt to clean up this contamination to prevent any further deterioration of the affected trace/s, as well as preventing any cross contamination. I have to admit that I personally haven’t come across this problem, but I don’t doubt that the problem does exist. At this point, thanks are in order for chunkhead who was the one who identified this problem in the first place. I’d have to say it was an excellent find. Performing this trace repair is almost like installing a modchip. Therefore if you’ve had experience in this department, then it should be a breeze. If you’re not handy with a soldering iron, then DON’T attempt this yourself. Get a friend or worst case; pay someone to fix it for you. Just point him or her to this tutorial and they shouldn’t go wrong. Doing this trace repair for someone who can’t solder is almost guaranteed to do more damage, and perhaps a worst case: damage beyond repair. You have been warned. Before we get into this tutorial, read through it first to give you an idea of what is involved. It will also give you an idea of whether you want to do it yourself, or if you would prefer to palm it off to someone else. I’m not going to explain how to open your X-Box and remove the motherboard. There are plenty of tutorials on the internet for this. Here is a list of tools and materials needed for a successful repair: TOOLS: • 15~40 Watt Soldering iron • Fine flat bladed screwdriver (Jewelers type) or fiberglass pen • A pair of side cutters • Magnifying glass • Good lighting MATERIALS: • Kynar wire (30 AWG or finer) • Stranded wire slightly thicker than Kynar (Optional) • Solder (0.7mm thickness is best or thinner if you have) • Desoldering braid (Optional) • Liquid flux (Optional) • Double sided or insulated tape With your motherboard removed from the X-Box, place it so the bottom is facing up. Look at the following picture to give you an idea of where the corrosion is usually located, plus a view of The Sections of Interest The green lined box shown above is the general area of corrosion. The picture shown below gives a better close-up: Next picture is courtesy of chunkhead showing the actual corrosion (Picture has been watermarked: “chunkhead”): At this point, it’s best to closely look at where your corrosion is located and what traces are affected. Use a good magnifying glass for your inspection. You also need to determine if you need to repair trace E. Trace E will be shown in a picture further down. This trace is used as a voltage source, what voltage it is exactly I don’t know. But in most cases voltage traces are a fair bit wider than signal traces. If your motherboard has contamination on the E trace, then you will need the thicker wire as listed in the MATERIALS. If you see no contamination on the E trace, then you won’t need the thicker wire. Thus there is no need to repair this section. But if you do need to do the E trace bypass (repair), then it’s very critical you use thicker wire than Kynar. If you can’t find the right size wire for this, you can always parallel two or three lengths of Kynar wire to give you a required thickness. I’ll leave it up to you in which direction you want to go. DON’T go using really thick stuff. You’ll only end up making a mess, plus it’s not a heavy current area. When you have determined which traces you need to bypass, have a look at the next picture which shows the traces and the tagging I have given for each: The next picture shows where one end of your Kynar connections should be soldered: The next picture shows where the other ends of your Kynar wires should be soldered to: Next picture shows trace D’s position: Next two pictures show the positions of the E trace bypassing: Next picture shows that you MUST scrape away some solder mask from the vias for Traces A and B. Unlike the V1.0~V1.1 motherboards which have their respective vias exposed and tinned already from factory: Next picture shows the mask removed. To remove some of the masking, gently scrape it away using the fine tipped flat bladed jeweler's screwdriver or fibreglass pen. Try not to gouge it like I did. If you do need to do the E trace bypass, then you MUST again scrape away a little of the solder mask on the track to allow a thicker wire to be soldered on properly. The next two pictures shows some of the mask scrapped away from both ends: Last picture shows the completed job: Ok, lets start by attaching a wire for your A trace. Look at picture A. You need to attach your wire to the small via. But first measure the required length of Kynar wire by placing it over the motherboard. The other end needs to go to the A pad shown in the B picture. Give your length a few mills extra and strip off a small portion of insulation on both ends. Leave only about 1mm (1/32”) of exposed wire on each end. Solder in a small amount of solder into the via shown in picture A. Make sure the solder sticks to the via before soldering the wire to it. You may have to give it a couple of tries before the solder takes. Now solder the wire to the via. Now look at picture B and solder a small blob of solder onto the pad. Now solder the wire to the pad. You’ll find that soldering to the pads and resistors are much easier than soldering vias. Thankfully there are only two you may need to deal with. Now do the same as above for the B trace wire. When soldering to the resistors of your C and D trace wires, allow a little more wire exposure on the respective ends, say around 2mm (1/16”). DON’T leave the iron on the resistors for too long, otherwise you risk moving them. I don’t think there is any need to explain how to do the other wires, it’s only logical the sequence of steps you need to use. If you need to do the E trace, then make sure you scrape off some solder mask and solder to that rather than to it’s vias. Remember: solder a small blob on the exposed copper before soldering the wire to it. When you’ve completed all your wiring, secure it down with some electrical or double sided tape. You can use hot glue, but DON’T hot glue any of the solder joints. Go over ALL your work carefully to make sure you haven’t made any mistakes. When your satisfied that everything is ok, then reassemble everything back into your X-Box and test it out. Hopefully your X-Box has been fixed and is behaving as it should. If you’re still having problems with your X-Box, then please post in the appropriate section and hopefully I or someone else can help you out. Good Luck!!! 1 1 Quote Link to comment Share on other sites More sharing options...

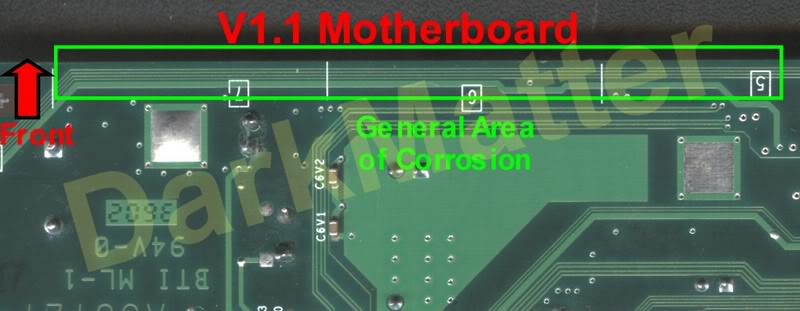

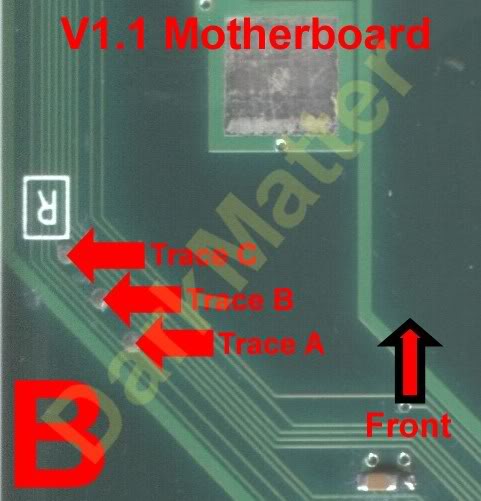

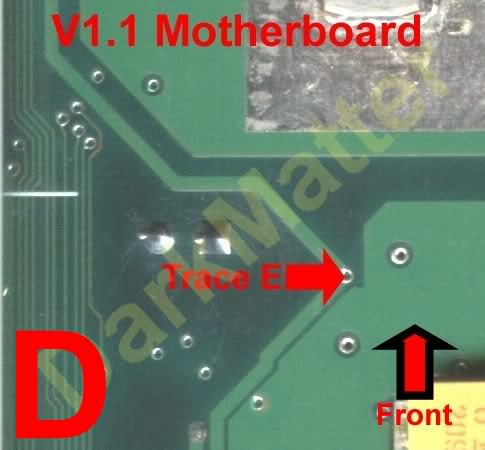

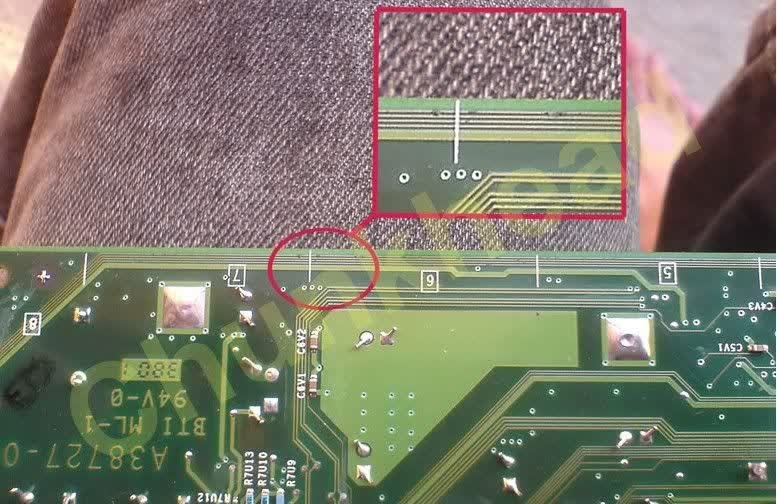

dark Posted May 3, 2017 Report Share Posted May 3, 2017 Pictures for the version 1.0-1.1 trace corrosion repair 2 1 Quote Link to comment Share on other sites More sharing options...
Prinler Posted May 11, 2017 Report Share Posted May 11, 2017 Absolutely amazing write up good sir! I think you just may have saved me not only a ton of time looking for help on this but my xbox board in the process. - Prinler Quote Link to comment Share on other sites More sharing options...
T2Steve Posted May 13, 2017 Author Report Share Posted May 13, 2017 On 2017-05-11 at 1:11 PM, Prinler said: Absolutely amazing write up good sir! I think you just may have saved me not only a ton of time looking for help on this but my xbox board in the process. - Prinler No worries. I cant take credit for the original tut, but I'm happy to share this out so that more people can fix their xbox Quote Link to comment Share on other sites More sharing options...
Dave C. Posted August 18, 2017 Report Share Posted August 18, 2017 There is an extensive amount of great information here. What a time saver to have found this! Quote Link to comment Share on other sites More sharing options...

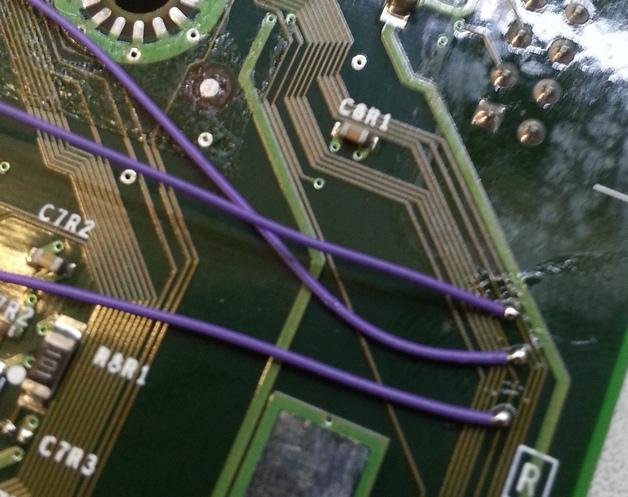

BIGDADDY51200 Posted March 10, 2018 Report Share Posted March 10, 2018 Completed my first trace repair today. Thanks for the write up !! Quote Link to comment Share on other sites More sharing options...
heroofthedayV2 Posted November 8, 2018 Report Share Posted November 8, 2018 Does Somebody hast Pictures of a 1.4 diagram 1 Quote Link to comment Share on other sites More sharing options...
AraldoJanes Posted May 9, 2019 Report Share Posted May 9, 2019 Hi... here are two primary electrochemical corrosion mechanisms: galvanic and electrolytic. Galvanic corrosion occurs when two different metals are in electrical contact in the presence of an ionic liquid or an electrolyte solution. There is a natural voltage difference between the two metals (known as the “electrode potential”). As a result, current flows towards the more resistant metal, and the more resistant metal corrodes faster. Quote Link to comment Share on other sites More sharing options...
NoobInDistress Posted June 15, 2019 Report Share Posted June 15, 2019 kudos to all who contributed to this topic and especially to the OP who saved it from disappearing. this thread for sure is THE remedy to resurrect already dead boxes. ok, i might exaggerate a bit but it helped me to figure out what was wrong with my beloved media player and how to fix it. (although i ended up swapping the motherboard from another xbox of mine since i knocked off a small and corroded resistor next to the leaking clock cap) big time THANKS Quote Link to comment Share on other sites More sharing options...
Kik5u Posted June 25, 2019 Report Share Posted June 25, 2019 Hi. Noob question, does corrosion of traces happen only when the clock capasitor leaks or can it happen also in like 1.6 board? Quote Link to comment Share on other sites More sharing options...
KaosEngineer Posted June 25, 2019 Report Share Posted June 25, 2019 All electrolytic capacitors have the possibility of leaking and going bad. Thus far, the supercap used on the v1.6 consoles for its clock cap have yet to leak in the numbers that have on v1.0-1.5 consoles. The location of the v1.6's capacitor is different than on v1.0-1.5. Leaked electrolyte from a v1.6's clock cap will most likely cause a different set of problems to occur than with v1.0-1.5 clock cap leakage if and when they do fail. Quote Link to comment Share on other sites More sharing options...
Kik5u Posted June 26, 2019 Report Share Posted June 26, 2019 Does anybody know on 1.6 board where does trace D end up to? Quote Link to comment Share on other sites More sharing options...
alcuin Posted August 27, 2019 Report Share Posted August 27, 2019 ty so much for rehosting this. Quote Link to comment Share on other sites More sharing options...
c0tt0nm0ufh Posted September 27, 2019 Report Share Posted September 27, 2019 TY sir, haven't needed to this yet but all help is appreciated. Quote Link to comment Share on other sites More sharing options...
Joe b Posted September 29, 2019 Report Share Posted September 29, 2019 I can not see the images they are all blurred Quote Link to comment Share on other sites More sharing options...
v3L0CD Posted September 29, 2019 Report Share Posted September 29, 2019 Outstanding! I appreciate the information. Quote Link to comment Share on other sites More sharing options...
EnkryptiK Posted September 30, 2019 Report Share Posted September 30, 2019 Awesome. Figured this was the issue with a buddy's system and now I'm pretty sure it is. I know for a fact that he didn't remove the clock capacitor because when I mentioned it, he'd not heard of the reasoning behind it. Quote Link to comment Share on other sites More sharing options...
Natetronn Posted December 16, 2019 Report Share Posted December 16, 2019 (edited) Non blurry images from first post: Edited December 16, 2019 by Natetronn 1 Quote Link to comment Share on other sites More sharing options...
Natetronn Posted December 16, 2019 Report Share Posted December 16, 2019 And a imgur, just in case: https://imgur.com/gallery/thNetkk 2 Quote Link to comment Share on other sites More sharing options...
dirtrider735 Posted January 12, 2020 Report Share Posted January 12, 2020 Nice Quote Link to comment Share on other sites More sharing options...
killscr33n Posted April 19, 2020 Report Share Posted April 19, 2020 Gonna attempt this on a 1.4 xbox with bad trace on trace A. How do I know if I need to scrape the via or not? Kinda want to avoid this if I don't need to do it as I don't have a fibreglass pen Quote Link to comment Share on other sites More sharing options...
SS_Dave Posted April 19, 2020 Report Share Posted April 19, 2020 When you scrape the green enamel from around the via it gives a bigger spot to solder to. I can normally get the solder to take without scraping. I highly recommend to practice on a old circuit board 1st before you try on your Xbox. Cheers SS Dave Soft modding is like masturbating, It get's the job done but it's nothing like the real thing. Quote Link to comment Share on other sites More sharing options...
shakex Posted April 24, 2020 Report Share Posted April 24, 2020 Interesting. I have a 1.0 Xbox that I just picked up and sometimes it powers on when I just simply plug it in. It seems like I'm going to have to breakout the soldering iron. Quote Link to comment Share on other sites More sharing options...
SS_Dave Posted April 25, 2020 Report Share Posted April 25, 2020 Yep and I have now seen 2 where the damage has also prevented the control ports 1 and 2 from working. Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. Quote Link to comment Share on other sites More sharing options...

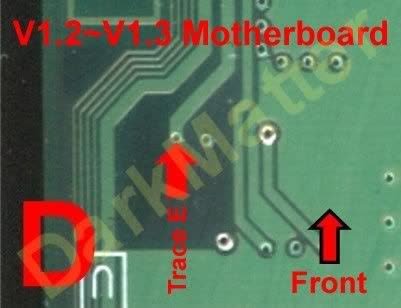

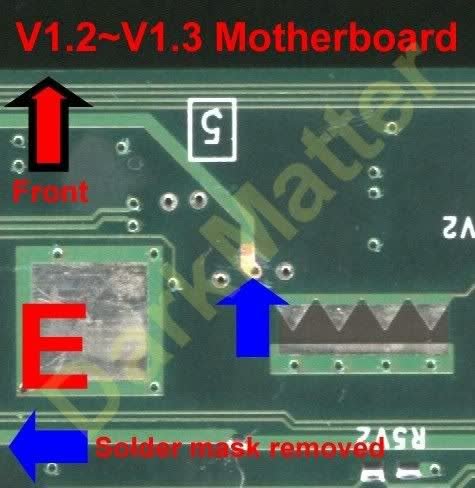

vamdolly Posted July 28, 2020 Report Share Posted July 28, 2020 Why e-trace for 1.3 bridge for? on my 1.3 that is a ground trace in the second photo for e ,the e trace is to the left of what is pointed to and scrachedpoint is further up if u fallow the trace, aso thanks for the post on 1.0 didnt want to test for areas tonight. 1 Quote Link to comment Share on other sites More sharing options...
