nbaj Posted January 23 Report Share Posted January 23 (edited) Modded a 1.6 with an Aladdin chip following a thorough tut on YT Rebuilt the LPC per the tutorial. I programmed with the latest cerbios. Pic attached isn't mine, but i followed this exact pic Powered on = frag Removed the hdd = frag Removed the disc drive = frag Disconnected the chip = no frag. Console booted up to the splash screen followed by errors related to the hdd and disc drive since they were disconnected Other then that Will cerbios run the origins 2tb? When i did a cerbios on a 1.4, i remember having to format the hdd with cerbios in fatxplorer Suggestions? Thanks in advance Edited January 23 by nbaj Quote Link to comment Share on other sites More sharing options...
SS_Dave Posted January 23 Report Share Posted January 23 32 minutes ago, nbaj said: Modded a 1.6 with an Aladdin chip following a thorough tut on YT Rebuilt the LPC per the tutorial. I programmed with the latest cerbios. Pic attached isn't mine, but i followed this exact pic Powered on = frag Removed the hdd = frag Removed the disc drive = frag Disconnected the chip = no frag. Console booted up to the splash screen followed by errors related to the hdd and disc drive since they were disconnected Other then that Will cerbios run the origins 2tb? When i did a cerbios on a 1.4, i remember having to format the hdd with cerbios in fatxplorer Suggestions? Thanks in advance Is the cerbios the latest? it should be version 2.2.0 Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. Quote Link to comment Share on other sites More sharing options...
sweetdarkdestiny Posted January 23 Report Share Posted January 23 What happens when you tie D0 to GND instead of connecting it DO on the Aladdin? Will she boot? Quote Link to comment Share on other sites More sharing options...
nbaj Posted January 23 Author Report Share Posted January 23 45 minutes ago, SS_Dave said: Is the cerbios the latest? it should be version 2.2.0 Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. Yes, i used the very bottom on this pic Quote Link to comment Share on other sites More sharing options...
nbaj Posted January 23 Author Report Share Posted January 23 11 minutes ago, sweetdarkdestiny said: What happens when you tie D0 to GND instead of connecting it DO on the Aladdin? Will she boot? I will try this tomorrow Quote Link to comment Share on other sites More sharing options...
SS_Dave Posted January 23 Report Share Posted January 23 21 hours ago, nbaj said: Yes, i used the very bottom on this pic Can you upload a pic of the rebuild you did on your Xbox? Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. Quote Link to comment Share on other sites More sharing options...
nbaj Posted January 24 Author Report Share Posted January 24 22 hours ago, sweetdarkdestiny said: What happens when you tie D0 to GND instead of connecting it DO on the Aladdin? Will she boot? That worked, but now I get Error 13, can't boot dashboard due to missing key It's a 2tb xbox origins via backups Quote Link to comment Share on other sites More sharing options...
zatchbot Posted January 25 Report Share Posted January 25 If you have a disc drive, try to boot to hexen or the OG flasher. You should be able to rebuild the dash over FTP then. I really recommend a fresh format. And build from either scratch or Hazeno's pre-built pack. You may be able to get by with building your dash correctly and making sure your ini file is correct. Quote Link to comment Share on other sites More sharing options...
SS_Dave Posted January 25 Report Share Posted January 25 On 1/24/2023 at 6:00 PM, nbaj said: That worked, but now I get Error 13, can't boot dashboard due to missing key It's a 2tb xbox origins via backups Did you put the cerbios.ini file on c drive ? I just tried to boot my 2tb Origins HDD using Cerbios 2.2.0 without the config file on C drive and it wouldn't boot Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. Quote Link to comment Share on other sites More sharing options...
KaosEngineer Posted January 26 Report Share Posted January 26 On 1/24/2023 at 1:00 AM, nbaj said: That worked, but now I get Error 13, can't boot dashboard due to missing key It's a 2tb xbox origins via backups Are you using the stock IDE cable with the new 2TB hard drive? If so, swap it out for a high-speed 80-wire 40-pin one. Quote Link to comment Share on other sites More sharing options...
nbaj Posted January 26 Author Report Share Posted January 26 4 hours ago, SS_Dave said: Did you put the cerbios.ini file on c drive ? I just tried to boot my 2tb Origins HDD using Cerbios 2.2.0 without the config file on C drive and it wouldn't boot Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. Origins is an image. I was under the impression that i would use HDD raw copy to copy the image to a 2tb hdd How would i access the C drive? fatxplorer can't open the hdd Quote Link to comment Share on other sites More sharing options...
nbaj Posted January 26 Author Report Share Posted January 26 3 hours ago, KaosEngineer said: Are you using the stock IDE cable with the new 2TB hard drive? If so, swap it out for a high-speed 80-wire 40-pin one. No, i have a brand new 80 wire Quote Link to comment Share on other sites More sharing options...
SS_Dave Posted January 26 Report Share Posted January 26 23 minutes ago, nbaj said: Origins is an image. I was under the impression that i would use HDD raw copy to copy the image to a 2tb hdd How would i access the C drive? fatxplorer can't open the hdd Did you get the latest version and not the old Xbox360 version https://fatxplorer.eaton-works.com/2022/08/09/fatxplorer-3-0-beta-22-16-tb-xbox-360-internal-hdd-support-updated-usb-patches/ I have used this version to look at the files on my 2tb HDD that was made from the ISO file that you would have used. Other wise you could use the Ogxbox installer v1.5.4 from here to cold boot ( Load the DVD in the drive and power down the Xbox for 30 seconds and then power on again ) the Xbox then while the installer disk is running then you can FTP the config file to the Xbox C Drive. The OGXbox installer can be found here https://1fichier.com/dir/mX1kipIz Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. Quote Link to comment Share on other sites More sharing options...
nbaj Posted January 26 Author Report Share Posted January 26 2 hours ago, SS_Dave said: Did you get the latest version and not the old Xbox360 version https://fatxplorer.eaton-works.com/2022/08/09/fatxplorer-3-0-beta-22-16-tb-xbox-360-internal-hdd-support-updated-usb-patches/ I have used this version to look at the files on my 2tb HDD that was made from the ISO file that you would have used. Other wise you could use the Ogxbox installer v1.5.4 from here to cold boot ( Load the DVD in the drive and power down the Xbox for 30 seconds and then power on again ) the Xbox then while the installer disk is running then you can FTP the config file to the Xbox C Drive. The OGXbox installer can be found here https://1fichier.com/dir/mX1kipIz Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. I have the latest fatxplorer. This is what i get when i load the drive. Either option shows partition X only, with nothing on it Guess i will try the OGxbox installer Quote Link to comment Share on other sites More sharing options...
SS_Dave Posted January 26 Report Share Posted January 26 33 minutes ago, nbaj said: I have the latest fatxplorer. This is what i get when i load the drive. Either option shows partition X only, with nothing on it Guess i will try the OGxbox installer With that warning I would think the HDD is not formatted for a Xbox. Are all the drives ( C, E, F, G ) on the 2tb readable in windows explorer? Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. Quote Link to comment Share on other sites More sharing options...
nbaj Posted January 26 Author Report Share Posted January 26 3 hours ago, SS_Dave said: With that warning I would think the HDD is not formatted for a Xbox. Are all the drives ( C, E, F, G ) on the 2tb readable in windows explorer? Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. I was under the impression that the origins is an image. Use hdd raw tool to put in on a 2tb hdd which is easy to do Does HDD raw tool format the drive automatically? If i use fatxplorer to format the drive creating partitions, then hdd raw tool will wipe out those partitions No matter which option i choose (remove partitions or not) there is no C,E, F, G partitions Somehow, i need to get a dashboard installed Quote Link to comment Share on other sites More sharing options...
SS_Dave Posted January 26 Report Share Posted January 26 HDD raw should have formatted the new HDD into Fatx so the Xbox could use that drive as the ISO file is an image of the complete working Xbox drive. From memory I selected the ISO image then selected the source hard drive and then let it do it's thing and it took about 18 hours on my old Dell desktop. I would use any PC partition program and remove all the partitions and then do a quick format of the 2tb HDD before trying the ISO file again, The origins Image does work so it sounds like something went amiss when you where extracting the IMG file Your other option is to use a install disk and make your own HDD from scratch but you will have to find all the games and apps to copy to the new HDD. What size is the ISO image file? Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. Quote Link to comment Share on other sites More sharing options...
SS_Dave Posted January 26 Report Share Posted January 26 The IMG file I used was 1682120876kb ( 1.68tb ) Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. Quote Link to comment Share on other sites More sharing options...
KaosEngineer Posted January 26 Report Share Posted January 26 10 hours ago, nbaj said: No, i have a brand new 80 wire Does the original hard drive work with it? Did you already mention if it did or not? What color is the insulation on the ribbon cable? Quote Link to comment Share on other sites More sharing options...
nbaj Posted January 27 Author Report Share Posted January 27 20 hours ago, SS_Dave said: HDD raw should have formatted the new HDD into Fatx so the Xbox could use that drive as the ISO file is an image of the complete working Xbox drive. From memory I selected the ISO image then selected the source hard drive and then let it do it's thing and it took about 18 hours on my old Dell desktop. I would use any PC partition program and remove all the partitions and then do a quick format of the 2tb HDD before trying the ISO file again, The origins Image does work so it sounds like something went amiss when you where extracting the IMG file Your other option is to use a install disk and make your own HDD from scratch but you will have to find all the games and apps to copy to the new HDD. What size is the ISO image file? Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. Mine is not an ISO, via backups Quote Link to comment Share on other sites More sharing options...

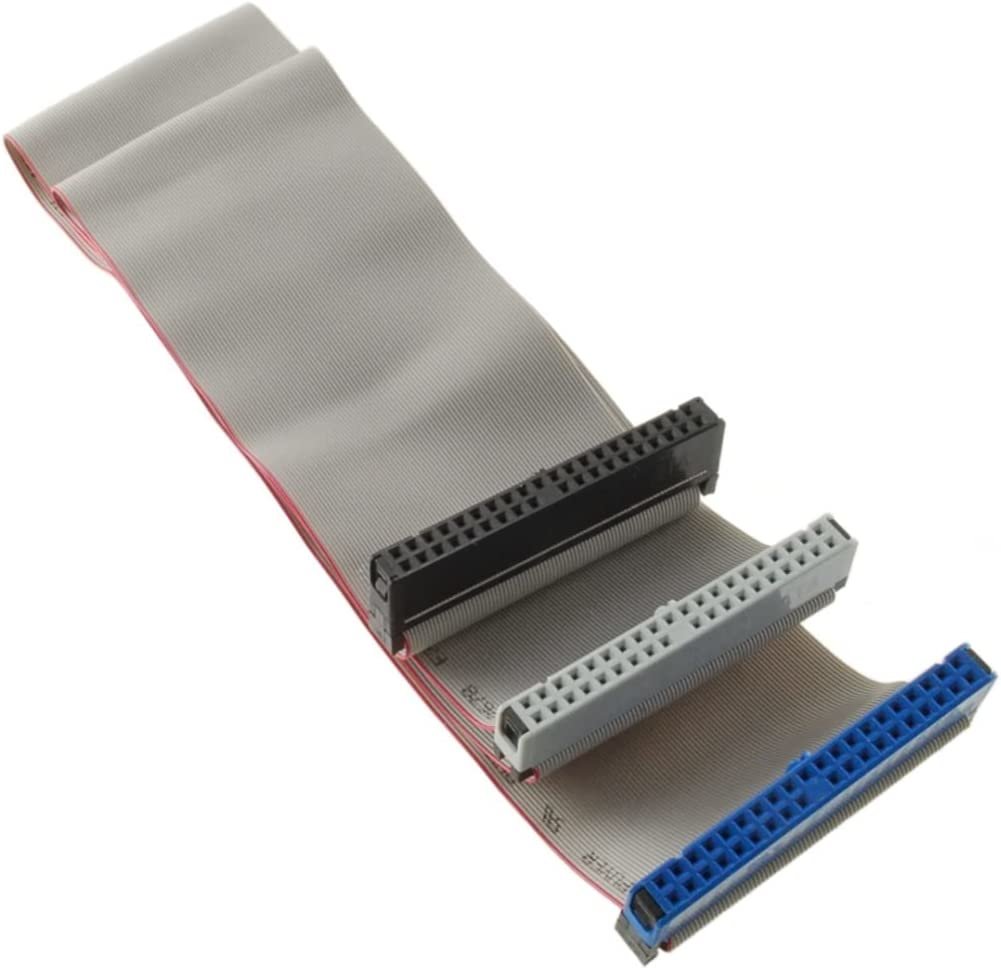

nbaj Posted January 27 Author Report Share Posted January 27 16 hours ago, KaosEngineer said: Does the original hard drive work with it? Did you already mention if it did or not? What color is the insulation on the ribbon cable? I tossed the old hdd This is the ribbon i use 24" 40-Pin 80-Wire Ultra ATA 2-Drive Ribbon Cable, Manhattan 332781 Quote Link to comment Share on other sites More sharing options...
SS_Dave Posted January 27 Report Share Posted January 27 59 minutes ago, nbaj said: Mine is not an ISO, via backups My mistake so is mine but it's a different size. As Fatxplorer is upset about that HDD I would say the drive is corrupted. I would remove all partitions and then format in windows the use the OGXBox installer V1.5.4 disk from here https://1fichier.com/dir/mX1kipIz to set up that HDD or you could try using this tutorial to make a new HDD on you PC https://www.hazeno.com/guides/fatxplorer-2tb-preload If the Xbox works then you could try downloading a new copy of the Origins file and start again Did you download the extra files that replace some of the parts that where corrupt? Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. Quote Link to comment Share on other sites More sharing options...
nbaj Posted January 28 Author Report Share Posted January 28 16 hours ago, SS_Dave said: My mistake so is mine but it's a different size. As Fatxplorer is upset about that HDD I would say the drive is corrupted. I would remove all partitions and then format in windows the use the OGXBox installer V1.5.4 disk from here https://1fichier.com/dir/mX1kipIz to set up that HDD or you could try using this tutorial to make a new HDD on you PC https://www.hazeno.com/guides/fatxplorer-2tb-preload If the Xbox works then you could try downloading a new copy of the Origins file and start again Did you download the extra files that replace some of the parts that where corrupt? Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. I started over and used fatxplorer to format and create partitions with no issues Then ran HDD raw tool which deleted all the partitions and wrote origins to the HDD I don't see any partitions to remove I did not download anything extra Quote Link to comment Share on other sites More sharing options...
nbaj Posted January 28 Author Report Share Posted January 28 2 minutes ago, nbaj said: No matter formatting the HDD, once i run HDD raw copy, it will delete any partitions created I did not install any extra files Quote Link to comment Share on other sites More sharing options...
SS_Dave Posted January 28 Report Share Posted January 28 2 hours ago, nbaj said: No matter formatting the HDD, once i run HDD raw copy, it will delete any partitions created I did not install any extra files It looks like there is one part. number 0574 it's a 900 meg file I would use a program like EaseUS partition master to remove any Xbox partitions and that way any other program thinks the HDD is brand new. Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. Quote Link to comment Share on other sites More sharing options...
