Picked up an Alpha II - Missing HDD, wondering about recovery


Recommended Posts

Hey guys I got lucky recently and scored an Alpha II from an e-waste recycler.

Unfortunately the HDD was taken out, I've got a new one in there but I'm not sure if there's any full-recovery available.

I found N64 freak's build log so I'm feeling a bit dumb - but I don't think that the full recovery could be only 13MB right? Anyway, I guess what I'm asking is if anyone has any disk images they could share :).

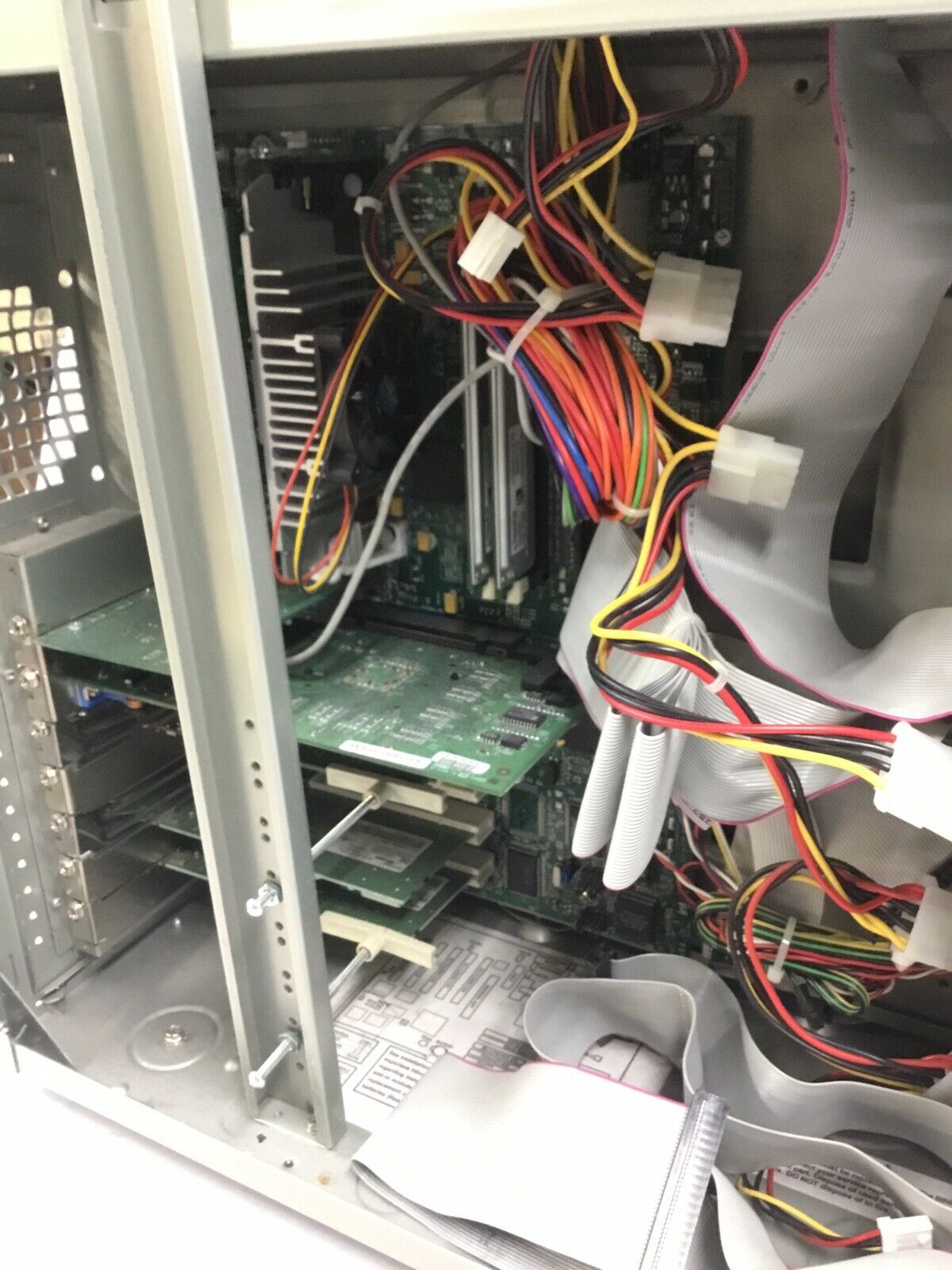

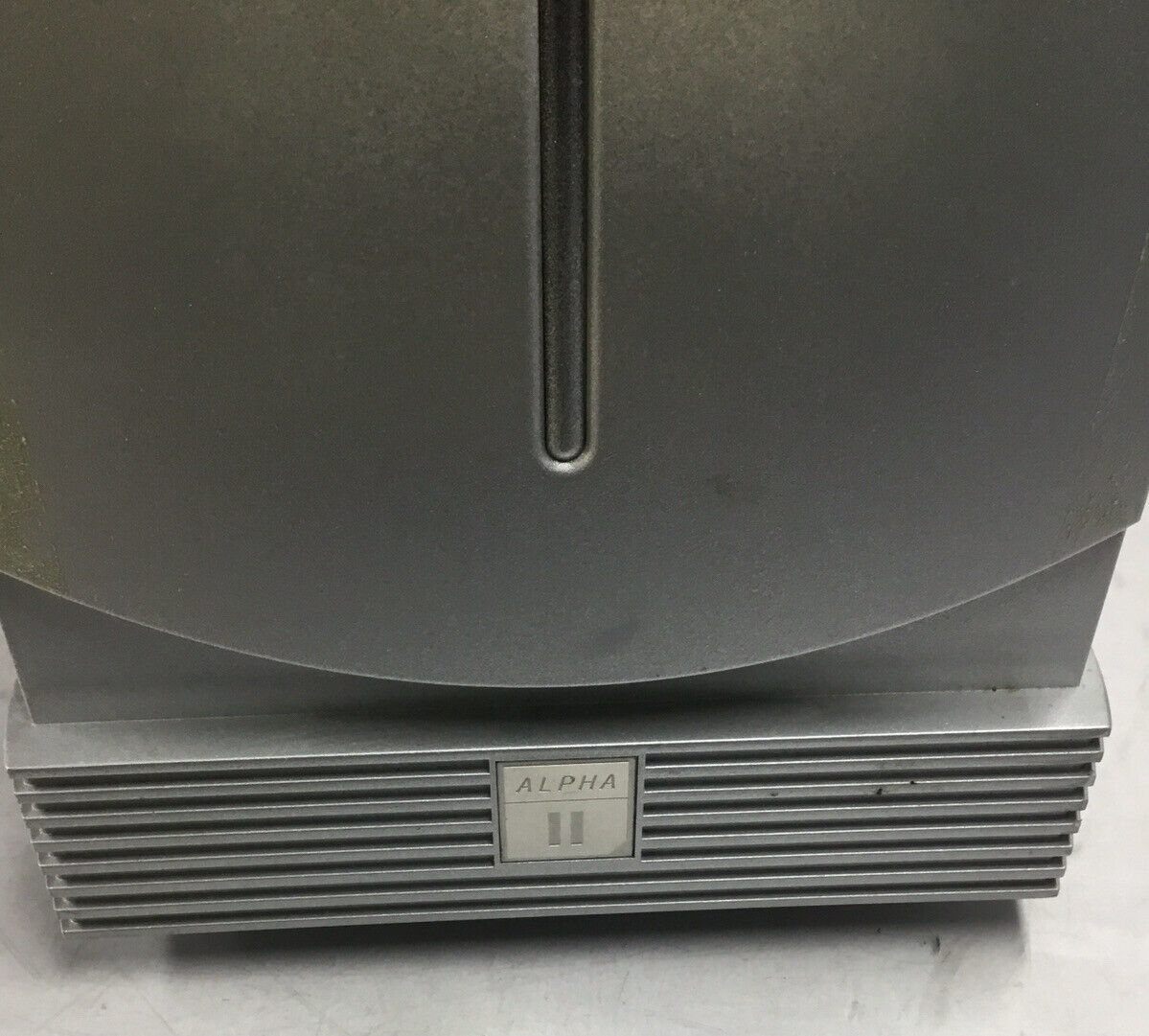

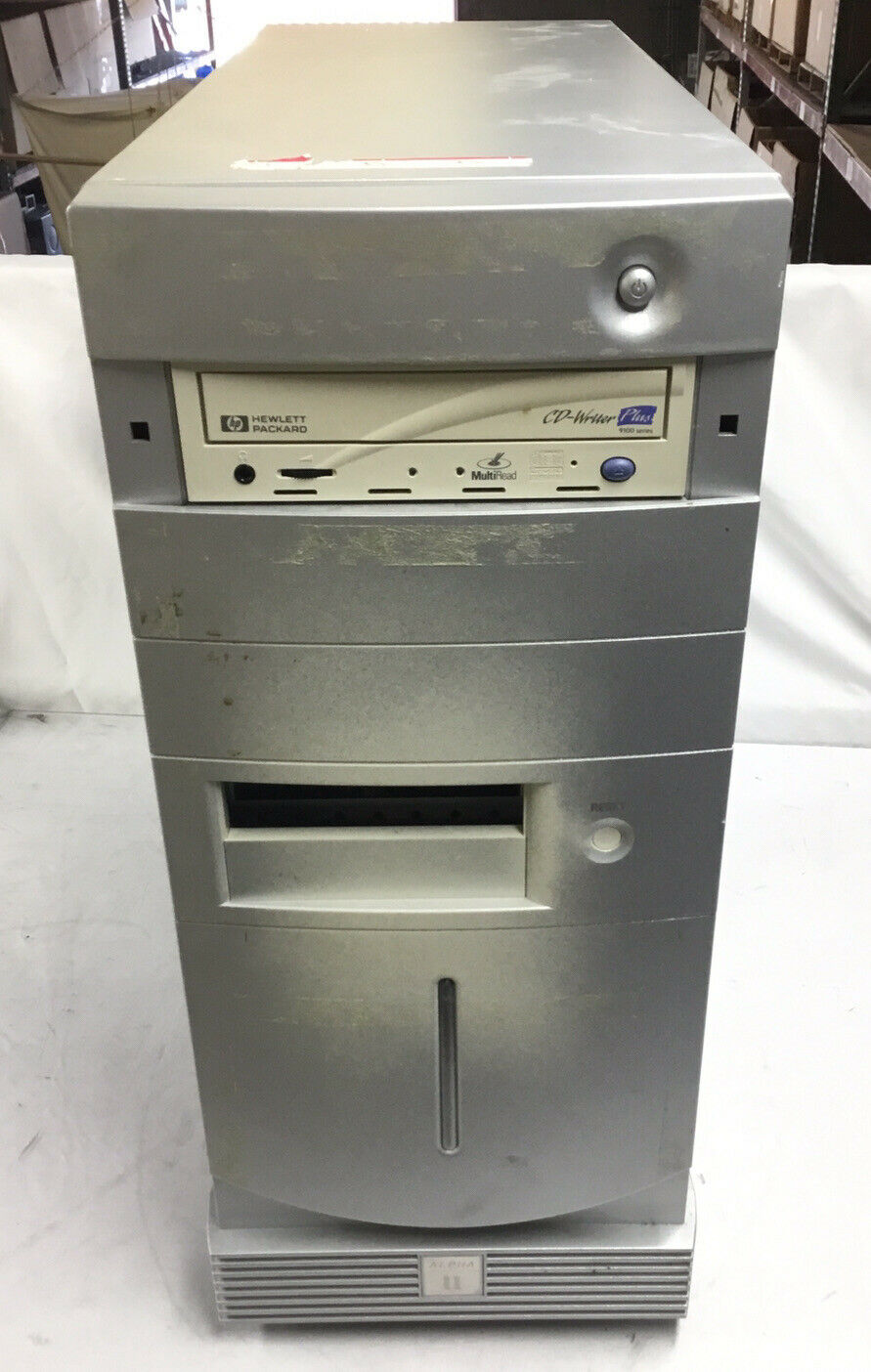

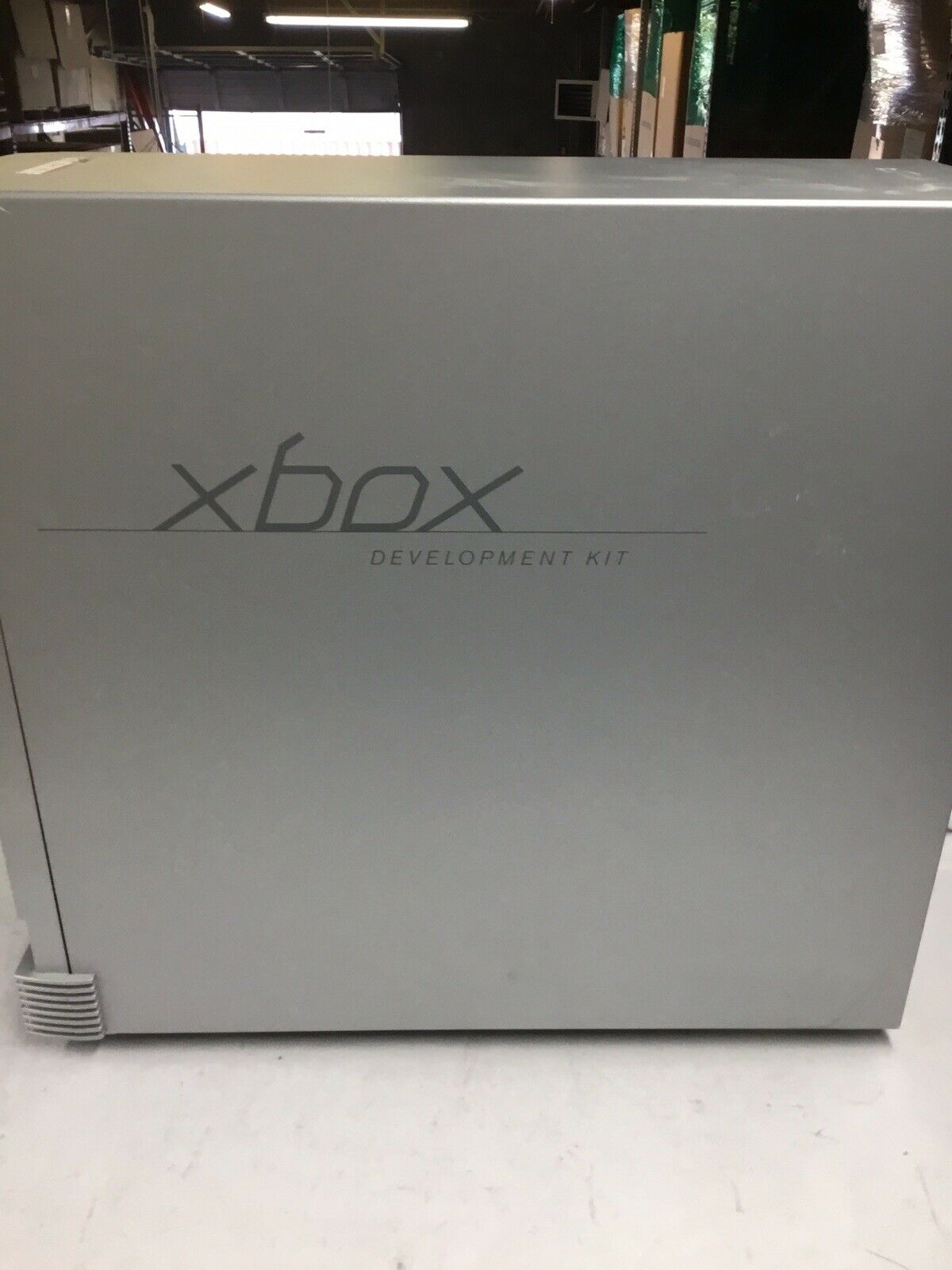

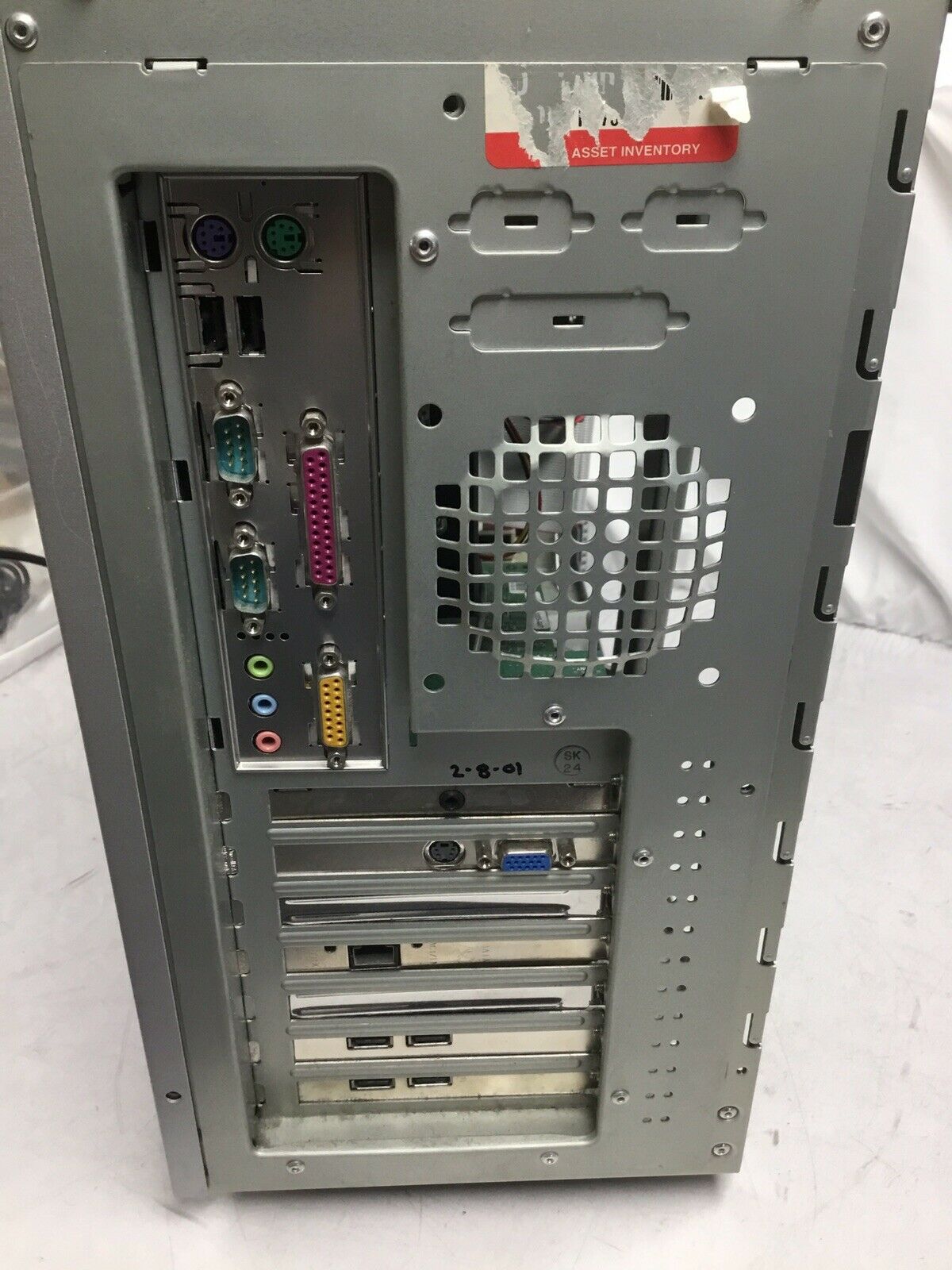

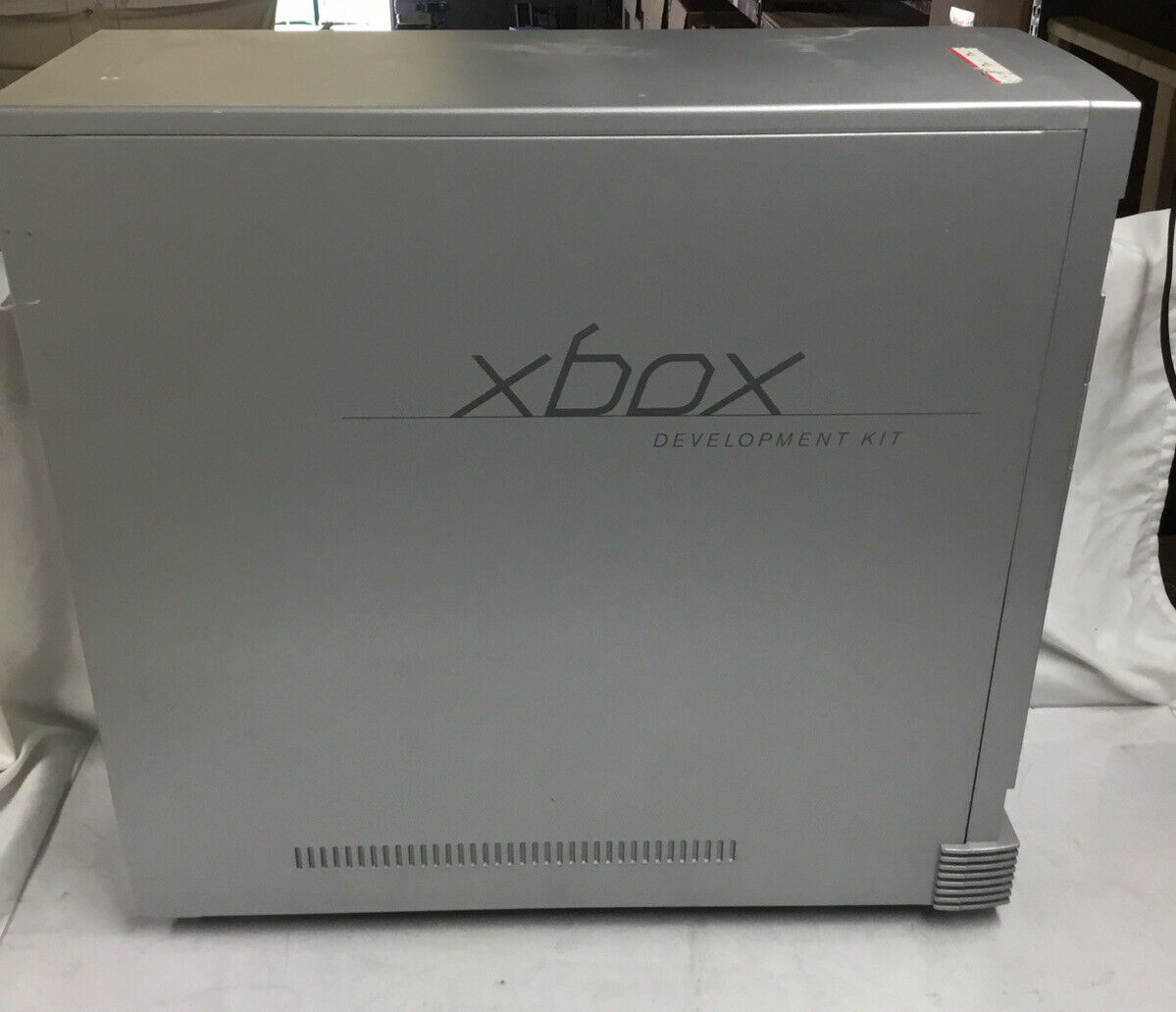

Here's some pics from the seller, it has a different front panel(with lots of masking tape residue), but it's definitely real.







  • Like 1
Link to comment
Share on other sites

There are recovery disc images available.

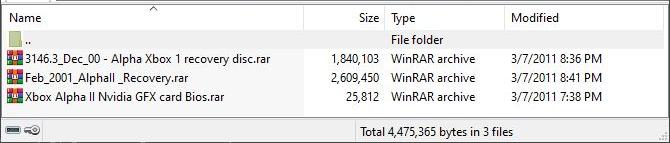

Yeah, I don't think the entire disc image is only 13MBs.  I don't think the AlphaRecsAndVGABios.rar (password: assemblergames) file is the recovery image.  It includes three other dot rar archives:


There's a May 2001 recovery image, May 2001 3521x1.rar (316.6 MBs), mentioned in the thread N64 Freak started - XBox Alpha Development Kit Build Log.

Dowload link: https://mega.nz/file/pgpgwQiI#EgikJlOdWUjNDY3TcKLEQSwvQOk93PkPo6iIfk2B7Gs



Link to comment
Share on other sites

10 minutes ago, KaosEngineer said:

There are recovery disc images available.

Yeah, I don't think the entire disc image is only 13MBs.  I don't think the AlphaRecsAndVGABios.rar (password: assemblergames) file is the recovery image.  It includes three other dot rar archives:


There's a May 2001 recovery image, May 2001 3521x1.rar (316.6 MBs), mentioned in the thread N64 Freak started - XBox Alpha Development Kit Build Log.

Dowload link: https://mega.nz/file/pgpgwQiI#EgikJlOdWUjNDY3TcKLEQSwvQOk93PkPo6iIfk2B7Gs



Yeah TY TY. I'll try to dd this over to the drive when I get some spare time.

Link to comment
Share on other sites

Just now, bigsoulja said:

Yeah TY TY. I'll try to dd this over to the drive when I get some spare time.

The 3521.1 archive includes two disc images - dot iso files.  I believe they are bootable discs that will install the software to the hard drive.  Make sure the motherboard's BIOS is set to boot from the CDROM before the hard drive.

Link to comment
Share on other sites

19 minutes ago, KaosEngineer said:

The 3521.1 archive includes two disc images - dot iso files.  I believe they are bootable discs that will install the software to the hard drive.  Make sure the motherboard's BIOS is set to boot from the CDROM before the hard drive.

Yeah tbh I had this May_2001.iso on a Cd disk already but it didn't seem to want to boot. (Invalid Boot Diskette - Insert BOOT diskette in A: which is just what it says when it doesn't have anything I guess). And yeah I disabled the other boot devices in the bios, I'm guessing I burnt it wrong(windows 10 iso burner sucks), maybe the cd-drive(although I hear it spinning up fine).

Link to comment
Share on other sites

1 minute ago, KaosEngineer said:

Found another archive of XDKs and additional items.  Not all are for the Alpha kits but the actual devkits too - DVT3 etc.

https://mega.nz/folder/QtVxnAAa#r7KlTzzRbzruf6t048kmxQ

Yeah I saw that one on OG, where I got the may 2001 actually. Pretty sure it was just windows 10 being bad, i'll try ImgBurn next time, going to bed soon but i'll be back.

Link to comment
Share on other sites

Tried a new disk drive, burned another July SDK image(ImgBurn), doesn't seem to want to boot... Checked for jumpers, they seem fine... Got a fresh CMOS battery... Seems like it's trying to read the CD but gives up and does a reset, after that shows the diskette error again.

Will try some more files later...

Link to comment
Share on other sites

I burned the May ISO 4 times with failure. My issue was old media and manufacturer of the disc. I used a Maxell DVD+RW burned at 2x through windows 7. Never had Windows 10 make the disc properly. The disc works but at times does not boot to the Xbox logo 1 in every 3 attempts. A fresh raw format of the HDD also helps.

Link to comment
Share on other sites

On 5/27/2021 at 9:16 AM, xicat487 said:

I burned the May ISO 4 times with failure. My issue was old media and manufacturer of the disc. I used a Maxell DVD+RW burned at 2x through windows 7. Never had Windows 10 make the disc properly. The disc works but at times does not boot to the Xbox logo 1 in every 3 attempts. A fresh raw format of the HDD also helps.

Thanks for this advice, I tried a new stack of DVD's (4x TDK) and worked first time. I guess the old CD-R's are shot.

Works like a charm thanks, https://imgur.com/a/opuUfAC

  • Like 1
Link to comment
Share on other sites

Posted (edited)
6 hours ago, corona2222 said:

far out, it amazes me they just turn up as e-waste given how rare and sought after these are.

Yeah it was from the seattle area, just on ebay :P

Edited by bigsoulja
Link to comment
Share on other sites
