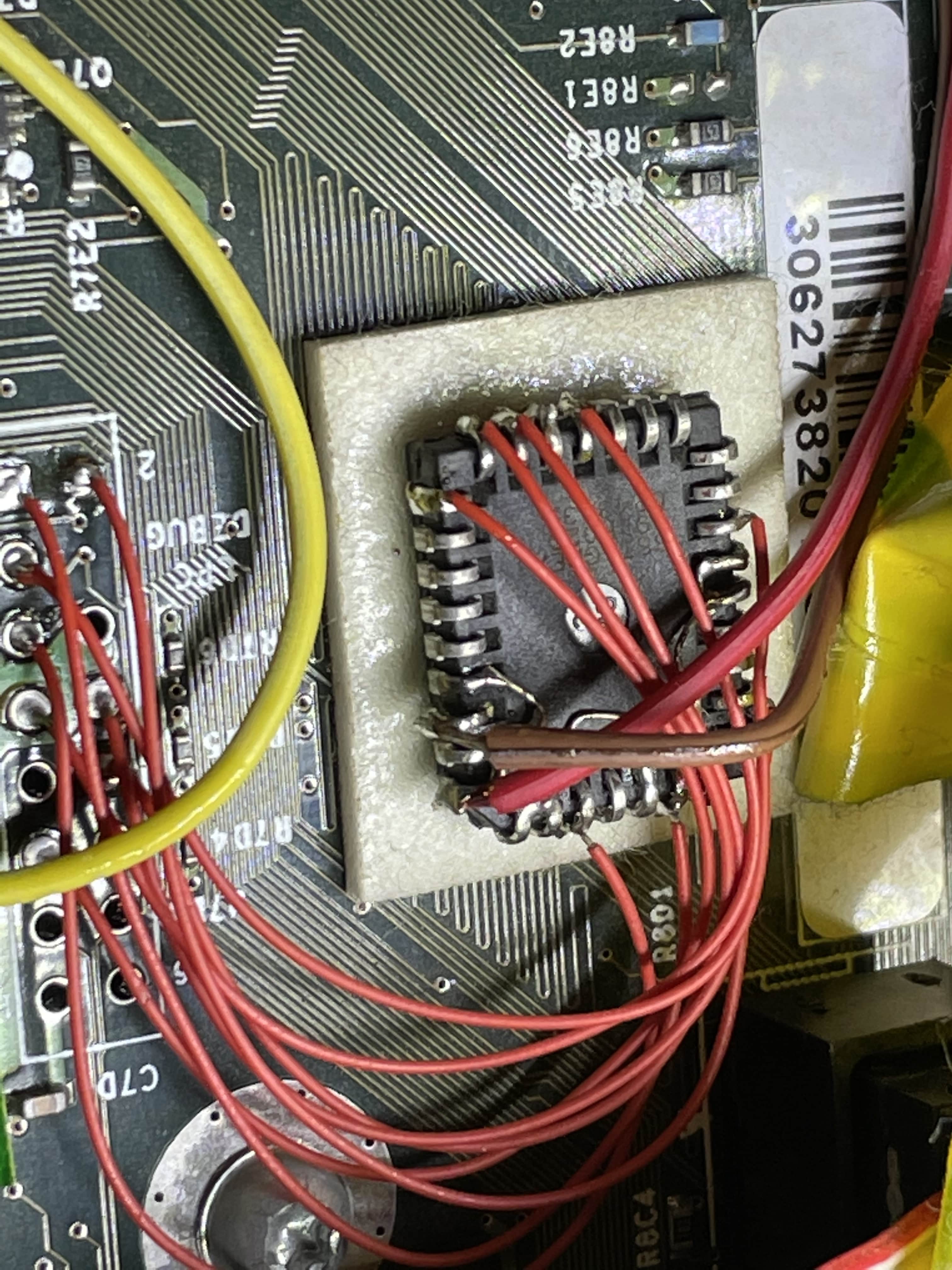

So I bought a cheapmod from ebay to try something different on a 1.6. Soldered in the rebuild board and installed the chip, adding the one wire from the lower LFRAM via to pin 3 on the LPC header. Won't boot from chip, and on top of that, installing the chip causes the LFRAM cut I made to then have continuity thus booting the stock TSOP chip. I would think I screwed something up but I slapped my openxenium chip I have in my parts drawer and it works fine. I've been looking at diagrams for 2 days now and can't figure it out. Does Pin 4 need removed from the pin header I soldered in? I've seen some guides that say Pin 4 can't be installed for this.
