Aladdin XT Plus2 Install Gone Wrong !Help!Plz!

Recommended Posts

tried to install the aladdin xt plus2 on my 1.6 and ... last connection i had to make didnt go well ... i feel bad:(

the point didnt want to tin, ended up destroying the point and traces around it

is there anyway can i fix this mess ?

Please login or register to see this link.

Please login or register to see this link.

(its my first time soldering dont be too mean on me lol)

thanks for future inputs

Edited by NRK

Share this post


Link to post
Share on other sites

For a 1st time solder on a Xbox it's not too bad and I have seen a lot worse.

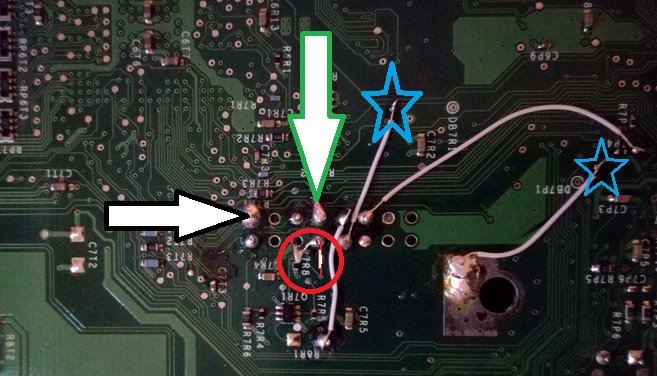

Some things that stick out

The red circle is linking the wrong spot add a link like the red line

The black/white arrow has to much solder, Use some solder wick to remove about 75% of it.

The green/white arrow I would rather use a wire link instead of a solder blob.

The blue stars please trim the excess wire off the end.

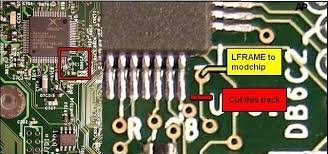

I don't like linking the D0 to ground and have a preference to cutting the Lframe trace.

In this pick it shows going to the mod chip but that is not required

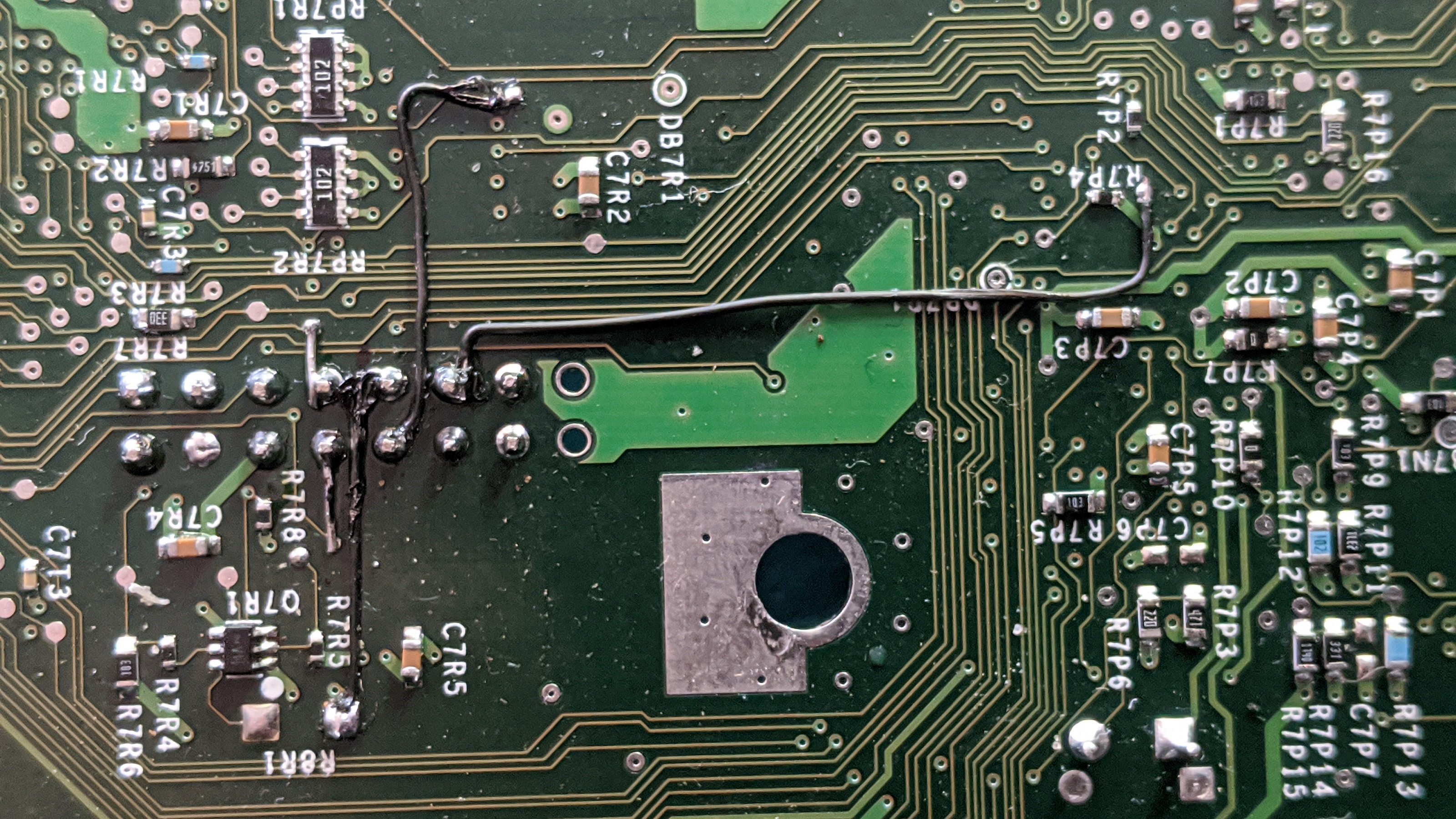

This is the way I do the rebuild.

Please login or register to see this attachment.





Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

  • Like 1

Share this post


Link to post
Share on other sites
3 minutes ago, SS_Dave said:

For a 1st time solder on a Xbox it's not too bad and I have seen a lot worse.

Some things that stick out

The red circle is linking the wrong spot add a link like the red line

The black/white arrow has to much solder, Use some solder wick to remove about 75% of it.

The green/white arrow I would rather use a wire link instead of a solder blob.

The blue stars please trim the excess wire off the end.



Please login or register to see this link.





I don't like linking the D0 to ground and have a preference to cutting the Lframe trace.

In this pick it shows going to the mod chip but that is not required

Please login or register to see this link.



This is the way I do the rebuild.

Please login or register to see this attachment.





Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

I really appreciate your hints i will try my best to address those issues

the red circle is just a wire i tried to connect to the "burnt" spot ( its not linked to anything )

what about the destroyed trace/point ? i could wire it to the same point as you and it would work?

*wich is the red circle wire*

the red circle is just a wire i tried to connect to the "burnt" spot ( its not linked to anything )



Share this post


Link to post
Share on other sites

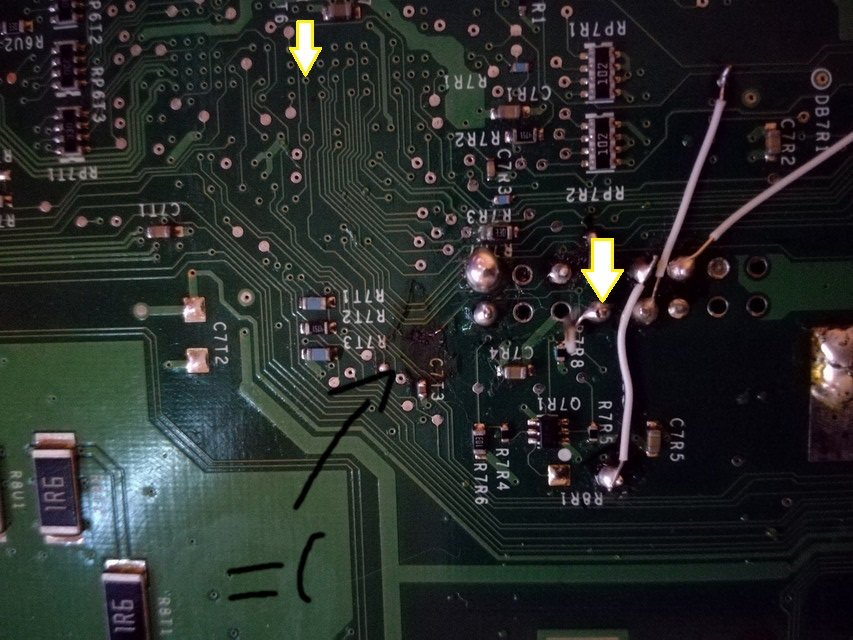

I did not look at the pic with the burnt trace.



Remove the solder and add a link like the red line, You will need to carefully scrape the paint off the via pint to expose the copper underneath




And add a wire link to join the 2 yellow/white arrows and same here carefully scrape the paint off to expose the copper trace.






Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.



  • Thanks 1

Share this post


Link to post
Share on other sites
4 hours ago, SS_Dave said:

I did not look at the pic with the burnt trace.



Remove the solder and add a link like the red line, You will need to carefully scrape the paint off the via pint to expose the copper underneath

Please login or register to see this link.



And add a wire link to join the 2 yellow/white arrows and same here carefully scrape the paint off to expose the copper trace.

Please login or register to see this link.





Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.



my Xbox will thank you forever and for my part i will vouch your stuff anytime !

 Surgery has been successful Dr.Dave :)

Please login or register to see this link.

Edited by NRK
  • Like 2

Share this post


Link to post
Share on other sites
4 minutes ago, NRK said:

my Xbox will thank you forever and for my part i will vouch your stuff anytime !

 Surgery has been successful Dr.Dave :)

Please login or register to see this link.

That is really good to see you have got it working.

It get easier the more you do.

If your planing on a 2tb/3tb hard drive  you should reflash the BIOS with the EvoxM8plus.bin but not from the Hexen 2020 disk as the BIOS has a bug that stops the DVD from reading any disks.

Please login or register to see this attachment.

This is the one I use





Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

  • Thanks 1

Share this post


Link to post
Share on other sites
5 minutes ago, SS_Dave said:

That is really good to see you have got it working.

It get easier the more you do.

If your planing on a 2tb/3tb hard drive  you should reflash the BIOS with the EvoxM8plus.bin but not from the Hexen 2020 disk as the BIOS has a bug that stops the DVD from reading any disks.

Please login or register to see this attachment.

This is the one I use





Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

im waiting my 2tb + IDE to SATA adapter thanks for warning

i guess i need to ftp this .bin in my hdd? and use hexen to install software i need to flash ?

(im new to modding , usually watching youtube stuff about it)

Share this post


Link to post
Share on other sites

If you have read some of my posts you will notice that Hexen is not on my Xmas list for getting presents from me and the last disk made like a frisbee out the door .

Have a read of this post.



Xblast can also set the Pal/NTSC and enable 480,720p video outputs,Fan speed ( I use 30-40%).



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

  • Like 1
  • Haha 2

Share this post


Link to post
Share on other sites

Yup, I know it, the no-dvd bios is a paint in the ass if you mess with the hdd or the dashboard, unable to boot from dvd if you make a upsie, thing I do the last month



Anyway hanging on the thear this modchip only works with evox bioses? And is possible disable the logo in the corner? Also, is possible rid off the clock cap in the 1.6 board?

Edited by dertio

Share this post


Link to post
Share on other sites
2 hours ago, dertio said:

Yup, I know it, the no-dvd bios is a paint in the ass if you mess with the hdd or the dashboard, unable to boot from dvd if you make a upsie, thing I do the last month



Anyway hanging on the thear this modchip only works with evox bioses? And is possible disable the logo in the corner? Also, is possible rid off the clock cap in the 1.6 board?

You can use a x2 512kb bios on a 1.6 but that depends on the modchip you have, yes you can remove the logo, you just need to edit the bios with evtool. No a 1.6 will not run without the clock cap.

Share this post


Link to post
Share on other sites
9 hours ago, dertio said:

Yup, I know it, the no-dvd bios is a paint in the ass if you mess with the hdd or the dashboard, unable to boot from dvd if you make a upsie, thing I do the last month



Anyway hanging on the thear this modchip only works with evox bioses? And is possible disable the logo in the corner? Also, is possible rid off the clock cap in the 1.6 board?

The No DVD BIOS I posted is 100% safe to use and the Evox shield logo is not there.

The Xbox will still cold boot a DVD (DVD in the drive and power on the Xbox) with that eVoxM8plus BIOS.





Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Share this post


Link to post
Share on other sites
11 minutes ago, SS_Dave said:

The No DVD BIOS I posted is 100% safe to use and the Evox shield logo is not there.

The Xbox will still cold boot a DVD (DVD in the drive and power on the Xbox) with that eVoxM8plus BIOS.





Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

so if i get it right..

this bios let you read discs only if you boot the xbox with a disc already in the drive?

Share this post


Link to post
Share on other sites
3 minutes ago, NRK said:

so if i get it right..

this bios let you read discs only if you boot the xbox with a disc already in the drive?

Yes and No.

You can still load a disk when the Xbox is running you just have to manually select the DVD.

ie: use file explorer to select the D drive and then click on the default.xbe or XBMC4Gamers by pressing the start on the controller and by selecting play a DVD on some other Dashboards

It also allows for the DVD drive to be physically removed when you are making a slim Xbox or the DVD drive as a faulty circuit board that's preventing the Xbox from booting.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

  • Thanks 1

Share this post


Link to post
Share on other sites
4 minutes ago, SS_Dave said:

Yes and No.

You can still load a disk when the Xbox is running you just have to manually select the DVD.

ie: use file explorer to select the D drive and then click on the default.xbe or XBMC4Gamers by pressing the start on the controller and by selecting play a DVD on some other Dashboards

It also allows for the DVD drive to be physically removed when you are making a slim Xbox or the DVD drive as a faulty circuit board that's preventing the Xbox from booting.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

thanks for clarifying



Share this post


Link to post
Share on other sites
On 9/13/2020 at 8:34 PM, Ging3rguy said:

You can use a x2 512kb bios on a 1.6 but that depends on the modchip you have, yes you can remove the logo, you just need to edit the bios with evtool. No a 1.6 will not run without the clock cap.

you can make your own logo too! :)

Share this post
