Steo1024

Save File Only Works On One XBox

Recommended Posts

Has anyone else ever encountered a save file only working on one console? I have a Rayman 3 save that only seems to work on the 1GHz CPU, 128MB RAM console I got from N64freak, and I have no idea what's going on.

I originally played the game on a softmodded 1.6, then ended up transferring the save to the upgraded 1.0 to continue playing on that console. After the PSU failed in the 1.0 and I managed to fix it, I wanted to back up the save in case it ever fails again on me. To my surprise, the save file doesn't want to work on either of the 3 Xboxes I tried it on, it only works on the 1.0, nothing else.

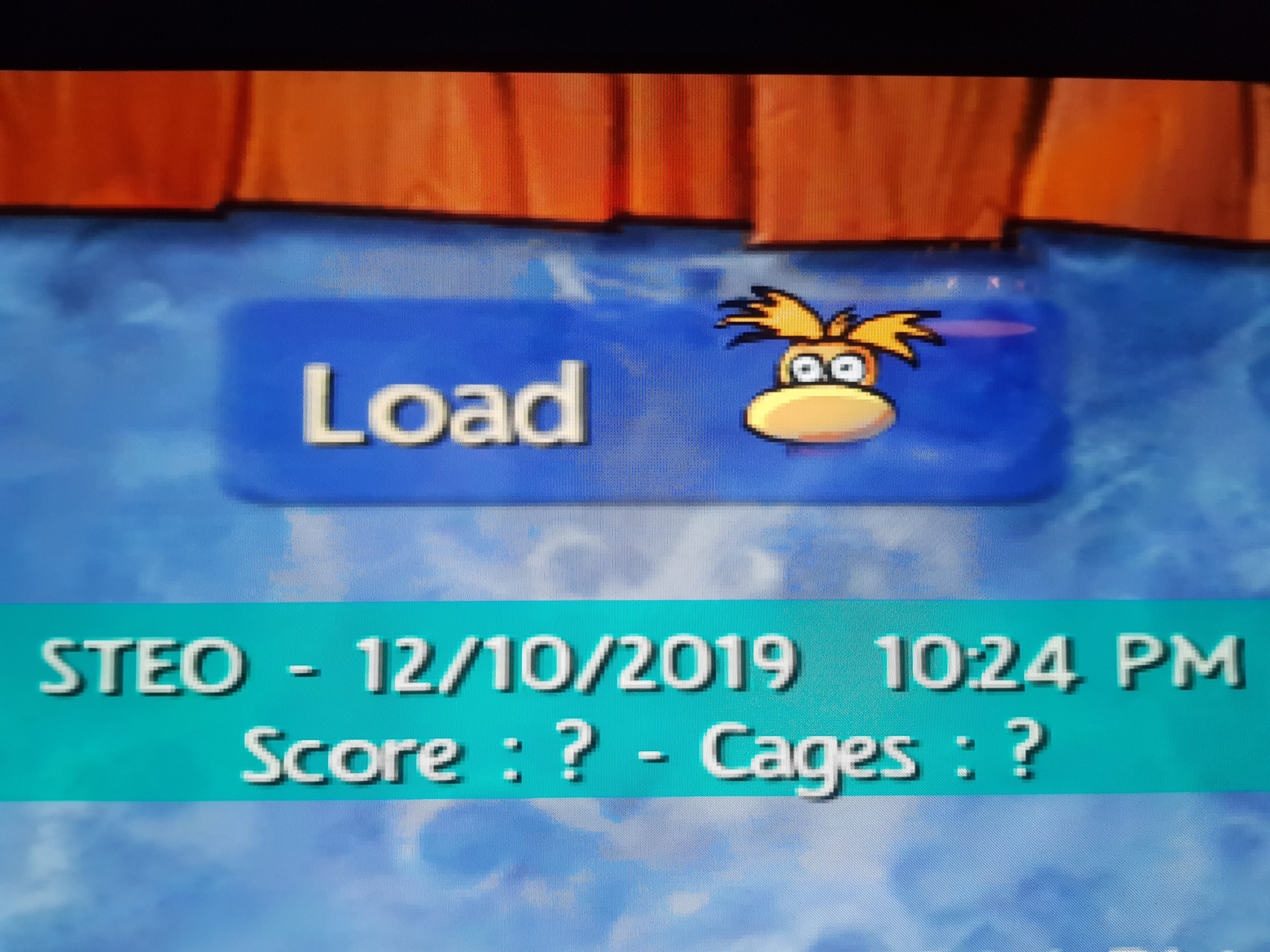

When I try load the save from another console, I see this and it won't load:

Please login or register to see this attachment.

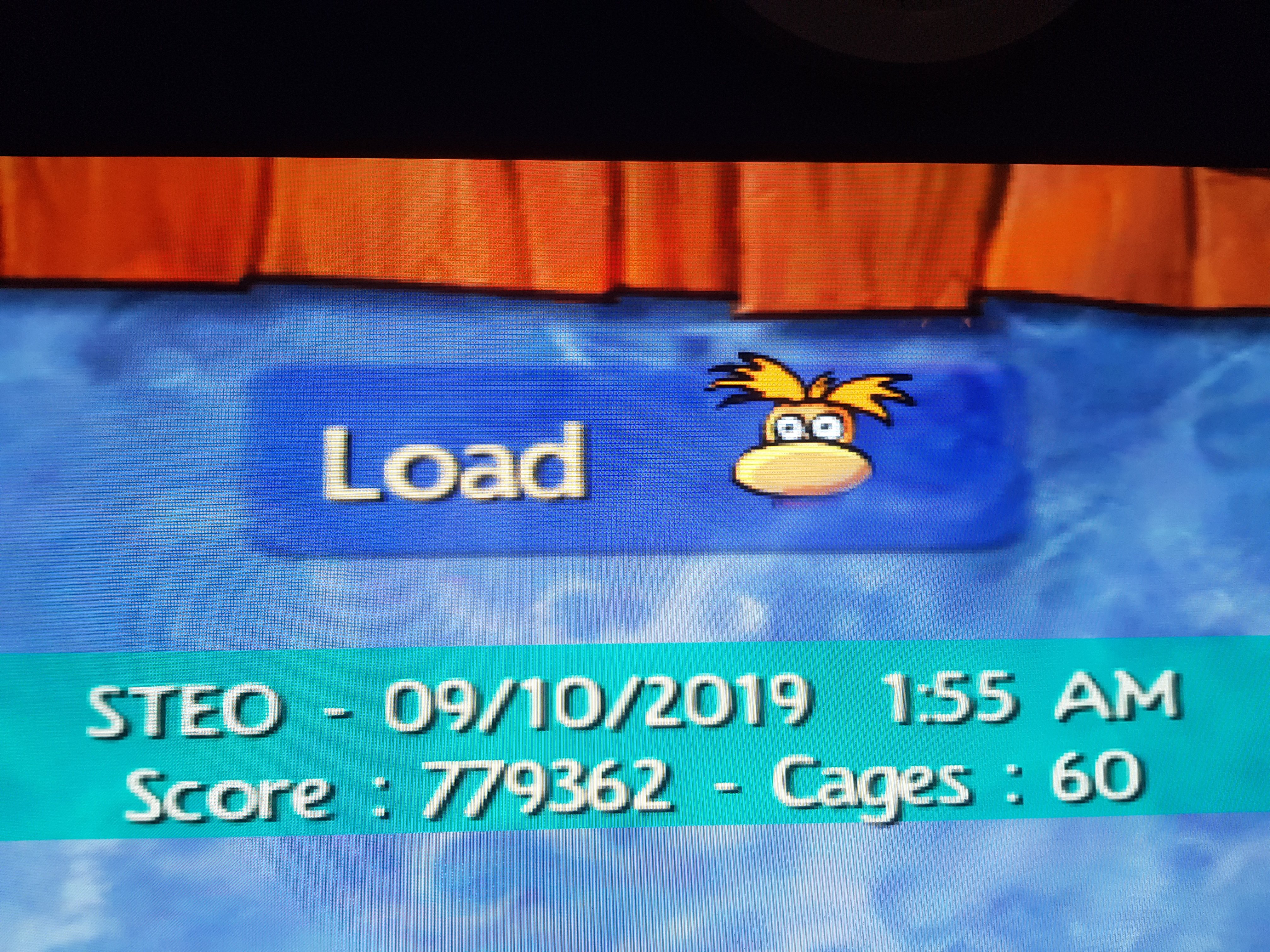

However, when I use the 1.0, it works as it should:

Please login or register to see this attachment.

I even tried copying the entire TDATA and UDATA folders from the 1.0 aside from the music, but I still got the same result. I have no idea what's going on.

My only means of transferring saves is via FTP, but that worked when I transferred it to the 1.0, and works for all other games.

Share this post


Link to post
Share on other sites

Some game's save files are signed with the HDDKey of the Xbox they were generated on.  I'm not sure if this Rayman game signs its save file.  But, if it does, it should have never worked when transferred from the Xbox it was originally created on.

Share this post


Link to post
Share on other sites

There are NTSC and PAL saves available for Rayman 3 from the old now defunct xbox-saves.com web site:

NTSC - All levels unlocked - Please login or register to see this link.

PAL-UK level 17 by Granuz (Ita) - Please login or register to see this link.

The UDATA and TDATA folders for this game are named 55530002 - Rayman 3's assigned TitleID.



Share this post


Link to post
Share on other sites

Thanks for the reply, I actually wasn't aware that some save files only worked on one cosole like that.

I've figured out what was wrong anyway. For some reason, even though Filezilla on Linux worked fine for every other save and xbe I transferred to the Xbox, I tried booting into Windows and used FlashFXP, as I recall using that before.

Surprisingly the save file works now after using FlashFXP, so I wonder what Filezilla was doing differently during the transfer. I thought it might have had something to do with changing the timestamp, but I'm not even sure if that really makes sense.

Share this post


Link to post
Share on other sites

Some of the files may have been uploaded as text files which messes them up.  All should be transferred in binary mode.

Text (aka ASCII) transfer mode sets the most significant bit of every byte transferred to 0.  For example, a byte of 10001101 would be transferred as 00001101.

  • Thanks 1

Share this post


Link to post
Share on other sites
8 hours ago, Steo1024 said:

Thanks for the reply, I actually wasn't aware that some save files only worked on one cosole like that.

I've figured out what was wrong anyway. For some reason, even though Filezilla on Linux worked fine for every other save and xbe I transferred to the Xbox, I tried booting into Windows and used FlashFXP, as I recall using that before.

Surprisingly the save file works now after using FlashFXP, so I wonder what Filezilla was doing differently during the transfer. I thought it might have had something to do with changing the timestamp, but I'm not even sure if that really makes sense.

i have been noticing problems with filezilla lately, when i first started playing with xbox again i installed filezilla and used it to load stuff to the xbox, every time i used it it would bug me about updating it though it worked perfect, the other day i gave in and let it update and ever since iv'e had problems with large uploads.

now on large uploads it gives up half way through, it goes through the motions but ultimately fails to transfer any files, it did not do this before updating, if you try to re-upload the failed files it wont upload them, but if you disconnect and re-connect it then uploads the previously failed files fine.

i have been hoping its a bug and have been checking for another update, but today i gave in and uninstalled filezilla and re-installed the first copy that worked fine and just dis-abled updates.

but this could help someone.

Share this post


Link to post
Share on other sites

@sinclairuser, what version of FileZilla do you currently have installed? and, which version did you have installed that had problems?

I have updated many times since I last knew that large file uploads were working.  My current version on Windows 10 is 3.45.1.

My Xbox's hard drive does not have much space left to try uploading a huge file at this time to test this version of the FTP client.

Edited by KaosEngineer

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

Sign in to follow this

  • Similar Content

    • By Sealizard
      Hi,
      Is there a post or a PDF that shows all the file formats for the emulators that go on the OG Xbox?
      I found some roms for the Snes but when I try to launch them in the snes emulator it does not see them, so I just want to make sure I have the right file format first.
    • By ttsgeb
      This is going to start out as just being copied directly over  from my thread on BitBuilt about the project.
      Please login or register to see this link.

      The xbox has some mildly odd power requirements. It uses the same 20 pin Molex MiniFit Jr connector that an ATX PSU output, however the pinout is completely different.

      As it stands, the typical solution is to use a PicoPSU, a small ATX PSU, a modify it to work with the original xbox.  PicoPSUs can be had for around $15, the power supplies for them can be had for around $10.  It's a very inexpensive solution.  Traditionally when this is done, the Power OK and Power On lines are ignored, the PSU is set to always on, and the wires are run all catywumpus to get to where they need to go.  While this solution works, it's definitely a hack, and I believe we can do better.

      So what are the xbox's actual power requirements?
      While I haven't actually cut up a power supply and tried to get the xbox to full load while measuring the current draw, I have a V1.1 PSU here that handily has the power requirements right on the label.
      Max Output Power: 96W
      DC Output:
      +5V -- 13.2A
      +3.3V -- 4.8A
      +12V --1.2A
      +3VSB -- 0.045A
      I hope it's safe to assume that further revisions of the xbox had similar or lower power draw.  Regardless, this seems like a good starting point.

      So, how do I plan to accomplish this?
      With 4x LM2678 Regulators from Texas Instruments.
      Please login or register to see this link.
      Why 4 regulators for 3 voltages?
      The LM2678 is a 5A regulator. I need 13.2A on the 5V line.  Having looked at the specs for the PicoPSUs that seem to work just fine, they're rated for 8A on the 5V line. This leads me to believe that 10A should suffice, so I'll need two regulators for 5V.
      I'll also need a 12V regulator, as I plan to run this off of an easily obtainable laptop power supply rather than needing to source an 8A 12V supply.
      I will also be designing a smaller footprint alternative that runs off of 12v for when space is of the highest concern.  I'll likely also break down the xbox's power requirements even further at some point to see if I can't design a PSU that allows for aggressive trimming, but that's much further down the road.
      --------------------------------------------

      I've designed the first iteration of the 24v board, it's 60*32mm. Now that it's done, I don't like it for a variety of reasons. I'm going to try again, putting the low profile components on the backside of the board and the tall components on the topside of it. Maybe I'll be able to squish it down a bit more in the process.
      --------------------------------------------

      There, that's a little better.
      27.5*49.25 mm
      --------------------------------------------
      Oh, hey, I worked on this a bit.
      I ditched the 12v regulator and changed it to 12v in. I also had to source different inductors, which are sadly larger, so the whole board got a couple of mm wider in the process.

      26.5mm*57.2mm

      I think I'm gonna actually order this one, and see if it works.
      --------------------------------------------
      I've since looked at the most recent revision and noticed a couple of flaws in it. I've repaired those flaws, and I'm gonna sleep on it again, look at it with fresh eyes tomorrow, and probably order it.
    • By bulkchart32
      i bought some broken xbox's. one of them says it freezes after playing for a while. i booted it up and the date was 04/13/44. i changed the date and unplugged it for a while. i then plugged it back in and it had the 04/13/44 again. i have never heard of that being the xbox's default date and i'm guessing it has something to do with the problems that it is having. what the heck would cause one to act like that? it's a version 1.6.
