Since the Sickmods site has vanished i thought it might be worth saving the information from there open source projects.

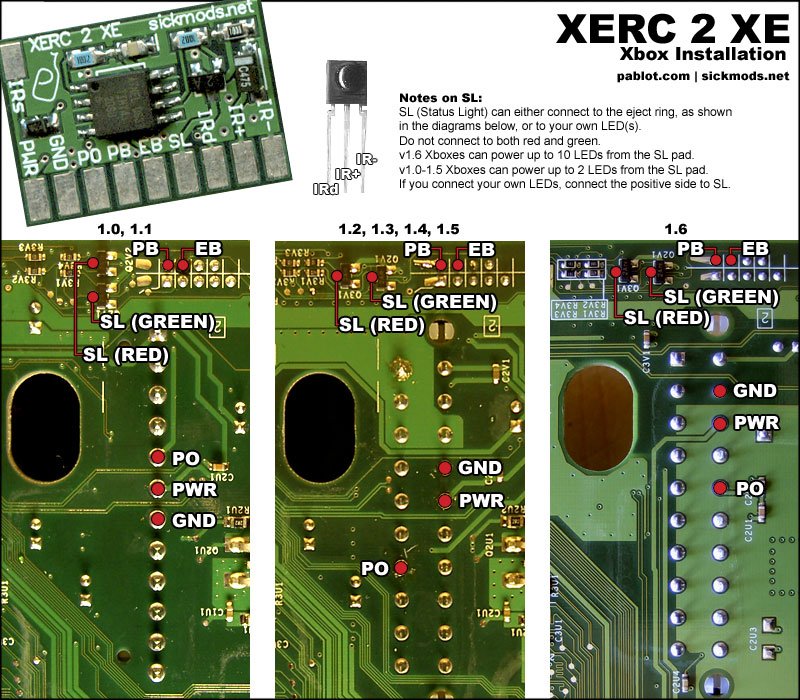

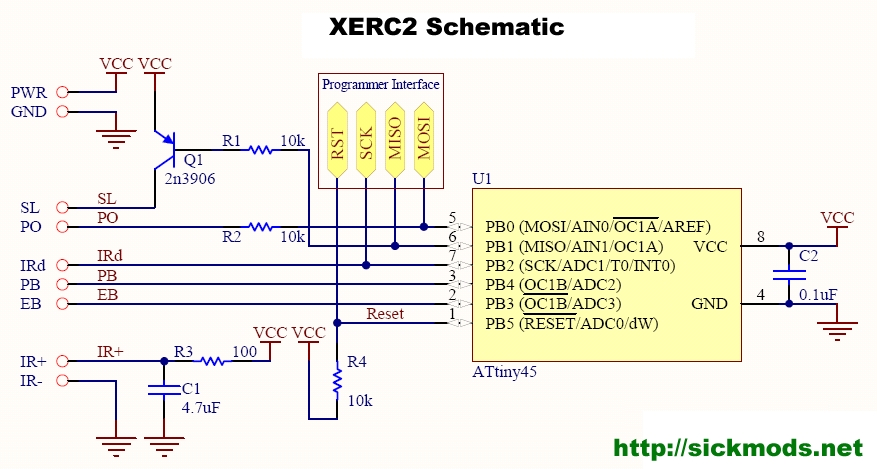

Having a backup of the user manual, source code and the shematic can't hurt. So here are the files for anyone who wants to build a couple Xerc2s.

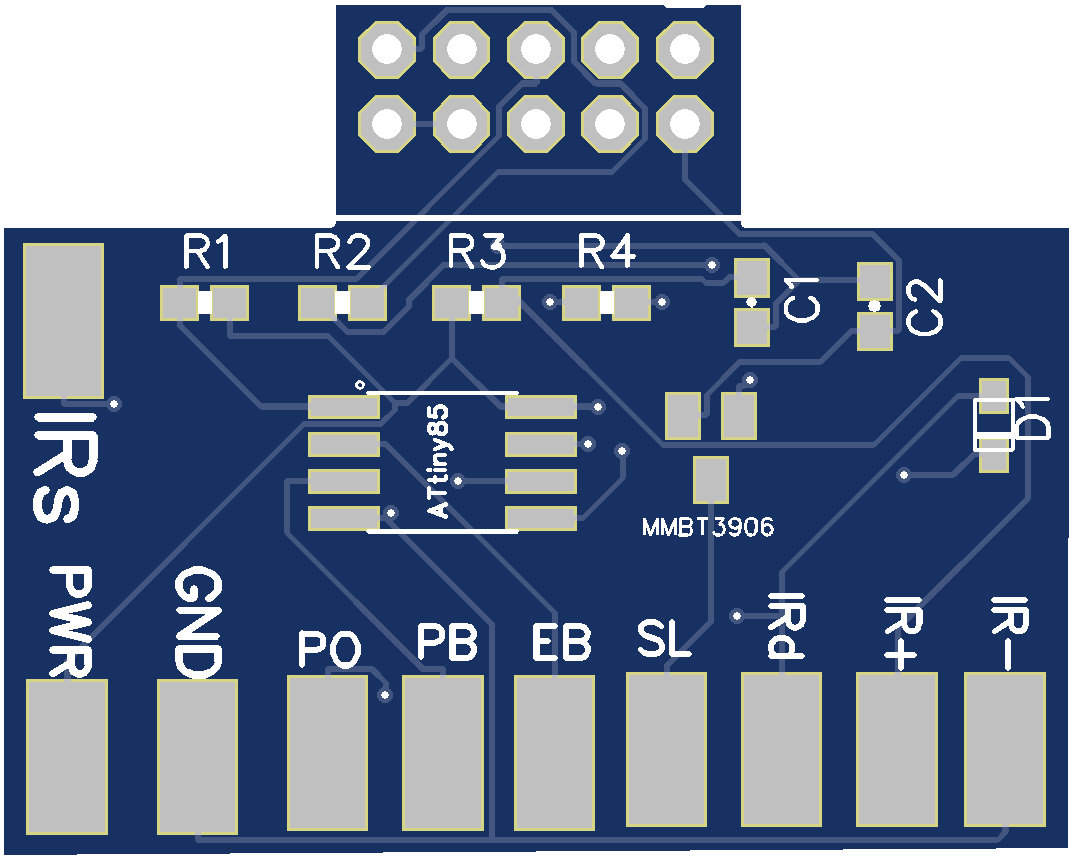

And for anyone who wants to build them i uploaded my panelized Layout here: Please login or register to see this link.



Have fun building and using the Xerc2 ir mod! :)







Please login or register to see this attachment.

Please login or register to see this attachment.

Please login or register to see this attachment. Please login or register to see this attachment.

  • Like 3
  • Thanks 4

Share this post


Link to post
Share on other sites

I added the link so people can order my Design if they wan‘t to but i‘m not really interested in putting out the Gerber files.

You can of course design your own boards and order wherever you want. This is just an offer. And ~160 Xerc2 boards per order is a lifetime supply anyway. Your decision ;)

  • Like 1

Share this post


Link to post
Share on other sites

Please login or register to see this link.

Xerc remake

enjoy TEK

2 hours ago, TEK Nemesis said:

Just need the gerbers, @N64 freak;)



Please login or register to see this attachment.

Please login or register to see this attachment.

Please login or register to see this attachment.

  • Like 1

Share this post


Link to post
Share on other sites
20 minutes ago, bluemeanie23 said:

Please login or register to see this link.

Xerc remake

enjoy TEK

Please login or register to see this attachment.

oh no, somebody's business ruined.

Edited by neighbor
  • Haha 1

Share this post


Link to post
Share on other sites

Lol, no business ruined i wouldn‘t throw out the shematic and stuff if i wanted to make a business of it.

@TEK Nemesis Your free to ask someone to make a design or draw one up yourself. Just an offer from my side for people who are lazy or like my design.

Share this post


Link to post
Share on other sites
On 6/2/2019 at 8:53 AM, N64 freak said:

I added the link so people can order my Design if they wan‘t to but i‘m not really interested in putting out the Gerber files.

You can of course design your own boards and order wherever you want. This is just an offer. And ~160 Xerc2 boards per order is a lifetime supply anyway. Your decision ;)

@N64 freak, you removed your design from dirtypcbs.com?

Share this post


Link to post
Share on other sites

@TEK Nemesis No the design should still be there. Just added my front underglow led stripes so it might have been temporily unavaylable while i uploaded the other file.

Should work fine now i just tested the link!

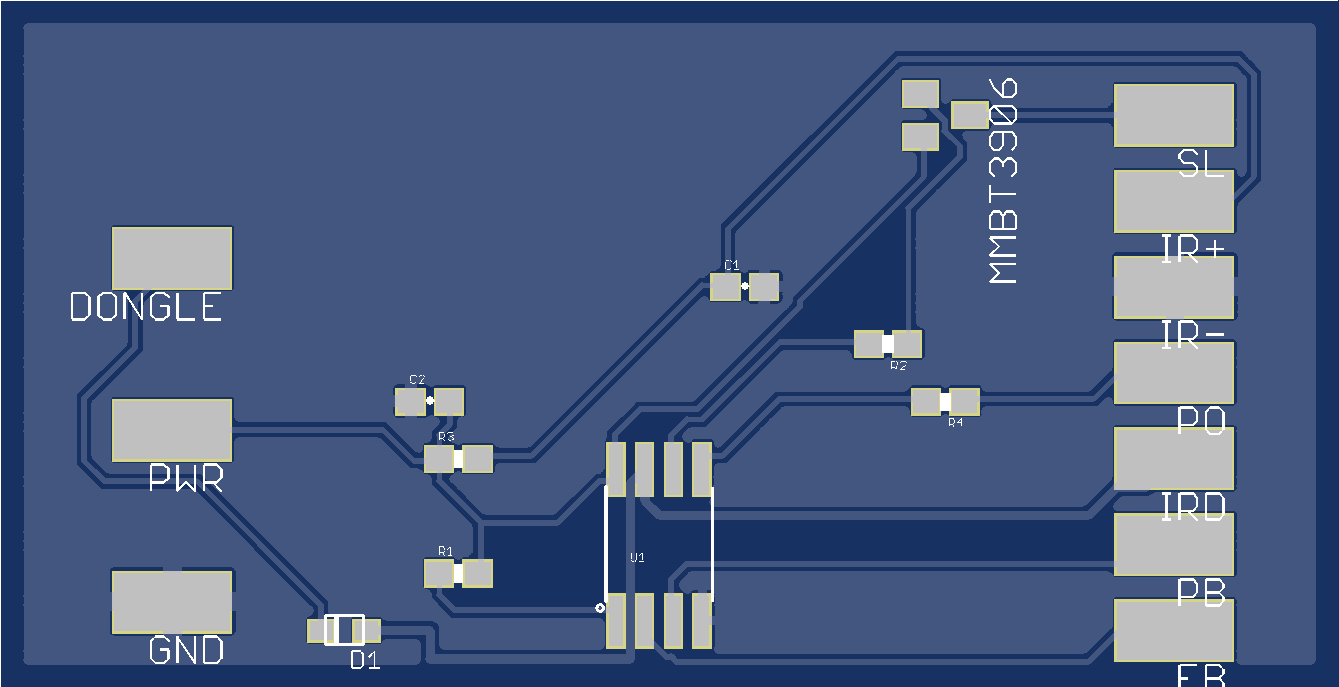

There's now also a Panel full of 1.6 LPC rebuild PCBs and the mentioned front underglow PCBs for anyone interested.

Share this post


Link to post
Share on other sites
23 minutes ago, N64 freak said:

@TEK Nemesis No the design should still be there. Just added my front underglow led stripes so it might have been temporily unavaylable while i uploaded the other file.

Should work fine now i just tested the link!

There's now also a Panel full of 1.6 LPC rebuild PCBs and the mentioned front underglow PCBs for anyone interested.

It's there now.  Thank you.

Share this post


Link to post
Share on other sites

Is anybdy able to help with a issue I am having. I have had some boards made up and have assembled them and programmed an Attiny45.

But when I attached the boards to a Xbox the lights pulse like they should but the remote does nothing.

Any help would be greatly appreciated.

Share this post


Link to post
Share on other sites
On 6/10/2019 at 8:29 AM, thePiratePimp said:

Any chance the PulseVU got saved as well?

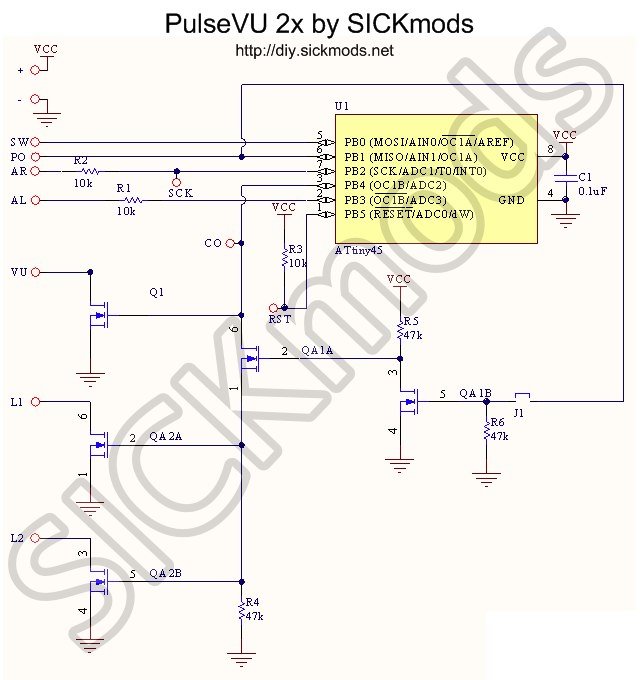

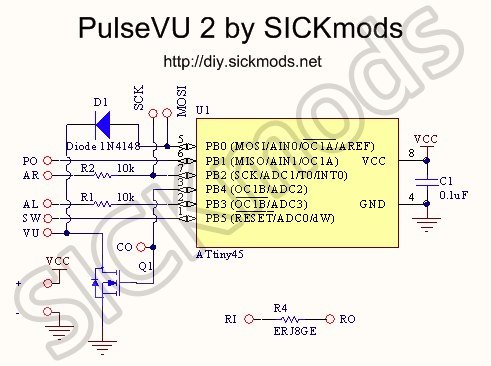

I attached some schematics. If you need anything else let me know and I might have it or be able to find it for you.  I don't think I have any board files, though I did see an OSHpark version floating around a while back so someone must have them.

Hope these help someone.

Please login or register to see this attachment.

Please login or register to see this attachment.

  • Like 2

Share this post


Link to post
Share on other sites
6 hours ago, DNA64 said:

I attached some schematics. If you need anything else let me know and I might have it or be able to find it for you.  I don't think I have any board files, though I did see an OSHpark version floating around a while back so someone must have them.

Hope these help someone.

thank you, bud.
what about the code for atiny45?

Share this post


Link to post
Share on other sites

Yeah, that's the problem no one seems to have backed up the source files from Please login or register to see this link.

The Wayback Machine has the directory listing and a couple of the files, pulsevu2.aps and startuptest.c, but not all of the files listed below:

pulsevu2 - Revision 2: /

  • Please login or register to see this link.
  • Please login or register to see this link.
  • Please login or register to see this link.
  • Please login or register to see this link.
  • Please login or register to see this link.
  • Please login or register to see this link.
  • Please login or register to see this link.
  • Please login or register to see this link.
  • Please login or register to see this link.
  • Please login or register to see this link.
  • Please login or register to see this link.
  • Please login or register to see this link.
  • Please login or register to see this link.

Powered by Please login or register to see this link.  version 1.5.1 (r32289).

or the builds/ files (only the listing of the files) or the scilab/ files (nothing captured):

pulsevu2 - Revision 2: /builds

  • Please login or register to see this link.
  • Please login or register to see this link.
  • Please login or register to see this link.
  • Please login or register to see this link.

Powered by Please login or register to see this link.  version 1.5.1 (r32289).

  • Like 1

Share this post


Link to post
Share on other sites
16 minutes ago, KaosEngineer said:

Yeah, that's the problem no one seems to have backed up the source files from Please login or register to see this link.

exactly, found out same problem few years ago.

Share this post


Link to post
Share on other sites
2 minutes ago, KaosEngineer said:

Or, if they did, they are not releasing them.

there is something for Wii
Please login or register to see this link.

Share this post


Link to post
Share on other sites
On 6/2/2019 at 7:31 PM, bluemeanie23 said:

Please login or register to see this link.

Xerc remake

enjoy TEK

Please login or register to see this attachment.

Please login or register to see this attachment.

What kind of components do I need?

U1 = ATTINY 85-20 SU?
MMBT3906 = MMBT3906 SOT32?
R1,2,4 = 10kOhm but what size? 0603?
R3 = 100 Ohm but what size? 0603?
C1= 4.7uF but what size? 0603? I assume 6.3V would be enough?
C2 = 0.1uF but what size? 0603? 6.3V?
D1 = ??? couldn't find that in the original schematic

Edited by Localhorst86

Share this post


Link to post
Share on other sites
2 hours ago, Localhorst86 said:

What kind of components do I need?

U1 = ATTINY 85-20 SU?
MMBT3906 = MMBT3906 SOT32?
R1,2,4 = 10kOhm but what size? 0603?
R3 = 100 Ohm but what size? 0603?
C1= 4.7uF but what size? 0603? I assume 6.3V would be enough?
C2 = 0.1uF but what size? 0603? 6.3V?
D1 = ??? couldn't find that in the original schematic

Not sure about the packages used in the gerbers, but I think that the diode D1 is a 1N4148 as seen on Please login or register to see this link. OGXbox post. It allows the xerc to be connected to the ir receiver in the xbox dvd playback kit.

Share this post


Link to post
Share on other sites
1 hour ago, DobaMuffin said:

Not sure about the packages used in the gerbers, but I think that the diode D1 is a 1N4148 as seen on Please login or register to see this link. OGXbox post. It allows the xerc to be connected to the ir receiver in the xbox dvd playback kit.

thanks, so I guess if I don't solder up the IR receiver from the USB port, I don't actually need that diode.

But I guess I can use the spare IR Receiver I have to salvage the IR unit and wire it directly to IR+/-/d - I just need to figure out which leg is which :D

Share this post


Link to post
Share on other sites

has anyone built one of these? I just programmed the attiny, I built the board and connected it to the xbox.

WHen I plug the xbox into the wall, I get the pulsing LED which tells me the system is working. However, I can not get the xbox to power on using the remote. When I enter programming mode, the LED also never flashes.

I've tried two different IR receivers (I desoldered the one from the xbox DVD playback kit and another one from a RC6 receiver I used back in the day.) with the same result.

any ideas what might be wrong?

Share this post


Link to post
Share on other sites
