SakisTheDrifter

Problem Using Only F On 67 Bios

Recommended Posts

1 hour ago, SakisTheDrifter said:

Even if the xbpartitioner formats the F partition with ER clusters,wouldnt the AID format menu correct it?because after i made the partitions with xbpartitioner,i run auto installer deluxe 4.53,format the whole HDD within its format menu and finally started filling the HDD

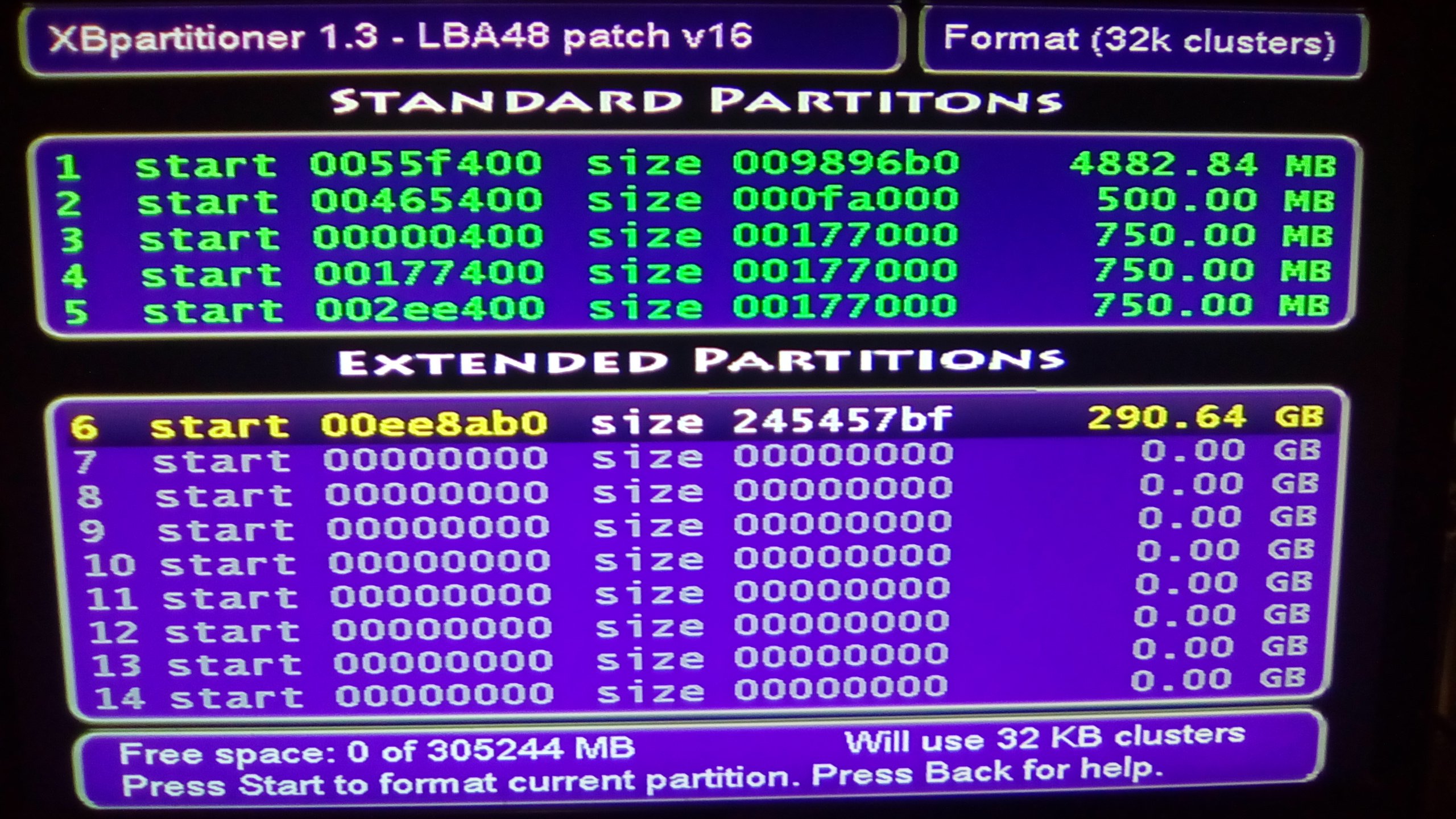

After you did all that, what does XBpartitioner say?  If it says "ER" then you still have a problem.

Share this post


Link to post
Share on other sites
16 hours ago, TEK Nemesis said:

After you did all that, what does XBpartitioner say?  If it says "ER" then you still have a problem.

I didnt check and cant do it now since i have formated and filled my Hdd with F and G drive and dont want to reformat it with F only

Share this post


Link to post
Share on other sites
2 hours ago, SakisTheDrifter said:

So the solution is to find a way to format with 64KB clusters instead of ER right?

No, not for a small HDD.  64 for a 2TB but it will be a lot different for yours - maybe 16.  Goal is to get rid of the ER.

Share this post


Link to post
Share on other sites

Here’s a conversion table for the max hdd sizes for klusters. You multiply the jouster size by 16 to get the max hddgb size.

8k x 16 = 128gb
16k x 16 = 256gb
32k x 16 = 512gb
64k x 16 = 1024gb

  • Like 1

Share this post


Link to post
Share on other sites

I had a weird problem with my 500GB hard drive not putting data on it beyond about half the drive ~225GB. I took the drive out, connected it to a PC using a USB external hard drive case, and installed EaseUS Partition Master (it's free!) . Once I could see the drive in the program, I removed all the partitions and had the program wipe the drive. I then put it back into the xbox, and formatted it with the Hexen 2019 disc and XBPartitioner. It's working great now and I have access to all 500GBs! I've done 2 drives this way.

Be patient when you wipe the drive, however. It will take a few hours.

Please login or register to see this link.

I am pretty sure now this was caused from using a hard drive that already had Windows partitions on it. The drive needs to be completely wiped and clean.

Edited by malarrya
  • Like 1

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

Sign in to follow this

  • Similar Content

    • By Hexy435XB936
      I was able to softmod 1 of my 2 Xboxes using a purchased game save, with the necessary files.
      I ordered an aladin plus 2 chip and will attempt to install to my other.   Is there a process I need to do to clean the motherboard prior soldering?
      Thanks
    • By SS_Dave
      I was playing with a different 007 Agent Under Fire game save hack and while flashing a new BIOS on a version 1.0 Xbox I flashed a 256k BIOS(STUPID I know).
      Yep it was FRAGing afterwards now you can either fit a mod chip and be done with it or do a 3 wire flash recovery by following the instructions that can be found by working the Google on the interweb.
      The instructions say 1 wire soldered to ground and the  other 2 get soldered to points on the bottom of the mother board(pain in the butt as you now have to remove the PCB again), Me been lazy and not wanting to remove the PCB again found an easy way to do the 3 wire trick. {pic 1}
      You need a test lead with alligator clips both ends and a pin. {pic 2}
      Clip the pin in one end and the other on the metal shield(you did leave the metal shield in didn't you)and the point of the pin is gently held on pin 1 and 2 of the TSOP chip. {pic 3}
      Power on the Xbox and if all goes well your Xbox boots.
      Remove the pin that's shorting the 2 pins to ground.
      Now flash the correct 1024k (1 meg) BIOS.
      If you don't like the idea of shorting the pins on the TSOP IC the points in the pic below show the same points on the top of the PCB and the bottom of the PCB. {pic 4}
       Please login or register to see this attachment.   Please login or register to see this attachment.
                          1                                                                   2                                                                                 3                                                             4
      Inside the box on lower right of pic 4 are the same points as in pic 1

      On side note I did try a mod chip and with some BIOS's the Xbox booted but with no video out but the Xbox was still showing on my home network and I was still able to network in to the box.

      SS Dave



      Those who can hard-mod, Those who can’t soft-mod.
      Ps If you like it don't forget to say thanks and please give me any feedback good or bad!
    • By HackDaBox!
      Jargon Buster
      TSOP - IS THE ONBOARD CHIP THAT BOOTS THE MS BIOS , YOU WILL WANT TO BOOT FROM THIS FOR XBOX LIVE.
      LPC - THE HOLES WHERE THE MODCHIP CONNECT TO THE MOBO USING WIRES OR PINHEADER OR QUICKSOLDER METHODS.
      FRAG - FLASHES RED AND GREEN. THE XBOX IS TELLING YOU SOMETHING IS WRONG AND IT CANNOT BOOT POSSIBLY DUE TO POOR SOLDERING.
      BOOT - WHEN THE XBOX LOADS A BIOS AND STARTS UP THIS PROCESS IS CALLED BOOTING.
      BIOS - THE PROGRAM THAT IS STORED ON THE MODCHIP OR TSOP. IT'S EITHER MS OR HACKED (EVOX OR X2).
      PIN HEADER - 2 ROWS OF PINS THAT YOU SOLDER INTO THE LPC HOLES AND THEN SIMPLY PLUG YOUR CHIP ONTO IT.
      MOBO - SIMPLY MEANS THE XBOX MOTHERBOARD.
      D0 - THIS IS A LITTLE VIA ON THE TOP OF THE MOBO OR A SMALL PAD ON THE BOTTOMSIDE OF THE MOBO THAT WHEN GROUNDED PREVENTS THE TSOP BOOTING.
      VIA - A VERY SMALL LITTLE CIRCLE. YOU WILL NEED PRACTICE BEFORE YOU CAN SOLDER TO THESE. YOU CAN AVOID THESE ON EARLIER MODELS BUT NOT ON A V1.6
      EVOX DASHBOARD - AN ALTERNATE DASHBOARD FOR THE XBOX THAT HAS A MENU TO LOAD GAMES , FLASH YOUR BIOS ETC. NOT TO BE CONFUSED WITH EVOX BIOS WHICH IS DIFFERENT AGAIN. EVOX DASHBOARD IS MADE UP OF A NUMBER OF FILES THAT YOU TRANSFER ONTO YOUR HARD DRIVE OR A CDRW. THE LATEST VERSION IS 3935.
      EVOX BIOS - A HACKED BIOS FOR THE XBOX , IT ALLOWS YOU TO PLAY BACKUP GAMES AND RUN COOL APPS LIKE EVOX DASHBOARD. THE LASTEST BIOS IS M8 PLUS.
      X2 BIOS - A HACKED BIOS FOR THE XBOX , IT ALLOWS YOU TO PLAY BACKUP GAMES AND RUN COOL APPS LIKE EVOX DASHBOARD. THE LASTEST BIOS IS 4983.
      HOT SWAP - THE NAME GIVEN TO THE TECHNIQUE OF BOOTING THE XBOX WITH ONE MODCHIP (WITH THE LID OFF AND THE DVDROM TURNED AROUND THE WRONG WAY) AND THEN UNPLUGGING THE MODCHIP FROM THE HEADERPIN AND REPLACING IT WITH A BLANK ONE OR ONE THAT HAS HAD A BAD FLASH AND THEN FLASHING THIS CHIP.
      FLASHING - PROGRAMMING A BLANK CHIP OR REPROGRAMMING A CHIP WITH A BIOS FILE. SPIDERCHIP AND ALADDINS NEED A 256K BIOS. DUOX2 NEED A 512K BIOS. ALSO V1.6 XBOX'S REQUIRE THE EVOX M8 PLUS V1.6 BIOS. OTHER MODELS CAN USE THE X2 4981 OR X2 4983 BIOS.
      FLASHBIOS - A SPECIAL BIOS THAT ONLY LETS YOU DO A FEW FUNCTIONS. (WONT PLAY BACKUP GAMES). ITS MAIN PURPOSE IS TO FLASH YOUR MODCHIP WITH A HACKED BIOS.
      LOCK - LOCKS A HARD DRIVE SO THE MICROSOFT BIOS AND DASHBOARD WILL BOOT. THIS IS NEEDED FOR XBOX LIVE.
      UNLOCK - UNLOCKS A HARD DRIVE FOR USE IN A PC. YOU MUST UNLOCK A XBOX HARD DRIVE BEFORE IT CAN BE USED IN A COMPUTER.
