SakisTheDrifter

Problem Using Only F On 67 Bios

Recommended Posts

Hello everyone. I have a question. Can i use only F partition on a 67 Bios? I am asking this because i am using ind-5004 bios and it was fine as far as i had F and G. Recently i decided to make just 1 F partition. I loaded xbpartitioner 1.1 and create a single 290 GB partition for F(it was 120 F and 170 G before) and after that i started loading stuff in it. The problem is that after the free space went to 32-35 GB(dont remember excactly)no new files would be writen on the F partition. The other partitions would get files normally. If i delete something on the F,then it would accept files again until it reaches the free space limit.... Am i doing anything wrong or is the bios supposed to work only with G too?

Share this post


Link to post
Share on other sites
55 minutes ago, SakisTheDrifter said:

Hello everyone. I have a question. Can i use only F partition on a 67 Bios?

Always use a BIOS that supports F & G regardless of what you are doing now.  (You might choose to upgrade to a larger HDD in the future.)  Like @Alaziel said, simply use XBpartitioner 1.3 to setup the partition for F with nothing on G.

Share this post


Link to post
Share on other sites
8 hours ago, KaosEngineer said:

Then, it's not v1.3.  Where did you download it from?

Please login or register to see this link.

Updated versions fix problems in older versions.  V1.3 is the latest available.

I downloaded from here Please login or register to see this link.  but ok ifound the correct version. The problem is that i already filles my hdd with FG drives and dont wanna risk emptying it again in order to make it F only

Share this post


Link to post
Share on other sites
1 hour ago, SakisTheDrifter said:

I finally reformated the hdd with the 1.3 version but still the same. When i reach 32Gb free,nothing more can be put in F partition

Did you cycle through the partition setups by pressing the A button?

Share this post


Link to post
Share on other sites
10 hours ago, TEK Nemesis said:

Did you cycle through the partition setups by pressing the A button?

I first made ALL of the partitions(XYZCEF) 0 bytes,so the app will format all of them,then i did cycle with A button until all space goes to F and then it reformated the HDD but still no luck. I quess its something with the bios? Maybe 5003 is better at this point?

Share this post


Link to post
Share on other sites

What's the main screen of XBpartitioner v1.3 look like?  post a pic showing your Xbox's  HDD settings.

What is the size of the F drive?  What cluster size is being used?

Share this post


Link to post
Share on other sites
1 hour ago, KaosEngineer said:

What's the main screen of XBpartitioner v1.3 look like?  post a pic showing your Xbox's  HDD settings.

What is the size of the F drive?  What cluster size is being used?

Its excactly like the one you posted. The top partitions are the same and F drive gets 290GB and formats with 32K cluster size

Share this post


Link to post
Share on other sites
5 hours ago, SakisTheDrifter said:

The top partitions are the same and F drive gets 290GB and formats with 32K cluster size

This is what you wanted though, right?  So, when you set it to that, write the table and then reboot, what is the outcome now?

Share this post


Link to post
Share on other sites
5 hours ago, TEK Nemesis said:

This is what you wanted though, right?  So, when you set it to that, write the table and then reboot, what is the outcome now?

So after that i start filling the F drive with games emulators etc,but when the free space drops to 30-32GB,no more filles can be copied into that drive. Others drives can be filled to maximum,but this one cant. Tried that on 2 xboxes with same Bios and the same problem occurs,so i assume that its a bios problem

Share this post


Link to post
Share on other sites

Can you take a photo of XBpartitioner 1.3 immediately after you launch the app?  Ensure that the focus is moved off the F drive so that we can fully see the what the F partition is indicating.

Share this post


Link to post
Share on other sites

You have to have a partition table on the HDD and the BIOS must have LBA48 patch v3 installed.

The standard configuration for an LBA48 .67 BIOS is partition 6 (F) up to 137GB and partition 7 (G) takes the rest. Without using XBPartitioner v1.3 to write a partition table the the hard drive, a .67 BIOS will only have F of ~120.5GB's and G the remainder no matter how you have the drive setup.  The LBA48 patched, .67, BIOS has fixed values set for the drive/partition starting locations when no partition table present.  If the table is present, the BIOS overrides the fixed .67 configuration values with those values read from the partition table.

Share this post


Link to post
Share on other sites
On 5/8/2019 at 2:57 AM, TEK Nemesis said:

Can you take a photo of XBpartitioner 1.3 immediately after you launch the app?  Ensure that the focus is moved off the F drive so that we can fully see the what the F partition is indicating.

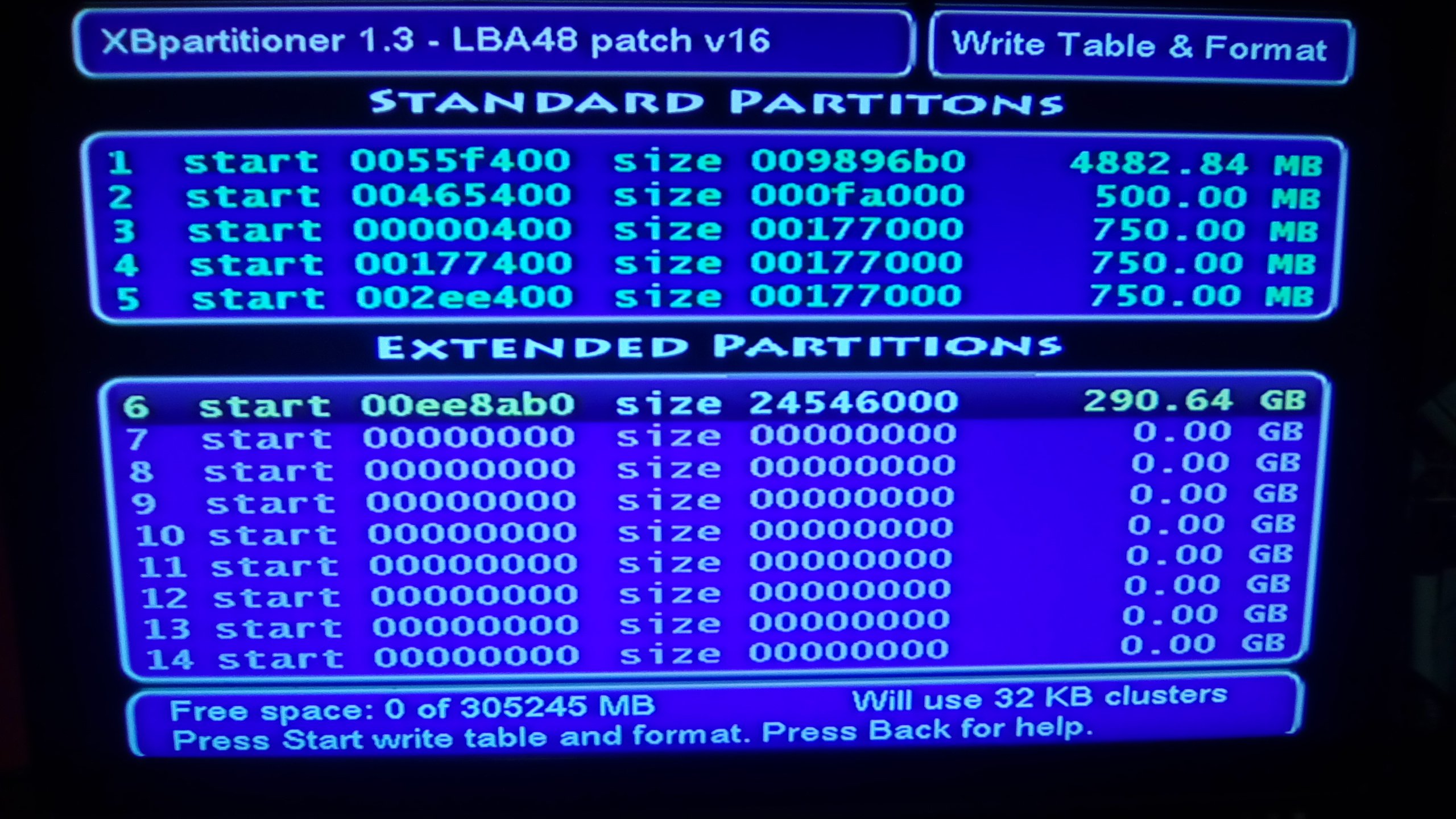

This is what i see. What i notice is that it says LBA48 patch v16 while in others i see it reads v3. What excactly is this?

Please login or register to see this attachment.

Edited by SakisTheDrifter
Remembered something

Share this post


Link to post
Share on other sites
54 minutes ago, SakisTheDrifter said:

This is what i see.

Move the focus off of the partition 6 (F) line and take another photo please.  The v16 might have something to do with rev 1.6 compatibility.

Share this post


Link to post
Share on other sites
On 5/10/2019 at 1:13 AM, TEK Nemesis said:

Move the focus off of the partition 6 (F) line and take another photo please.  The v16 might have something to do with rev 1.6 compatibility.

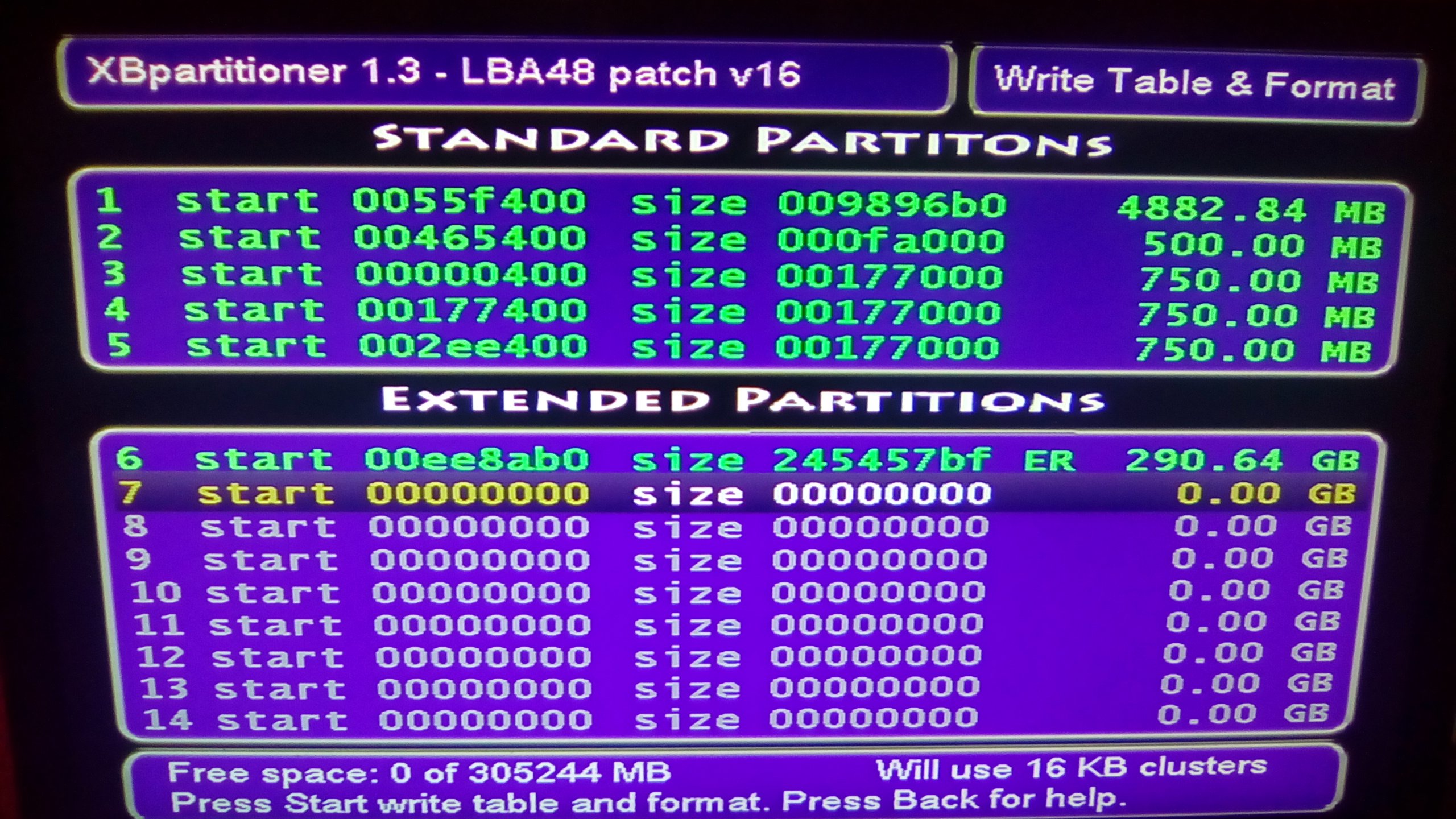

It is still the same. What is wrong here?

Please login or register to see this attachment.

Share this post


Link to post
Share on other sites

OK...  Now we can see the problem.  Go back up to that row.  Cycle A button until it reads the same details for that partition.  Press Start button.  Once complete, press White button until it says just Format at the top.  Press Start button.  Press White button until it says just Write Table.  Press Start button.  Then, press Back button to exit.  Reboot.  Go back into XBpartitioner 1.3 and keep doing this until it no longer says ER.

Share this post


Link to post
Share on other sites
1 hour ago, TEK Nemesis said:

OK...  Now we can see the problem.  Go back up to that row.  Cycle A button until it reads the same details for that partition.  Press Start button.  Once complete, press White button until it says just Format at the top.  Press Start button.  Press White button until it says just Write Table.  Press Start button.  Then, press Back button to exit.  Reboot.  Go back into XBpartitioner 1.3 and keep doing this until it no longer says ER.

What does ER stands for?

Share this post


Link to post
Share on other sites

Even if the xbpartitioner formats the F partition with ER clusters,wouldnt the AID format menu correct it?because after i made the partitions with xbpartitioner,i run auto installer deluxe 4.53,format the whole HDD within its format menu and finally started filling the HDD

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
