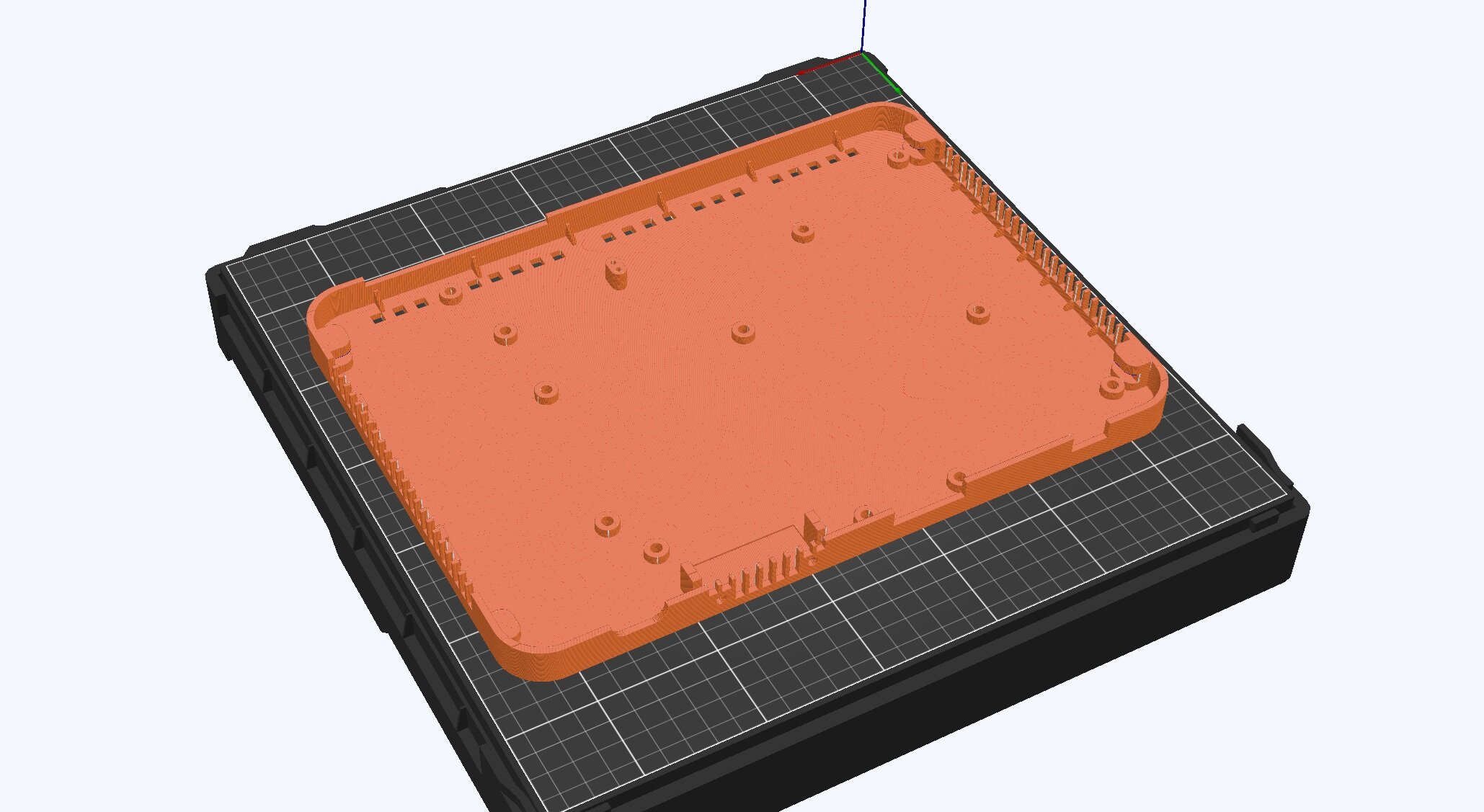

ShinGoutetsu Posted December 2, 2023 Author Report Share Posted December 2, 2023 made some adjustments, this is an alignment print which will take 11 hours. The case will now use threaded inserts for mounting the xbox board and psu. I've added ribs to strengthen the case. 4 1 Quote Link to comment Share on other sites More sharing options...
big F Posted December 2, 2023 Report Share Posted December 2, 2023 Shame you can’t Heart this more than once. Quote Link to comment Share on other sites More sharing options...

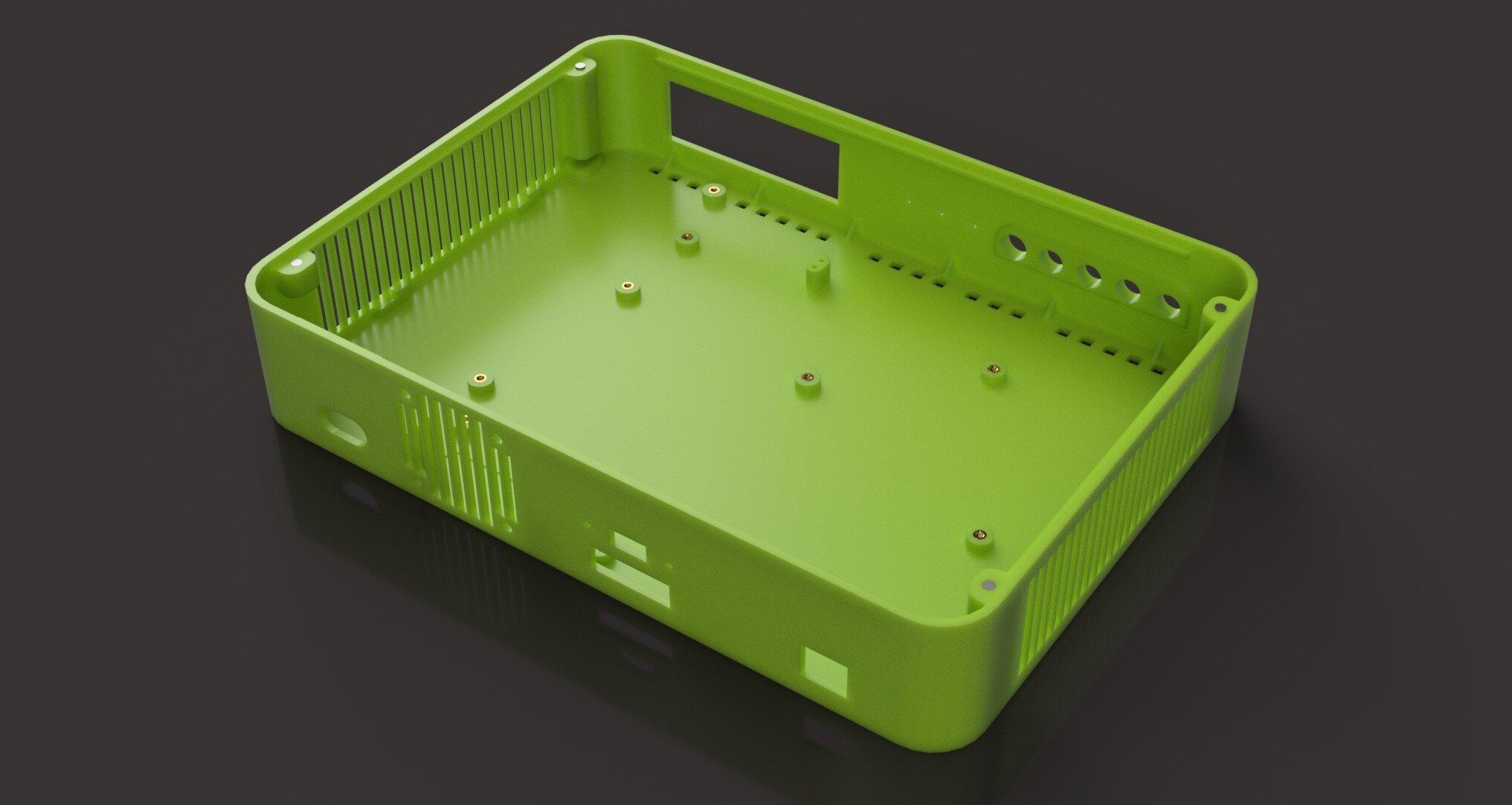

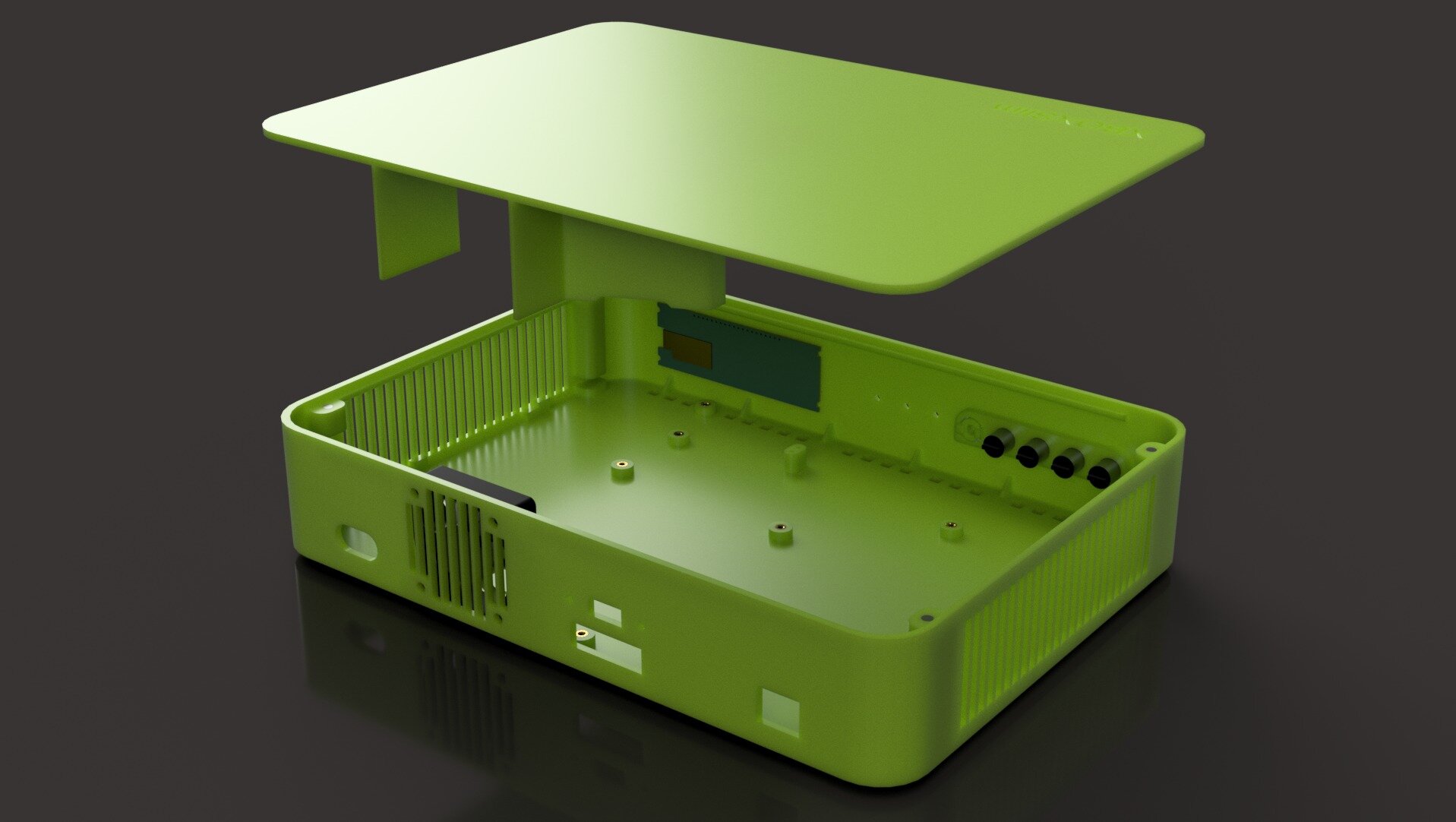

ShinGoutetsu Posted December 2, 2023 Author Report Share Posted December 2, 2023 16 minutes ago, big F said: Shame you can’t Heart this more than once. Haha thanks. Here's some pics of the case with inserts and magnets that hold the lid in place instead of screws. 1 Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted December 2, 2023 Report Share Posted December 2, 2023 5 hours ago, ShinGoutetsu said: Haha thanks. Here's some pics of the case with inserts and magnets that hold the lid in place instead of screws. I REALLY want to build this and the more skills and tools I gain the more I like to build things myself instead of just buying them. However, I don't think my 3d printer is big enough and I just didn't want to spend the money on a printer with a big enough bed to print this. Are you able to print one in it's current form, or is it not finished yet? Quote Link to comment Share on other sites More sharing options...
ShinGoutetsu Posted December 2, 2023 Author Report Share Posted December 2, 2023 4 minutes ago, Bowlsnapper said: I REALLY want to build this and the more skills and tools I gain the more I like to build things myself instead of just buying them. However, I don't think my 3d printer is big enough and I just didn't want to spend the money on a printer with a big enough bed to print this. Are you able to print one in it's current form, or is it not finished yet? The first print is in progress. It's for an alignment check though. The full case will be printed after I'm happy that everything lines up. Them the case files will be released. 1 1 Quote Link to comment Share on other sites More sharing options...
lopenator Posted December 3, 2023 Report Share Posted December 3, 2023 can I buy this yet? 1 Quote Link to comment Share on other sites More sharing options...

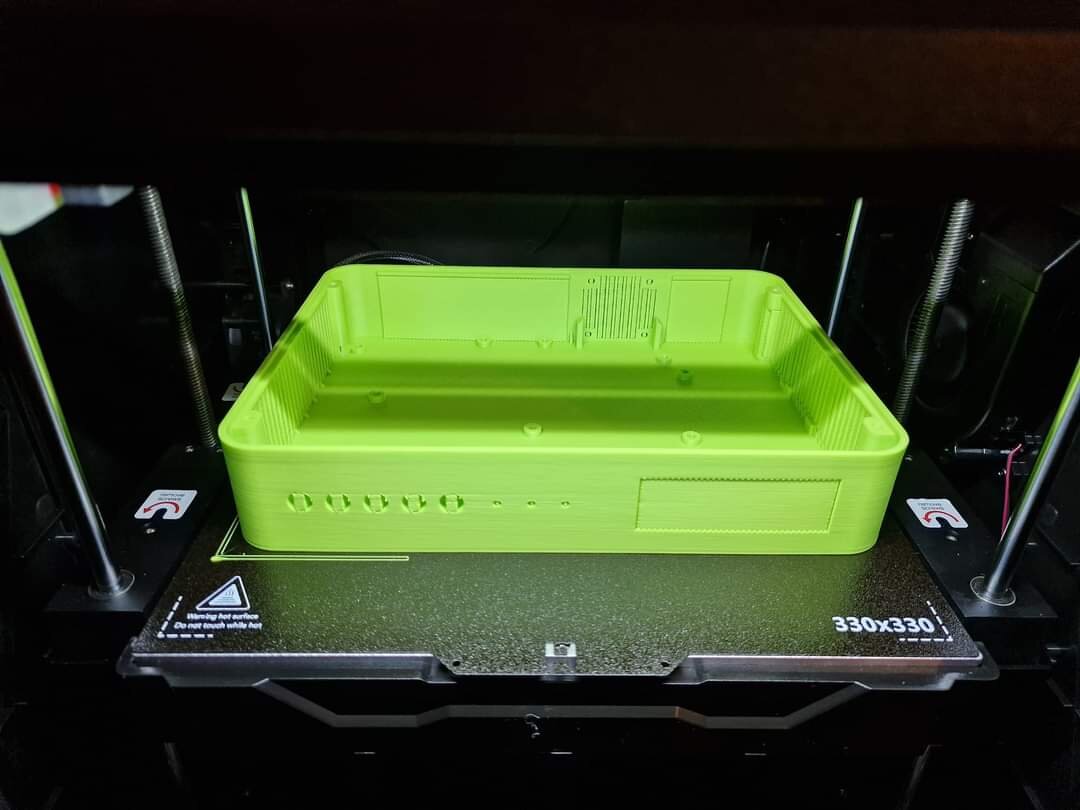

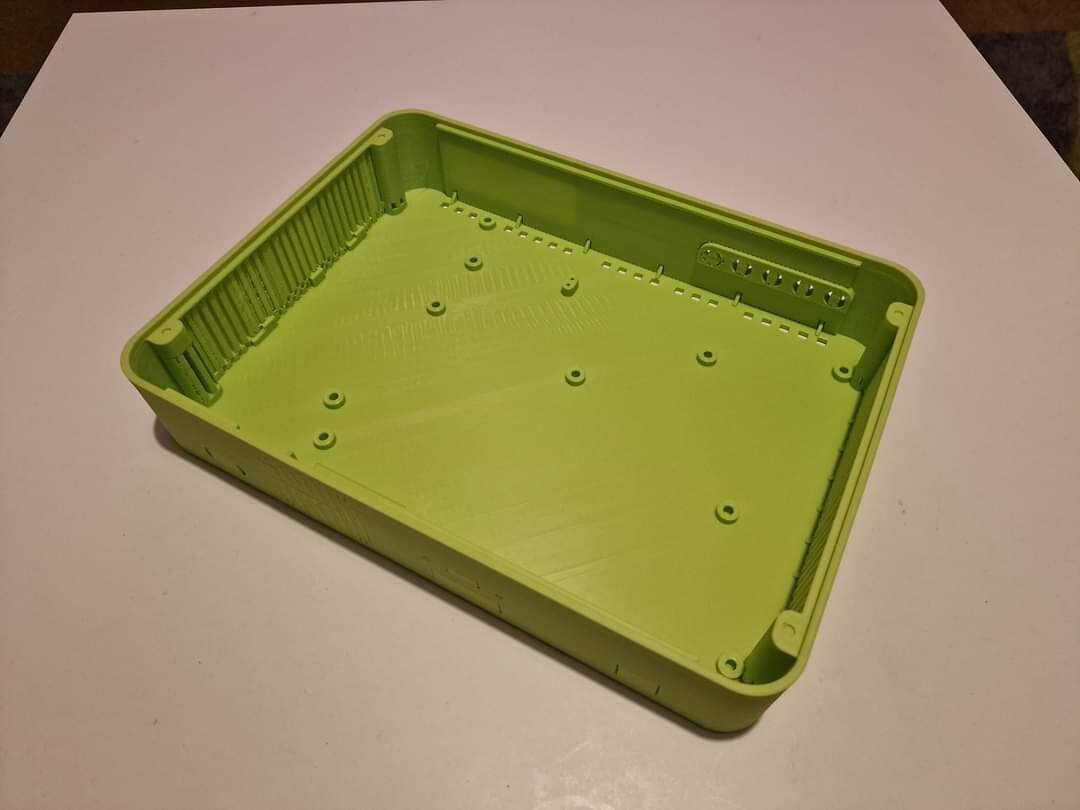

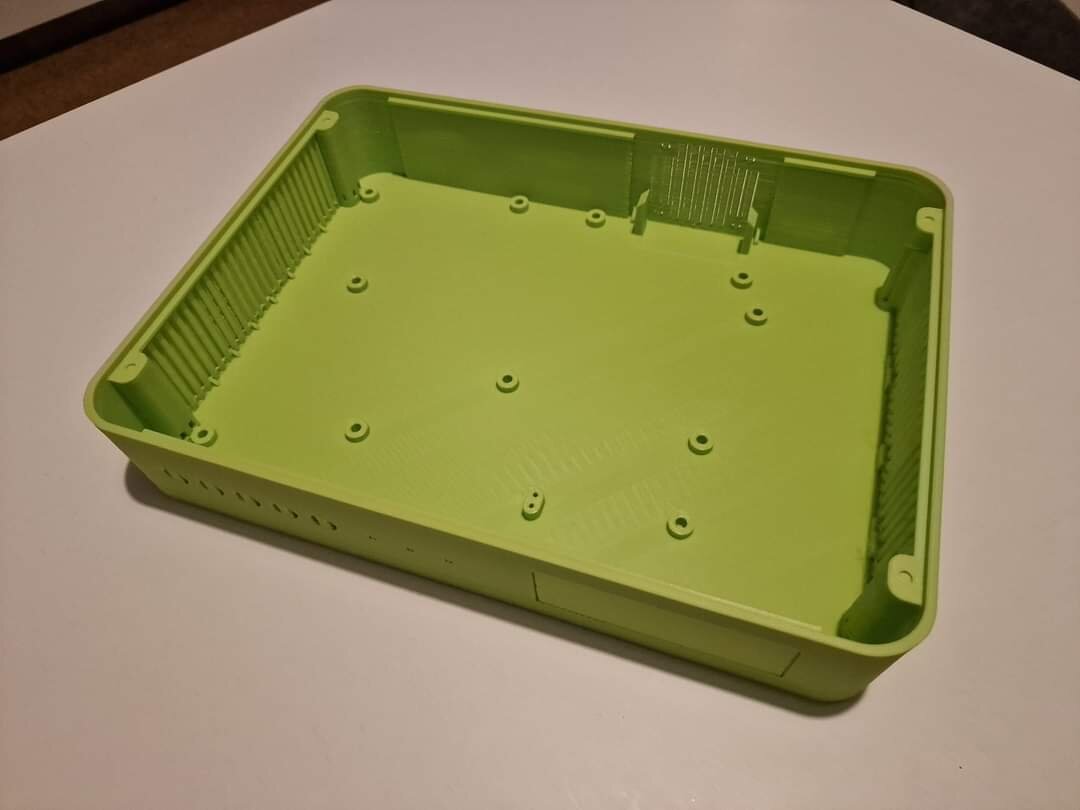

ShinGoutetsu Posted January 9 Author Report Share Posted January 9 Actual print on my Qidi XMax 3, took 10.5 hours (still removing the supports at the moment). 1 Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted January 9 Report Share Posted January 9 9 hours ago, ShinGoutetsu said: Actual print on my Qidi XMax 3, took 10.5 hours (still removing the supports at the moment). I whish I could do things like this. I'm very impressed. Very cool, sir. Quote Link to comment Share on other sites More sharing options...
big F Posted January 9 Report Share Posted January 9 Might have to give this a go should fit on my Ender 3 as it has a bed the same size as the Qidi. Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted January 10 Report Share Posted January 10 10 hours ago, big F said: Might have to give this a go should fit on my Ender 3 as it has a bed the same size as the Qidi. I wonder if it's possible to widen the bed on my Elegoo Neptune 4... it's just BARELY like an inch too narrow. Quote Link to comment Share on other sites More sharing options...
big F Posted January 10 Report Share Posted January 10 1 hour ago, Bowlsnapper said: I wonder if it's possible to widen the bed on my Elegoo Neptune 4... it's just BARELY like an inch too narrow. If it’s built like an ender you can buy the Aluminium square section and essentially cut your own that will give the area then you need a bigger heater bed. The heater beds are fairly generic across the market. Then just get a bigger glass pad or magnetic sheet or what ever you use to match. the printer parameters can be adjusted in Marlin software, so it can be told to expect a bigger bed. Slicer software obvs can be set up to what ever you want. 1 Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted January 10 Report Share Posted January 10 6 hours ago, big F said: If it’s built like an ender you can buy the Aluminium square section and essentially cut your own that will give the area then you need a bigger heater bed. The heater beds are fairly generic across the market. Then just get a bigger glass pad or magnetic sheet or what ever you use to match. the printer parameters can be adjusted in Marlin software, so it can be told to expect a bigger bed. Slicer software obvs can be set up to what ever you want. @ShinGoutetsu I think you told me the bed size is 33CM, correct? Quote Link to comment Share on other sites More sharing options...
ShinGoutetsu Posted January 10 Author Report Share Posted January 10 2 hours ago, Bowlsnapper said: @ShinGoutetsu I think you told me the bed size is 33CM, correct? My print bed is 33cm square, yes. The case is 30cm at its widest 1 Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted January 10 Report Share Posted January 10 2 hours ago, ShinGoutetsu said: My print bed is 33cm square, yes. The case is 30cm at its widest Okay, I'll attempt to upgrade my bed size... Hopefully the head has enough movement/mobility to accomodate. and the bed can fit between the pillars... Quote Link to comment Share on other sites More sharing options...

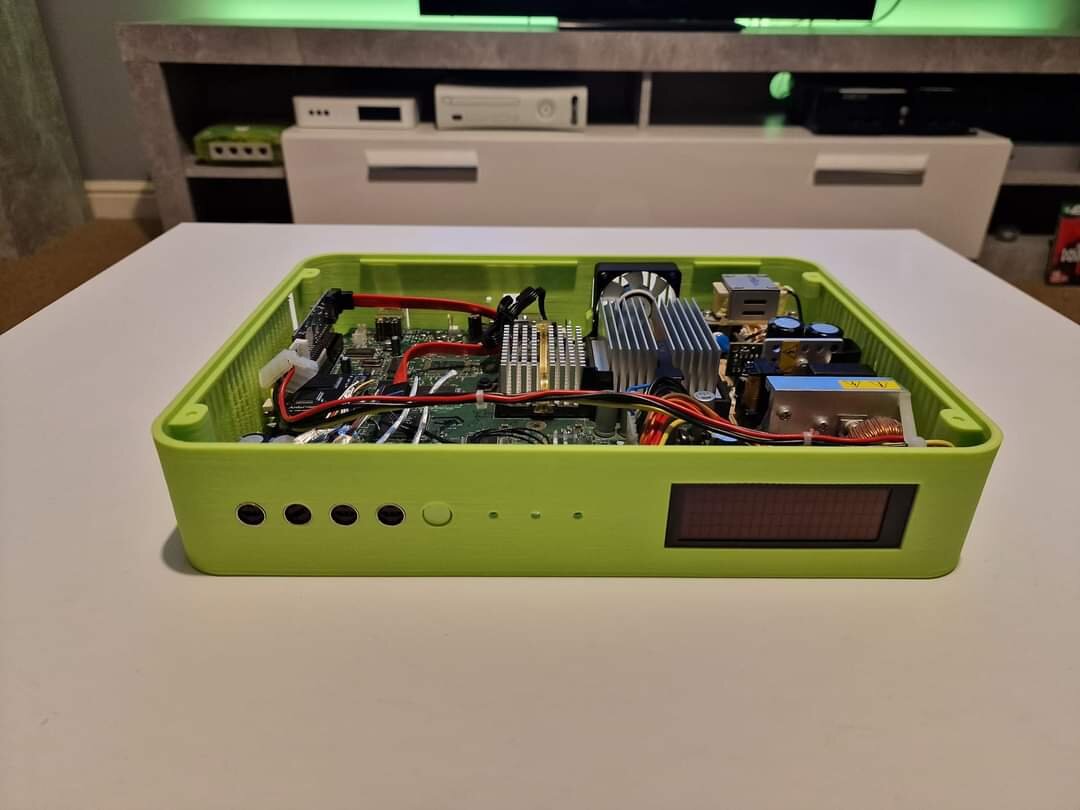

ShinGoutetsu Posted January 15 Author Report Share Posted January 15 Well everything fits so far 1 4 Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted January 15 Report Share Posted January 15 3 minutes ago, ShinGoutetsu said: Well everything fits so far Dude ,YES. Quote Link to comment Share on other sites More sharing options...
ShinGoutetsu Posted February 12 Author Report Share Posted February 12 Slim Case parts list: 1. 4 x controller port cables https://www.ebay.co.uk/itm/202267811844 2. 8 x 4mm x 1mm magnets https://www.ebay.co.uk/itm/204195070562?var=504873089626 3. 3mm led x 2 (for HDD and LAN activity led's) 4. 3mm bi colour common cathode x 1 (for power/eject led) 5. 50mm 12v fan https://www.amazon.co.uk/Gelid-Silent-Hydro-Dynamic-Bearing/dp/B008S1DN66/ref=sr_1_17?crid=3ETPMTKXY2BFF&keywords=50mm%2Bx%2B50mm%2Bx%2B20mm%2Bfan%2B12v&qid=1707643302&sprefix=50mm%2Bx%2B50mm%2Bx%2B20mm%2Bfan%2B12v%2Caps%2C82&sr=8-17&th=1 6. IDE to SATA adapter https://www.startech.com/en-gb/hdd/ide2sat25 7. Short SATA cable https://www.ebay.co.uk/itm/322901628155 8. USB panel mount cable https://www.ebay.co.uk/itm/232202769908 9. 10mm Round Momentary Push Button (for power switch) https://www.ebay.co.uk/itm/124500698456 10. (Optional) Newhaven OLED display https://www.digikey.co.uk/en/products/detail/newhaven-display-intl/NHD-0420CW-AB3/5022951 11. (optional) OLED compatible OpenXenium Modchip 12. 2.5" HDD/SSD sata storage device 13. Brass M3 x 6mm heat set inserts https://www.amazon.co.uk/Printing-Knurled-Threaded-Embedment-Injection/dp/B0C1RRBGC7/ref=sr_1_29?crid=2Z28ESWASWL71&keywords=brass+inserts+m3&qid=1707733782&sprefix=brass+inserts%2Caps%2C88&sr=8-29 Quote Link to comment Share on other sites More sharing options...

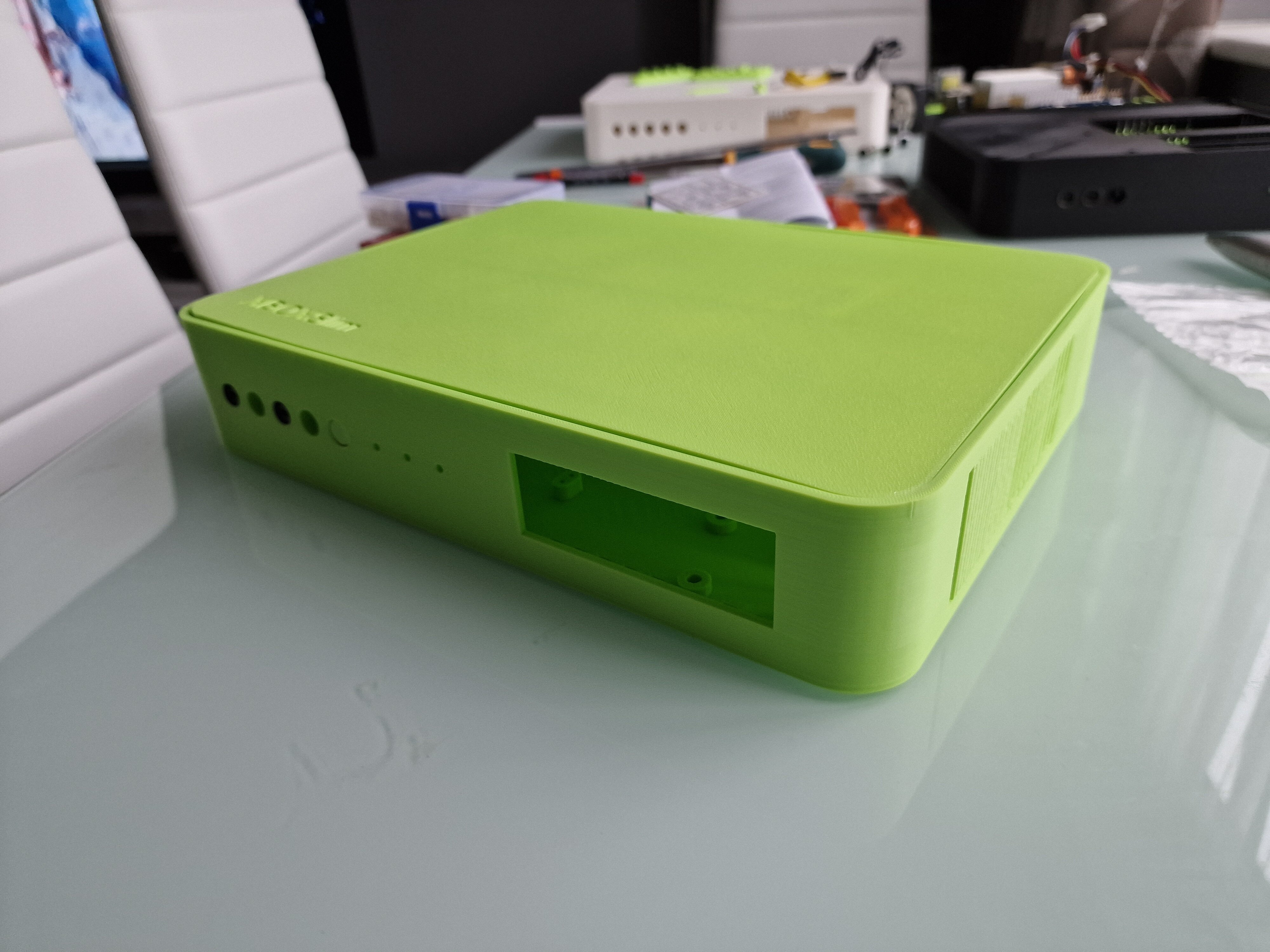

ShinGoutetsu Posted February 13 Author Report Share Posted February 13 1 2 Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted February 13 Report Share Posted February 13 I would love it if this thread was pinned. Quote Link to comment Share on other sites More sharing options...
ShinGoutetsu Posted March 3 Author Report Share Posted March 3 Files here: 2 Quote Link to comment Share on other sites More sharing options...
big F Posted March 3 Report Share Posted March 3 Epic, this needs to be pinned on the first page of the forum. Its that good. 2 Quote Link to comment Share on other sites More sharing options...

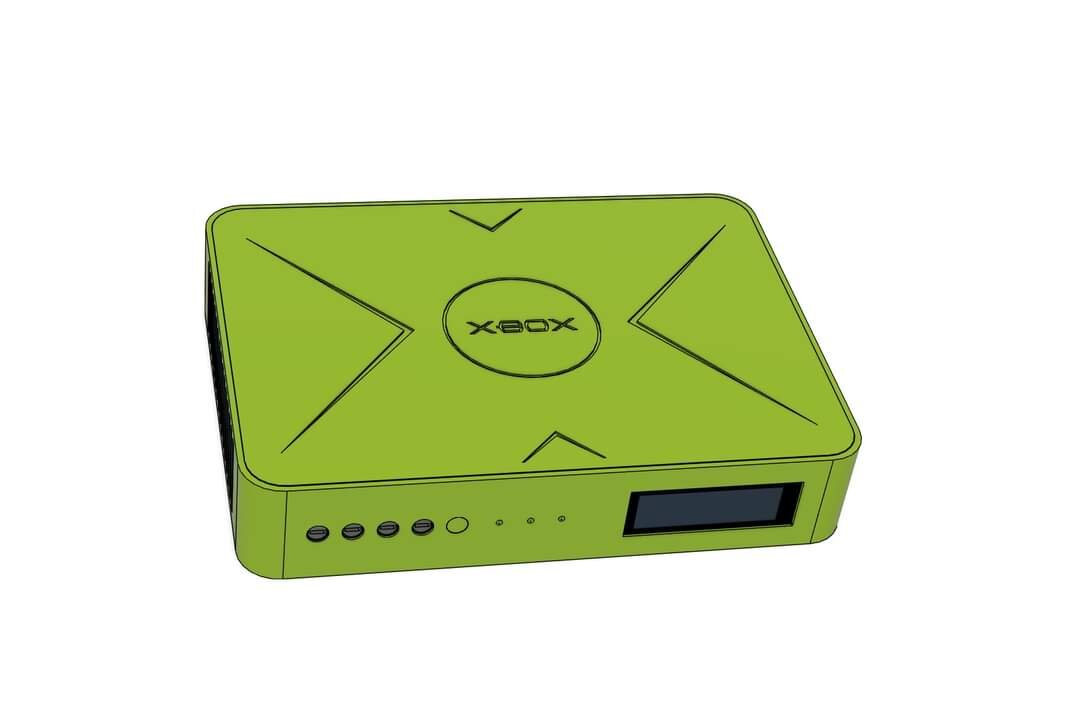

ShinGoutetsu Posted March 18 Author Report Share Posted March 18 I've made a new top part that adds back the original xbox identity, will upload it here soon 5 Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted March 18 Report Share Posted March 18 1 minute ago, ShinGoutetsu said: I've made a new top part that adds back the original xbox identity, will upload it here soon NICE WORK! Is there any way, we could have a version that leaves the spot open completely so we can put an original jewel on? I'd be interested in seeing how that would look. 1 Quote Link to comment Share on other sites More sharing options...
ShinGoutetsu Posted March 20 Author Report Share Posted March 20 On 3/18/2024 at 8:11 PM, Bowlsnapper said: NICE WORK! Is there any way, we could have a version that leaves the spot open completely so we can put an original jewel on? I'd be interested in seeing how that would look. Will do at the weekend 1 Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted March 20 Report Share Posted March 20 8 hours ago, ShinGoutetsu said: Will do at the weekend Dude SICK! Thank you! Quote Link to comment Share on other sites More sharing options...
