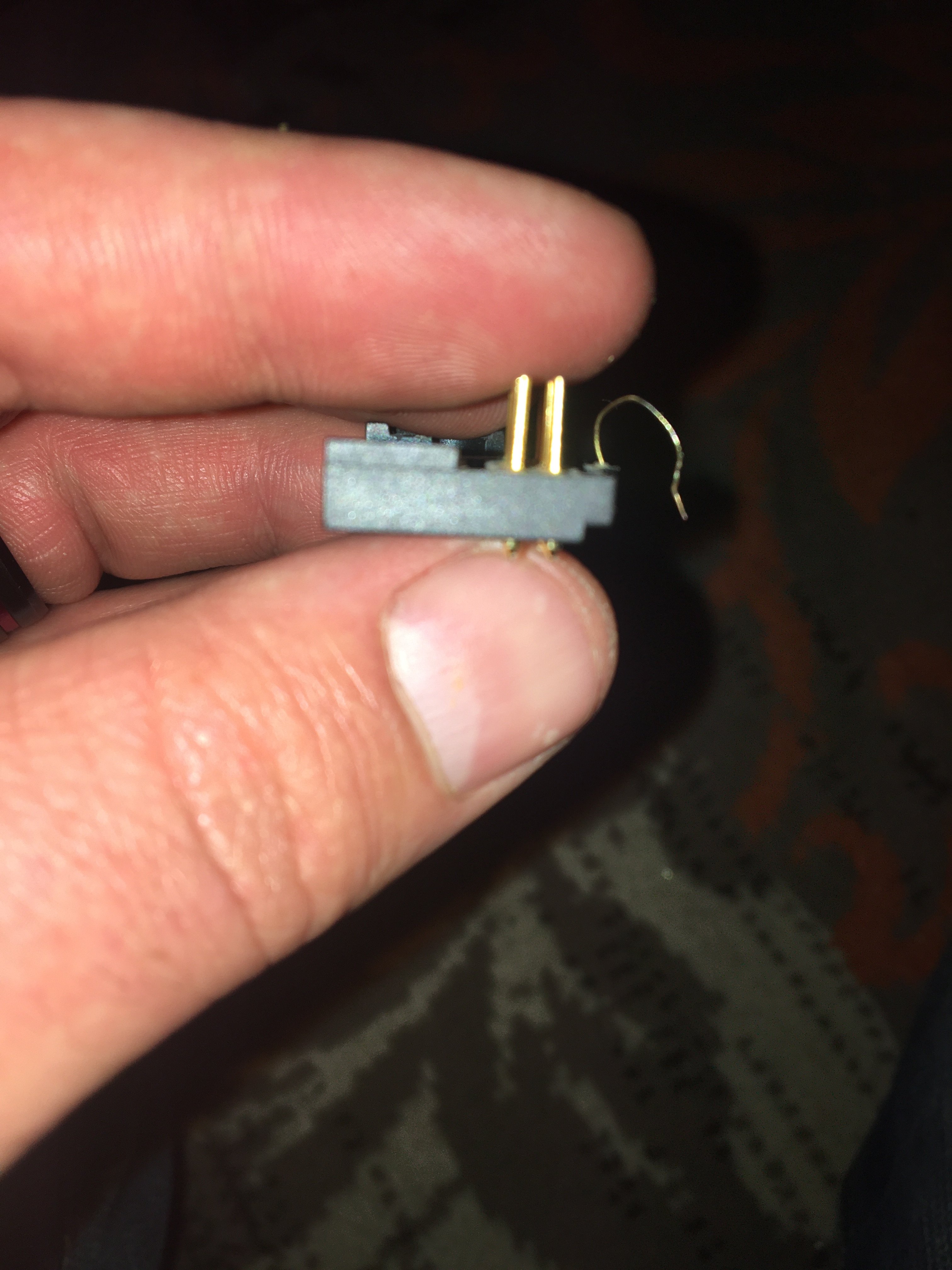

Lexieye Posted March 12, 2022 Report Share Posted March 12, 2022 I was given a broken Xbox version 1.0 and I want to take that mod chip and put in in my 1.3 . the chip is explained in more detail in this post I’ve found on the forum It was previously installed SOLDERLESS with a spring pin head system you just line up and screw down. When I took it out of the Xbox I noticed a random wire that was stabbed into the board? dose anyone know if this has a purpose or if it’s a necessity ? many thanks in advance 1 Quote Link to comment Share on other sites More sharing options...
KaosEngineer Posted March 12, 2022 Report Share Posted March 12, 2022 The spring wire goes into the D0 via on the top of the motherboard. Without it connected, the motherboard will never boot the BIOS stored on the modchip. The D0 connection signals the MCPX chip to load the BIOS from the flash memory chip installed on the motherboard or from the LPC Debug Port-connected flash memory chip of the modchip. 2 Quote Link to comment Share on other sites More sharing options...
Lexieye Posted March 12, 2022 Author Report Share Posted March 12, 2022 Thank you my friend Quote Link to comment Share on other sites More sharing options...

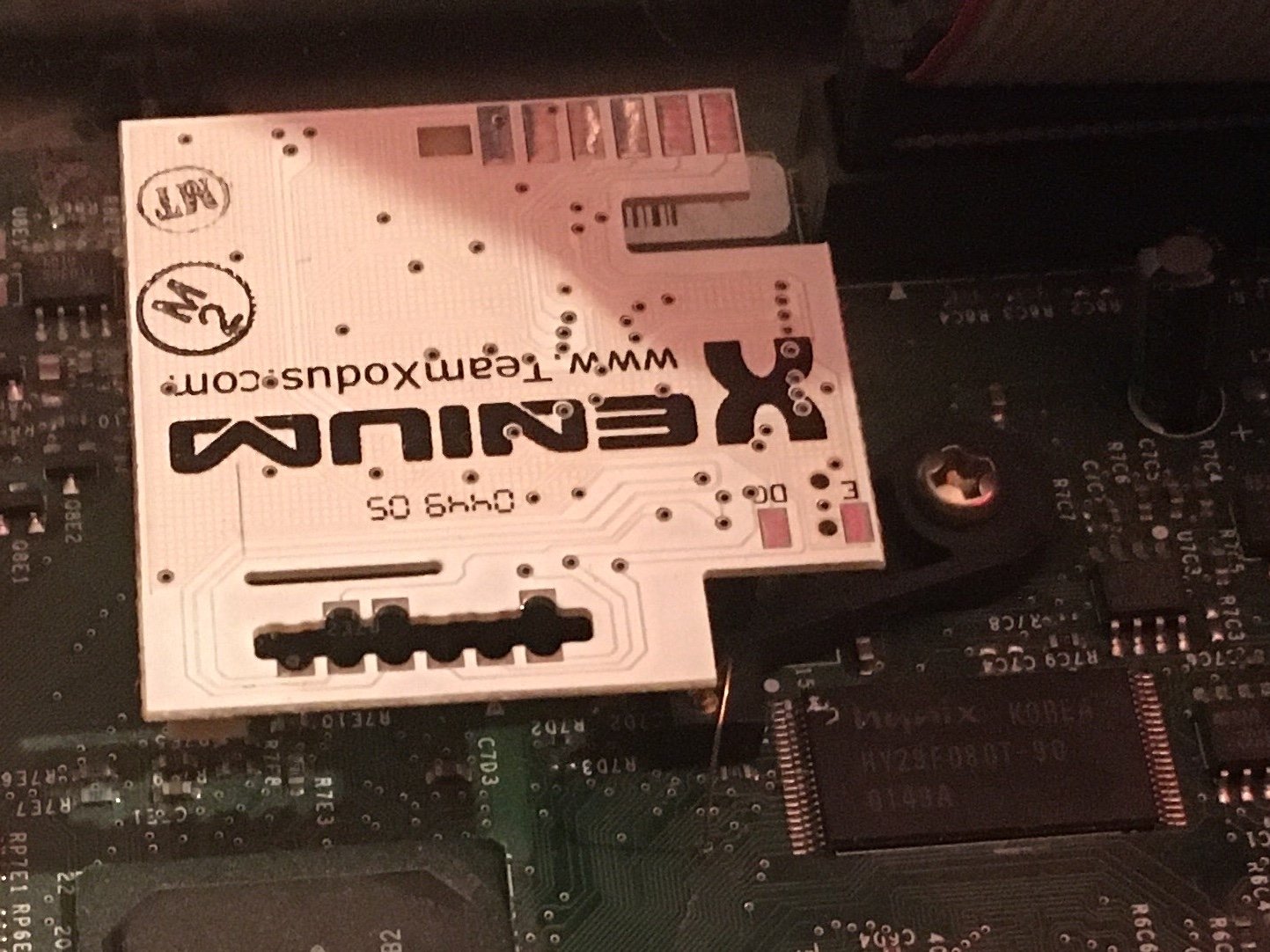

MadMartigan Posted March 13, 2022 Report Share Posted March 13, 2022 Here’s a pic of mine. Hope it helps. 1 1 Quote Link to comment Share on other sites More sharing options...
Lexieye Posted April 23, 2022 Author Report Share Posted April 23, 2022 On 3/12/2022 at 10:25 PM, KaosEngineer said: The spring wire goes into the D0 via on the top of the motherboard. Without it connected, the motherboard will never boot the BIOS stored on the modchip. The D0 connection signals the MCPX chip to load the BIOS from the flash memory chip installed on the motherboard or from the LPC Debug Port-connected flash memory chip of the modchip. Hello I removed the spring-screw-down install and soldered it permanently to the board. this leaves me with the problem of D0 where do you put the correct place for D0 so the chip can be dissabled and use the Xbox UNmodified? if I permanently secure D0 then I use my XBMC4GAMERS when chip is on BUT cannot boot the standard Microsoft Bios because the Xbox won’t boot unless the chip is on if I disconnect D0 then my HD will boot the stock MS-DASH and only use the 8gig partition it thinks it only has Quote Link to comment Share on other sites More sharing options...
KaosEngineer Posted April 23, 2022 Report Share Posted April 23, 2022 Connect a wire from the modchip's D0 pad to the D0 via on the motherboard. Quote Link to comment Share on other sites More sharing options...
Lexieye Posted April 25, 2022 Author Report Share Posted April 25, 2022 On 4/23/2022 at 6:33 PM, KaosEngineer said: Connect a wire from the modchip's D0 pad to the D0 via on the motherboard. On 4/23/2022 at 6:33 PM, KaosEngineer said: Connect a wire from the modchip's D0 pad to the D0 via on the motherboard. I will have to de-solder the chip to remove it because it is firmly fixed down. Quote Link to comment Share on other sites More sharing options...
Lexieye Posted April 25, 2022 Author Report Share Posted April 25, 2022 Can anyone supply a picture of the correct D0 point on the chip please Quote Link to comment Share on other sites More sharing options...

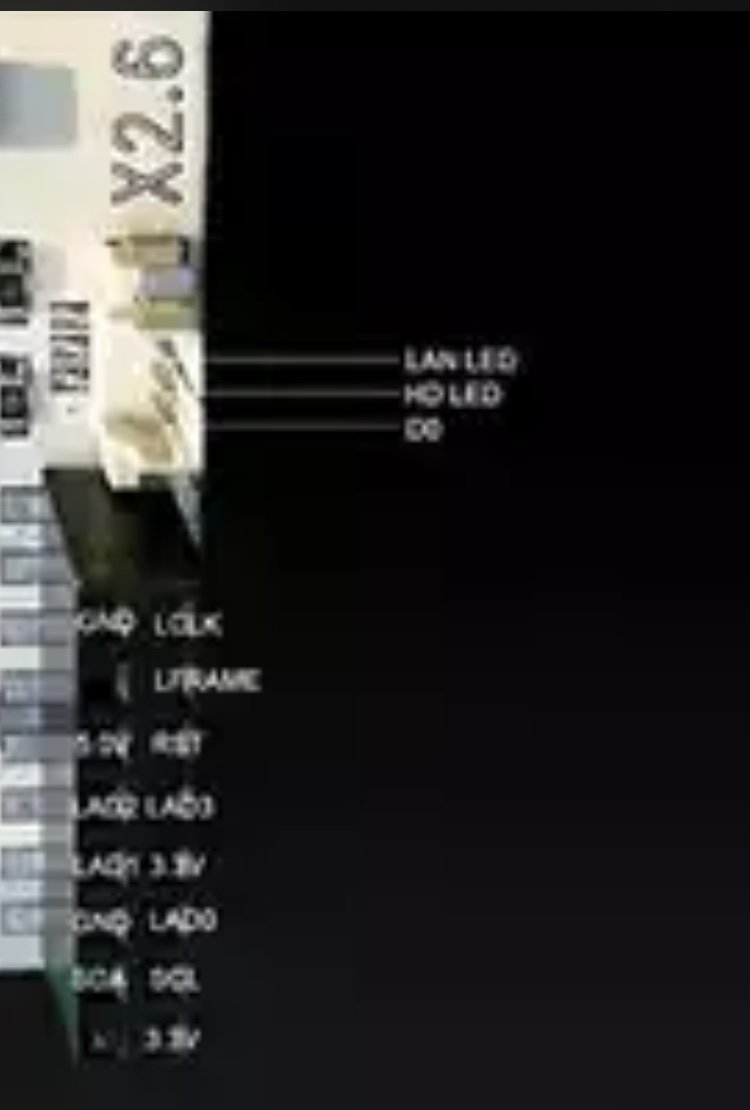

sweetdarkdestiny Posted April 25, 2022 Report Share Posted April 25, 2022 Here you go : Imgur: The magic of the Internet 1 Quote Link to comment Share on other sites More sharing options...

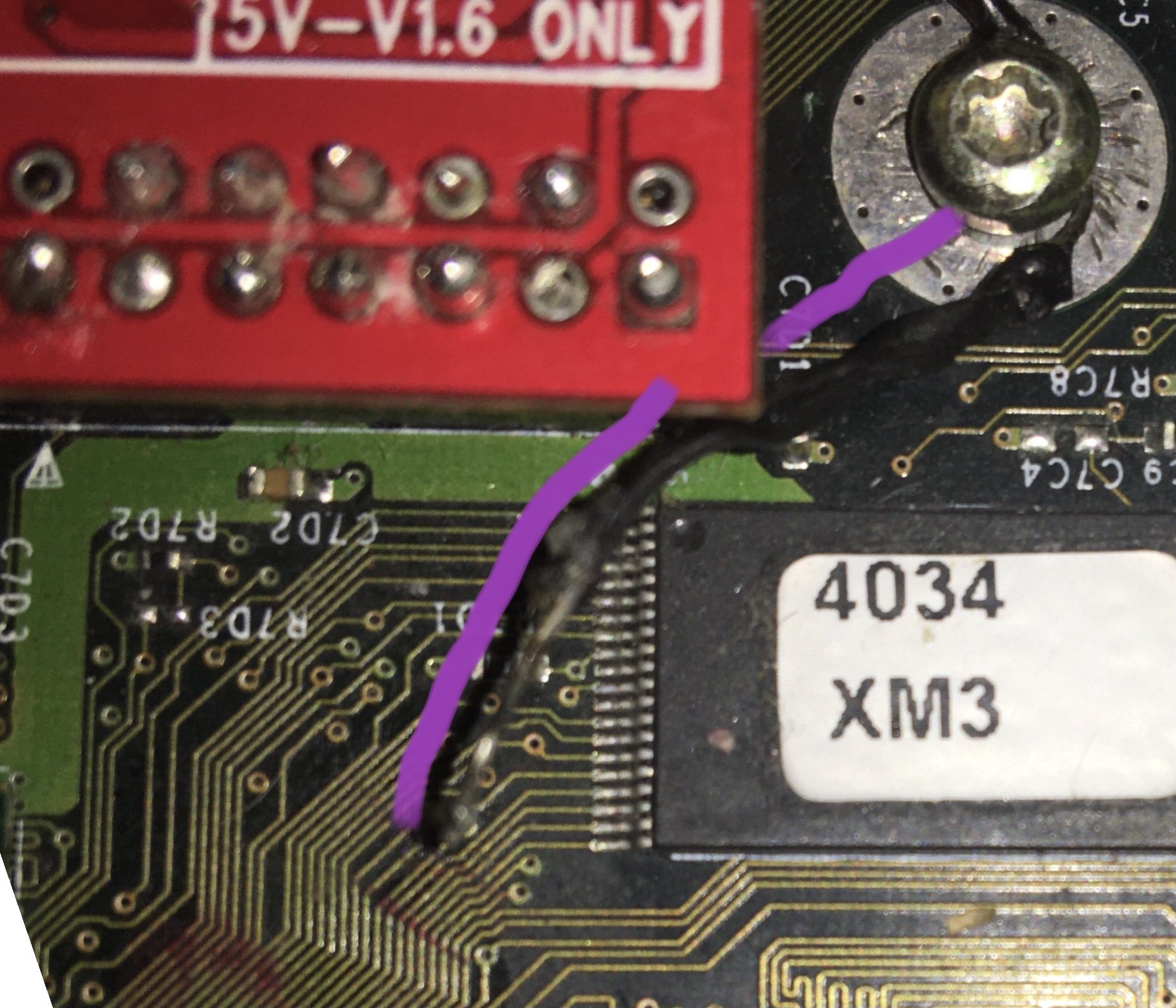

Lexieye Posted April 25, 2022 Author Report Share Posted April 25, 2022 I have also found this topic Is this a DO point? Quote Link to comment Share on other sites More sharing options...
sweetdarkdestiny Posted April 25, 2022 Report Share Posted April 25, 2022 The grey wire goes to the D0 point Quote Link to comment Share on other sites More sharing options...

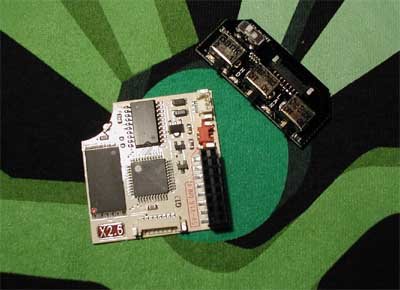

KaosEngineer Posted April 25, 2022 Report Share Posted April 25, 2022 5 hours ago, Lexieye said: I will have to de-solder the chip to remove it because it is firmly fixed down. <KaosEngineer: Picture removed see above if you really want to have a look at it.> How did you install the modchip to the motherboard? A pin header is to be soldered into the LPC debug port and the modchip plugged onto it. The X2.6CE modchip came with a 3-pin connector with wiring to attach to the motherboard's LAN activity, HDD activity and D0 points. Wayback Machine capture of xbox-scene.com's Xecuter 2 Lite pictures: http://web.archive.org/web/20101203205559/http://xbox-scene.com/modchips/x-ecuter2_lite_pictures.html Quote Link to comment Share on other sites More sharing options...
MadMartigan Posted April 25, 2022 Report Share Posted April 25, 2022 From the pic, it looks like he has soldered the solderless adapter to the chip itself. Quote Link to comment Share on other sites More sharing options...
Lexieye Posted April 26, 2022 Author Report Share Posted April 26, 2022 20 hours ago, KaosEngineer said: How did you install the modchip to the motherboard? A pin header is to be soldered into the LPC debug port and the modchip plugged onto it. The X2.6CE modchip came with a 3-pin connector with wiring to attach to the motherboard's LAN activity, HDD activity and D0 points. Wayback Machine capture of xbox-scene.com's Xecuter 2 Lite pictures: http://web.archive.org/web/20101203205559/http://xbox-scene.com/modchips/x-ecuter2_lite_pictures.html I soldered a pin header to the LPC debug port because the screw-down-pin header would constantly fail to work and noticeably was rising off the board. The pins I used were not the original and went through the other side of the modchip plugged onto it. So I soldered it both sides to lower the chance of movement when in transit. following everyone’s advice I have thankfully soldered the D0 point to the 3rd pin of the white socket on the chip 1 Quote Link to comment Share on other sites More sharing options...

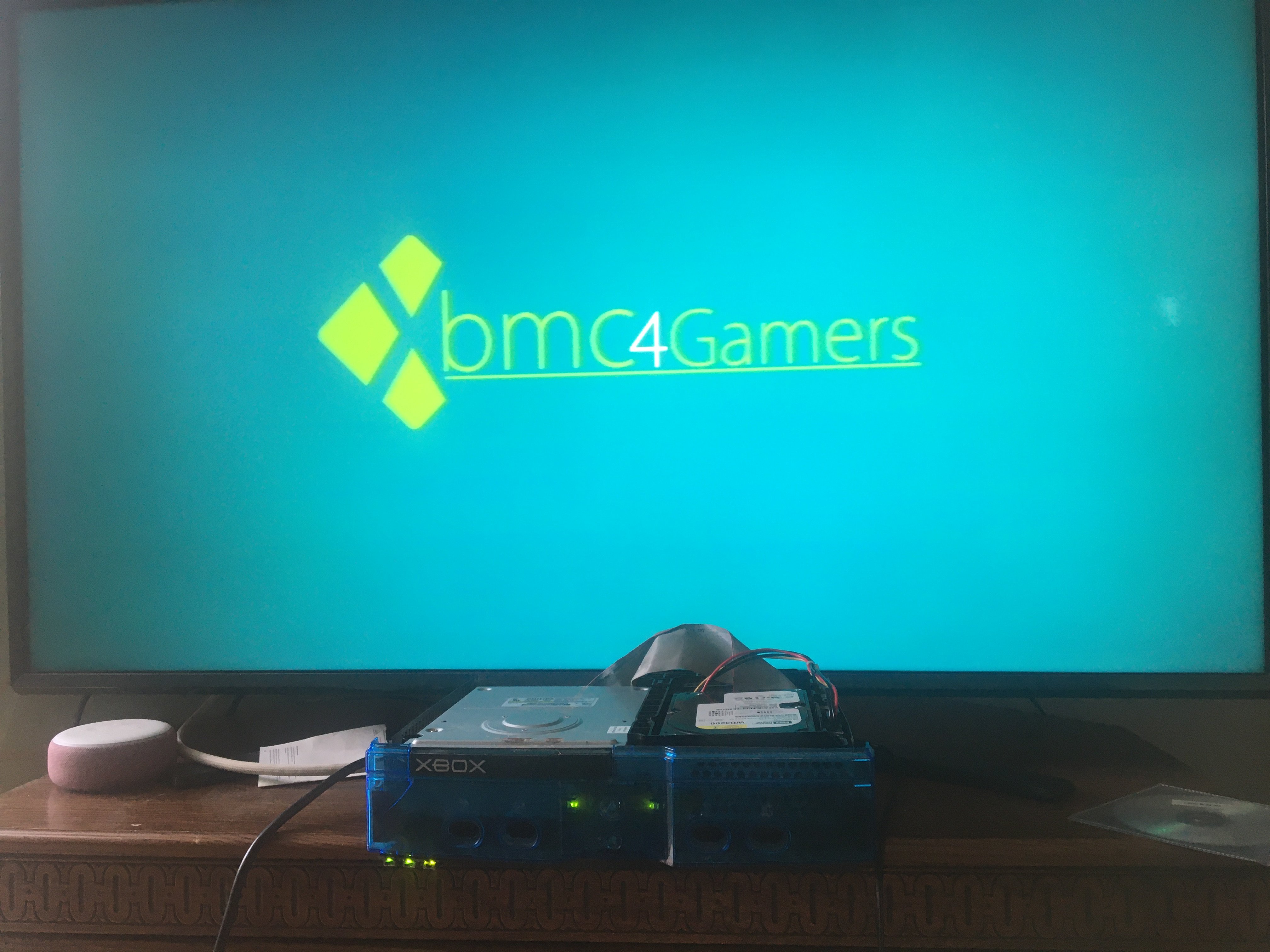

Lexieye Posted April 26, 2022 Author Report Share Posted April 26, 2022 2 Quote Link to comment Share on other sites More sharing options...
Lexieye Posted April 26, 2022 Author Report Share Posted April 26, 2022 Quote Link to comment Share on other sites More sharing options...
Lexieye Posted April 26, 2022 Author Report Share Posted April 26, 2022 20 hours ago, KaosEngineer said: How did you install the modchip to the motherboard? A pin header is to be soldered into the LPC debug port and the modchip plugged onto it. The X2.6CE modchip came with a 3-pin connector with wiring to attach to the motherboard's LAN activity, HDD activity and D0 points. Wayback Machine capture of xbox-scene.com's Xecuter 2 Lite pictures: http://web.archive.org/web/20101203205559/http://xbox-scene.com/modchips/x-ecuter2_lite_pictures.html Yes I have this system 1 Quote Link to comment Share on other sites More sharing options...
