1.6 Powers On Then Immediately Powers Off

Recommended Posts

Attempting to show my grandson my daughters Bad*** Xecuter 3 Mod Original Xbox. I attempted to power on several times and different ways ( tapping quickly holding down power button and using the disk button) the unit would immediately shut down. The Xbox played fine a year ago. It was unplugged sitting on a shelf. So I opened her up and  found some swollen capacitors and replaced them. While in there I also re applied paste to GPU and CPU. I tried again to power her up and same result. I'm lost at this point if any of you guys have an idea.

Thanks from East Texas

Share this post


Link to post
Share on other sites

Hi bassinhuntin

It sound like a power supply problem and possibly solder joints have started to fail. Is it possible to post some picks.



Cheers

SS Dave


Soft modding is like masturbating, It get's the job done but it's nothing like the real thing

Share this post


Link to post
Share on other sites
9 minutes ago, bassinhuntin said:

AS soon as I get a chance I will share some pics. I had already put it all back together hoping I could find someone to work on it for me.

I would have a look at it for you but the postage would be a killer to and from Australia.



Cheers

SS Dave


Soft modding is like masturbating, It get's the job done but it's nothing like the real thing.


Share this post


Link to post
Share on other sites

2MB restrictions is a pain but heres one. Unfortunately its only letting me upload this pic. I have taken several but restrictions I am limited. Maybe tomorrow I can upload another one. Now if I try to delete this one it only lets me upload a tiny picture.

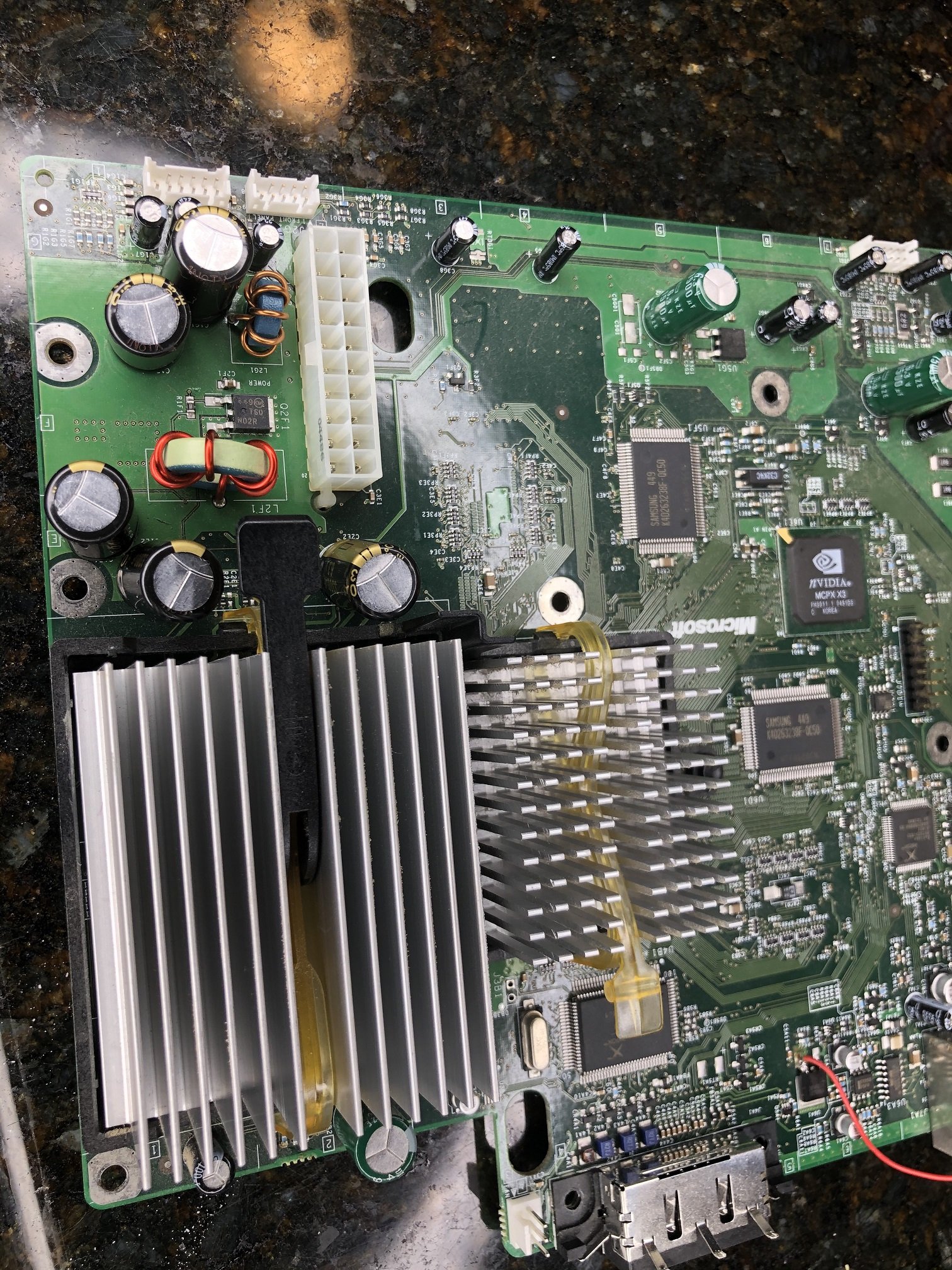

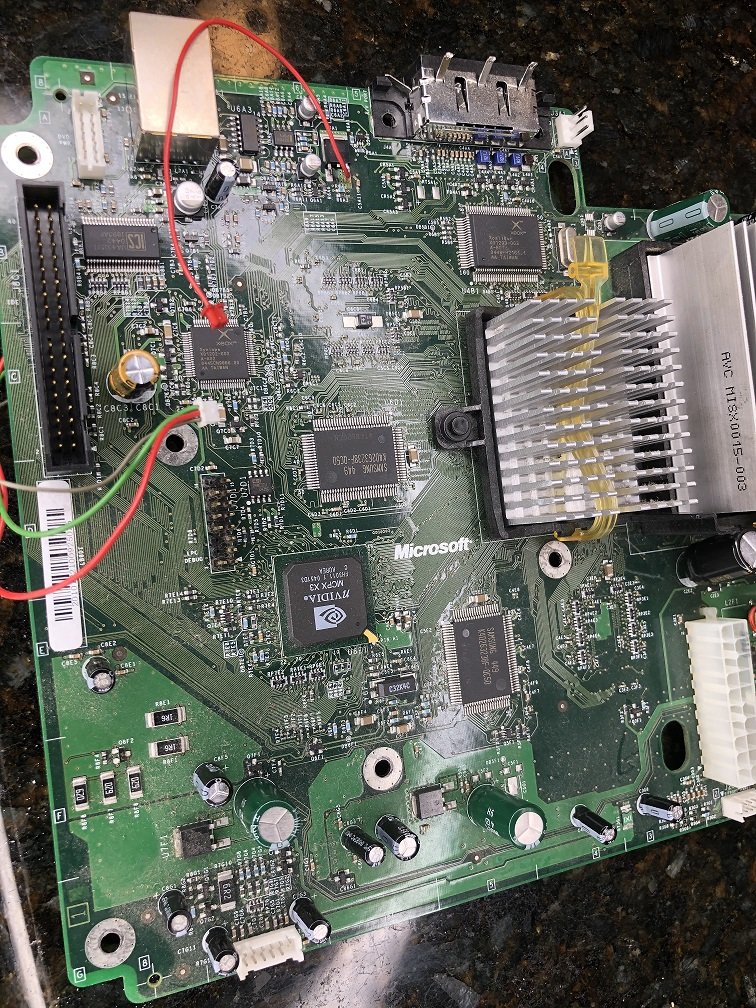

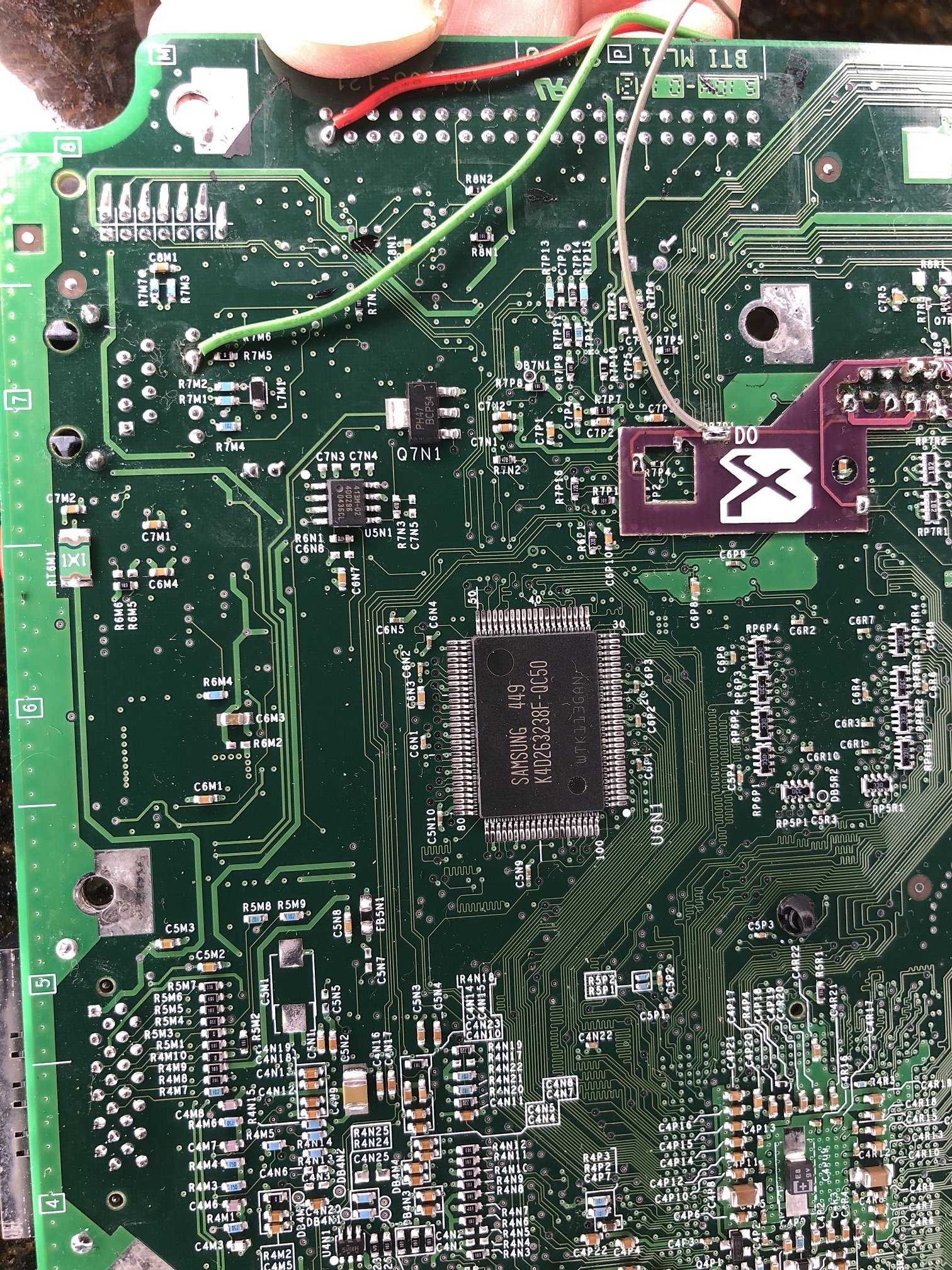

Please login or register to see this attachment.

Edited by bassinhuntin

Share this post


Link to post
Share on other sites

Use smaller and lower resolution pictures (96dpi is all that is likely needed) and they should not get anywhere near 2MB unless they're vast.

Just open whatever you have in paint.net or another graphics program you know how to use and resize down - save as optimised PNG or JPG.

Share this post


Link to post
Share on other sites

I almost wish that had been the problem because now we're back to square one.

You've posted this on other forums with more shots of the top of the MB, would be a good idea to post some of those or new ones here too.

The sort of problem described sounds like a PSU one as SS_Dave suggested. Something is heating up very quickly and the Xbox shuts down ASAP.

Maybe the caps you replaced had already leaked and damaged some traces - but finding the culprit could be like looking for a needle in a haystack.

Share this post


Link to post
Share on other sites

Hi bassinhuntin

Can you post some pic's of the PSU as the main board look ok.



Cheers

SS Dave


Soft modding is like masturbating, It get's the job done but it's nothing like the real thing.


Share this post


Link to post
Share on other sites

Well I checked the Transistor and it 3.26 which I believe is OK. So ????
Thanks for everyone's help on here.

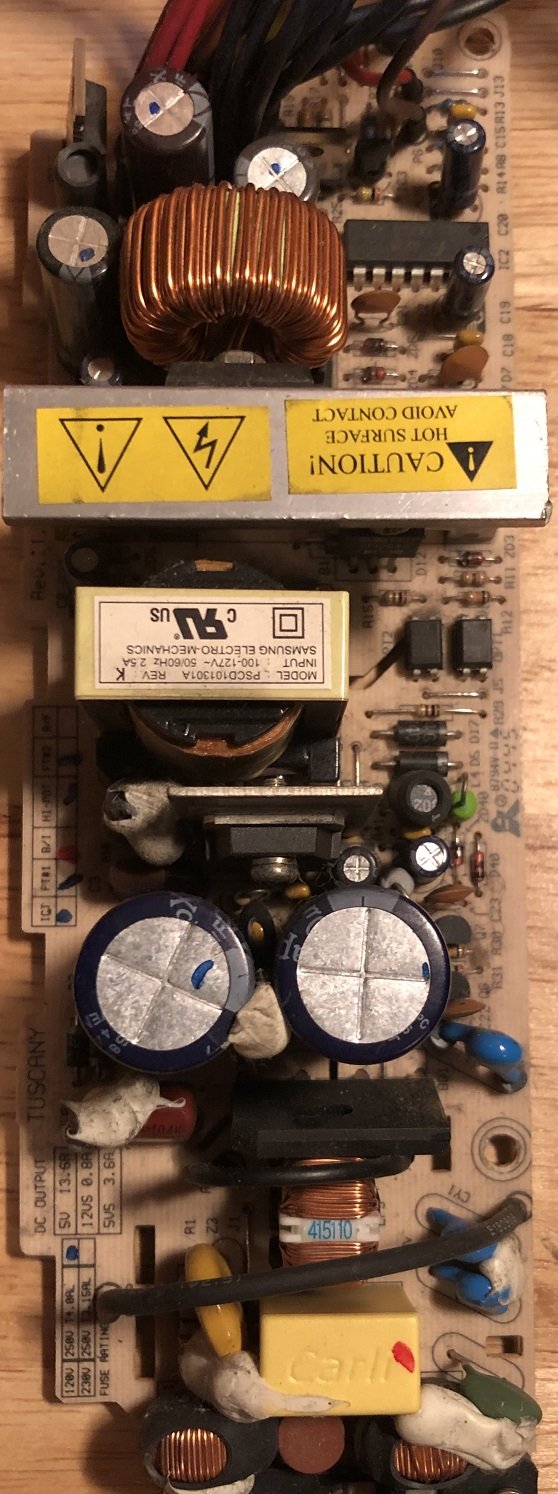

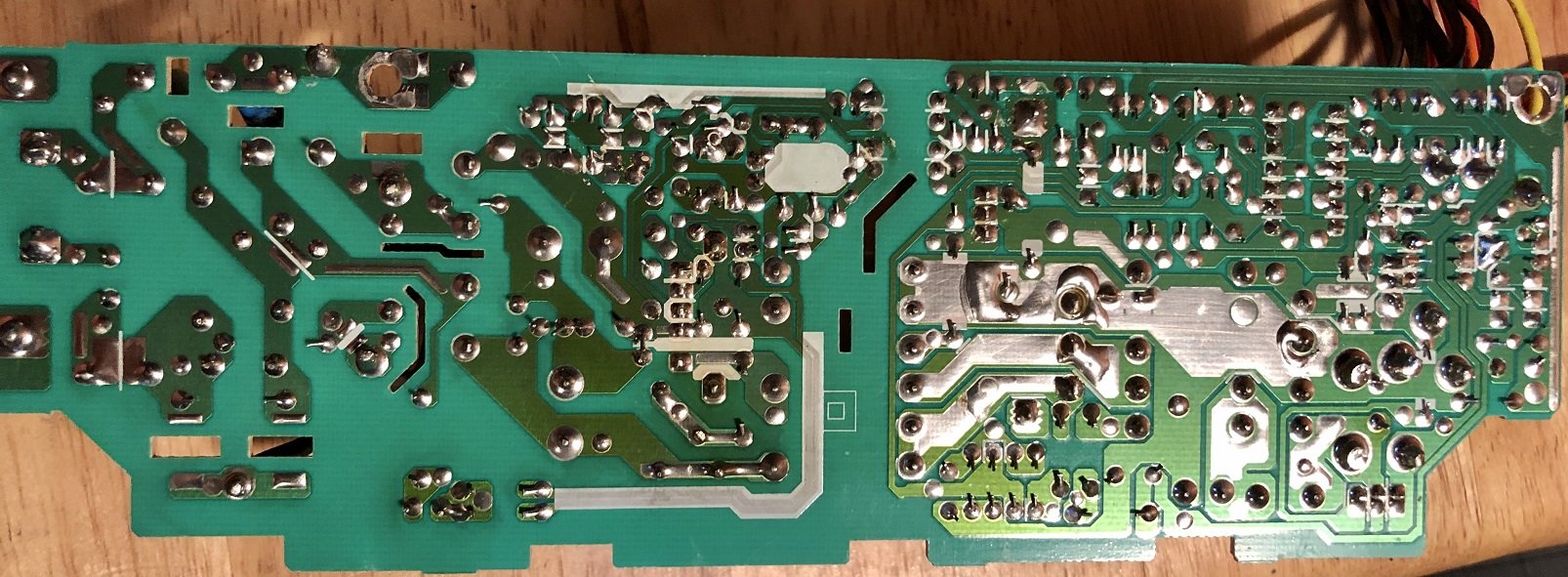

Please login or register to see this attachment.

Please login or register to see this attachment.

Share this post


Link to post
Share on other sites

I had a version 1.6 that was doing the same last night. It would start to boot then shutdown and in my case the removing the DVD drives yellow power and IDE leads fixed it, good thing I had a no DVD bios.

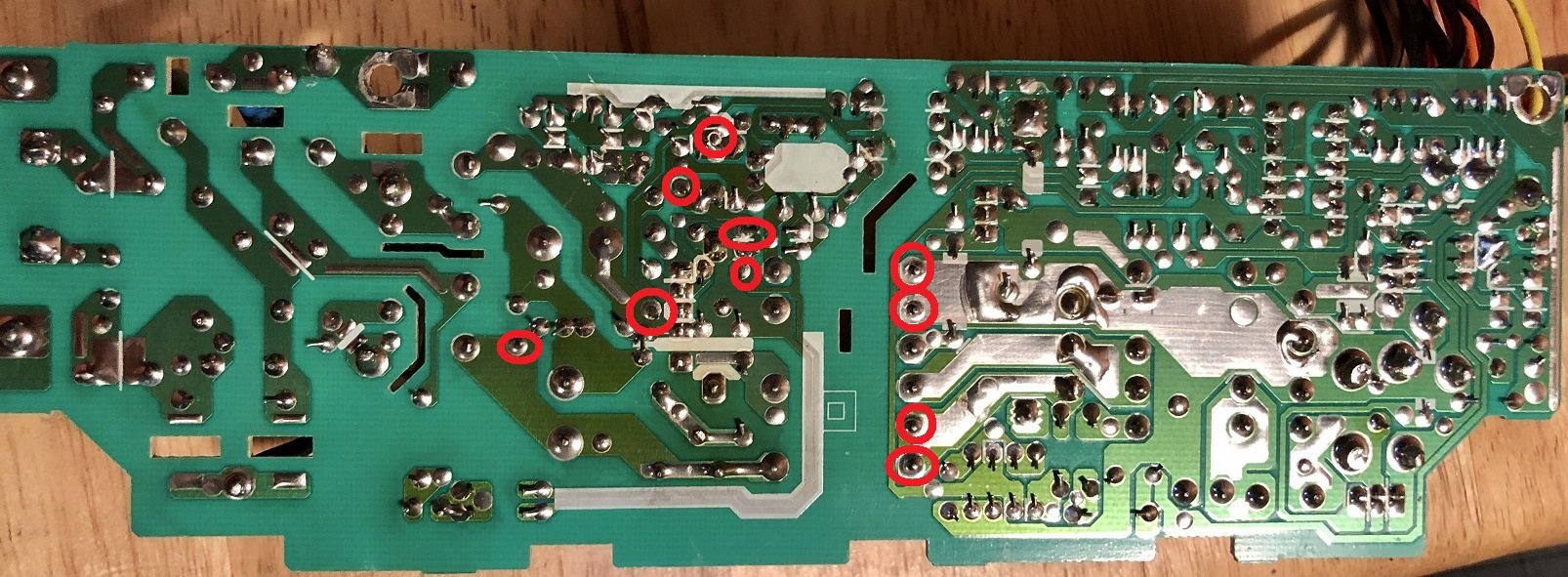

There is some solder joints on the power supply that I would resolder but I don't think that's the full problem and for me I would take 5 - 10 minutes and  run an iron over the whole board.



Please login or register to see this attachment.



Failing that you may need to beg, borrow or steal a version 1.6 power supply to test you main board.



What happens if you boot the Xbox with no dvd drive and no hard drive?





Cheers

SS Dave


Soft modding is like masturbating, It get's the job done but it's nothing like the real thing.


Share this post


Link to post
Share on other sites
5 hours ago, bassinhuntin said:

I already purchased a new psi couple years ago and acts same. With just MB hooked up acts same. I checked the transistor also but it was 3.6 volts.

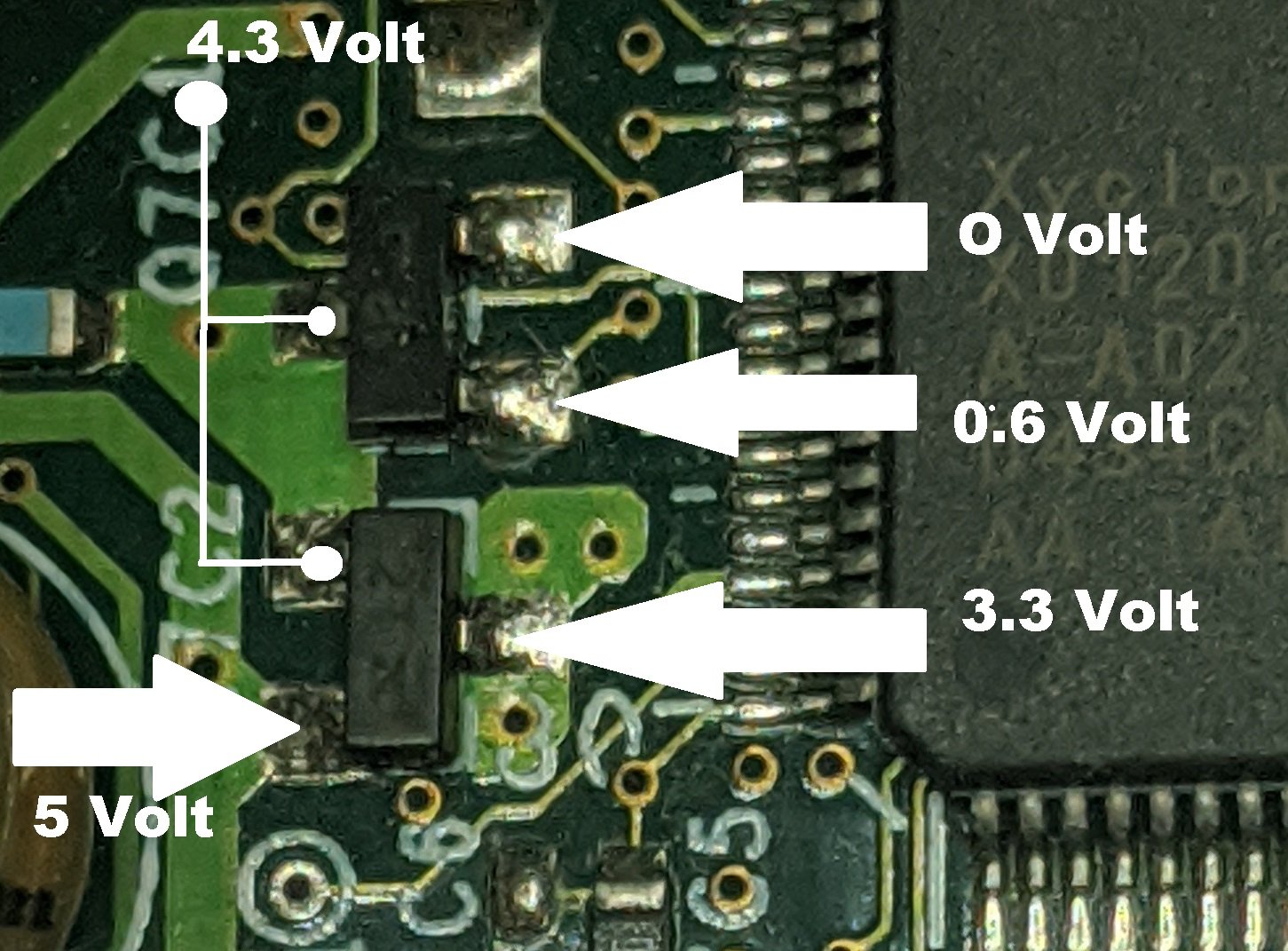

As I have a 1.6 open just now here is the voltage reading from it.

Please login or register to see this attachment.   Please login or register to see this attachment.



and just in case it's a switch problem if you disconnect the yellow harness from the front panel and temporary short the pin 1 and 2 it should boot up.

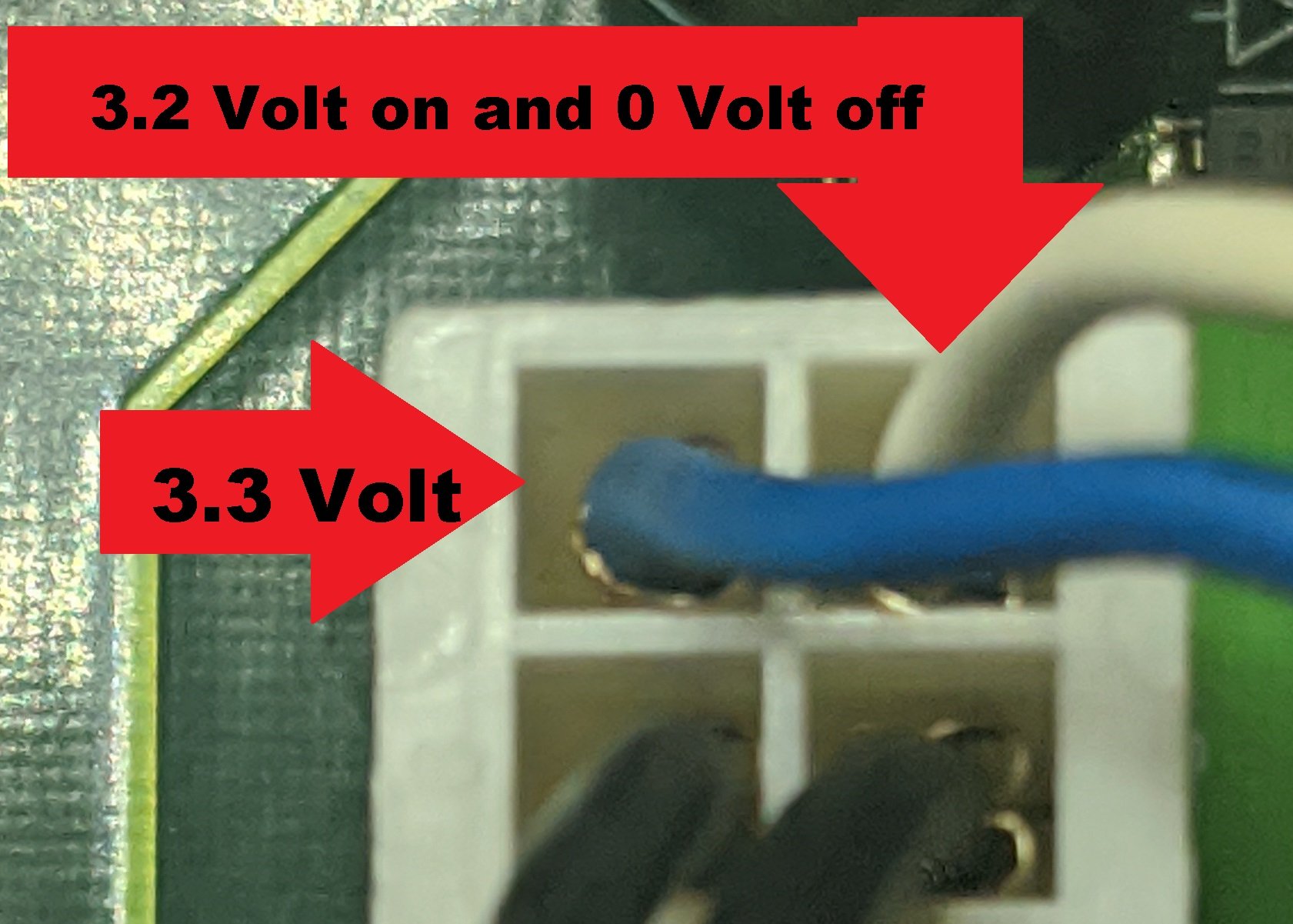

aAlso test the two pin from the power/eject and when not pressed should read 3.3 volt and 0 volt when pressed.










Cheers

SS Dave


Soft modding is like masturbating, It get's the job done but it's nothing like the real thing.

Share this post


Link to post
Share on other sites

My 1.0 hard modded Xbox did this when I installed new ribbon cables. I simply unplugged the ribbon cables and the power to the disk drive and carefully hooked them all back up. My Xbox booted up just fine after that.

Share this post


Link to post
Share on other sites

Unfortunately I’ve tried that also. Not new cables but plugged and unplugged. It should run without dvd or hard drive I was thinking. But thanks for the comment. I’m almost ready to get another 1.6 motherboard with hard drive and remod again. 🤨

Share this post


Link to post
Share on other sites

At this point if anyone that would like to help me get this thing going for my grandson that would be awesome and of course would pay you for your time and shipping to and from. I have over 200 games for this system haste to see it go to waste.

Share this post


Link to post
Share on other sites
1 hour ago, bassinhuntin said:

At this point if anyone that would like to help me get this thing going for my grandson that would be awesome and of course would pay you for your time and shipping to and from. I have over 200 games for this system haste to see it go to waste.

Where are you located?

If you want to post to me in Australia sure I will help



Cheers

SS Dave


Soft modding is like masturbating, It get's the job done but it's nothing like the real thing.


Share this post


Link to post
Share on other sites
