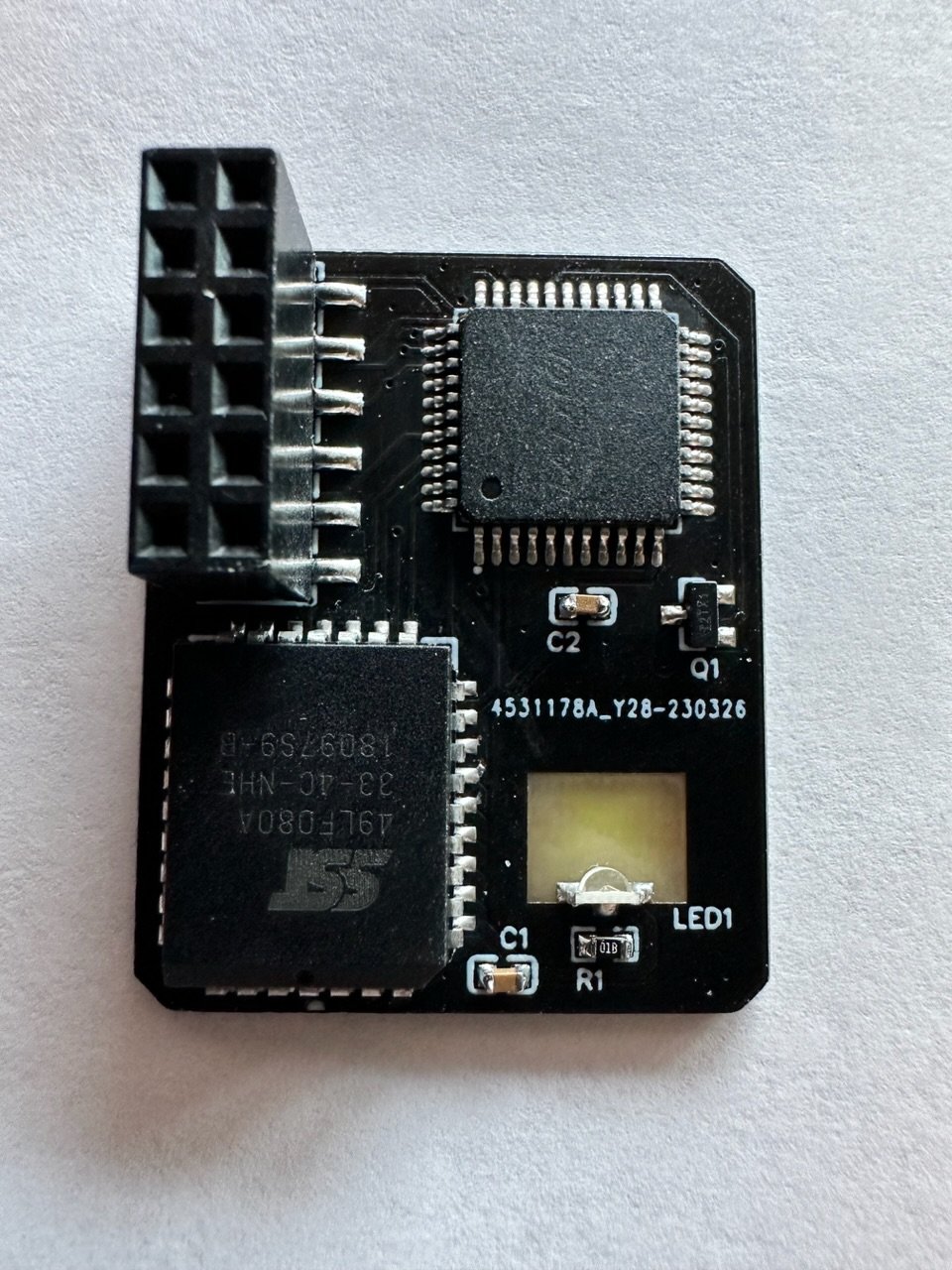

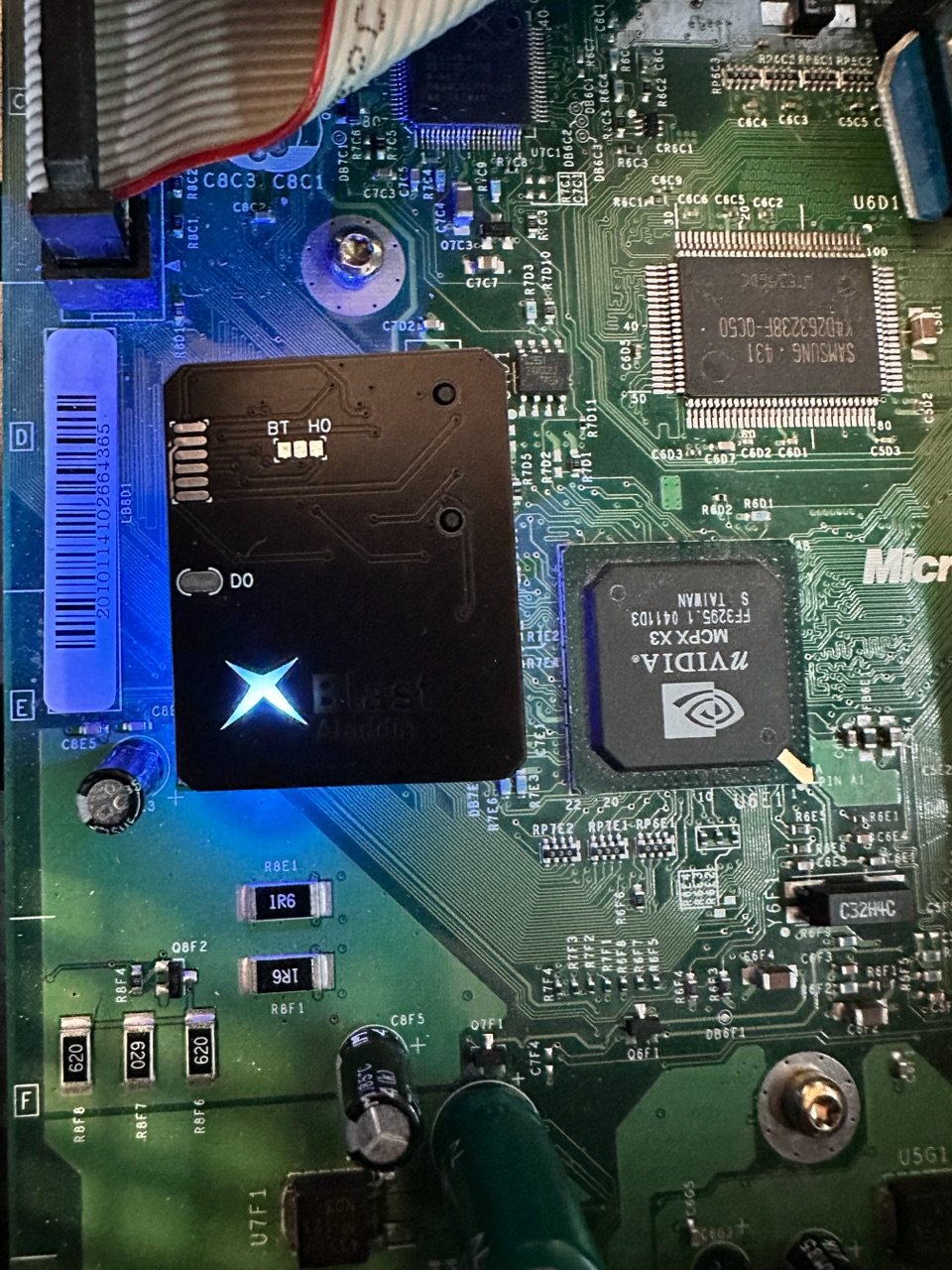

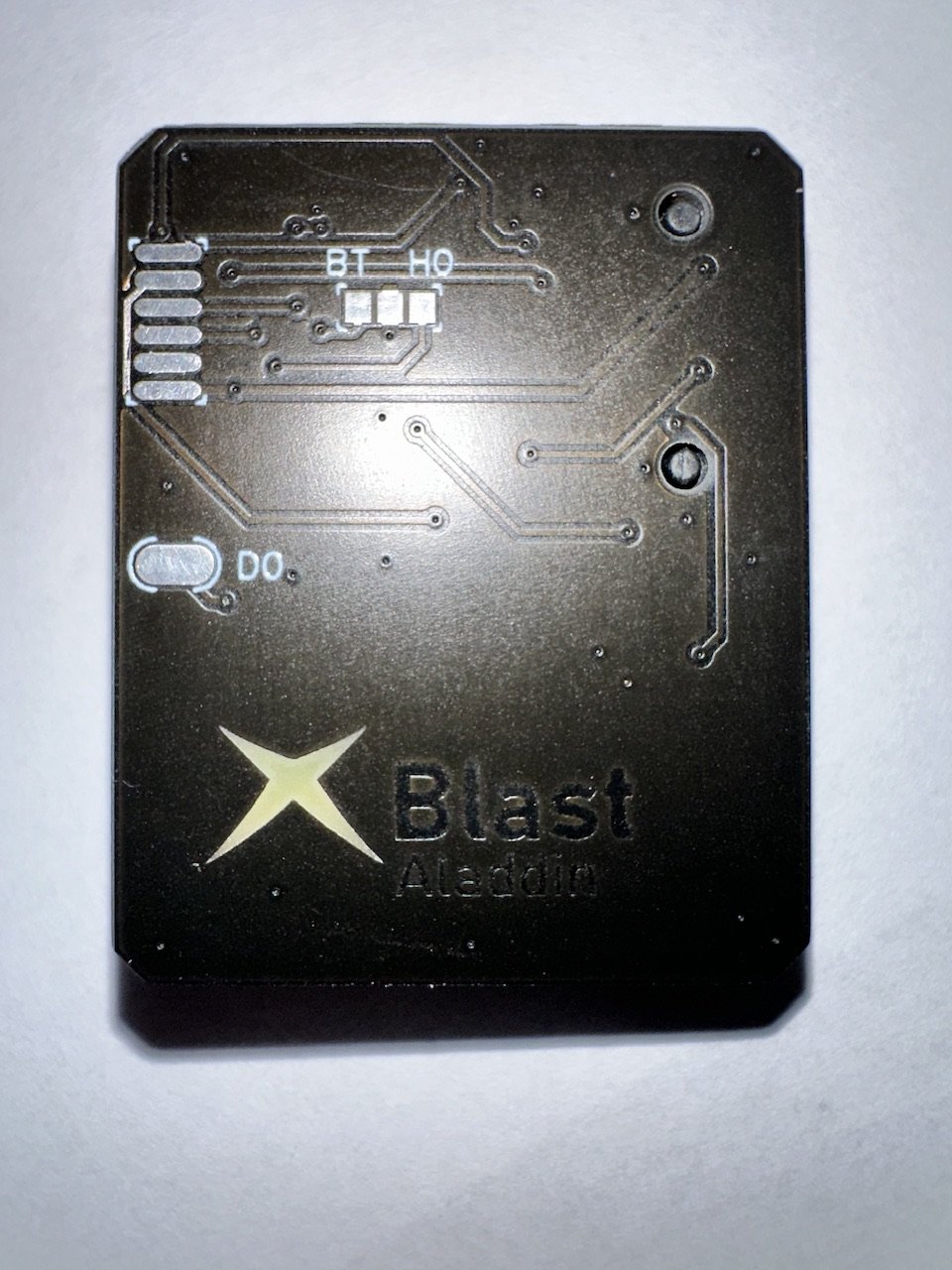

dtomcat Posted May 8, 2023 Report Share Posted May 8, 2023 So finally got around to making an xblast… I like it. Only made it for ram upgrades… but it’s nice and small and aesthetically pleasing! 6 Quote Link to comment Share on other sites More sharing options...
dirtykash Posted May 9, 2023 Report Share Posted May 9, 2023 Looks good, any links to the gerbers? Never seen this version before. Quote Link to comment Share on other sites More sharing options...
dtomcat Posted May 11, 2023 Author Report Share Posted May 11, 2023 I’m have to try to find them. I think they are listed on oshpark Quote Link to comment Share on other sites More sharing options...
dtomcat Posted May 11, 2023 Author Report Share Posted May 11, 2023 Here :) 2 1 Quote Link to comment Share on other sites More sharing options...
Paolo Posted May 15, 2023 Report Share Posted May 15, 2023 Hi, @Dtomcat18 have you procedure or guide to make one? How to program the chip...? Thanks. 1 Quote Link to comment Share on other sites More sharing options...
dtomcat Posted May 15, 2023 Author Report Share Posted May 15, 2023 No. Just looked around. I used flashcatusb classic to program the fpga. And T48 to program flash chip. Quote Link to comment Share on other sites More sharing options...
Paolo Posted May 17, 2023 Report Share Posted May 17, 2023 Too complicated and expensive for me.. 1 Quote Link to comment Share on other sites More sharing options...
dtomcat Posted May 17, 2023 Author Report Share Posted May 17, 2023 I have spare parts. If you want one… I can make more Quote Link to comment Share on other sites More sharing options...
Paolo Posted May 17, 2023 Report Share Posted May 17, 2023 5 hours ago, Dtomcat18 said: I have spare parts. If you want one… I can make more With pleasure...can i found you on messenger? Quote Link to comment Share on other sites More sharing options...
dtomcat Posted May 17, 2023 Author Report Share Posted May 17, 2023 Sent you a message Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted May 17, 2023 Report Share Posted May 17, 2023 4 hours ago, Dtomcat18 said: Sent you a message Wish I hadn't been in this accident. I would definitely buy one from you... Quote Link to comment Share on other sites More sharing options...
dtomcat Posted May 18, 2023 Author Report Share Posted May 18, 2023 No worries I’ll probably list them on EBay for 45 and locally for 35. Only bought enough for 13 of em so not selling as many as OXs Quote Link to comment Share on other sites More sharing options...

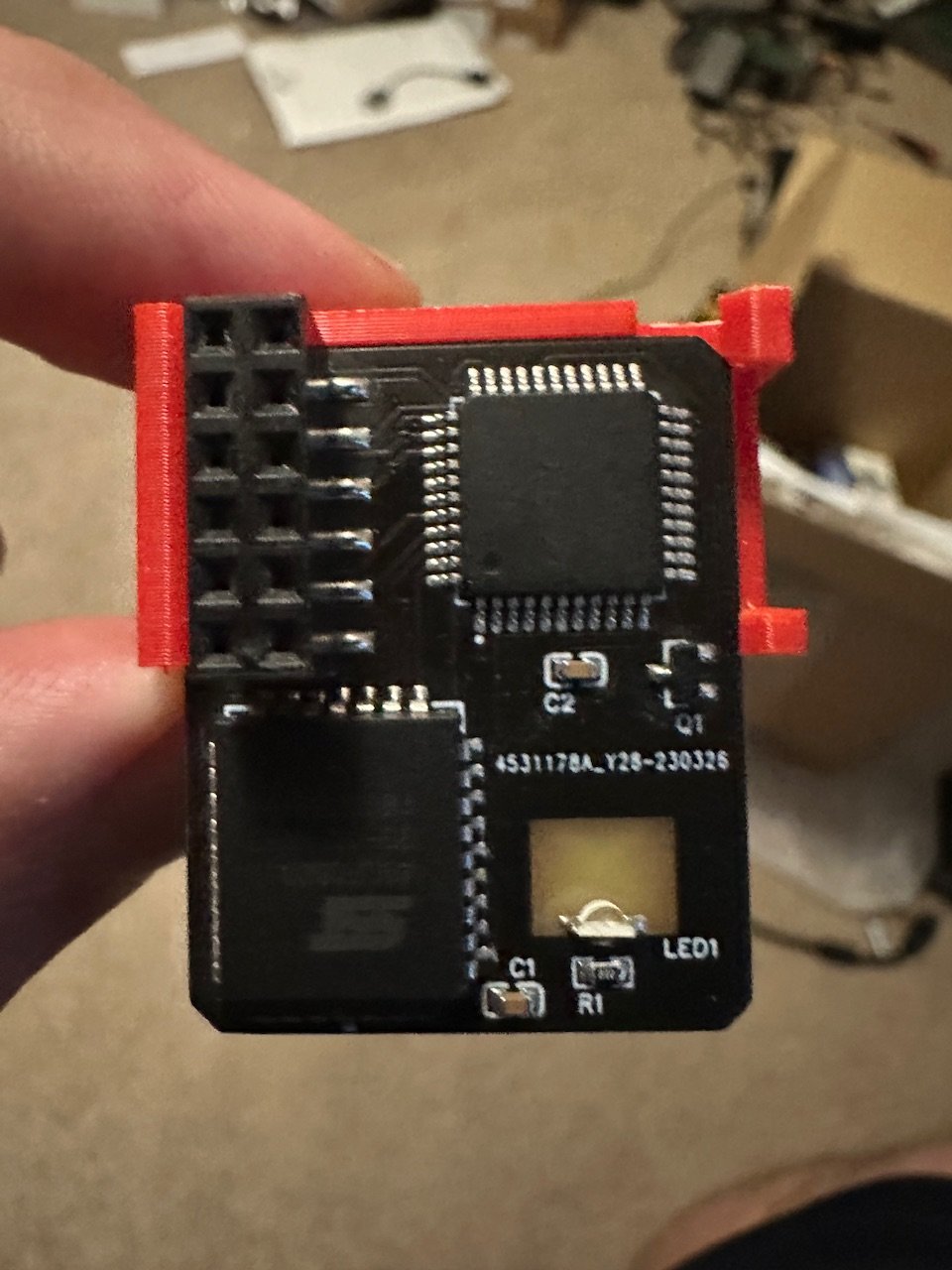

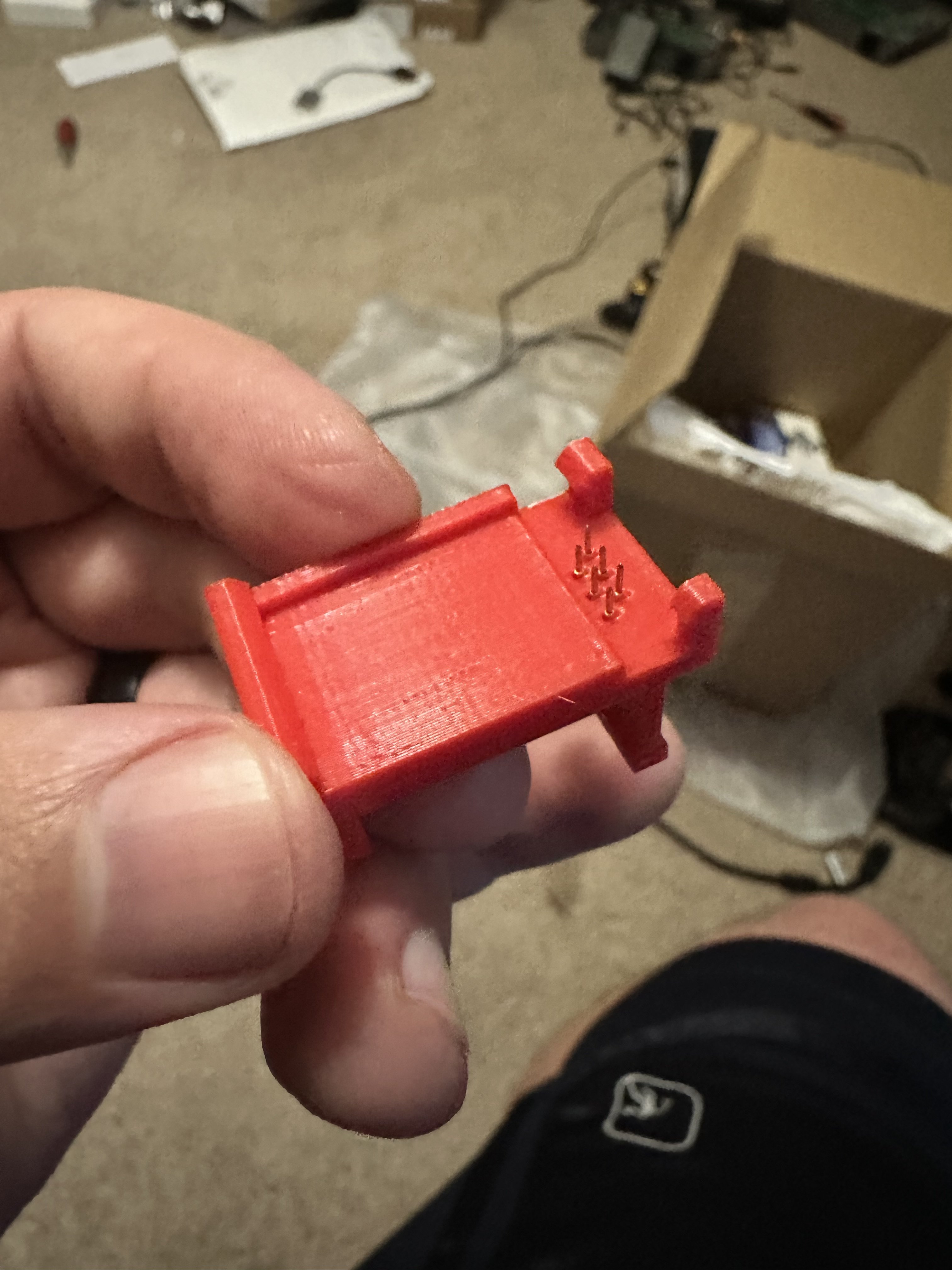

dtomcat Posted June 9, 2023 Author Report Share Posted June 9, 2023 Programming jig complete . Well sorta… still need to wire it up 4 Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted June 9, 2023 Report Share Posted June 9, 2023 1 hour ago, Dtomcat18 said: Programming jig complete . Well sorta… still need to wire it up Badass! 1 Quote Link to comment Share on other sites More sharing options...

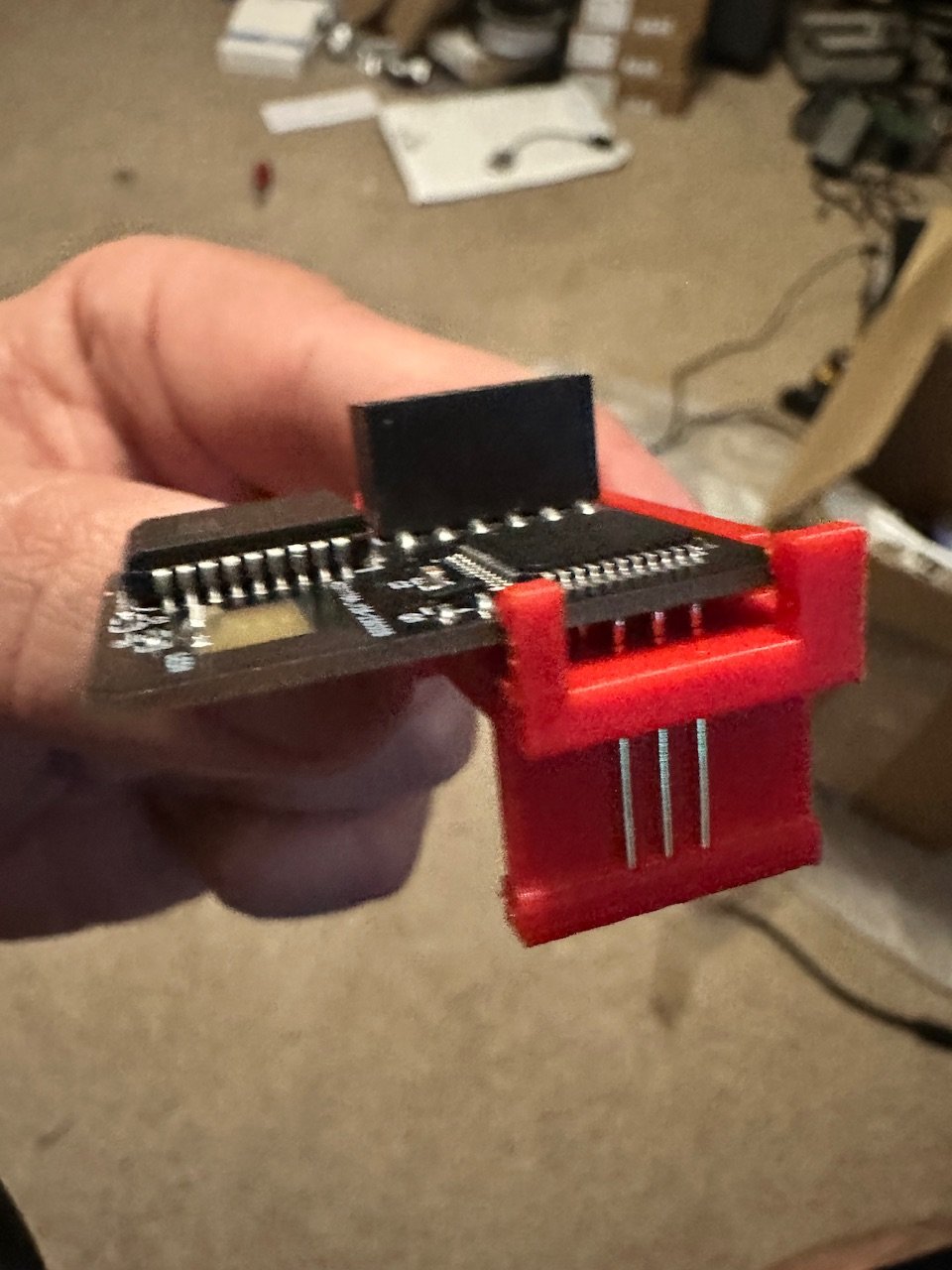

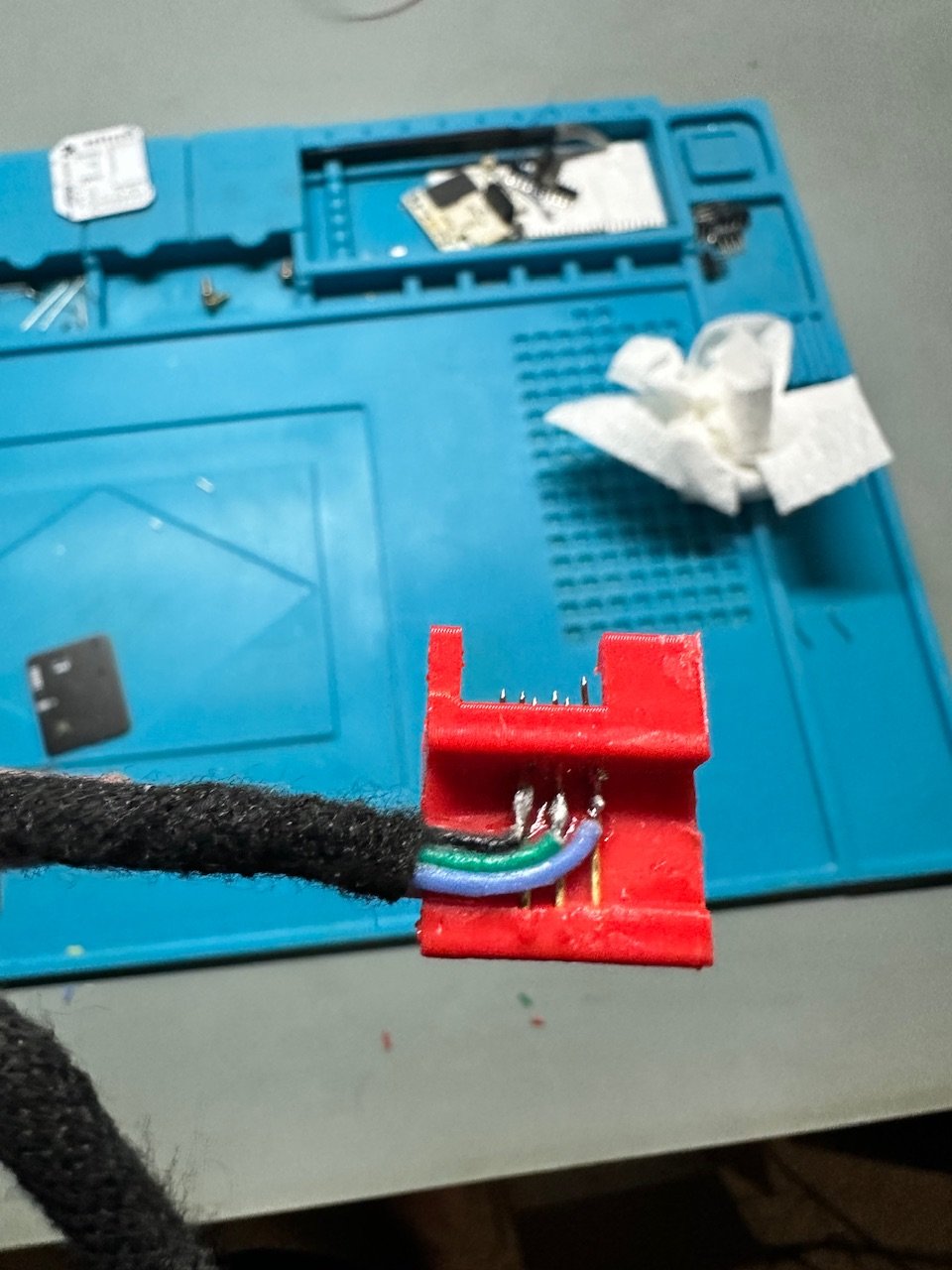

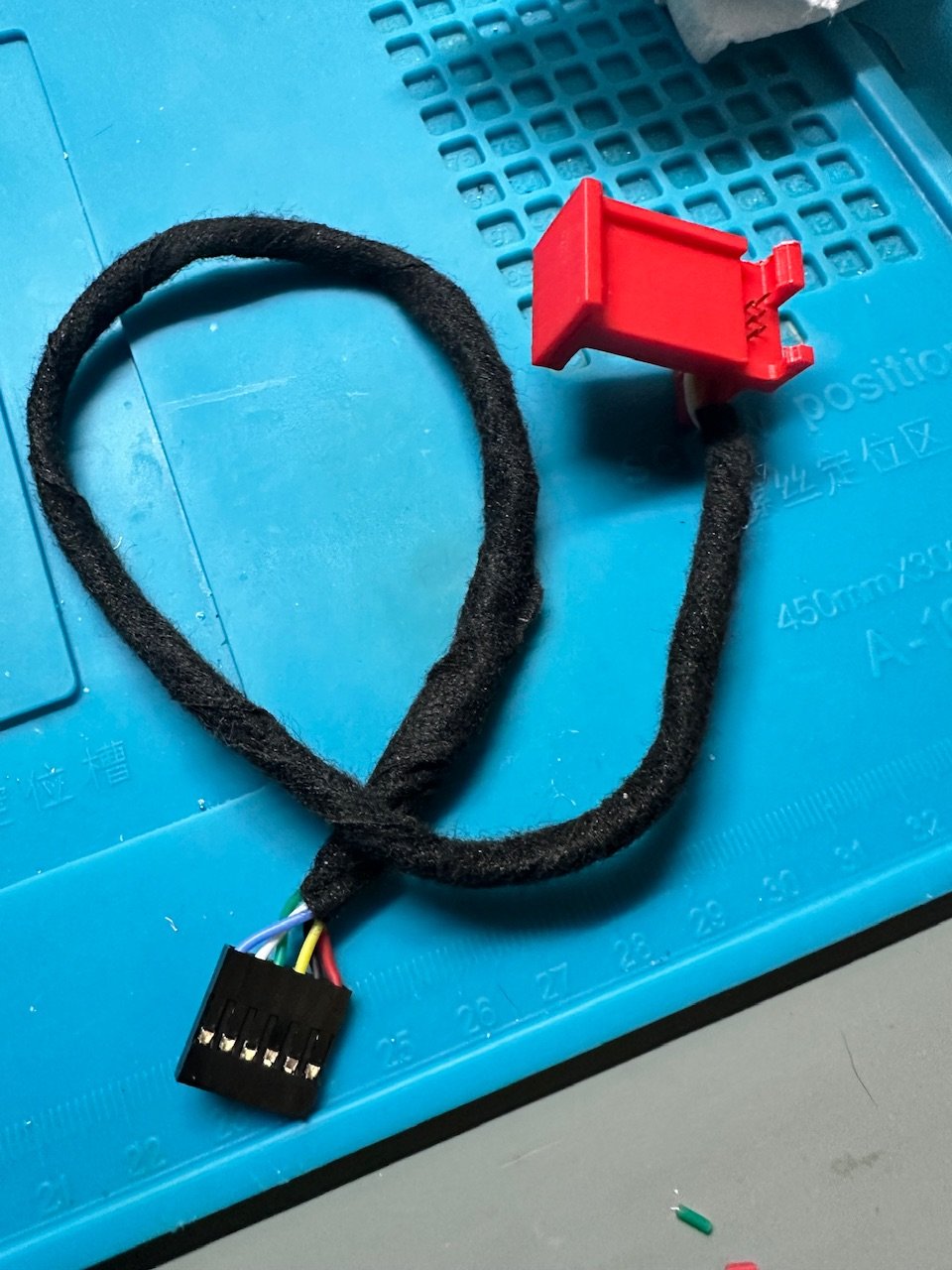

dtomcat Posted June 9, 2023 Author Report Share Posted June 9, 2023 Final update 1 Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted June 9, 2023 Report Share Posted June 9, 2023 43 minutes ago, Dtomcat18 said: Final update Nice work, man. 1 Quote Link to comment Share on other sites More sharing options...
dtomcat Posted June 9, 2023 Author Report Share Posted June 9, 2023 Thank you! Made one very DUMB mistake… soldered onto the pogo pins while they were compressed…. In pla… pins sunk into plastic and now I have to make another one. Lessons learned! 1 Quote Link to comment Share on other sites More sharing options...
logandzwon Posted June 10, 2023 Report Share Posted June 10, 2023 (edited) 9 hours ago, Dtomcat18 said: Thank you! Made one very DUMB mistake… soldered onto the pogo pins while they were compressed…. In pla… pins sunk into plastic and now I have to make another one. Lessons learned! Dtomcat18 that looks great! Two questions, (1) do you have the pin out for the jtag for this PCB? (2) can you tell me the spacing of the pads? I figure I can order of these guys; 2.54 2.0 1.5 1.27 1.25 100mil 50mil 3P 4P 5P 6P 7P 8P 9P 10P PCB Clip Clamp Fixture Probe Pogo Pin Download Program Burn https://a.aliexpress.com/_mPKiidm Edited June 10, 2023 by logandzwon Quote Link to comment Share on other sites More sharing options...

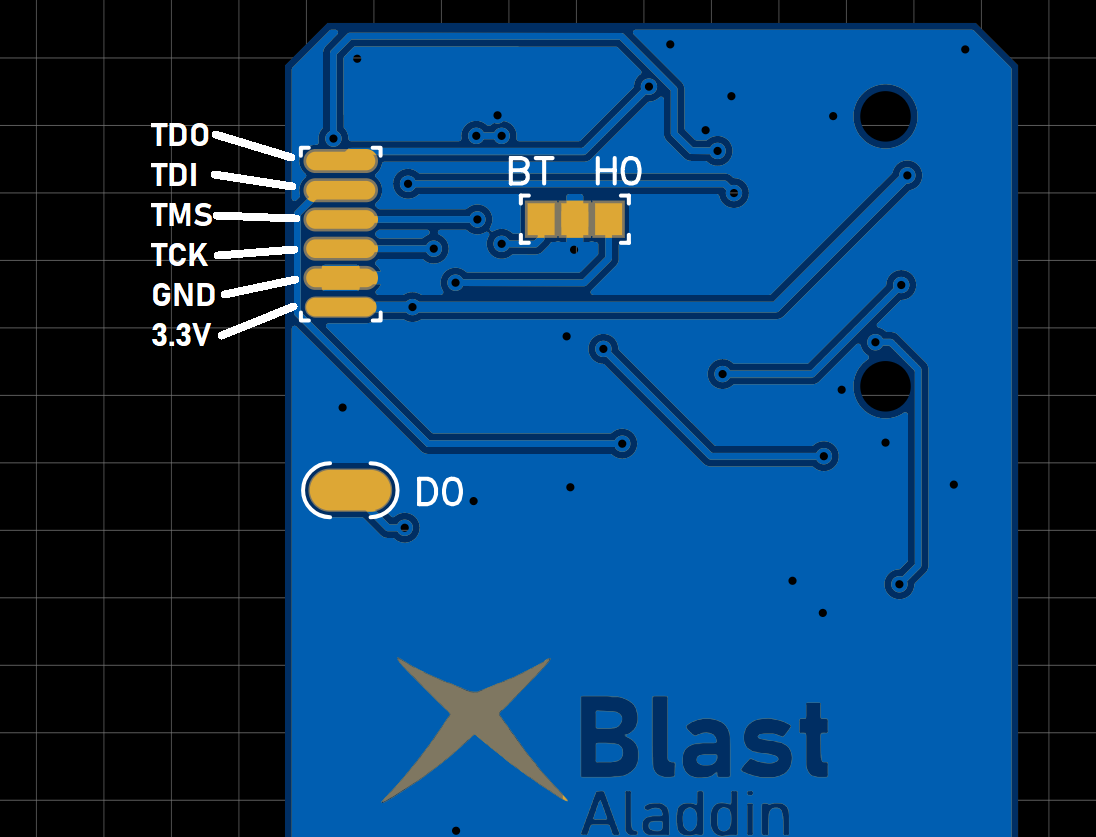

dtomcat Posted June 11, 2023 Author Report Share Posted June 11, 2023 17 hours ago, logandzwon said: Dtomcat18 that looks great! Two questions, (1) do you have the pin out for the jtag for this PCB? (2) can you tell me the spacing of the pads? I figure I can order of these guys; 2.54 2.0 1.5 1.27 1.25 100mil 50mil 3P 4P 5P 6P 7P 8P 9P 10P PCB Clip Clamp Fixture Probe Pogo Pin Download Program Burn https://a.aliexpress.com/_mPKiidm spacing I came up with is 1.1 (pad is .7 and spacing between pads is .4) 1 1 Quote Link to comment Share on other sites More sharing options...
dtomcat Posted June 13, 2023 Author Report Share Posted June 13, 2023 Finally tested out jig… no go. Troubleshot for a bit.. decided to try new cpld…. Unsoldered original. … then had the idea to try a known good xblast… no go. Try deleting software and reinstall (flashcat). Worked great…. Resoldered the original cpld back on… programmed successfully. Jig officially works 2 Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted June 15, 2023 Report Share Posted June 15, 2023 On 5/17/2023 at 2:19 AM, Paolo said: Too complicated and expensive for me.. What isn't? A 5 dollar Aladdin that doesn't work? Lol. You get what you pay for, friend. 35 bucks is totally reasonable. Especially with how much American currency has devalued. Let's raise that debt ceiling! Gotta fight for the working man or SOME shit! @Dtomcat18 what are the specs on this thing? Quote Link to comment Share on other sites More sharing options...
dtomcat Posted June 15, 2023 Author Report Share Posted June 15, 2023 (edited) 3 hours ago, Bowlsnapper said: @Dtomcat18 what are the specs on this thing? It’s like any other xblast as far as I know. 1mb flash (flashable by user if an update comes out). 1x512kb 2x256kb (1 256 slot is for OS). Uses patched OS to allow ram checker on 1.6 xbox Edited June 15, 2023 by Dtomcat18 Quote Link to comment Share on other sites More sharing options...

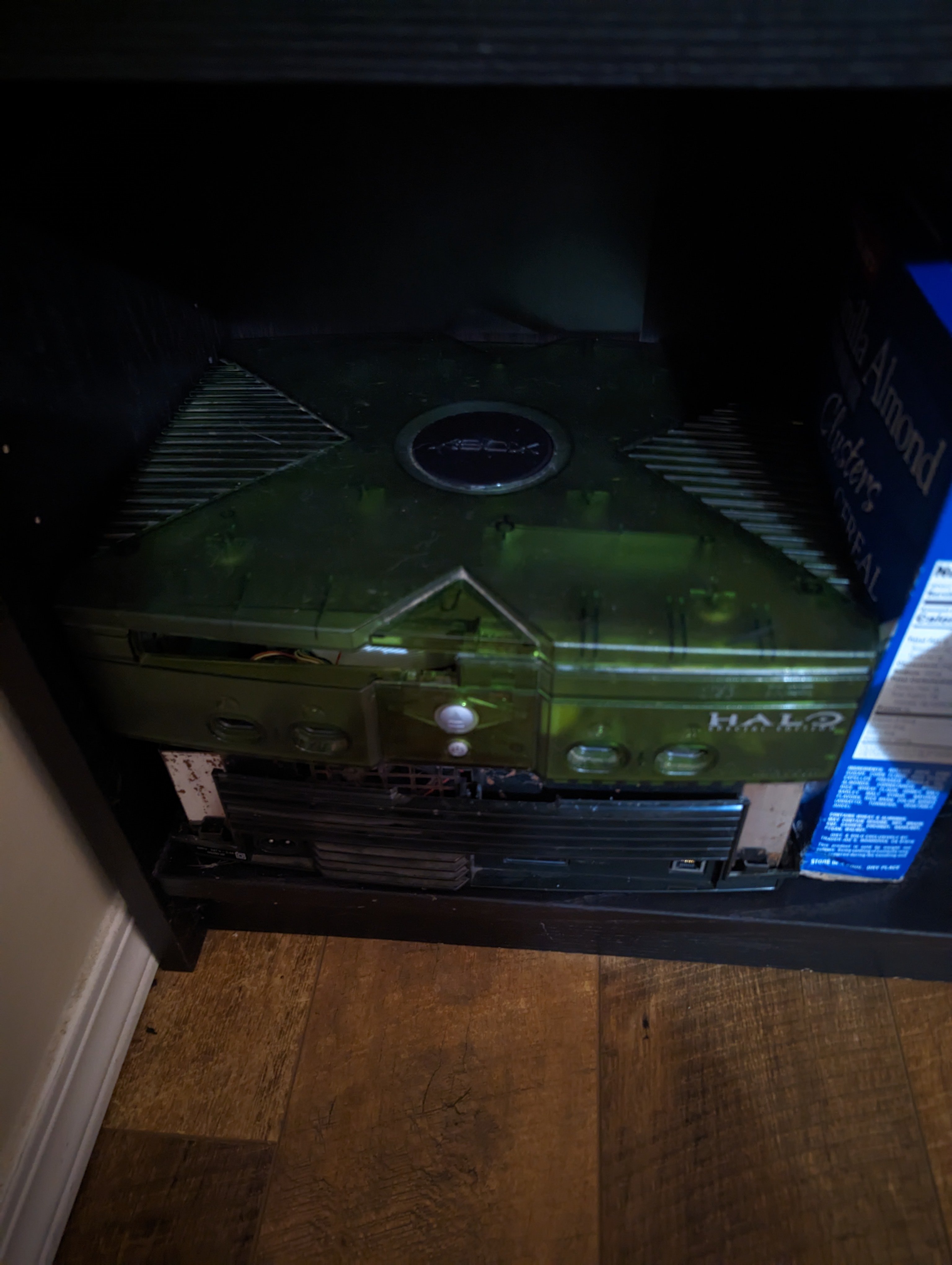

Bowlsnapper Posted June 15, 2023 Report Share Posted June 15, 2023 47 minutes ago, Dtomcat18 said: It’s like any other xblast as far as I know. 1mb flash (flashable by user if an update comes out). 1x512kb 2x256kb (1 256 slot is for OS). Uses patched OS to all ram checker on 1.6 xbox It's basically an XBlast Aladdin. Just much better looking... but cheaper to buy in bulk if you invest in a programmer! I'm gonna buy one for my other Halo Edition. Green. Quote Link to comment Share on other sites More sharing options...
dtomcat Posted June 15, 2023 Author Report Share Posted June 15, 2023 Just let me know 1 Quote Link to comment Share on other sites More sharing options...
sweetdarkdestiny Posted June 15, 2023 Report Share Posted June 15, 2023 How about a v2 / micro version of the chip by putting the SST on the other side of the PCB? 1 Quote Link to comment Share on other sites More sharing options...
