MilkMan2004 Posted January 10, 2022 Report Share Posted January 10, 2022 Hello, Just finished doing my first 128mb upgrade on a 1.0 xbox. Overall it wasn't too bad just had to take my time. Used xblast os to make sure all chips were good and let it run for a while and let everything heat up.. everything is good.. Next step was to flash regular bios back to the tsop replacing xblast bios. Got netflash going and loaded up a 1mb x5035... progress bar completed then the xbox rebooted... on reboot I accidentally bumped the power button shutting the xbox off... not sure if I screwd up the flash by bumping the power button or if there was an issue with the bios file I used... Now when powering up the xbox the power cycles a couple times then flashes red/ green with no video output.. I do have a couple Aladin chips around here somewhere I should be able to flash and use but I was just wondering if there is any way to save the on-board flash chip? I seem to recall reading about some modified m7 bios that may allow saving on-board flash but I'm assuming the modified bios would only work with certain bios on the tsop... Can anyone please confirm if I can save the tsop or am I stuck with a modchip on this box? Took my time installing the ram chips only to rush the bios flash... sooo stupid Quote Link to comment Share on other sites More sharing options...

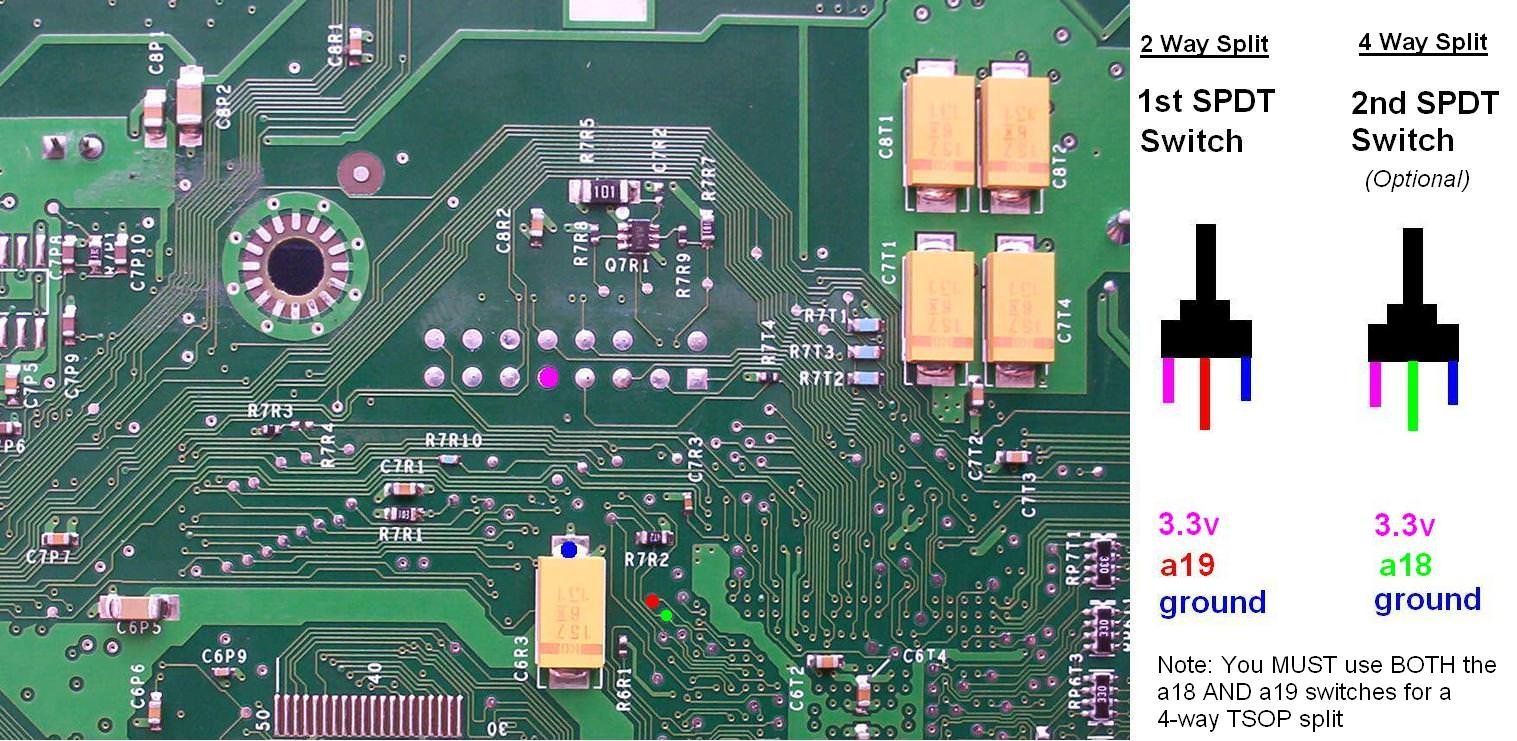

SS_Dave Posted January 10, 2022 Report Share Posted January 10, 2022 28 minutes ago, MilkMan2004 said: Hello, Just finished doing my first 128mb upgrade on a 1.0 xbox. Overall it wasn't too bad just had to take my time. Used xblast os to make sure all chips were good and let it run for a while and let everything heat up.. everything is good.. Next step was to flash regular bios back to the tsop replacing xblast bios. Got netflash going and loaded up a 1mb x5035... progress bar completed then the xbox rebooted... on reboot I accidentally bumped the power button shutting the xbox off... not sure if I screwd up the flash by bumping the power button or if there was an issue with the bios file I used... Now when powering up the xbox the power cycles a couple times then flashes red/ green with no video output.. I do have a couple Aladin chips around here somewhere I should be able to flash and use but I was just wondering if there is any way to save the on-board flash chip? I seem to recall reading about some modified m7 bios that may allow saving on-board flash but I'm assuming the modified bios would only work with certain bios on the tsop... Can anyone please confirm if I can save the tsop or am I stuck with a modchip on this box? Took my time installing the ram chips only to rush the bios flash... sooo stupid You could try the 3 wire trick as the 1.0-1.1 is a 1024kb bios that would have been split it to 4 banks and one of the banks may still have a working bios file. Other wise replace the bios chip with one from a parts 1.0-1.1 Cheers SS Dave Soft modding is like masturbating, It gets the job done but it's nothing like the real thing. 1 1 Quote Link to comment Share on other sites More sharing options...
MilkMan2004 Posted January 10, 2022 Author Report Share Posted January 10, 2022 Thanks for the suggestion on the 3 wire trick, I will give it a shot tomorrow Quote Link to comment Share on other sites More sharing options...
MilkMan2004 Posted January 11, 2022 Author Report Share Posted January 11, 2022 I tried your 3 wire method using aligator clip and grounding pin 1 and 2 on the tsop and the xbox booted, thank you sir. only issue now is no video is being displayed so somthing is not right with the bios... any thoughts on how to get around this? Any way to re flash remotely through network without having a visual on screen? Quote Link to comment Share on other sites More sharing options...
sweetdarkdestiny Posted January 11, 2022 Report Share Posted January 11, 2022 (edited) You can try to flash blind with this "EvoX Blind Flasher" I have made : https://1fichier.com/?5113k8i2rbtunfda07t3 (~6MB .rar) It's a simple EvoX which boots up from DVD where you can flash 256kb EvoX m8 plus bios for 1.0-1.4 XBoxes. There is just one bios so the process is super simple: Boot up the DVD and wait till the DVD stops spinning Press A Press Left Press A Wait till the XBox shuts down Short video with subs inside. EDIT: OFC only if it's just a video problem and your xbox boots a DVD which you can hear. Edited January 11, 2022 by sweetdarkdestiny 1 Quote Link to comment Share on other sites More sharing options...
MilkMan2004 Posted January 11, 2022 Author Report Share Posted January 11, 2022 Sweet! thanks for that, I will give it a shot Quote Link to comment Share on other sites More sharing options...
sweetdarkdestiny Posted January 11, 2022 Report Share Posted January 11, 2022 (edited) Little update. EvoX Blind Two Click Flasher v1.1 : https://1fichier.com/?ore79jgr62umqnkefjhp Just cold boot the XBox with this DVD already in your drive and wait till the DVD stops. Press A. Press Y and the flash process starts. Changes : Switched to a multi bios (Now it works for 1.0 - 1.6b). Simplified the complicated 3 click flash process. Now just 2 clicks. Hope this will help some ppl. in the future. EDIT : Anyone knows if you can make EvoX simulate that two clicks to make it no click? Edited January 11, 2022 by sweetdarkdestiny 1 1 Quote Link to comment Share on other sites More sharing options...
MilkMan2004 Posted January 26, 2022 Author Report Share Posted January 26, 2022 Hello, Unfortunately I was not able to reflash the onboard bios, as the dvd drive didn't seem to function properly to read the disc. So I installed an alladin with ind bios and it would boot but I still had black screen but this time eject led was flashing green. Thinking maybe somehow I had a corrupted the eeprom as I originally had to remove the eeprom from the board to read it and back it up. So I unsoldered again reflashed the eeprom and verified the flash resoldered the eeprom still getting the flashing green light. Ok tried an aladdin modded with xblast this time. Hey it boots to the bios selection screen and I have video! Ok select a bios and.... nope back to black screen solid green light this time. Tried m8 bios on other bank same thing... My question is, what isn't xblast os checking that is normally checked that is causing my no video? Do you think there could be a bad solder joint on one of the ram chips? Maybe not bad enough to frag but bad enough to corrupt memory? I think issue is more than bad bios flash Any thoughts? Thanks Quote Link to comment Share on other sites More sharing options...
