I have a cut-down slim OG xbox that has worked great, but then I changed the paste a while back and it started going kind of weird.
The picture output is barely there, it's really really dark with a strong red tint to it, can barely see the menus but it's definitely outputting a picture.
Could I have messed up the GPU somehow? Something being shorted? I'd include a picture but you can barely see anything. I'd be sad to ditch this as I put a lot of time into it.

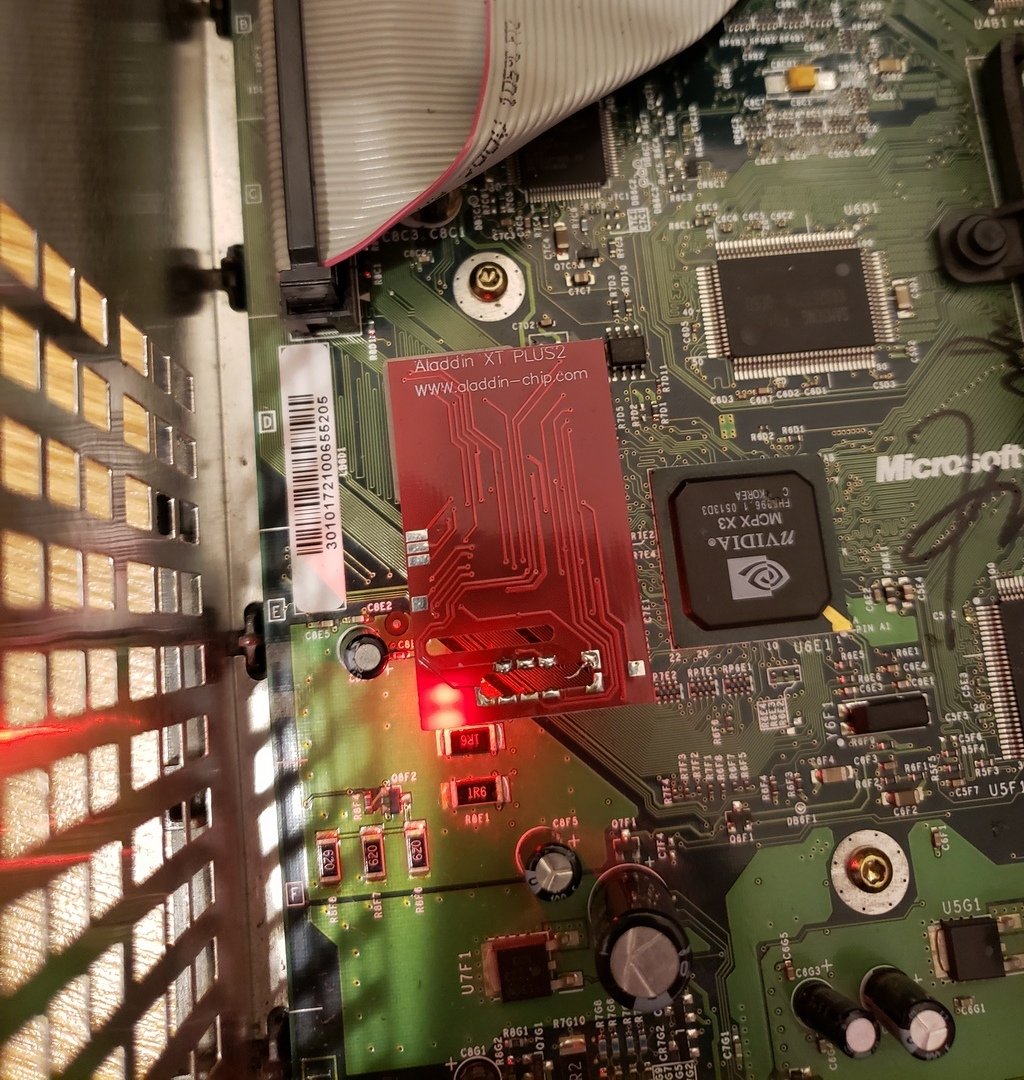

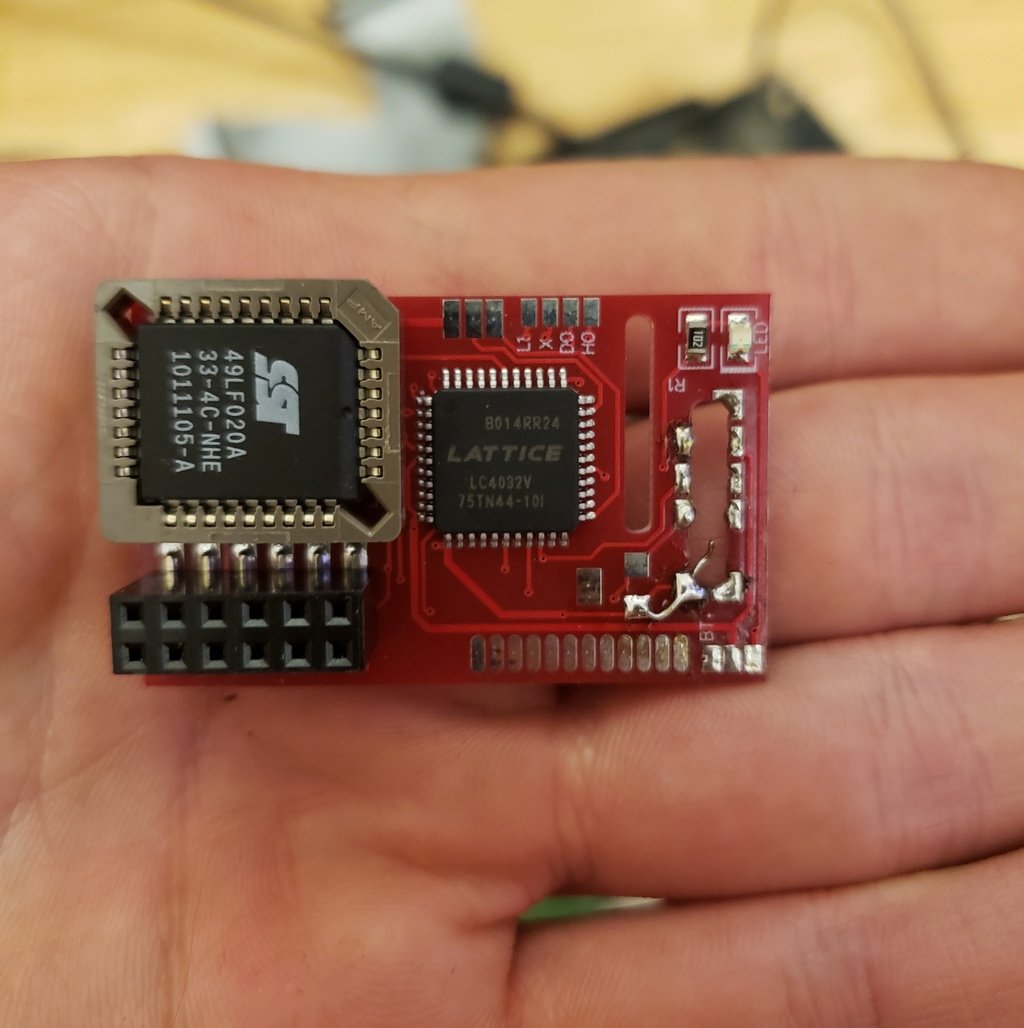

I was looking at the typical Aladdin XT 2 Plus modchips that are still available/being produced for the Xbox a while ago, and I thought to myself that the wiring to permanently ground the BT pad seemed a little inelegant. I took a quick look at the traces on the PCB and lo and behold, they trace back to adjacent pins on the Lattice CPLD chip!
Going forward should I ever need to install another XT 2 Plus, I'll forego the wire and just bridge those two pins.
I acquired a few Xbox's cheap recently that were broken one of which was throwing an Error 5 on boot. This Xbox turned out to be modded but the solderless LPC header wasn't installed properly, I removed it and soldered a header directly to the board (and wired D0). Now I'm able to boot to the chip but it halts on startup.
I Attempted to load Xenium OS 2.1 recovery CD but the menu never comes on the main screen. It did early on but went black and never loaded again. I have tested this drive on my 1.6 Xbox and know that it is functional.
Also I installed my Aladdin XT modchip and the system will boot fine with that. Is there any way to recover this chip or is it dead?
