xecuter 3 chip not enabling

[bolofski 16]

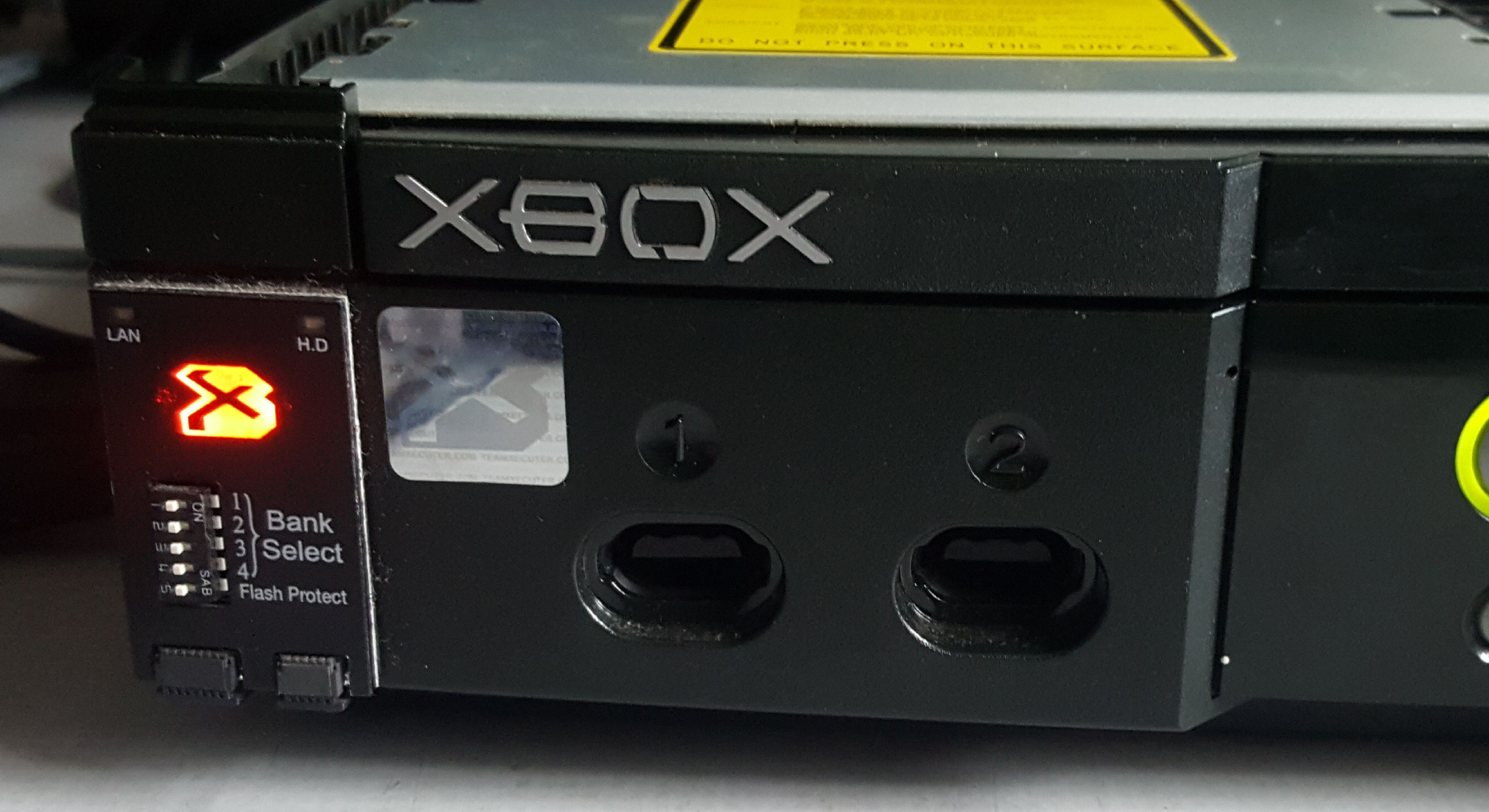

Hi, i purchased a faulty 1.6 xbox which was modded with xecuter 3 and the front control panel, the xbox was powering up but no sign of life on the chip or front panel, upon inspection the lpc rebuild board wasnt installed straight, it seemed to be slightly skew, i didnt really have the proper kit to remove and reseat the lpc rebuild board so i desoldered everything else and re-installed it all into a 1.4 so no need for the lpc board, i now have signs of life on the chip (chip lights up blue) and the front control panel (logo lights red and hdd activity light blinks) however i cant get the chip to enable, ive tried the bank switches in various positions, short press, long press, if i try pressing eject and power together the xbox frags once then powers up normally but the logo light is always red, ive retried all my solder points on the lpc / d0 but to no avail, anyone have any ideas anything else i could try?  thanks

[KaosEngineer 739]

Did you move the reset / eject adapter board (3) and cable (4) from the 1.6 to the 1.4?

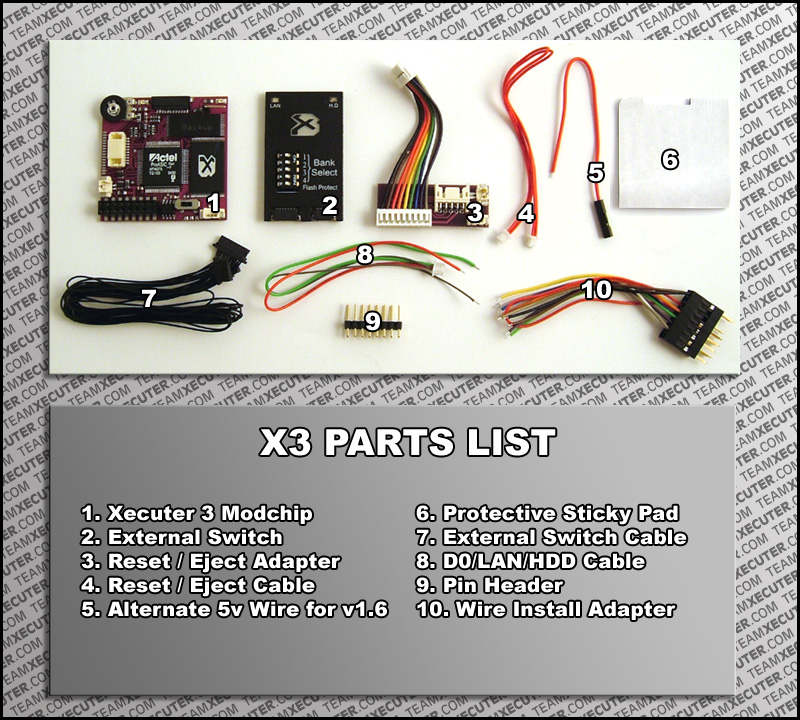

See Team Xecuter's X3 Full Kit image below:

[bolofski 16]

yes ive moved that across also

[SS_Dave 633]

It might be good to post a pic of the install/solder work in the version 1.4.



Cheers

SS Dave
