Hey there, I have a chipped 1.6 and I'm using it on my LG 4K TV via component cable, I'm experiencing image drop out (see the video below). I've tried 3 different sets of cables, I've changed the Xbox to NTSC to enable HD video mode. Is there anything you people can recommend for me to try? I'm willing to try anything just so I can get this issue resolved. Thanks!

Video link:



Share this post


Link to post
Share on other sites

I would be replacing the capacitors near the CPU heat sink and power connector

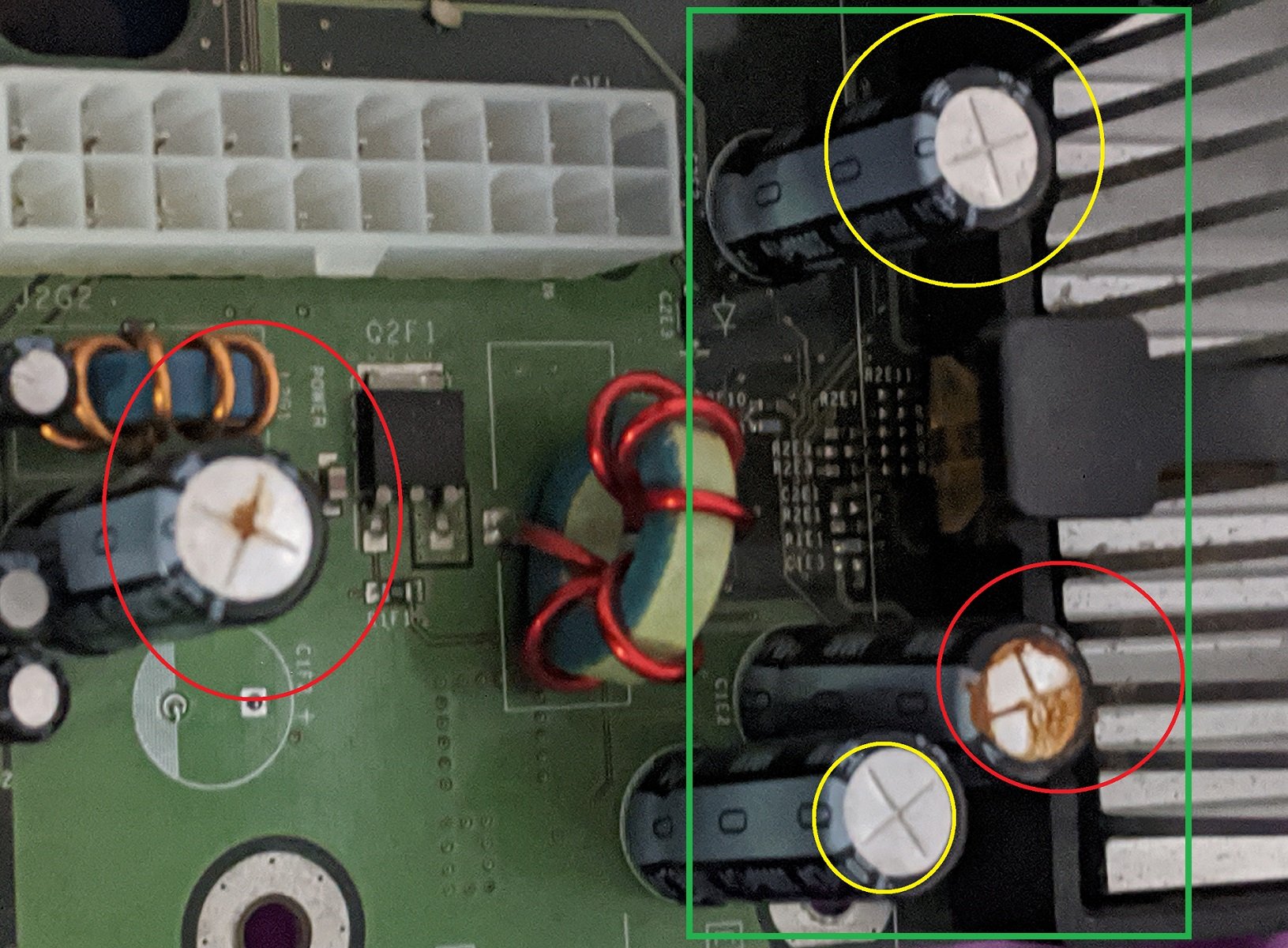

You will probably find the tops of them are starting to bulge and or leak like the ones in the pic

Please login or register to see this attachment.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Share this post


Link to post
Share on other sites
16 minutes ago, SS_Dave said:

I would be replacing the capacitors near the CPU heat sink and power connector

You will probably find the tops of them are starting to bulge and or leak like the ones in the pic

Please login or register to see this attachment.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Ah I did forget to mention caps have been replaced recently :)

Share this post


Link to post
Share on other sites

,What video output resolution is it set to?



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.



Share this post


Link to post
Share on other sites
1 hour ago, SS_Dave said:

,What video output resolution is it set to?



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.



I have 720p enabled in the dashboard.

Share this post


Link to post
Share on other sites

Are the Av leads a good quality lead as cheap av leads from china/Ebay can also give problems

Can you test it with a composite lead and is it just the one game ?



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Share this post


Link to post
Share on other sites

Have you had a good look at the power supply cap's?

Is it just some games or all of them?



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Share this post


Link to post
Share on other sites
