Original Aladdin Advanced Mod Chip


Rochdaleguy
 Share

Recommended Posts

Hi all.

Came across my old original modded Xbox in loft the other day and had a play and realised I’d missed it.

Decided to get back into the scene and do some updates on it. Increase hard drive from 160gb to 2tb and a few other bits and pieces..

i have the old Aladdin Advanced mod chip which boots to evox on long power press and stock on short. Now as Xbox live is no longer a thing on original Xbox, I’ve no further need to keep booting to stock as default.

Whats the best way to alter it to have it boot with the chip active all the time? Or is there still a benefit to dual boot? If so can I switch the long and short presses around?

Been a long long time since I messed with these things.



All help appreciated.


Edited by Rochdaleguy
Spellings
Link to comment
Share on other sites

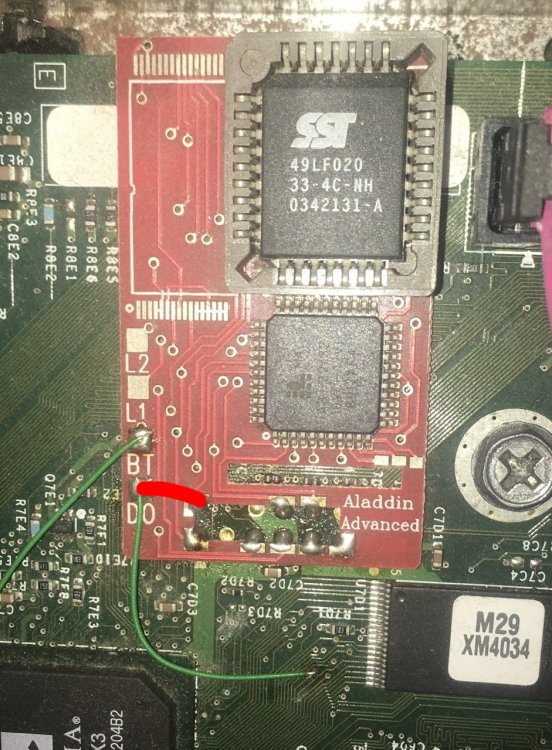

Just connect BT with the first pin on the left in the upper row and remove the BT point cable from the board.

Thats it.




EDIT : And no benefit for disabling the chip. Btw. you may consider to install XBMC4Gamers along with the resource pack (linked below (DL-Links on side 4)) :





Edited by sweetdarkdestiny
removed some typos since it's not my native language. ;)
Link to comment
Share on other sites

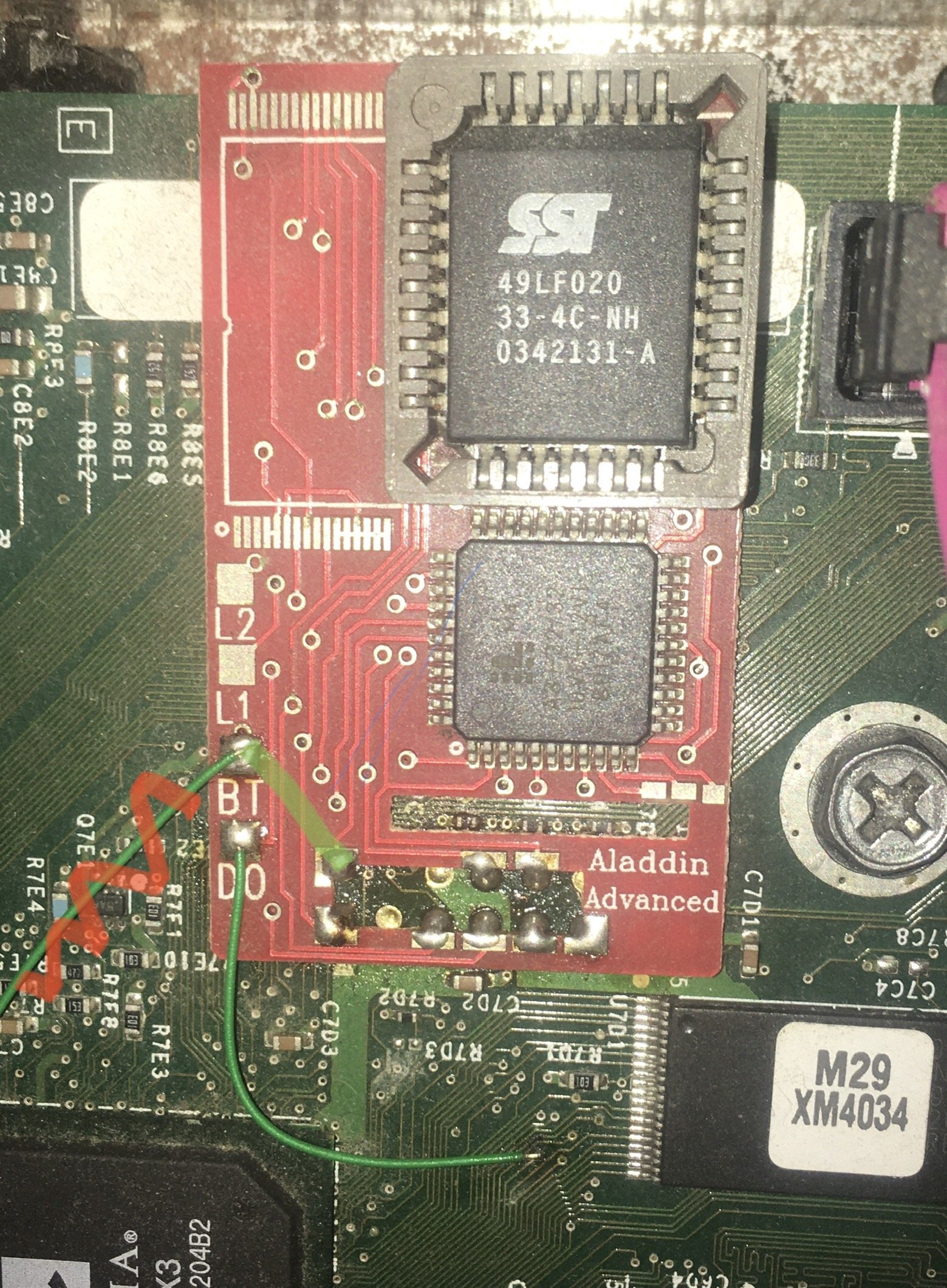

You need to link the BT to pin 2 (ground )as in this pic and also the wire (Blue Arrow)from the BT that is going to the front of the Xbox.



CC52FFFB-8FEF-4937-B99D-E414103B3060.thumb.jpeg.4ccca8e5fc6dc7354e7e690c2eefd658.jpeg.0a3e01b4e3953670a05e102c88c4374d.jpeg

And then flash a IND5004.67 bios to it as the Evox M8 will not support a 2tb hard drive.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.



Link to comment
Share on other sites

3 hours ago, sweetdarkdestiny said:

Just connect BT with the first pin on the left in the upper row and remove the BT point cable from the board.

Thats it.




EDIT : And no benefit for disabling the chip. Btw. you may consider to install XBMC4Gamers along with the resource pack (linked below (DL-Links on side 4)) :





You have grounded the D0 wire in the pic you posted and not the BT wire.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

  • Like 1
Link to comment
Share on other sites

9 hours ago, SS_Dave said:

You have grounded the D0 wire in the pic you posted and not the BT wire.



Damn, you're right. Hope the OP was smarter than me and saw that im pointed him to the wrong pad.

Anyway, thanks for correcting me an shame on me for that. Next time i have to pay a little more attention.

Maybe a Mod can remove the picture since i can't edit it out.

Edited by sweetdarkdestiny
Link to comment
Share on other sites

3 minutes ago, sweetdarkdestiny said:

Damn, you're right. Hope the OP was smarter than me and saw that im poinet to the wrong pad.

If it was a standard aladdin modchip that would be correct and it's a simple mistake

If you become a paid member you can edit you own posts, The membership is about the same cost as a coffee in a cafe.



https://www.ogxbox.com/forums/index.php?/store/category/2-membership-subscriptions/



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Link to comment
Share on other sites

On 6/28/2020 at 4:15 PM, sweetdarkdestiny said:

Just connect BT with the first pin on the left in the upper row and remove the BT point cable from the board.

Thats it.




EDIT : And no benefit for disabling the chip. Btw. you may consider to install XBMC4Gamers along with the resource pack (linked below (DL-Links on side 4)) :





Loving the XBMC4Gamers I’ve put on my system. I’ve made it my default dashboard.

Cant work out the IGR though. System fully reboots to xboxdash.

anyone know what combo Key press it is?

Link to comment
Share on other sites

If you used the IND bios

edit the ind-bios.cfg file that's on the C drive to

DASH1=\Device\Harddisk0\Partition1\xbmc\default.xbe

That will load the XBMC4Gamers from a cold and warm boot.

I also set auto login in the xbmc4gamers settings

Go settings,Skin settings,Login,Auto login.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Link to comment
Share on other sites
