Mavox1

Anyone Seen This Screen Distortion Before? Video

Recommended Posts

Tried it with 2 sets of component cables and had the same result. It's a 1.6 model and does this with various games, maybe 30 games total I've tried. Sometimes it doesn't do it all for 30min, then it'll flicker constantly for an entire hour. Super frustrating.

Please login or register to see this link.



Share this post


Link to post
Share on other sites

Yep the caps near the heat sink have failed.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.


  • Thanks 1

Share this post


Link to post
Share on other sites

Yep..thats what happened to me. The three large caps by the heatsink . I believe they are 6.3V 3300uF but don't quote me on that. Mine had rounded blown out tops. Check to see if yours look that way. Maybe other things will cause this. I don't know.

  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites
1 hour ago, Gray1 said:

You got any bad capacitors in that xbox?



56 minutes ago, SS_Dave said:

Yep the caps near the heat sink have failed.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.




42 minutes ago, Gray1 said:

Yep..thats what happened to me. The three large caps by the heatsink . I believe they are 6.3V 3300uF but don't quote me on that. Mine had rounded blown out tops. Check to see if yours look that way. Maybe other things will cause this. I don't know.



Big thanks. Could anyone point me in the right direction on where to start? I just starting learning to FTP recently lmao.

Share this post


Link to post
Share on other sites

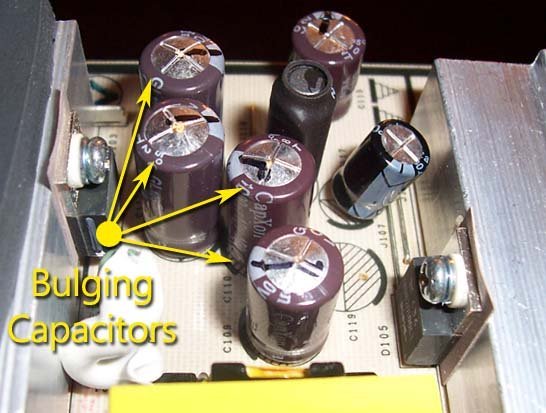

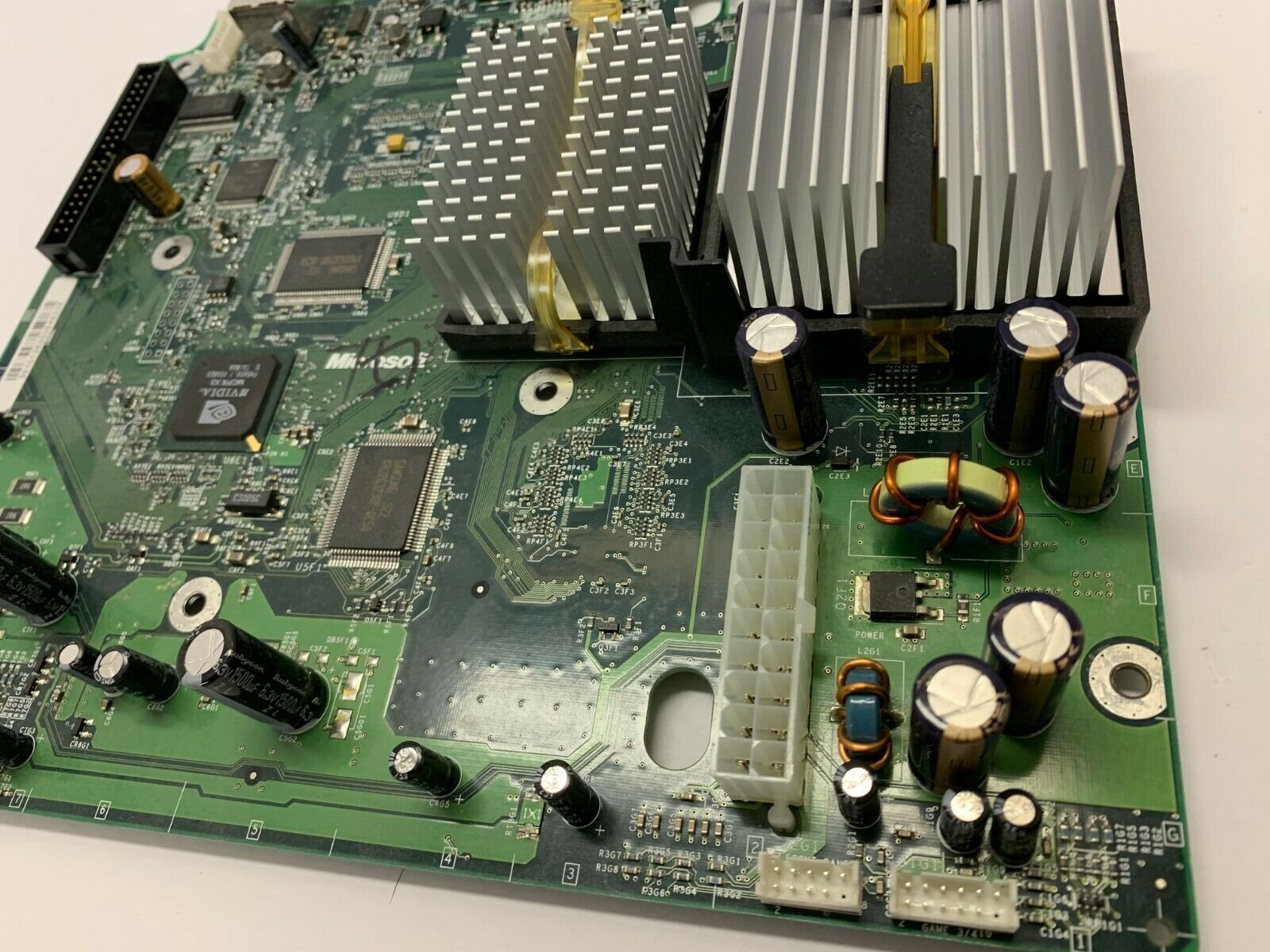

First open up the Xbox and look at the capacitors. See if the top of the caps are swelled. They should be flat and not swelled like the first picture. They should look like the second picture. The three next to the heatsink are the prime suspects. But I would check them all since you have it out.

Please login or register to see this attachment.

Please login or register to see this attachment.

Edited by Gray1
add picture
  • Thanks 1

Share this post


Link to post
Share on other sites
12 hours ago, Gray1 said:

First open up the Xbox and look at the capacitors. See if the top of the caps are swelled. They should be flat and not swelled like the first picture. They should look like the second picture. The three next to the heatsink are the prime suspects. But I would check them all since you have it out.

Please login or register to see this attachment.

Please login or register to see this attachment.





Much appreciated. I decide before cracking it open to try some other troubleshooting.



2 things.

The first is I was able to find my old composite cables. I found zero flickering using these.

The other thing is the green plug on the component cable. I messed around with it for maybe 10 minutes and found that a certain spot twisting it improves the flickering. Now, it does a single, more intense flicker every 20-30 seconds instead that double flicker every 3-5 seconds.

Not sure if that helps anyone understand if its actually the caps failing.

Edited by Mavox1

Share this post


Link to post
Share on other sites

How new is the TV?  I am a firm believer in doing no harm so no problem in more troubleshooting. Try a different TV if you can. See if that makes any difference. Make sure 480p and 720P are enabled in the settings. Is this stock or a softmod?

  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites
50 minutes ago, Gray1 said:

How new is the TV?  I am a firm believer in doing no harm so no problem in more troubleshooting. Try a different TV if you can. See if that makes any difference. Make sure 480p and 720P are enabled in the settings. Is this stock or a softmod?

It's a softmod and 480p and 720p are enabled. My other TV went out about a month back or I would try that.The one I'm currently using is about 1 year old LG, I use it for ps4 gaming, never get any flickering from anything but the xbox, and even now that is really reduced after messing around with the green connector.

Share this post


Link to post
Share on other sites

Update



I cracked open the system and did not see the bad capacitors. Another thing I did was tried standard AV cables, no flickering at all. This only occurs at 480p or above with cheap and high quality components, but with all games at that resolution. Could it be the component port on the TV causing an issue? The flickering is better if I mess with the inputs near the TV, but still occurs.

Edited by Mavox1

Share this post


Link to post
Share on other sites

The only sure test would be test on a different TV.

The cap's can look ok but still be faulty and be leaking from the bottom but in your case I would say the lead is the problem .





Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

  • Thanks 1

Share this post


Link to post
Share on other sites
16 hours ago, SS_Dave said:
16 hours ago, SS_Dave said:

The only sure test would be test on a different TV.

The cap's can look ok but still be faulty and be leaking from the bottom but in your case I would say the lead is the problem .





Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

The lead as in something outside the box itself right? Thank you



Share this post


Link to post
Share on other sites

The lead I am talking about is the component cable.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

  • Like 1

Share this post


Link to post
