herooftheday Posted January 5 Author Report Share Posted January 5 (edited) What is the value for it or just one with 6.3V from the xboxs? Edited January 5 by herooftheday Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted January 6 Report Share Posted January 6 1 hour ago, herooftheday said: for the pcb do I need the big cap? sadly there is no bom? I use the capacitor. The one I'm using is 25V 680UF. Could have sworn it was a different value? @Dtomcat18 Quote Link to comment Share on other sites More sharing options...
dtomcat Posted January 6 Report Share Posted January 6 100-150uF. 6v is fine 1 Quote Link to comment Share on other sites More sharing options...
lowtolerance Posted February 12 Report Share Posted February 12 I was running into this issue with Xenium Programmer running on a Pi 2 W where it would fail right at 50% every time. At first I thought it might have been a hardware issue with the modchip, but it was happening on all of the open xenium chips I tried. I wasn’t using the official PCB, just jumper wires, so I thought maybe there was a problem with the wiring. But why was it failing at 50% every time? I looked through the source looking for anything that might explain this behavior and noticed Koos left some commented out code for dumping the contents of flash, so I commented out the verification routine and uncommented the dump code, recompiled, re-ran the installer and xenium-programmer script and successfully dumped the contents of my modchip’s flash, which I then ran a diff against the prometheos BIOS image I had flashed. 100% identical binaries. So it seems like there is definitely a bug in xenium programmer causing flash verification to fail right at the halfway point. Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted February 12 Report Share Posted February 12 5 hours ago, lowtolerance said: I was running into this issue with Xenium Programmer running on a Pi 2 W where it would fail right at 50% every time. At first I thought it might have been a hardware issue with the modchip, but it was happening on all of the open xenium chips I tried. I wasn’t using the official PCB, just jumper wires, so I thought maybe there was a problem with the wiring. But why was it failing at 50% every time? I looked through the source looking for anything that might explain this behavior and noticed Koos left some commented out code for dumping the contents of flash, so I commented out the verification routine and uncommented the dump code, recompiled, re-ran the installer and xenium-programmer script and successfully dumped the contents of my modchip’s flash, which I then ran a diff against the prometheos BIOS image I had flashed. 100% identical binaries. So it seems like there is definitely a bug in xenium programmer causing flash verification to fail right at the halfway point. That's happening to me... Are there any files you can share? I am trying to flash and failing at 52 to 54 percent verification every damn time... Quote Link to comment Share on other sites More sharing options...

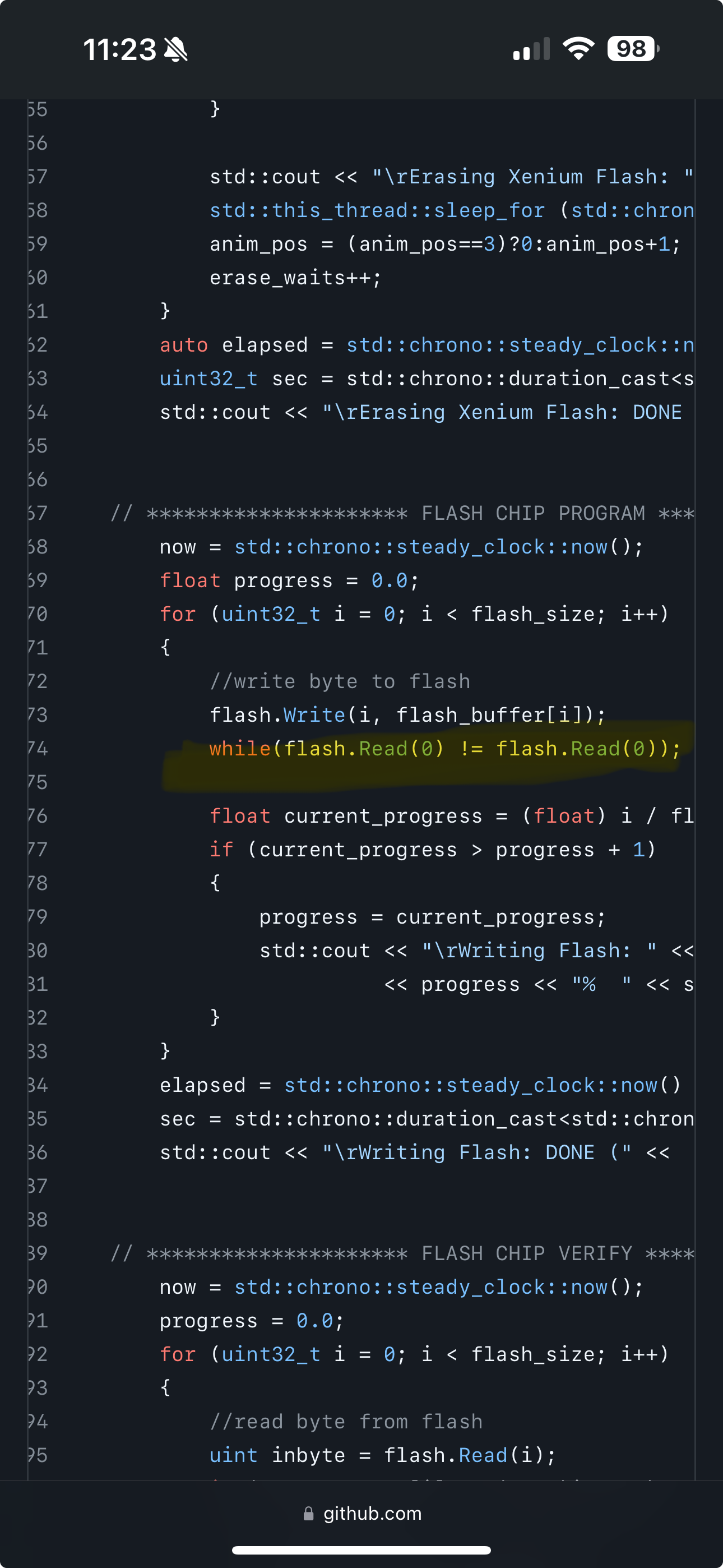

dtomcat Posted February 12 Report Share Posted February 12 Add this line after line 173 (from original xenium-flash.cpp in src folder) and recomplile 1 Quote Link to comment Share on other sites More sharing options...
lowtolerance Posted February 12 Report Share Posted February 12 1 hour ago, dtomcat said: Add this line after line 173 (from original xenium-flash.cpp in src folder) and recomplile I had already stumbled across this thread and this recommendation while I was chasing down a solution to the problem. For me, adding that line of code did not make any difference in the end, as the verification still fails every time at the same percentage. If I’m understanding it correctly, this line of code states that we should wait until the last byte has actually been written to flash before proceeding with the next byte, so it’s essentially verifying the flash on the fly. It’s not a suitable replacement for the existing verification routine, though, as the xenium-flash program will just hang if there’s a legitimate issue and it will never get past the write routine. I’m working on debugging this problem but I suspect that the Pi Zero 2 W and other newer Pi’s are trying to move the process along faster than the flash can keep up. Koos added some code specifically to insert an additional delay for the BitBus clock on Pi 3B+, but he never tested it on anything but the Pi Zero and 3B+ (and the Onion Omega2 but that’s irrelevant). It may just be that the timing for the BitBus clock needs to be tweaked further for Xenium Programmer to work properly with other Pi models. I’ll update this thread once I know more. Quote Link to comment Share on other sites More sharing options...
lowtolerance Posted February 12 Report Share Posted February 12 3 hours ago, Bowlsnapper said: That's happening to me... Are there any files you can share? I am trying to flash and failing at 52 to 54 percent verification every damn time... It’s interesting that it’s failing consistently at a different percentage for you than it is for me. What model of Pi are you using? Try commenting out lines 188-216 of the xenium-flash.cpp file and uncommenting lines 220-226, then re-running install and re-running xenium-programmer. When it finishes you should have a file called “flash.bin” in the working directory and just run the “diff” command against that binary and whatever xeniumOS/prometheos binary you’re using. If it doesn’t report any differences, then there are no differences. Quote Link to comment Share on other sites More sharing options...
dtomcat Posted February 12 Report Share Posted February 12 24 minutes ago, lowtolerance said: If I’m understanding it correctly, this line of code states that we should wait until the last byte has actually been written to flash before proceeding with the next byte, so it’s essentially verifying the flash on the fly Correct. Essentially waits for flash to be ready to write again after each write. This solved the verify issues I was having. But speed is my guess also Quote Link to comment Share on other sites More sharing options...
dtomcat Posted February 12 Report Share Posted February 12 Solved it for someone else also (one who submitted the pull request). We worked on it together with the help of @Ryzee119 Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted February 13 Report Share Posted February 13 3 hours ago, dtomcat said: Solved it for someone else also (one who submitted the pull request). We worked on it together with the help of @Ryzee119 Is it only certain builds (of the chip) that are experiencing this problem? Because I've gotten all mine to flash except this fourth one. Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted February 16 Report Share Posted February 16 Bump: I tried programming another freshly built chip and the programmer started to fail verification immediately. No count at all. Instant failure. I restarted the programmer and all of a sudden I started getting a verification count before verification would fail at 50-60%. There's no way these chips have faults 2 in a roy. My forst 3 were fine. Something is wrong with this programmer, I'm sure of it. @dtomcat Quote Link to comment Share on other sites More sharing options...
