XEcuter Chip Skinny Gray Wire

Recommended Posts

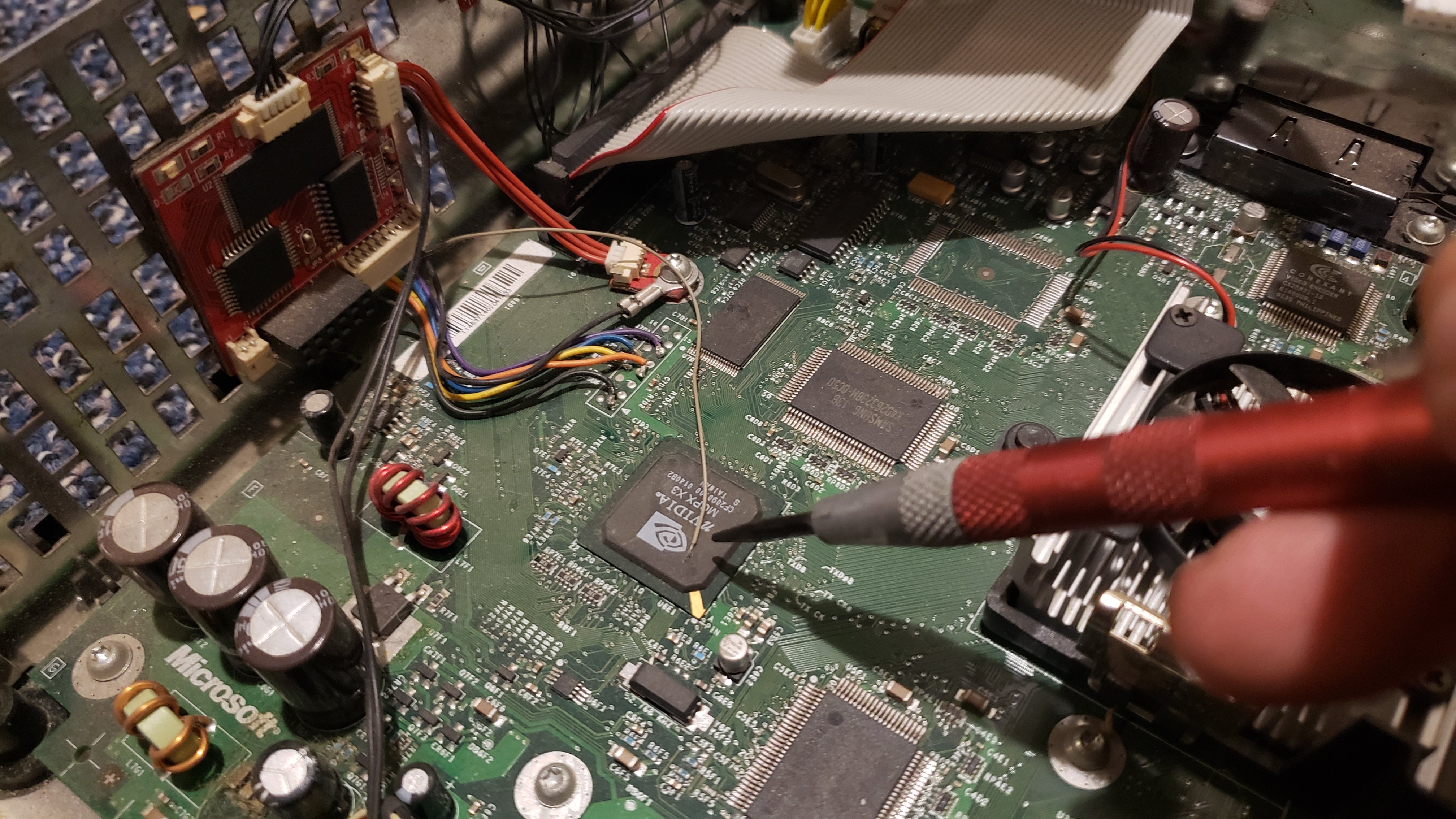

This machine boots and runs. I've been trying to find a wiring diagram to find out where this gray wire is supposed to be. I'm not 100% but I believe this is an old 2 piece execute chip. Any help would be appreciated

Please login or register to see this attachment.

Share this post


Link to post
Share on other sites

It's the D0 wire

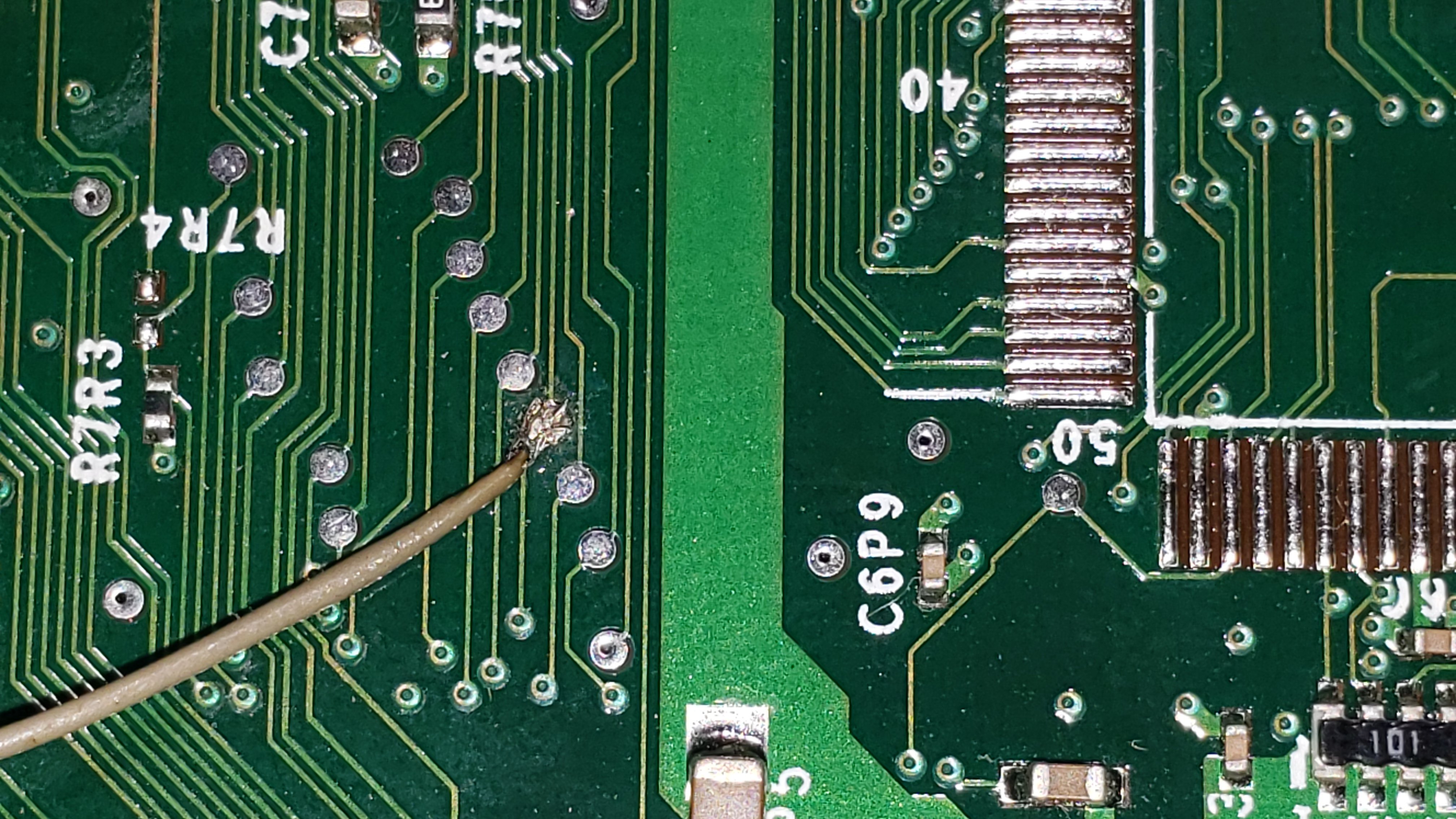

I would suggest using the D0 in the bottom of the board as it's a bigger spot to solder to




Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Share this post


Link to post
Share on other sites

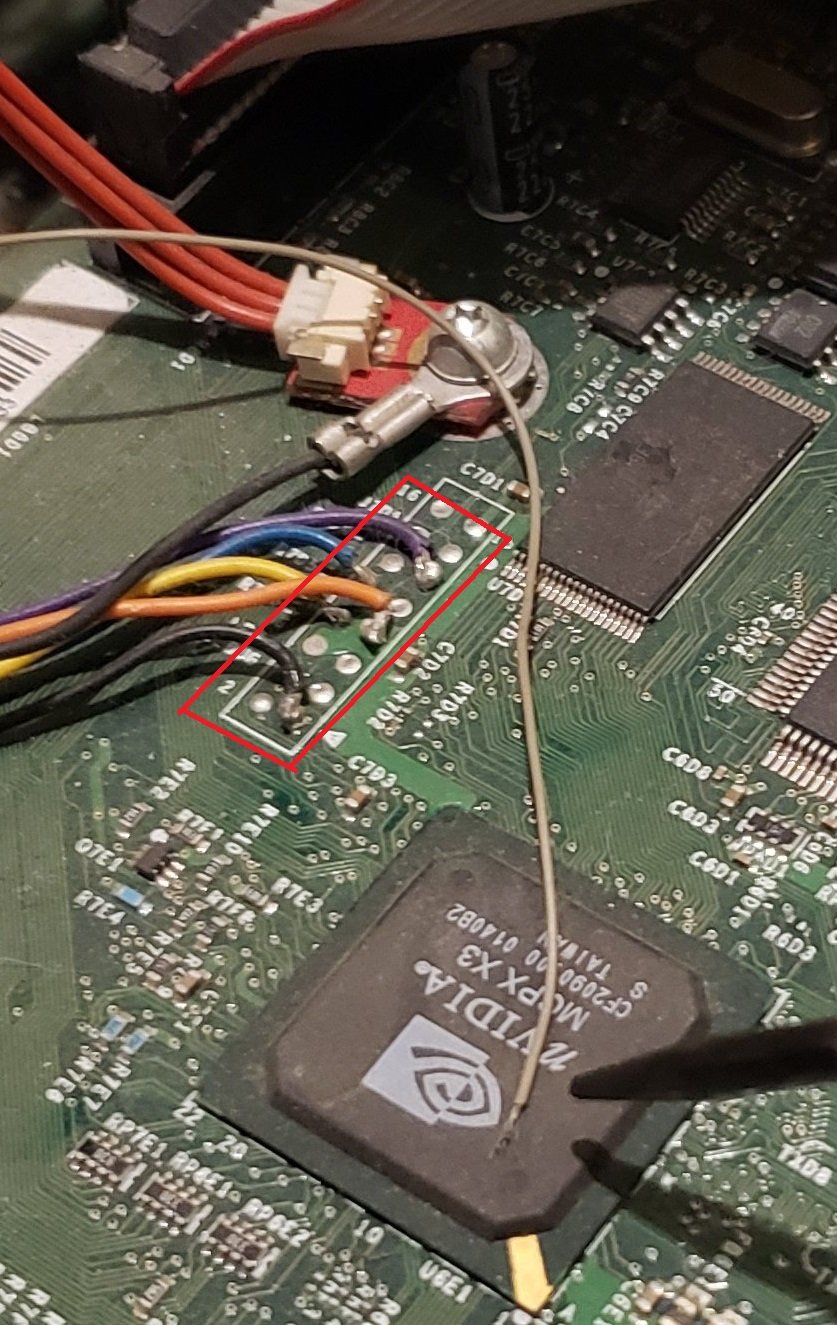

Also that's some crap solder work on the wires.

Please login or register to see this attachment.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Share this post


Link to post
Share on other sites
3 minutes ago, donnydarko said:

Agreed on the solder job. I certainly cant take credit for it.

I don't think anyone would put up there hand and say I did that soldering.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.



Share this post


Link to post
Share on other sites

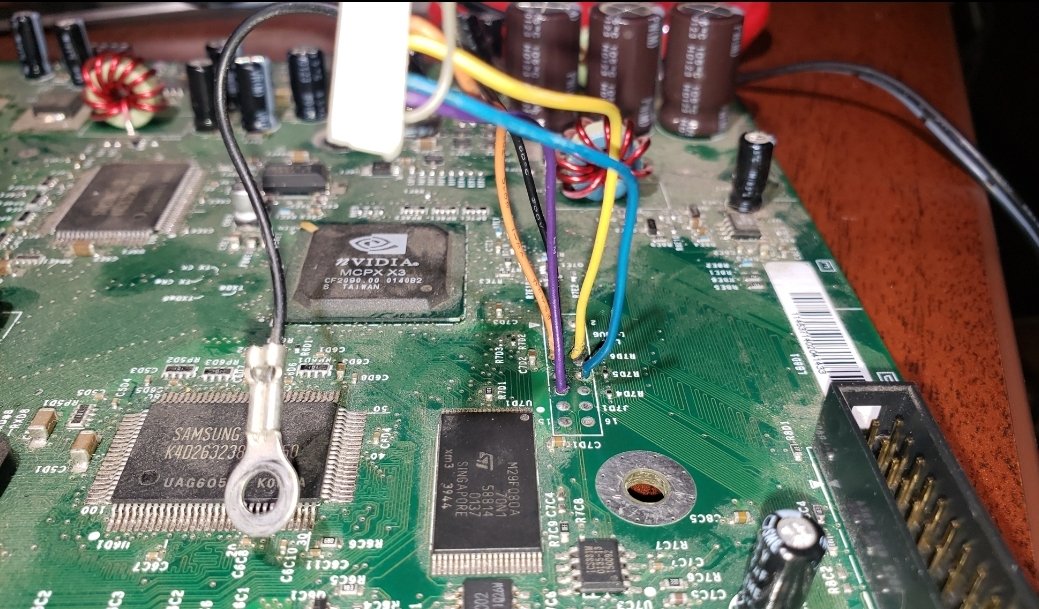

This was my first time soldering. I'm a welder by trade and now have nothing but respect for whoever does this all day. That little gray wire was a bitch. Thanks again for the help. I'm sure I'll have more questions now that I'm up and running.

Please login or register to see this attachment.

Please login or register to see this attachment.

Share this post


Link to post
Share on other sites
4 hours ago, donnydarko said:

This was my first time soldering. I'm a welder by trade and now have nothing but respect for whoever does this all day. That little gray wire was a bitch. Thanks again for the help. I'm sure I'll have more questions now that I'm up and running.

Please login or register to see this attachment.

Please login or register to see this attachment.

It is something you get better at with practice

My 1st ever welds (stick welder) looked like pigeon droppings



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Share this post


Link to post
Share on other sites
11 hours ago, Ging3rguy said:

If it works ...  Next time just pre-tin the pad and push the wire onto it with the iron tip.

i tried that. thats how i did all the others. The hole wasnt big enough to fit a staple threw let alone the gray wire. Im not saying it cant happen im just sayin i struggled with it

Share this post


Link to post
Share on other sites

What he is saying is you add fresh solder to the pad and fresh solder on the wire then lay the wire on the pad and apply heat from the iron and the wire will sink to the solder on the pad.

Using leaded solder and flux paste helps as well.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Share this post


Link to post
