Just now, barnito said:

I sell them for 20 shipped in the USA, programmed and flashed with 1.6 M8+ and X2 5035

How much are we talking to get a couple shipped to Ireland? 4 of them perhaps? Also what is the advantage of them over the regular Aladdin apart from not having to cut the l-frame trace?

Share this post


Link to post
Share on other sites
Just now, Cian Cunningham said:

How much are we talking to get a couple shipped to Ireland? 4 of them perhaps? Also what is the advantage of them over the regular Aladdin apart from not having to cut the l-frame trace?



Share this post


Link to post
Share on other sites

I just followed this to a t. Everything looks great, however getting FRAG.  Now, I'm just connecting all the components and trying to start up without being in the case. Should this still work? Or is it possible that not being in the case means it's not grounded properly?

Please login or register to see this attachment.

  • Like 1

Share this post


Link to post
Share on other sites
On 6/11/2017 at 3:38 PM, MrMajst3r said:

I always remove 6th pin of the pinheader for 1.6 Xboxes. They have 5V active in standby. If you leave this pin, Aladdin's LED will light all the time when console is plugged in. I think it's annoying.

I also never ground D0, it's better to solder it to modchip's D0 point. When modchip fails, with grounded D0 console will FRAG, whereas with D0 soldered to modchip, console will boot from motherboard's bios.



Please login or register to see this attachment.

This is exactly why im here.
Man, these little tidbits go a mile. I wasnt comfortable with that being lit either, i mean its fine... its a tiny LED. but WHY does it need to glow red at night. Thanks for that. Very cool.

I cut my L-trace and did not ground D0

works great

Share this post


Link to post
Share on other sites

Hi...i 've never noticed this on the Aladdin xt installs I've done, but I keep my systems in a switched PSU so there's not constant power.Just some obvious 1.6 install checks, you've performed the lpc rebuild right?You've bridged the points on the chip with BT?Did you cut the trace in the diagram for 1.6 compatibility?




Share this post


Link to post
Share on other sites

Planning to install this chip on 1.6 xbox and I've seen a few guides. There seems to be a few variations regarding the d0 point on the xbox motherboard.

From what I understand, grounding d0 is not needed if cut one of the traces on the lframe? Is that correct?

Edited by killscr33n
spelling

Share this post


Link to post
Share on other sites
1 hour ago, killscr33n said:

Planning to install this chip on 1.6 xbox and I've seen a few guides. There seems to be a few variations regarding the d0 point on the xbox motherboard.

From what I understand, grounding d0 is not needed if cut one of the traces on the lframe? Is that correct?

That's correct you can cut the Lframe on the top of the PCB near the Xyclops chip




It seem that some people say grounding the D0 on a version 1.6 is bad and may cause damage to the MCPX or the Xyclops chips, But a chip like the Open Xeniun is made to only ground the D0 when required and it allows it to be logic high at all other times.

If you cutting the trace there is no need to connect the Lframe or D0 to the mod chip.




Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Share this post


Link to post
Share on other sites

Thanks!

I ended up taking a 15(?) year old aladdin chip out of my 1.4 xbox (which I then tsoped) and followed this guide to install in my 1.6b.

Instead of the d0 wire I just cut the lframe trace.

Even with my rookie soldering skills worked perfect!

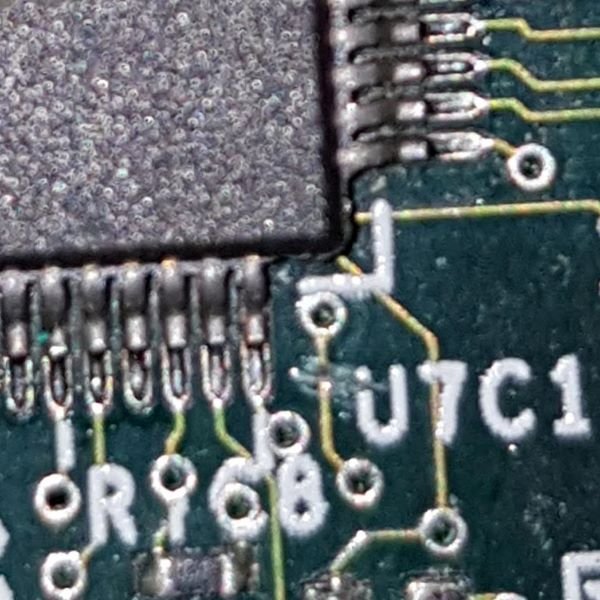

I did fudge up the BT solder pad on the chip, so for grounding BT, there's a via trace to BT and I bridged that to ground.

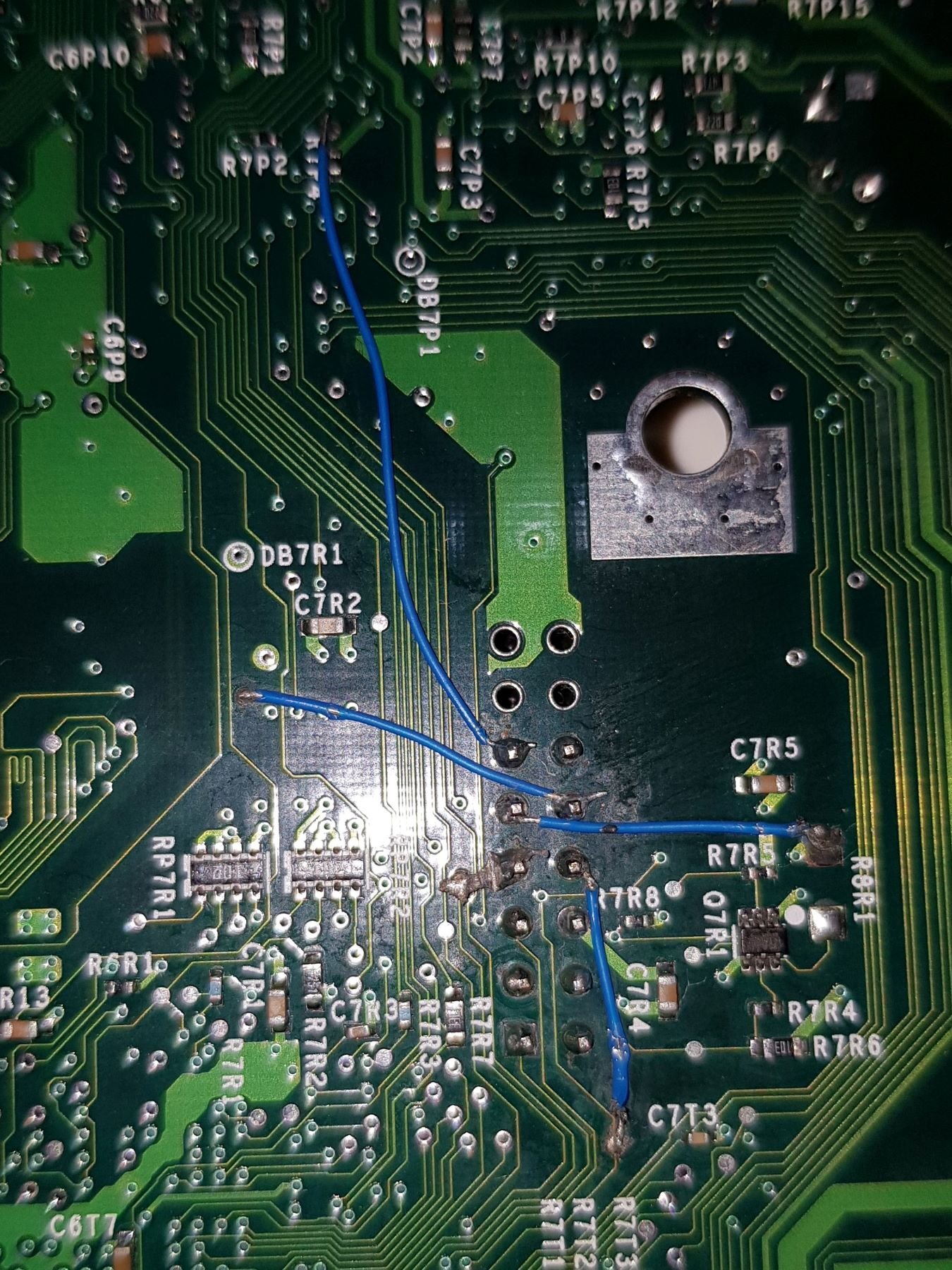

Please login or register to see this attachment.

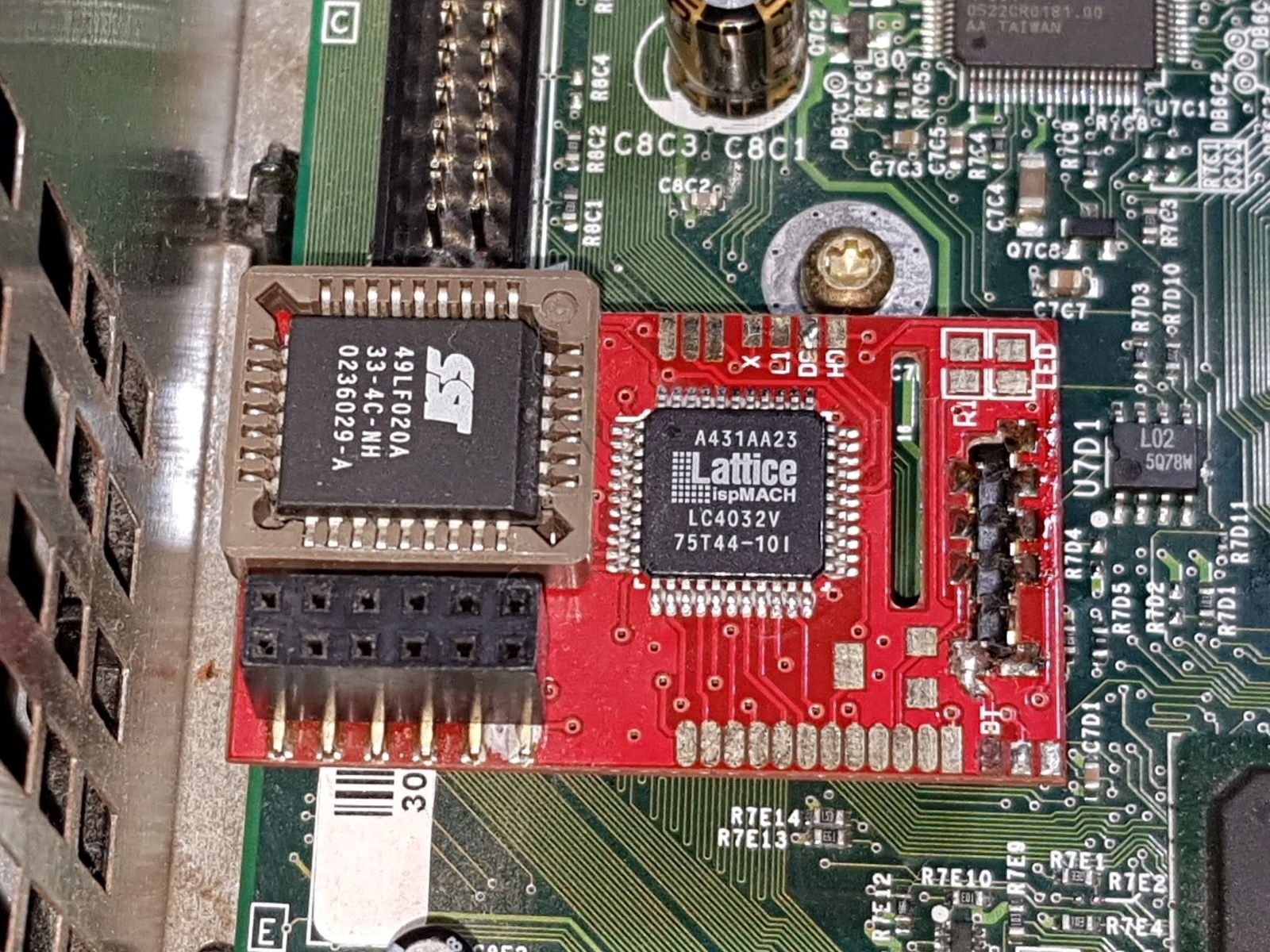

Please login or register to see this attachment.

Please login or register to see this attachment.

Share this post


Link to post
Share on other sites

I would not complain about that solder work at all..



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.



Share this post


Link to post
Share on other sites
