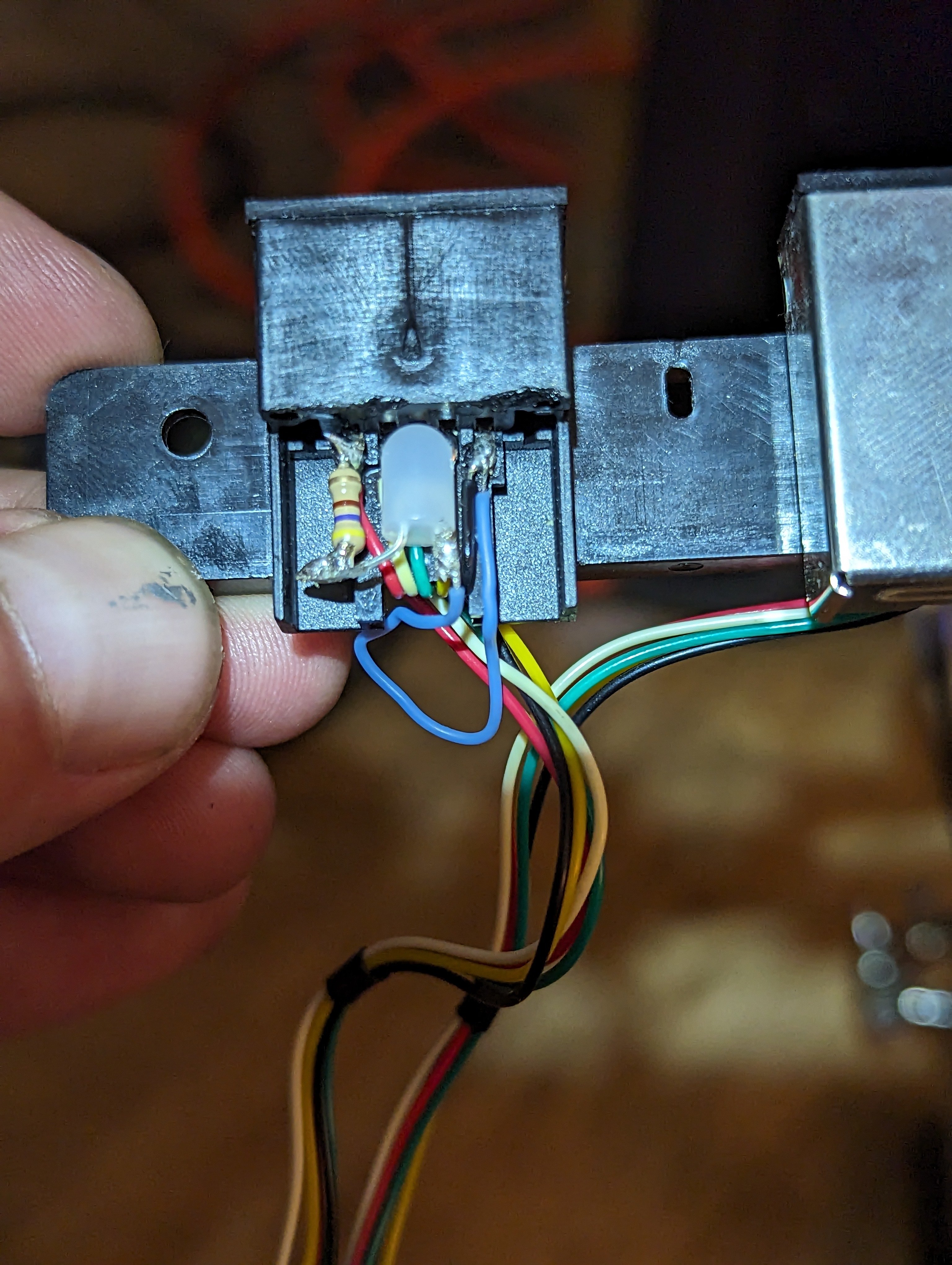

Bowlsnapper Posted June 21, 2023 Report Share Posted June 21, 2023 Fuck the wires and shrinkwrap. That's retarded. I wire up the negative so I can anchor the LED in place with the resistor. MUCH easier to anchor from one hard point instead of between two hard points. I make sure it all fits under and within the metal shielding. 2 Quote Link to comment Share on other sites More sharing options...

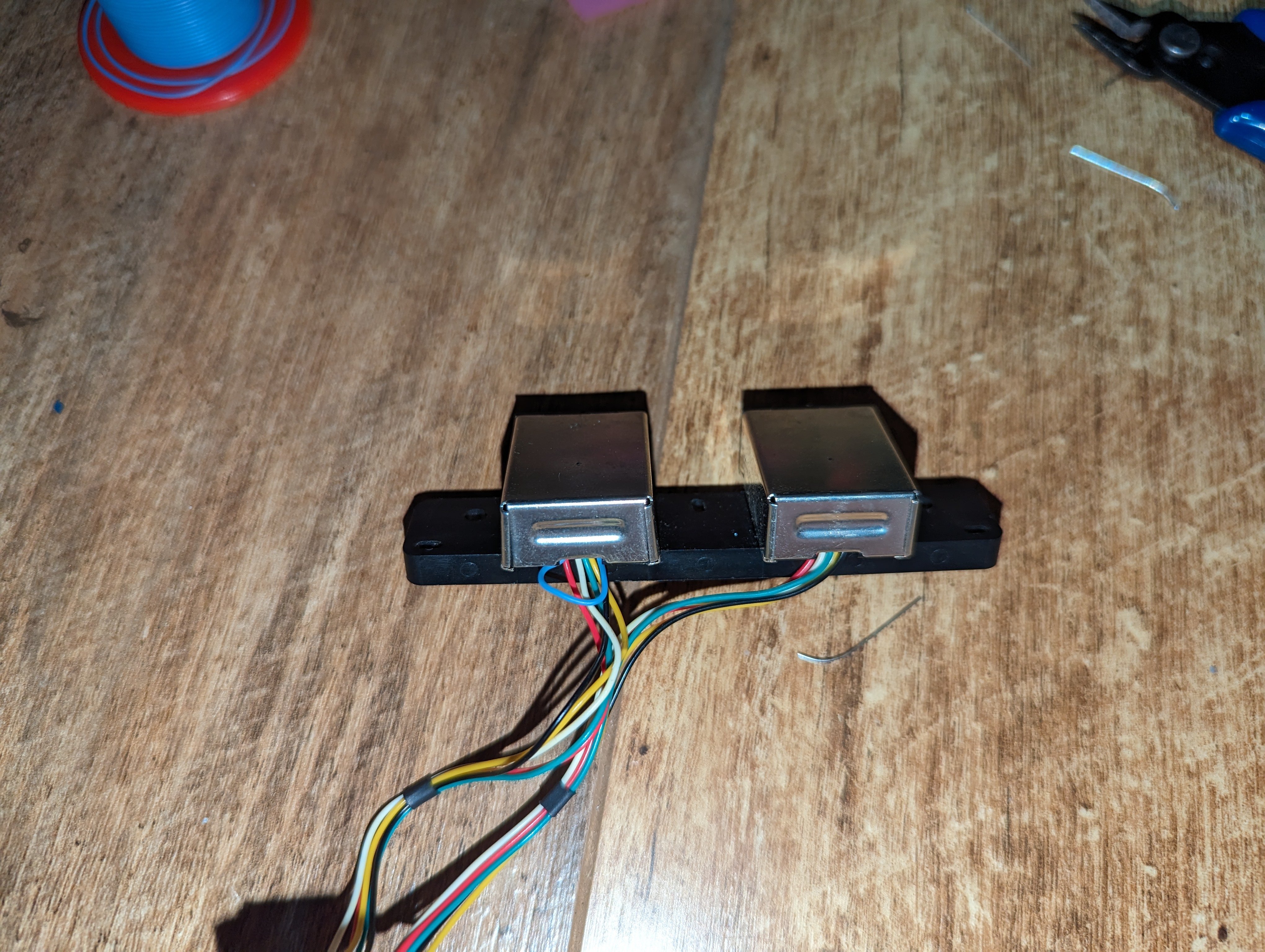

Bowlsnapper Posted June 21, 2023 Author Report Share Posted June 21, 2023 I replace the metal shielding for proper fitment and protection. Stock look. Except for those blue wires poking out but all the metal is there, not cut up. Quote Link to comment Share on other sites More sharing options...

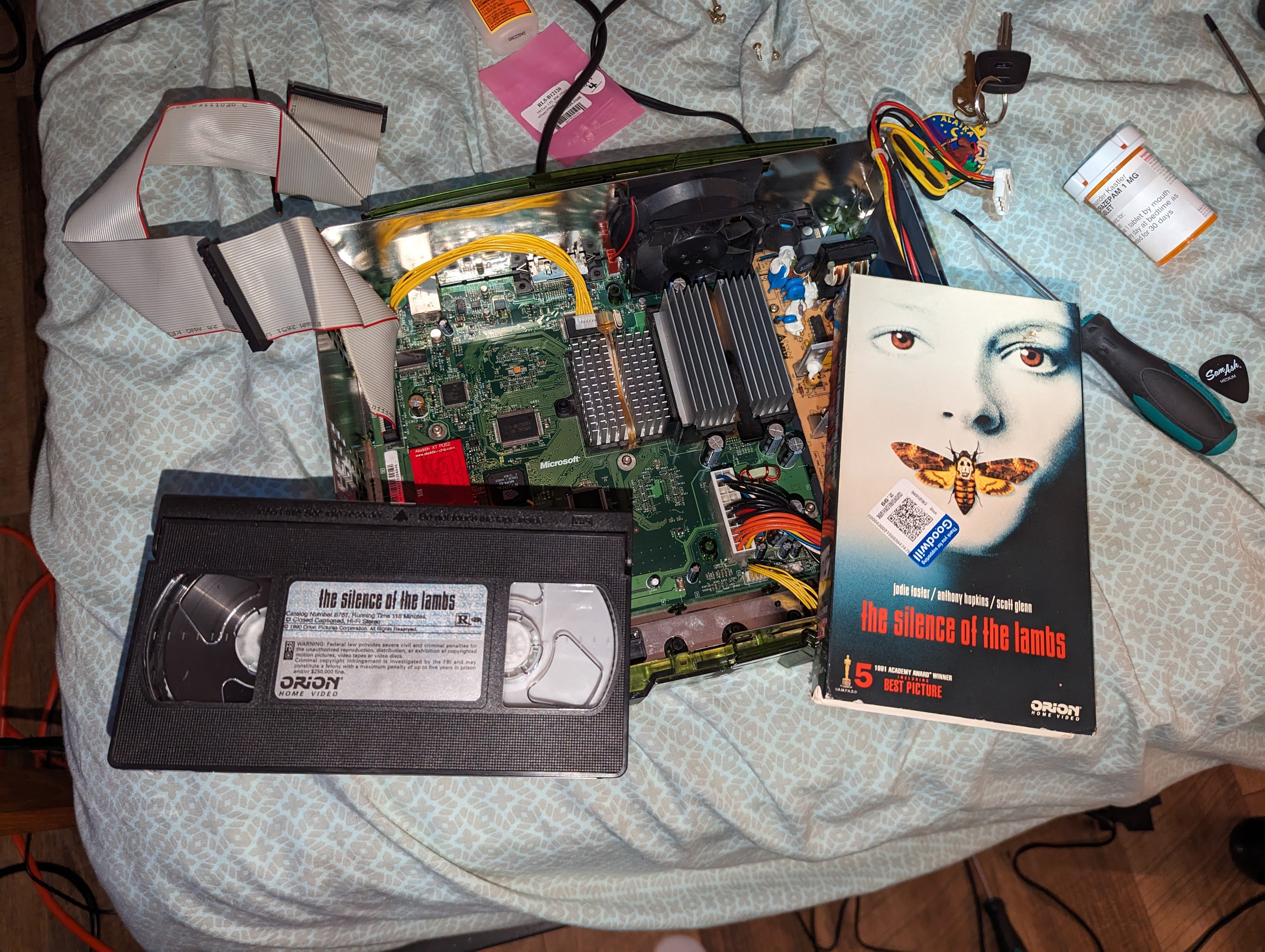

Bowlsnapper Posted June 21, 2023 Author Report Share Posted June 21, 2023 I put on a VHS... Preferably one I haven't seen before. 1 Quote Link to comment Share on other sites More sharing options...

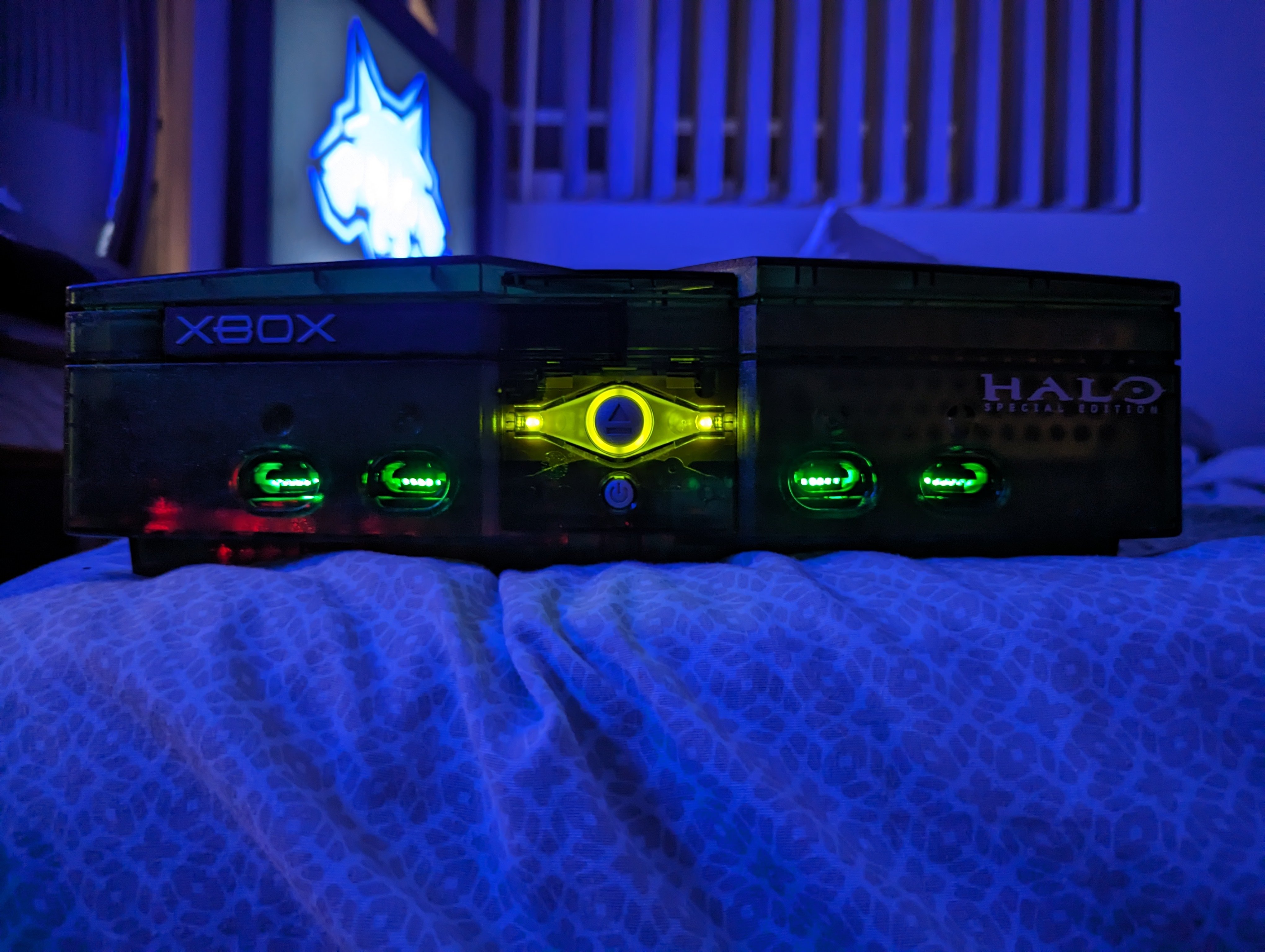

Bowlsnapper Posted June 21, 2023 Author Report Share Posted June 21, 2023 End result is pretty... Especially with diffused LEDs which reflect off the inside of the metal housing and add to the effect. 3 Quote Link to comment Share on other sites More sharing options...
sweetdarkdestiny Posted June 21, 2023 Report Share Posted June 21, 2023 (edited) Just a little heads up. You steal your self room to work with. You don't need any wire and there is also no need to cut the housing. Bent the pins of the LED to your needs and strip them down as mutch as needed. It will also become more stable if you solder the LED like you did. You could also turn arround the LED so the light up the metal housing. That way you have a more smooth lightning without a spot. But other than that, good first job. E: VHS for scale? E2: Pic : https://imgur.com/a/Zp7mLL0 Edited June 21, 2023 by sweetdarkdestiny 1 Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted June 21, 2023 Author Report Share Posted June 21, 2023 1 hour ago, sweetdarkdestiny said: Just a little heads up. You steal your self room to work with. You don't need any wire and there is also no need to cut the housing. Bent the pins of the LED to your needs and strip them down as mutch as needed. It will also become more stable if you solder the LED like you did. You could also turn arround the LED so the light up the metal housing. That way you have a more smooth lightning without a spot. But other than that, good first job. E: VHS for scale? E2: Pic : https://imgur.com/a/Zp7mLL0 I've done it once before in 2004... Much worse then. I did what you were describing and it was a pain in the ass. I know I don't NEED to use wire. It's just to make my job easier. I don't have to adjust the shit out of the legs and it reduces the amount of time I'm fucking with it. I might do that next time, though! I'll give it a shot. Refine the process. But thanks man. The LEDs have 360 coverage because they're diffuse. So they spread the light great WHILE pointing forward. No real directionality. 1 Quote Link to comment Share on other sites More sharing options...

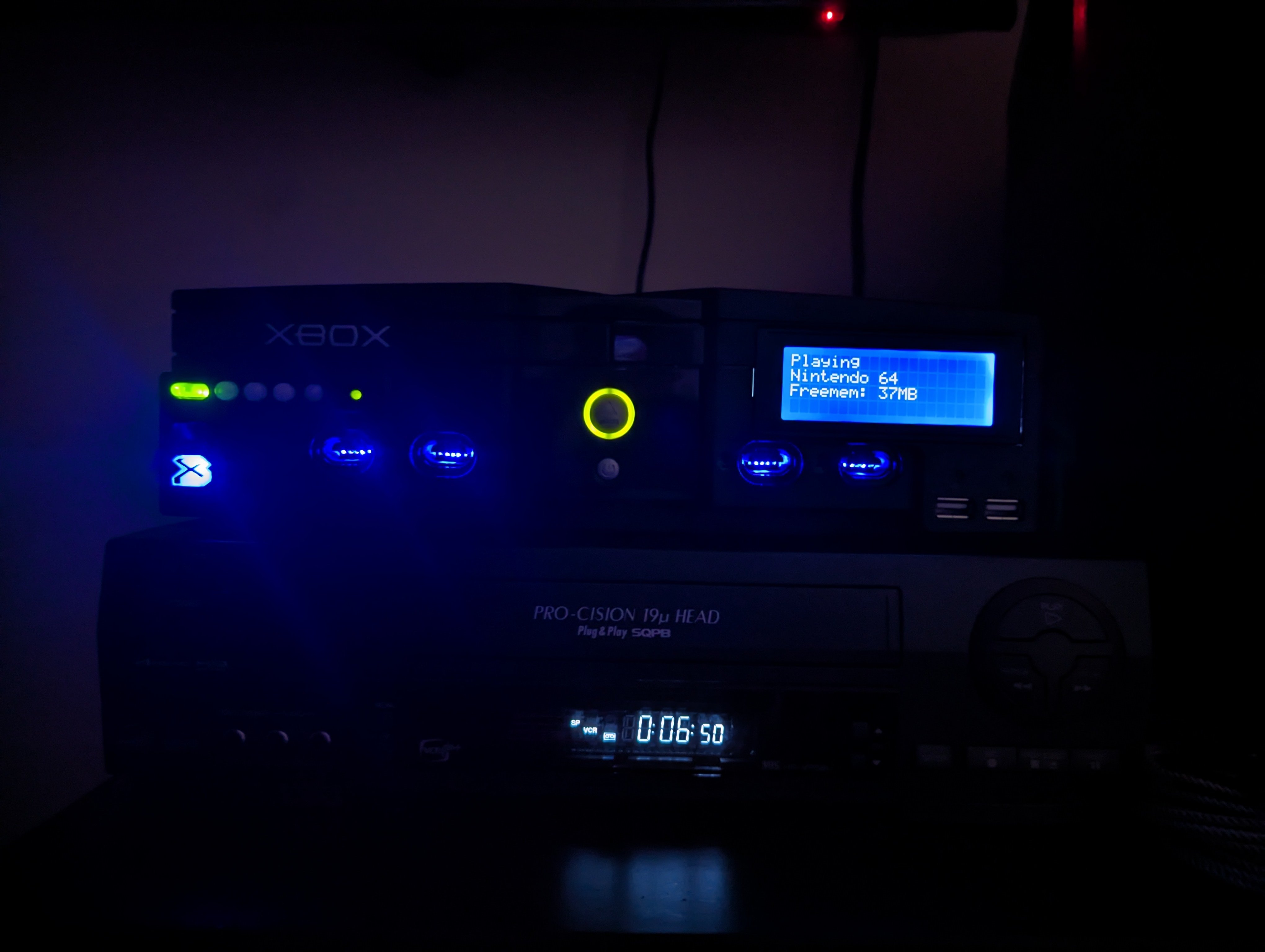

Bowlsnapper Posted June 22, 2023 Author Report Share Posted June 22, 2023 Did the Xecuter 3 box. 2 Quote Link to comment Share on other sites More sharing options...

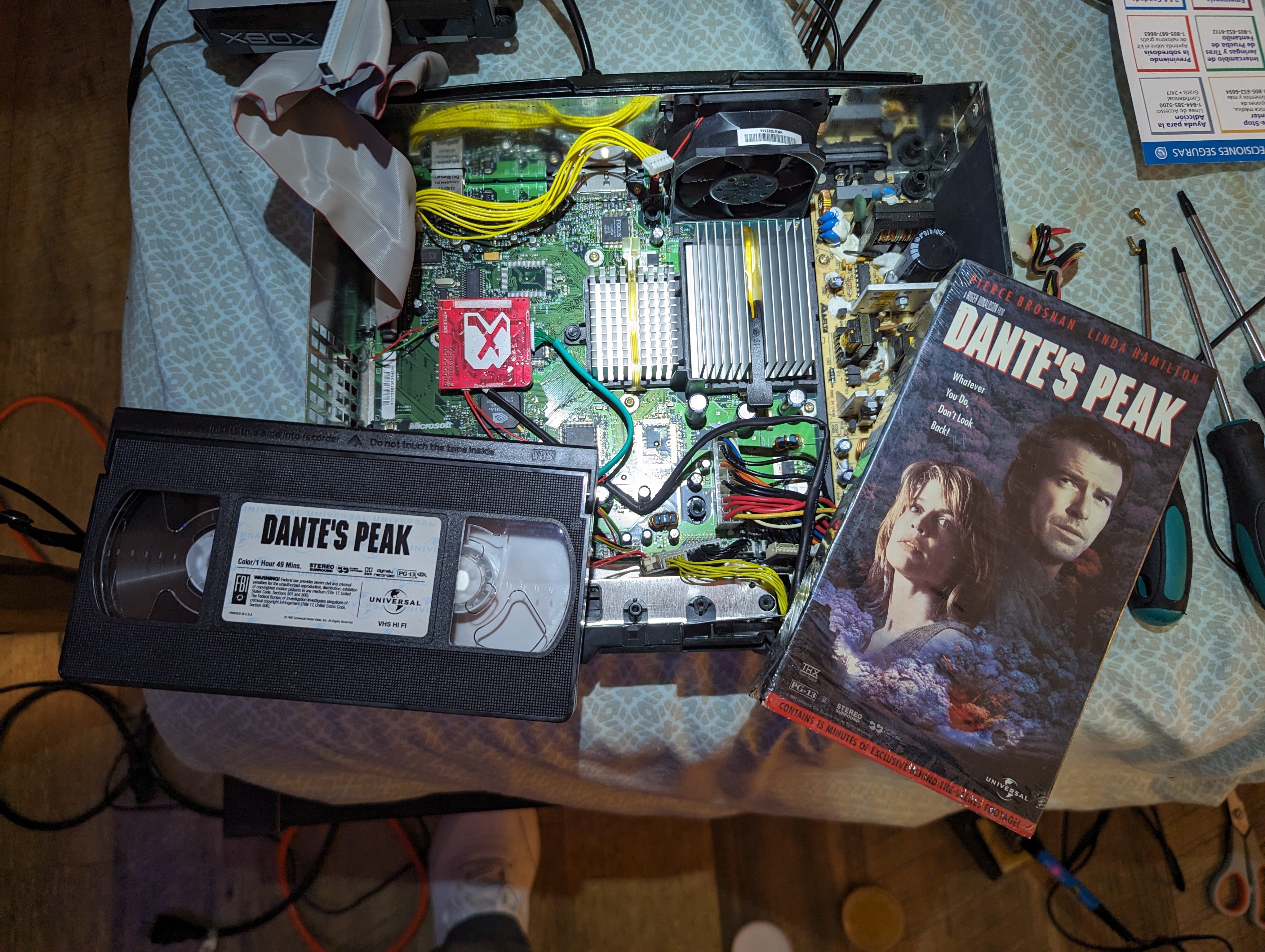

Bowlsnapper Posted June 22, 2023 Author Report Share Posted June 22, 2023 First movie was Dante's Peak. Hey, this movie is fucking INTENSE. Special effects are slammin for 1997. Not a single dull moment or scene once it gets rolling, and it does so QUICKLY. All a living hell... And that chick is HOT. Lol. They shoulda listened to Pierce Brosnan. Whole town practically died. Quote Link to comment Share on other sites More sharing options...

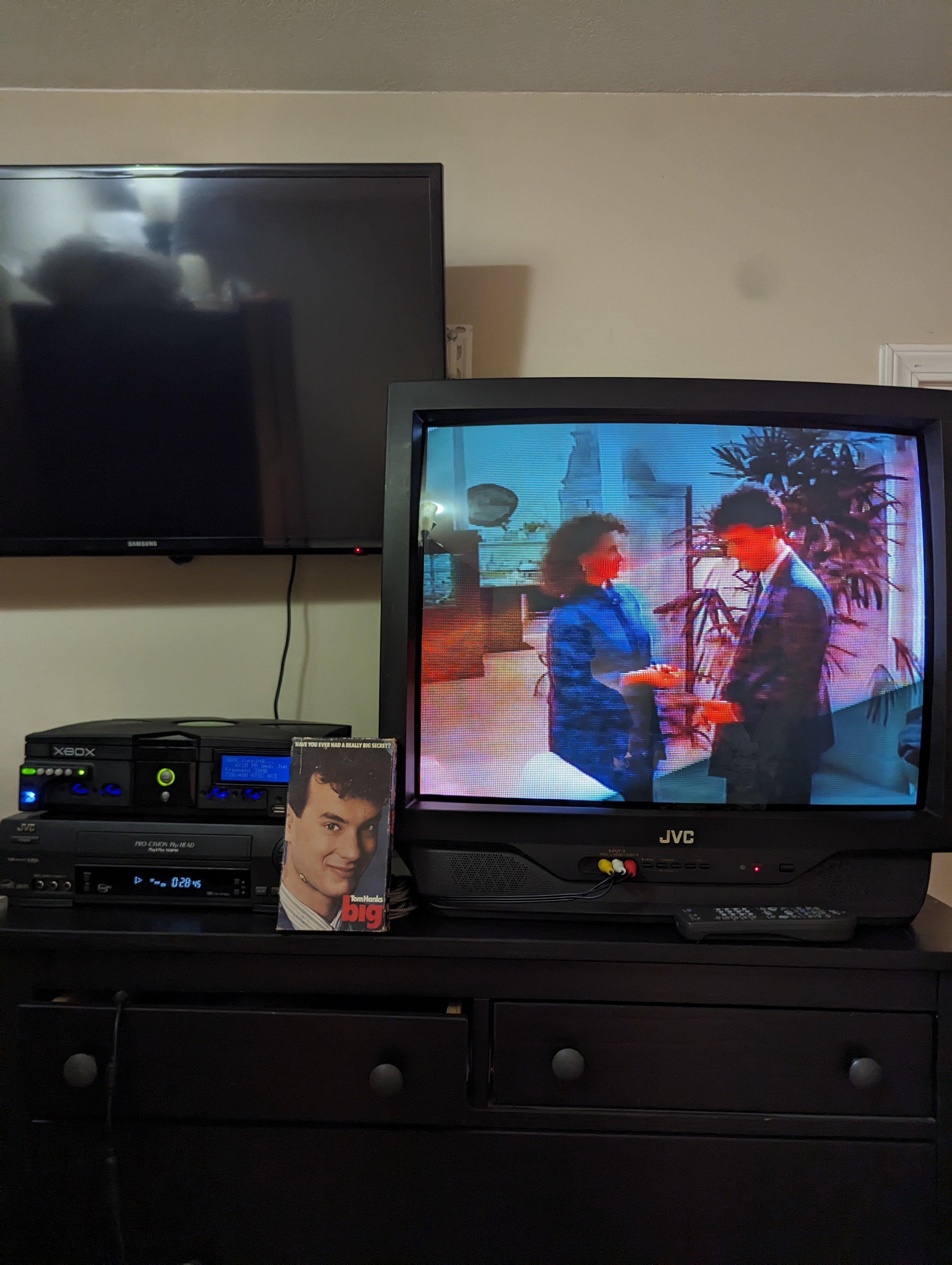

Bowlsnapper Posted June 22, 2023 Author Report Share Posted June 22, 2023 By the time I was done, Big was playing. Started putting the case back together at the piano scene. Haven't watched it since 1994, I think. Elizabeth Perkins is REALLY hot. Wish I had another Xbox friend to do all this stuff with. Bit of a lonely hobby for the time being. Quote Link to comment Share on other sites More sharing options...
Warlord_Zsinj Posted March 25 Report Share Posted March 25 On 6/22/2023 at 1:24 AM, Bowlsnapper said: Did the Xecuter 3 box. May I ask how you did the female USB A mod on the lower right there? Quote Link to comment Share on other sites More sharing options...
MadMartigan Posted March 25 Report Share Posted March 25 They are a part of the Xecuter 3 front panel. 1 Quote Link to comment Share on other sites More sharing options...
Bowlsnapper Posted March 25 Author Report Share Posted March 25 5 minutes ago, MadMartigan said: They are a part of the Xecuter 3 front panel. Beat me to it by 38 seconds. @Warlord_Zsinj Quote Link to comment Share on other sites More sharing options...
