good evening
Request
If I take the component signals before the 0.27ohm resistors to install an internal wii2hdmi, do you think it can be a problem?
Would it still work?
Anyway tomorrow I'll try

[SS_Dave]

3 hours ago, emiliano said:

good evening
Request
If I take the component signals before the 0.27ohm resistors to install an internal wii2hdmi, do you think it can be a problem?
Would it still work?
Anyway tomorrow I'll try

They are not resistors they are inductors and yes you could take the signal before the inductor but Why??



Cheers

SS Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

[emiliano]

I wanted to get it earlier to make it easier to solder the plate. anyway I tried. taking the signal first the screen remains black

[SS_Dave]

I use a PCB like this.



You solder the wii2hdmi to the larger board 1st and solder the correct small board (Lower) to the Xbox then solder the two together.



Cheers

SS Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.





[emiliano]

yes I know how. i use pcbs found on dirtypcbs better than crazy asylum ones more refined. indeed if you have the gerber of dirtypcbs you would be doing me a great favor

[emiliano]

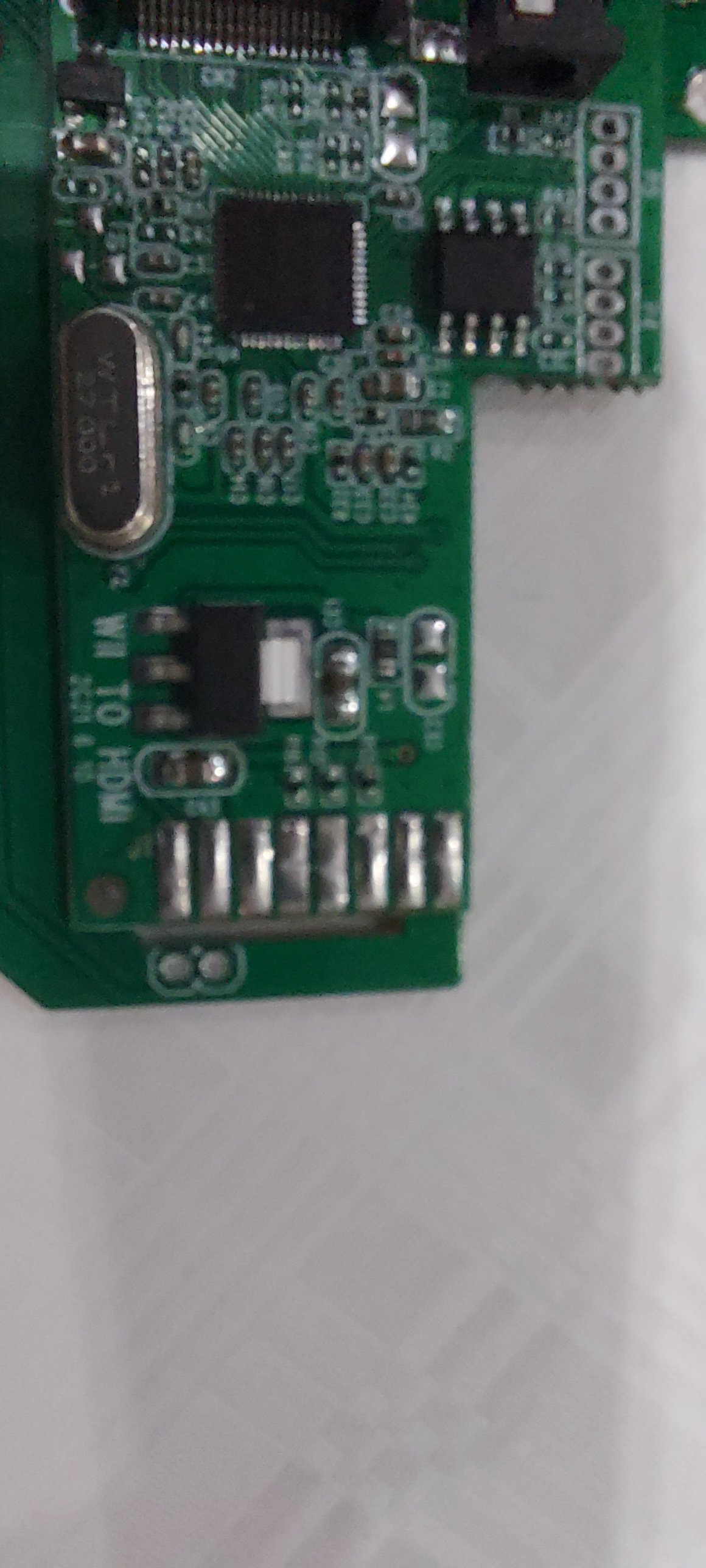

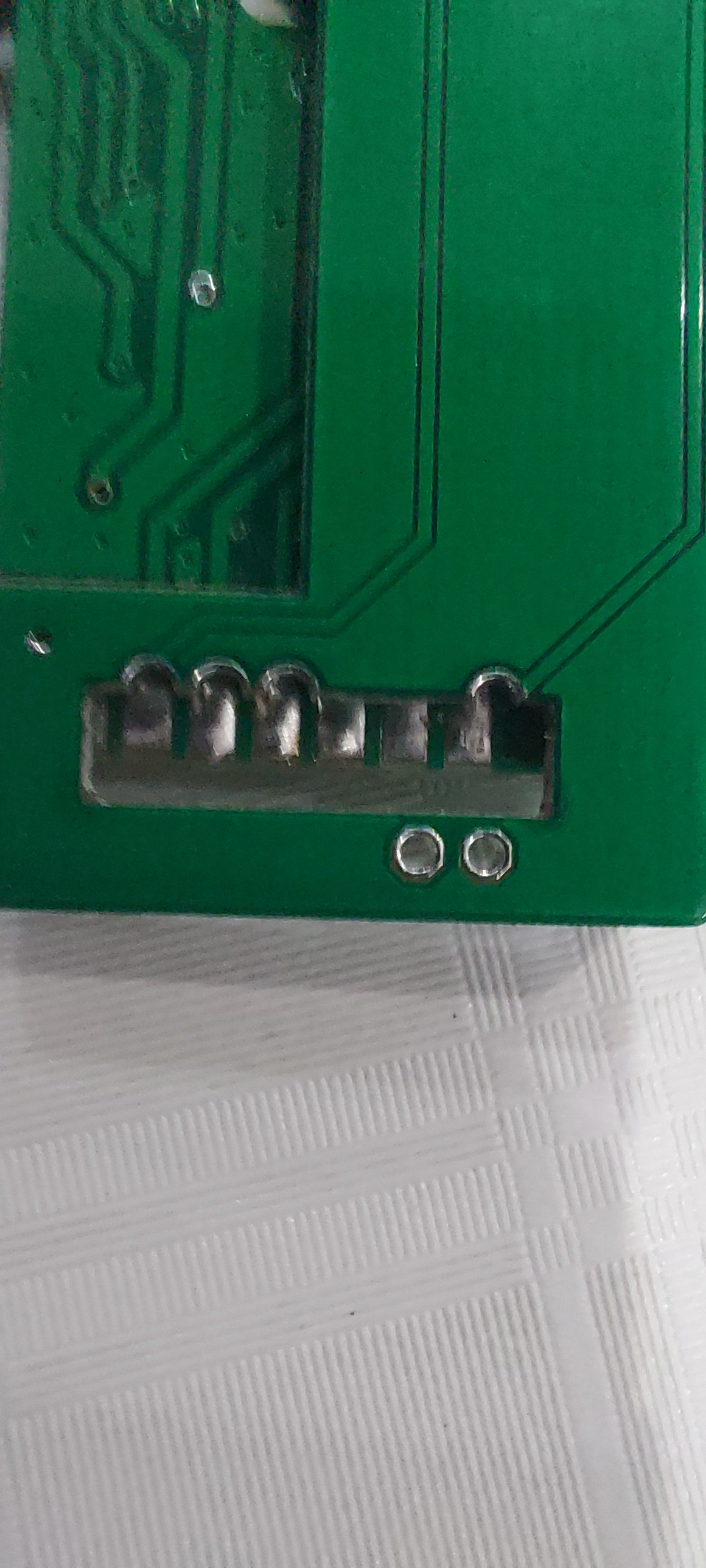

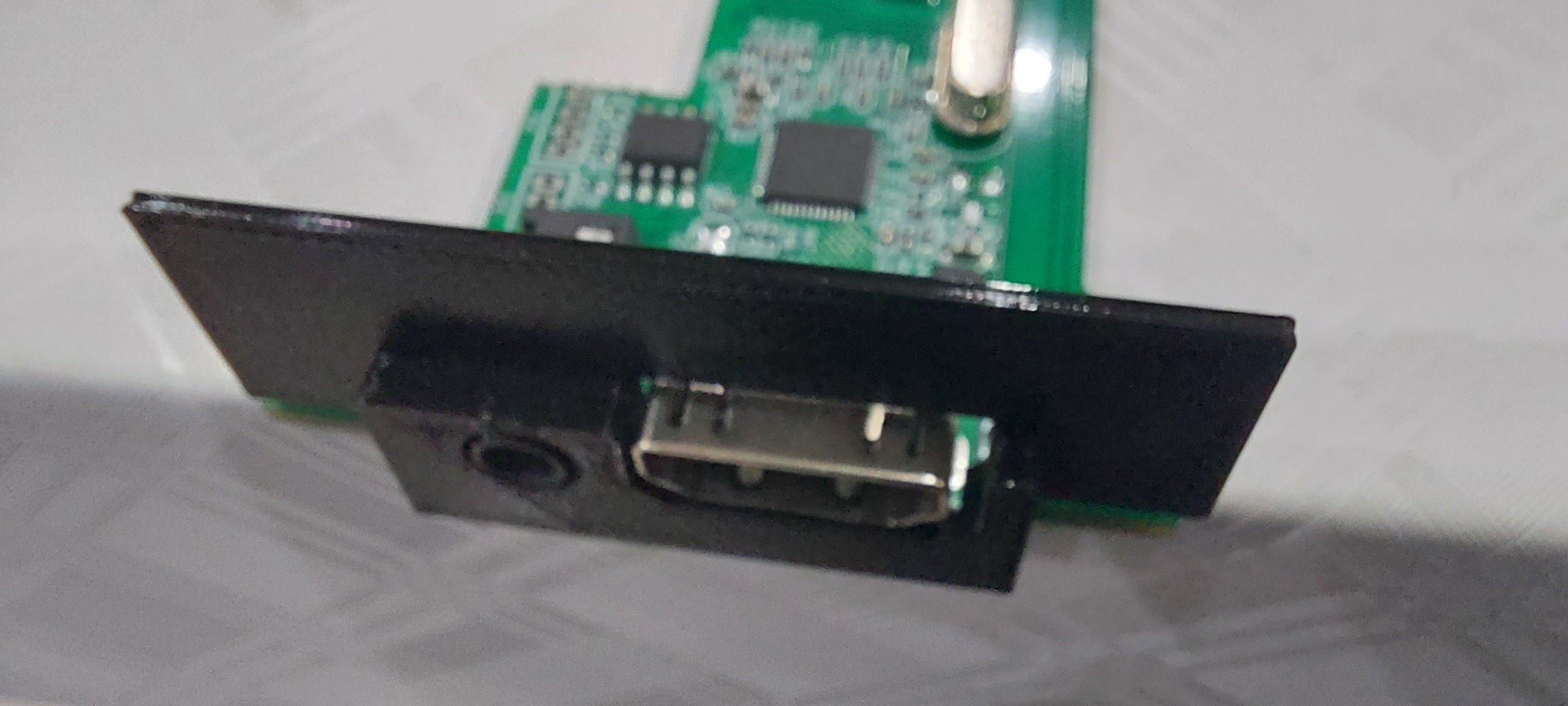

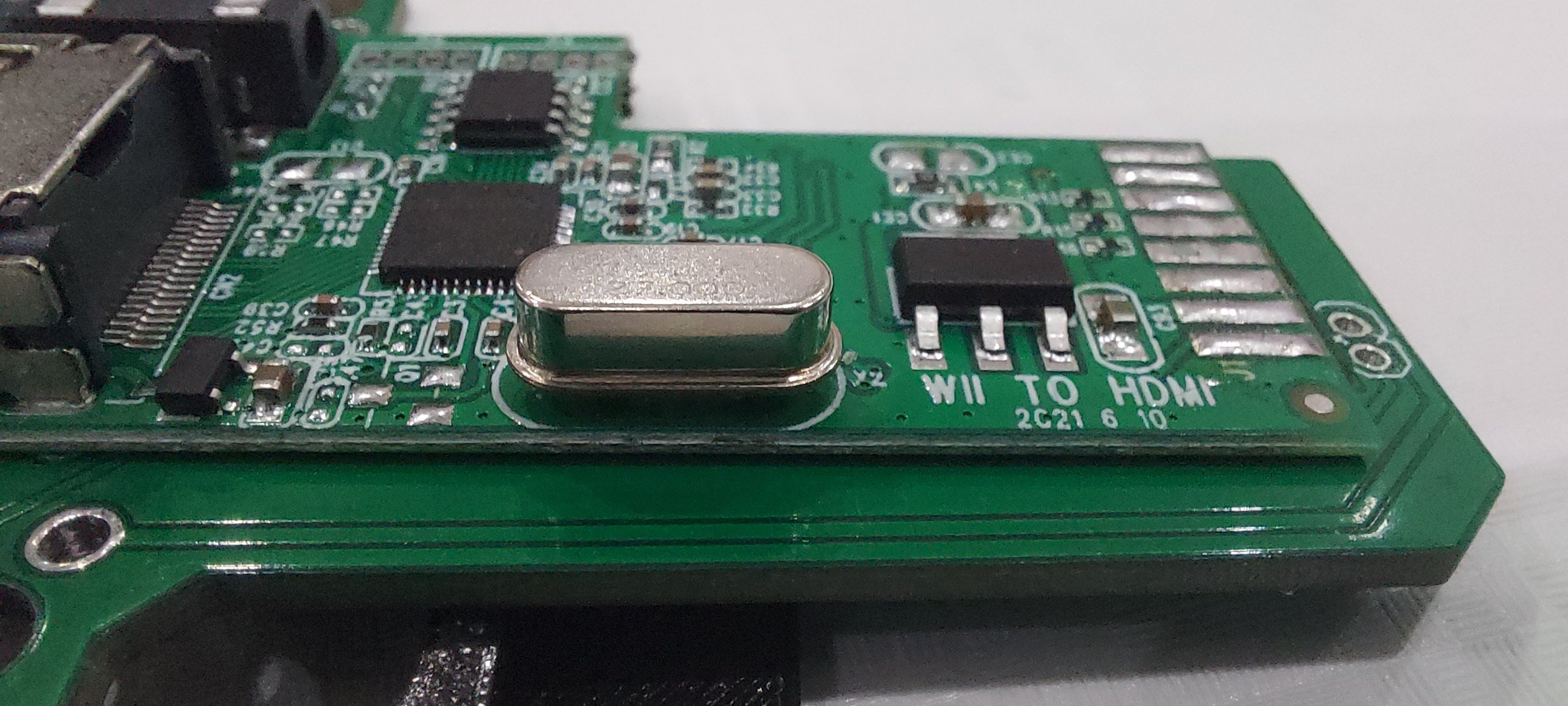

today i got this wii2hdmi new models. I had to redesign the 3d plate. what do you think? it is a little longer so it is easier to weld at the back. the only shrewdness is to raise the quartz otherwise it touches

[emiliano]

[emiliano]

Edited January 14, 2022 by emiliano

[SS_Dave]

5 hours ago, emiliano said:





Must be a different wii2hmi



5 hours ago, emiliano said:

I just use flush cutters and trim the leads down to the board when needed



Cheers

SS Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

[emiliano]

better raise it with the wire cutters remain spikes that I can cut a track that passes right under them

[emiliano]

I would like to retouch the crazy asylum project as
I would like to create a new hole for the position of the quartz, arrange the 3 rgb pads as they are milled too much and remove the cut on the lower gerbers of the 3 audio and 5v pads
Does anyone have the initial project?
Editing directly from gerbers is problematic

Edited January 16, 2022 by emiliano

[emiliano]

good morning everyone.
I have several wii2hdmi that have the FS9299 chip but unfortunately the brightness is very low.
I tested a wii2hdmi with 9288A chip and I have to say it's very good.
Do you know where to find wii2hdmi with this chip?
Thank you
