I bought a faulty chipped 1.6 off of ebay.

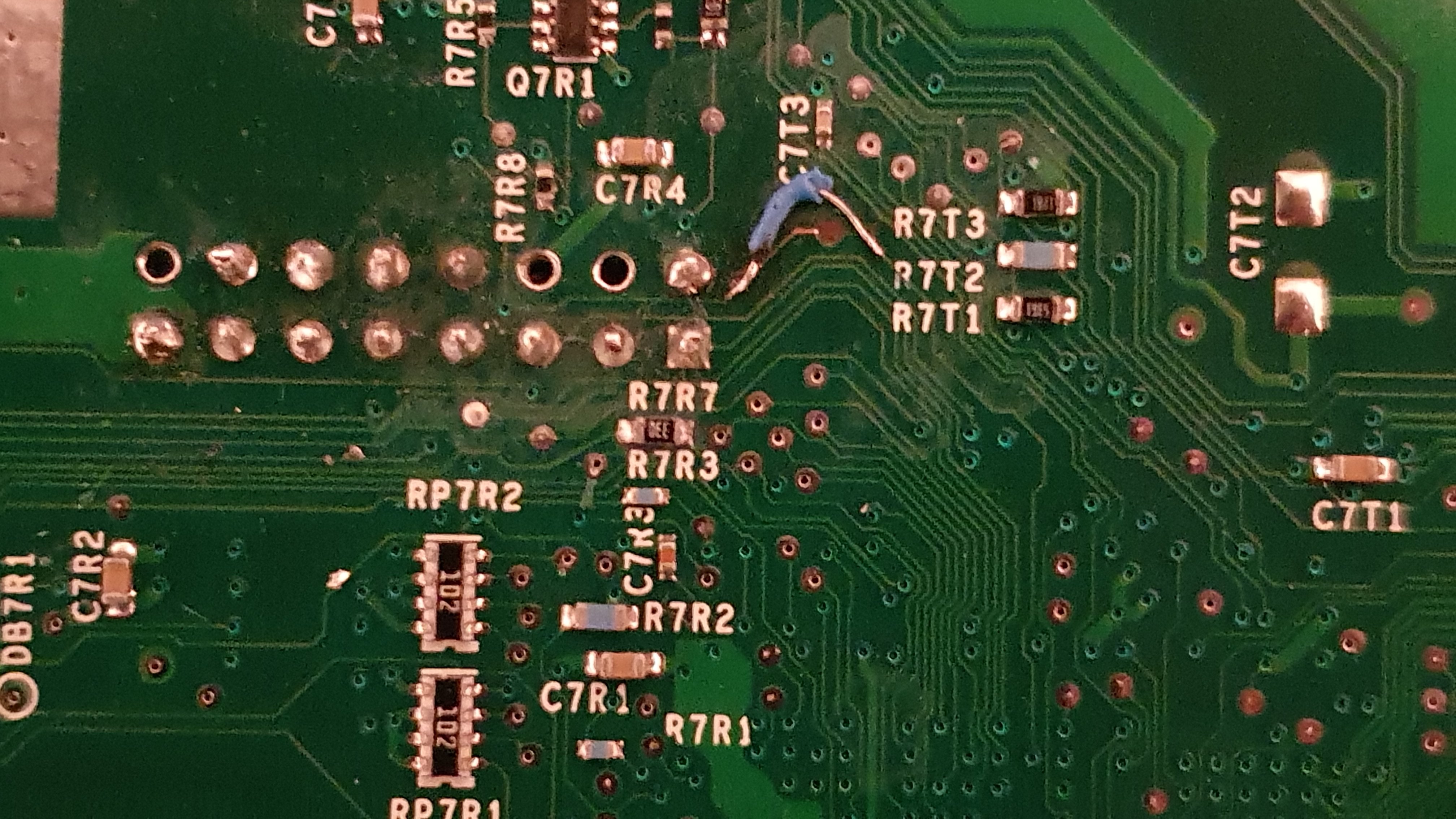

I removed the LPC rebuild board and I notice a pulled contact. I think I've managed to retrace it, I checked continuity and it was OK and it booted! See attached picture.

I don't want to use the rebuild board but I am going to do a wire rebuild.

There are lots of pcitures around with various wire rebuilds. Some use slightly different wiring and state a rebuild for Aladdin or Xenium. Are all rebuilds all the same for every modchip, so I can follow any of them?

Also, I am quite nervous of trying this as it took a lot of patience to do the retrace. Should I use a glue gun or polyimide film tape to make sure the retrace doesn't come loose or am I tempting fate and should just leave it alone?

Are there any points I could use instead?

Thanks in advance

AtariSoul






Edited by AtariSoul
Added picture
Link to post
Share on other sites
  • AtariSoul changed the title to LPC Rebuild advice

The fact it is booting with the MS bios is a good sign.

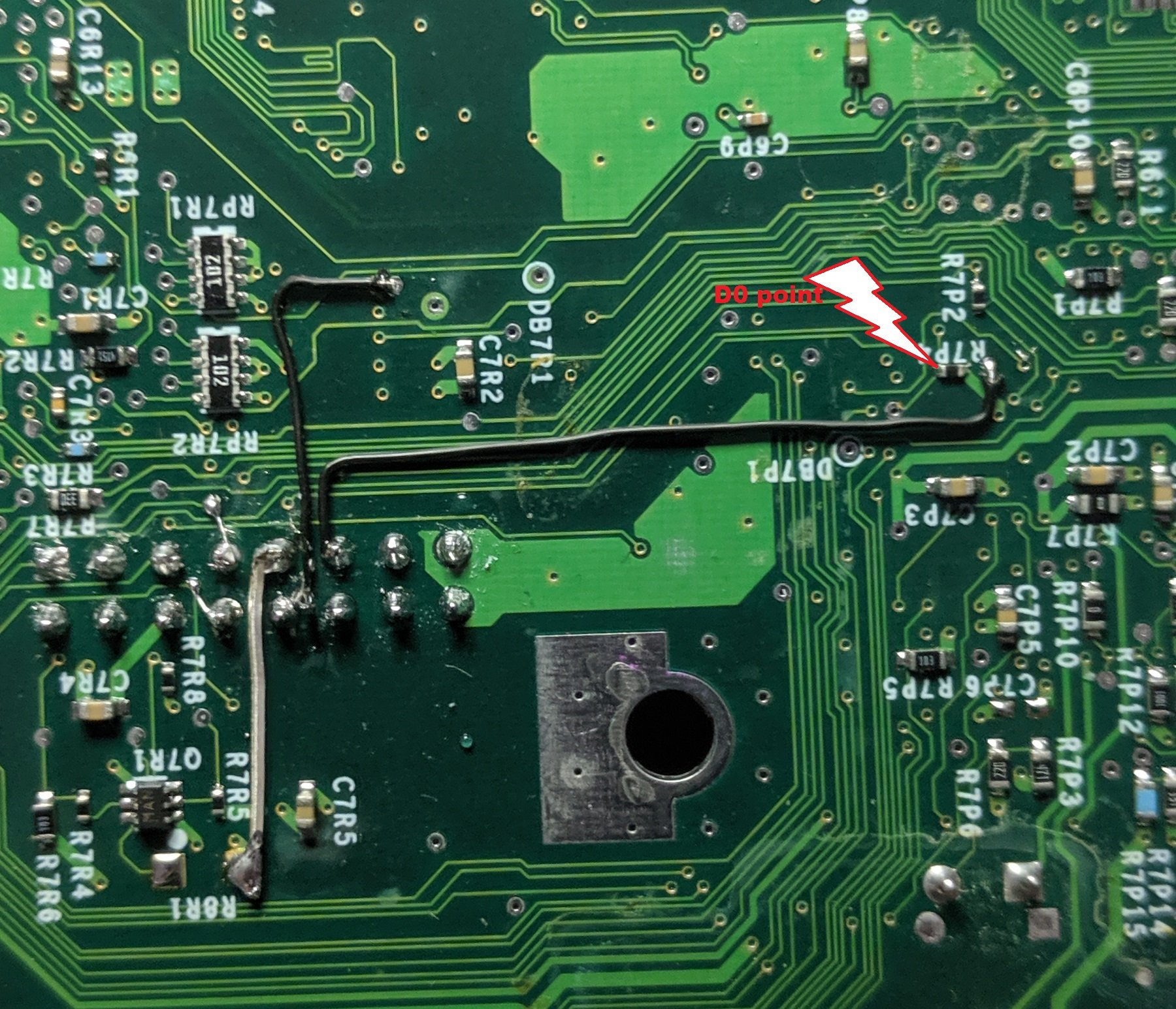

This is how I do my version 1.6 LPC rebuilds

This is one I did close to 15 years ago that came back for a hard drive upgrade (120gb to 2tb)


I also don't use the D0 point and cut the Lframe link on the top.


The only reason for the D0 wire is to allow Xbox Live.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Link to post
Share on other sites

Thanks @SS_Dave I have the Xecuter 2.6 working :) I did solder to the d0 pad.

Rather than try to wire in the pin header to the trace I fixed, I followed the trace to another location, carefully used a fibre glass pen to expose the round pad and soldered there.

Thanks for your help as always

Cheers

AtariSoul

Link to post
Share on other sites
