  • Similar Content

    • By the415giant

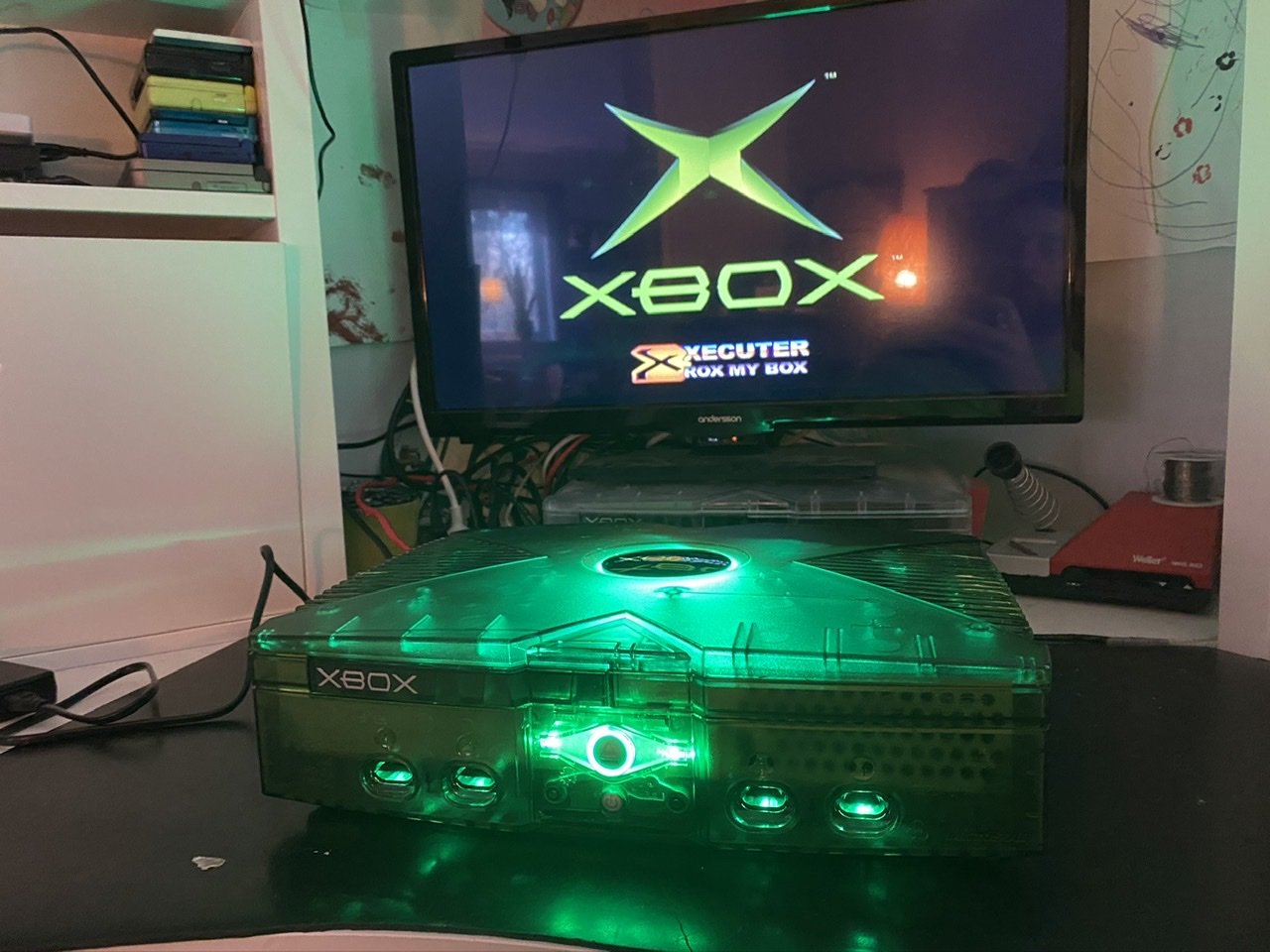

      I have a v1.0 original modded Xbox, it had an old Aladdin mod chip, I wanted to upgrade the hard drive and after doing some research I found out I can brick it by flashing a new bios. The bios is unknown but after running bios checker it reads I have a lpc sst49lf020, it boots up xecuter2 into an evolution x dashboard. If I use the hexen 2019 disc, what steps can I take after I install a larger hdd? I don’t need to clone it, I backed up everything using ftp, and I want a fresh install. Here are some images that may help...
      Thanks for your time.
      Please login or register to see this attachment.
      Please login or register to see this attachment.
      Please login or register to see this attachment.
    • By Kura
      Hi all, I have an issue with my XBOX that doesn't power on anymore.
      Model: 1.2
      TSOP: Yes, iND-2003
      Mods: None other than removal of the clock capacitor
      Misc: Using the Chimeric Systems HDMI adapter (which is awesome)
      Yesterday I received a new modchip from eBay, the Xenium Gold with the 24K OS on it.  I swapped out my old Aladdin chip and fired it up with no issues.  I proceeded to add EvoxM8+, iND-2004, and XBlast on it.  I tested all 3 BIOS and they all worked fine.  From here I decided to do the 128mb RAM upgrade.  I've successfully performed this upgrade once before.  I'm using the same RAM that I purchased from eBay over a year ago that worked on my previous install on my other 1.3 XBOX: SAMSUNG 525 K4D263238F-QC50
      I proceeded to solder in all the chips, but when I went to turn on the XBOX nothing happened.  No light, no response, nothing.  I don't ever recall hearing a pop or a snap.  I double checked that I connected everything.
      - I thought it might be the PSU so I swapped in the working PSU from the 1.3 XBOX that I successfully did the RAM upgrade on and the same results.
      - The only thing I noticed was that when I pressed eject or power on either PSU, the Xenium chip LED lit up.  If I held either button the LED just flashed.  Other than that, no activity from the board whatsoever
      - One thing I noticed is that I soldered the final chip in backwards (chip 4 according to the XBlast diagram, the one closest to the ATX plug).  I should have taken a break after 2 chips due to fatigue but I pushed through and I guess I wasn't paying attention.  I used my hot rework station to pull the chip off and turn it around.  Same results.
      - After this I decided to just pull the other 3 chips off to troubleshoot it from scratch, but no joy.
      - The repairs for power buttons I've seen after searching are mostly just the trace repairs on the 1.0/1.1.  I'm not great at troubleshooting so I wouldn't know where to begin without a guide on the 1.2 XBOX.
      Did I fry the board somehow?  Did putting the RAM in backwards just kill it?  Did I ESD shock it?   Did I get the iron next to something that I shouldn't have for too long and didn't notice?  Here's some pics I uploaded to imgur since they're too big.  I can take more photos or better photos of certain things if needed.   Thanks in advance.

      Please login or register to see this link.
    • By UnD3RtAk8R
      I have 2 og xbox 1.6 version. A little while ago I tried mod them and a bad Chinese adaptor for the hdd upgrade got them malfunction. So I ordered some good Panasonic capacitors and the startech adapters. Now that I think of it after the circuit malfunction I got them dedusted and rubbed them with isopropyl and a toothbrush. A fishy smell came out while I did the cleaning which means I have an electronic problem. On the boards I have one busted capacitor and no leak traces. One is hardmoded one is softmoded. How do I check exactly the problem before I try again to upgrade my hdd's? The problem I get from both xbox is the same. Whenever I plugged the hdd molex the xbox would power down instantly. If however I left the molex unplugged they would power up properly with the 07 error though. So any thoughts? I have a way to check the capacitors but I don't know how. The resistance and the power they must emit.
