Change Fan Speed

Recommended Posts

Edit the BIOS settings with EVTool v1.0.9, save the updated BIOS dot bin file and reflash.

What dashboard are you using?

Some like XBMC change the setting such that it will remain in use after starting a different app (game).  While with UnleashX once UnleashX exits and the new app (game) starts, the BIOS's setting will be used. Or, vice versa.

Share this post


Link to post
Share on other sites

Hi, thanks for the quick response, like dash usage
DRAGON Media Launcher.
My problem stems from the fact that when the dash is running the fan goes at a speed like I set in its guisetting.xml file, but as I launch an xbox game or an emulator the speed goes down. I would like to make sure that the xbox regardless of which app is running always runs at a constant speed to avoid overheating.

Share this post


Link to post
Share on other sites

Not had too much problem of any Xbox overheating unless the fan isn't running.

If you want the fan to stay running at a higher speed, you will have to modify the BIOS's internal setting with EVTool v1.0.9 and reflash it to the modchip or TSOP whichever you have used to mod the console.



Share this post


Link to post
Share on other sites

one last question ... after I have done the procedure you described and reinstalled the modified bios, does the xbox start with the boot as before and recognize me all my emulators and games?

Share this post


Link to post
Share on other sites

ok, after I made the backup I would like to change it with "evtool 1.0.9" to make the fan run stronger regardless of which dash, game or emulator starts.

Please login or register to see this attachment.

Share this post


Link to post
Share on other sites

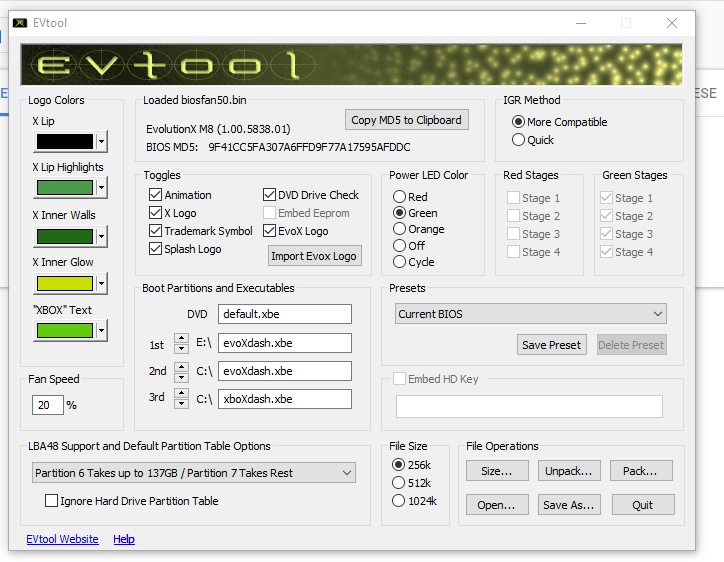

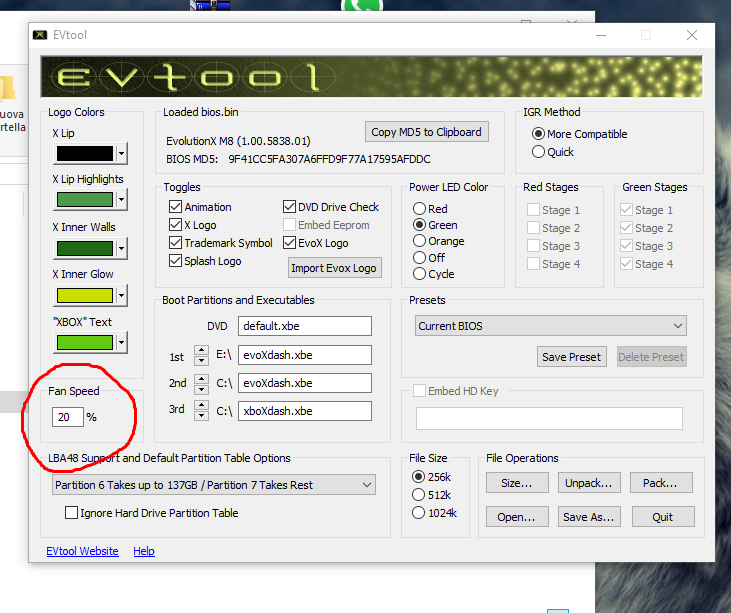

what you see in the picture is my uploaded bios. The fan is set by default to 20%, according to you how much can you set it? I just have to change that value and that's it right? I change the percentage and click on Save as. After reflasho the bios again

Share this post


Link to post
Share on other sites

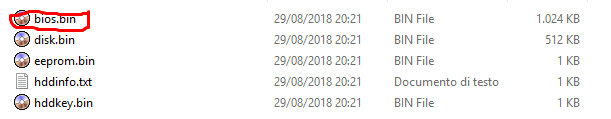

questi sono i file di backup creati con EvoX. Come puoi vedere il file bios.bin ha una dimensione di 1 MB, secondo te dopo aver apportato la modifica della percentuale di velocità della ventola e gli ho detto di salvare, quale taglia dovrei scegliere?

Please login or register to see this attachment.



Please login or register to see this attachment.

Edited by sayon
correzzione

Share this post


Link to post
Share on other sites

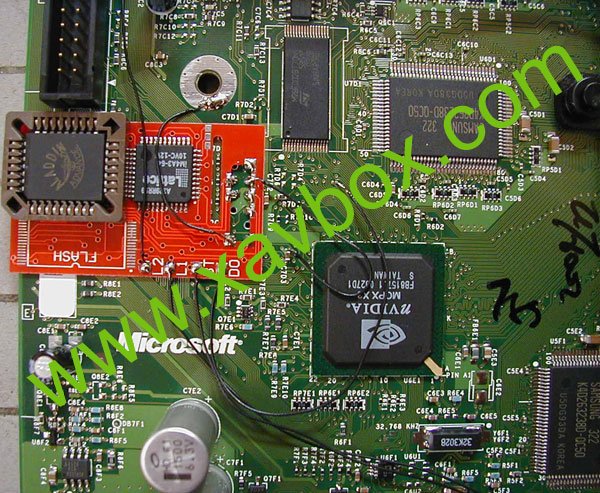

Yes. The Aladdin modchip has a 256KB flash memory chip.  The BIOS size will be 256KB.  The higher you set the fan speed the louder it will be.

You could use the iND-BiOS Feb-11-05 Beta (aka 5004) .67 version.  Changing the fan speed is a matter of editing a text file on the hard drive and rebooting.

Modify this line in the ind-bios.cfg file on the Xbox's hard drive:

FANSPEED=10 ;Fan Speed 10-50 = 20-100%  Default=10

When flashing the ind-bios to the modchip, first upload the ind-bios.cfg file to the root of the C drive before flashing the modchip.



Share this post


Link to post
Share on other sites

so if the bios.bin backup size is also 1 MB, after I make the change I save it with a size of 256K right?
last thing ... regardless of whether I reload the bios M8 or the iND-BiOS Feb-11-05 Beta (aka 5004) .67 version nothing happens to the current configuration of the boot and recognition of my games and emulators?

Share this post


Link to post
Share on other sites

The backup created by Evox dash is 1MB as the original Xbox's flash device is 1MB.  The same BIOS.bin file is repeated 4x in a row.  You can only flash a 256KB bios to your Aladdin modchip.

Yes a new BIOS does nothing to the configuration of the replacement dashboard or...

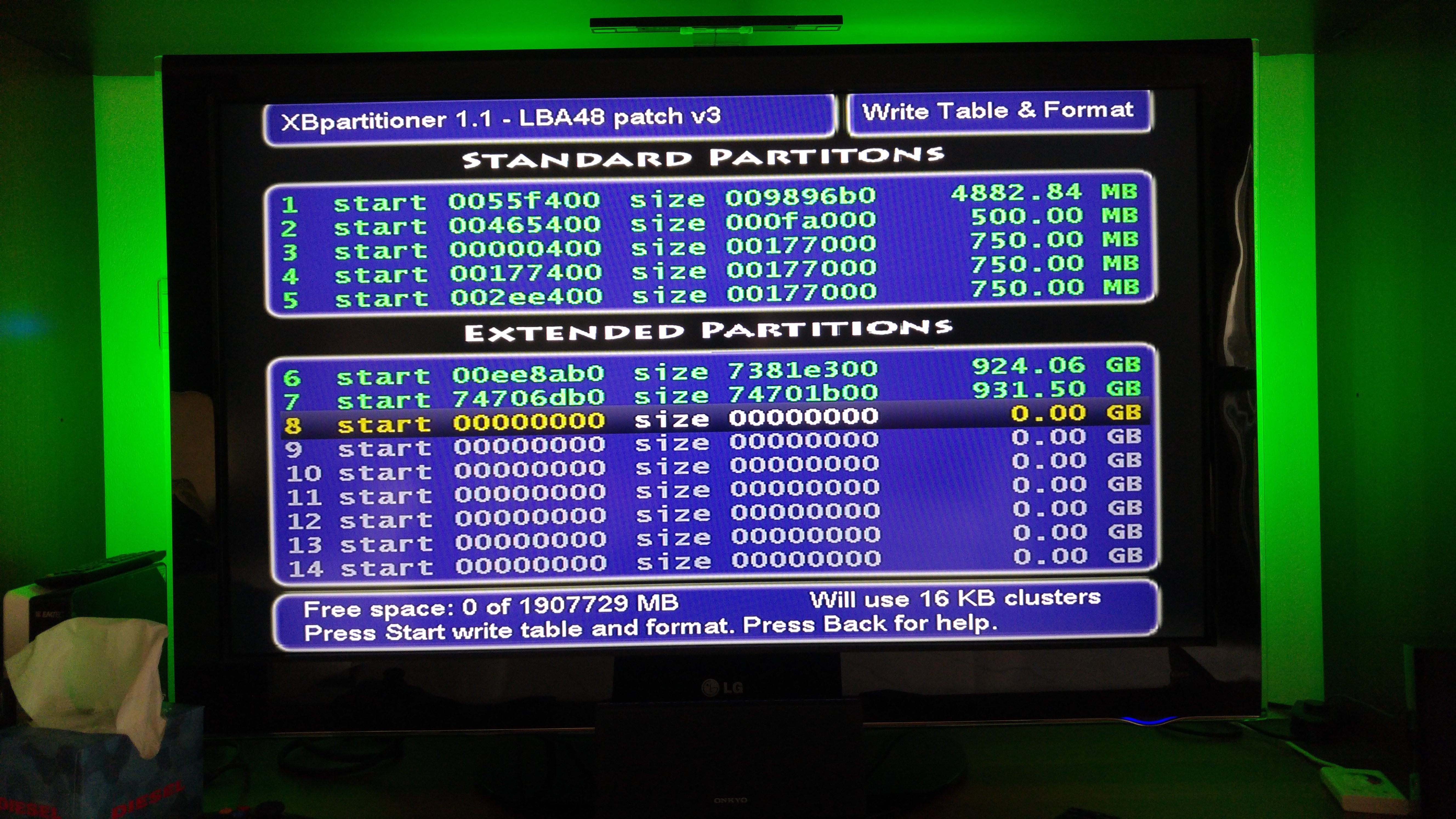

Hmm, what size is your Xbox's hard drive?  What size were the extended partitions?  Did it even have extended partitions? (F and/or G drives)  Does the hard drive have a partition table written to it?

Share this post


Link to post
Share on other sites

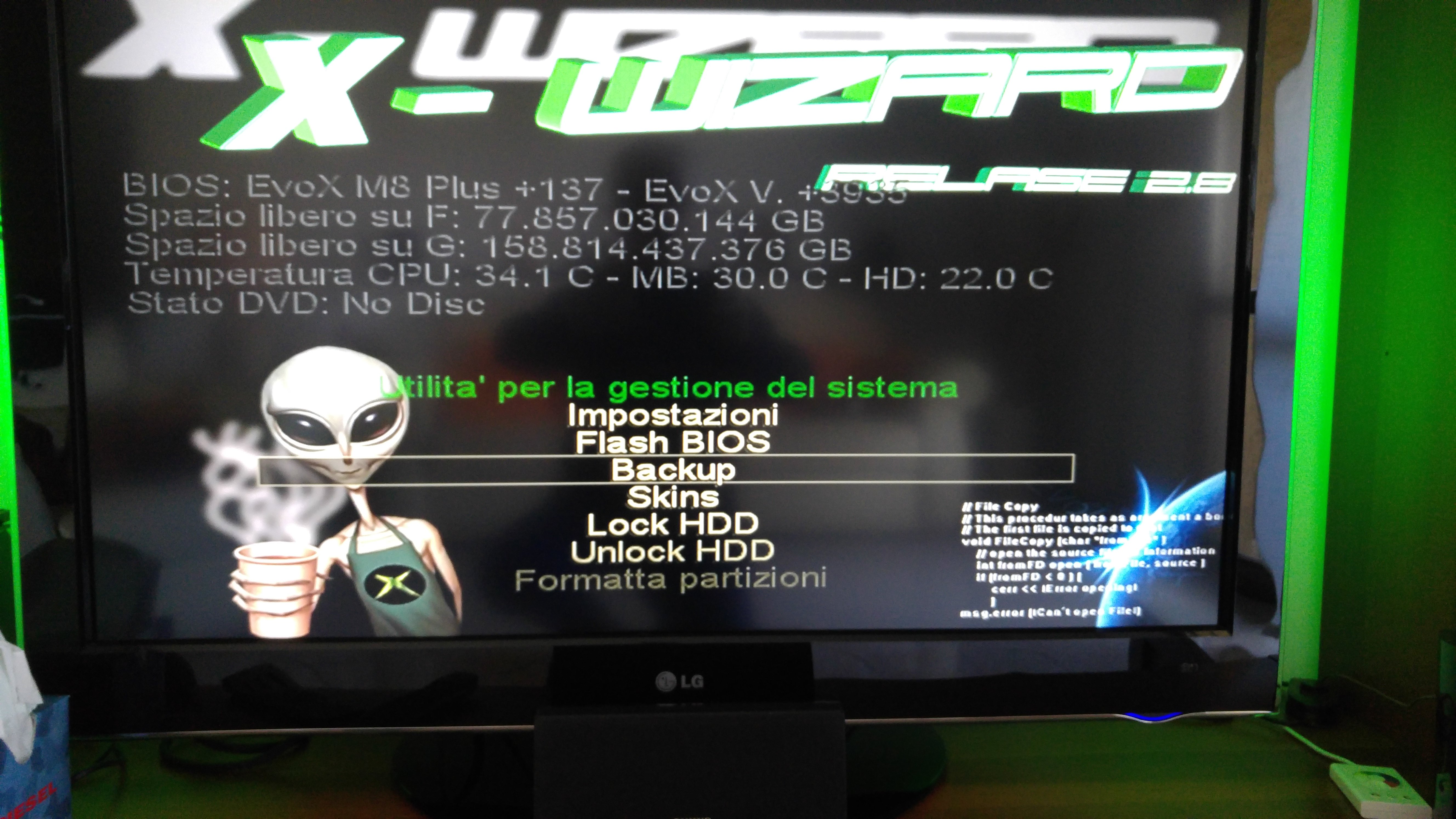

Now I go to work. then I'll take a picture of the situation on my hard disk.
Meanwhile, thanks for the help, see you later



Share this post


Link to post
Share on other sites

So ultimately I have to do the following steps to change the fan speed and keep it constant:

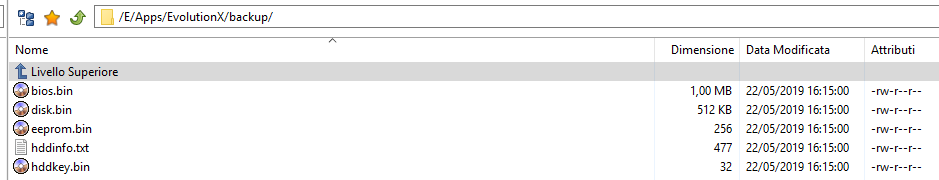

1) Xbox bios backup via EvoX Dash

Please login or register to see this attachment.

Share this post


Link to post
Share on other sites

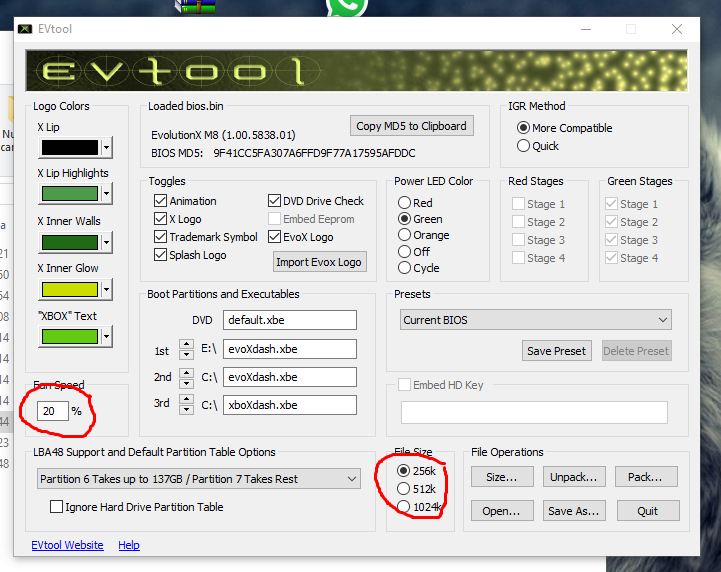

4) I change the fan speed from 20% to 100% and verify that the bios saving size is 256k

Please login or register to see this attachment.

Share this post


Link to post
Share on other sites

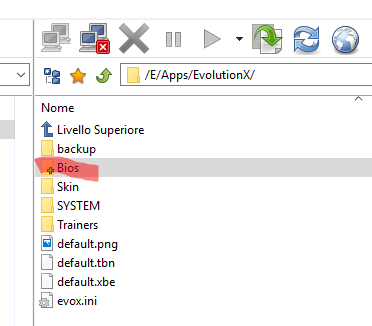

5) once saved the bios modified with evtool via ftp I'm going to put it in the bios folder of the Evolution dash program that is in the zbox

Please login or register to see this attachment.

Share this post


Link to post
