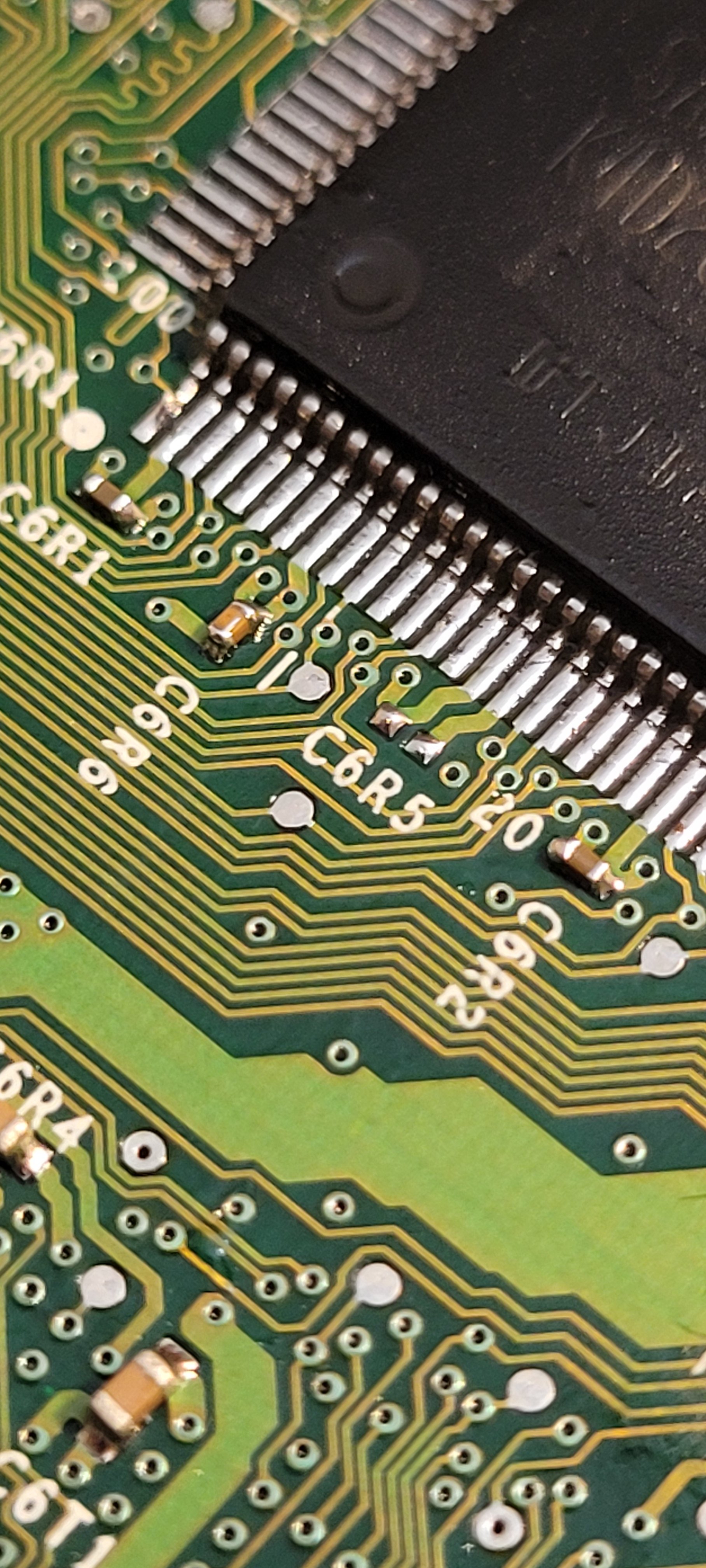

Xbox v1.0 C6R5 value


zatchbot
 Share

Recommended Posts

That explains the wonky reading from my 1.6 that I contemplated cannibalizing. I was getting 26.2~26.8 ohm and was too tired and pissed off to think it was anything else.



While I don't expect this... do you know the footprint? I didn't measure yesterday and am too new to electronic repair to eyeball it. It would be awesome if I can figure this out without being home. I want to order some before I get off work. 😂

Edited by zatchbot
Link to comment
Share on other sites

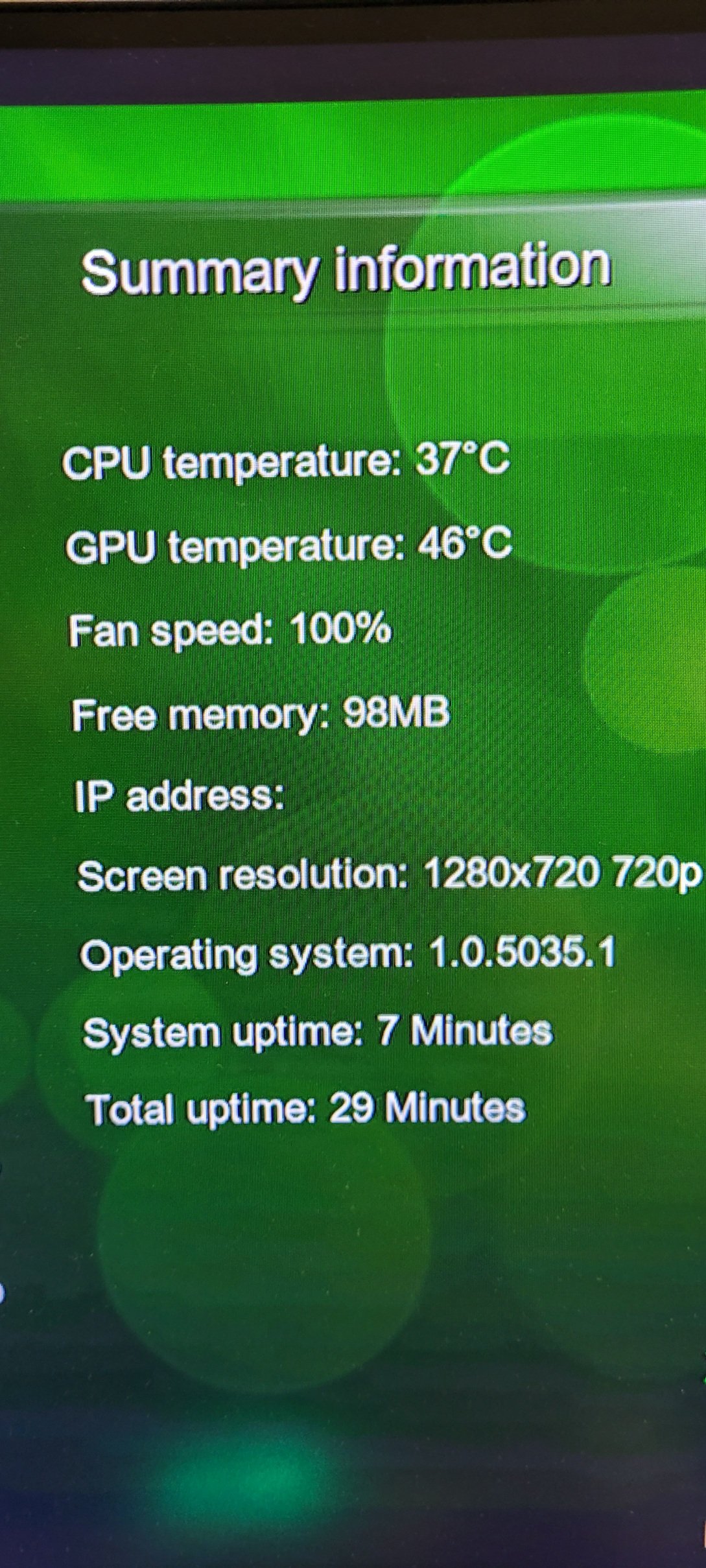

Side note, this thing booted 3 separate times, played 2 different games for over an hour, and idled at dash for ~45 min first night I got the ram installed. I let it sit for a few days then it FRAG'd first time I tried to boot. What are the chances it ran without that cap?


Link to comment
Share on other sites

Thank you!!!

So from what I'm understanding, I should replace the cap, but the frag may remain afterwards?

I ended up finding my old Aladdin XT+ from before the current run of fakes. Put that in the 1.6 and flashed EvoX with compatibility with my HD from the 1.0. Now I'm using it as a backup until I get my first one running.



Edit: I just ordered a bag of 10v Kyocera caps and also 6.3v Kemets. I also put a $15 bid on a dead board on ebay for spare parts. I'm getting this thing running one way or another lol.

Edited by zatchbot
Link to comment
Share on other sites
