Need help identifying modchip - Which chip is this? - What to do?


Recommended Posts

Hello Together,
I bought an xbox today and planned to do a softmod.

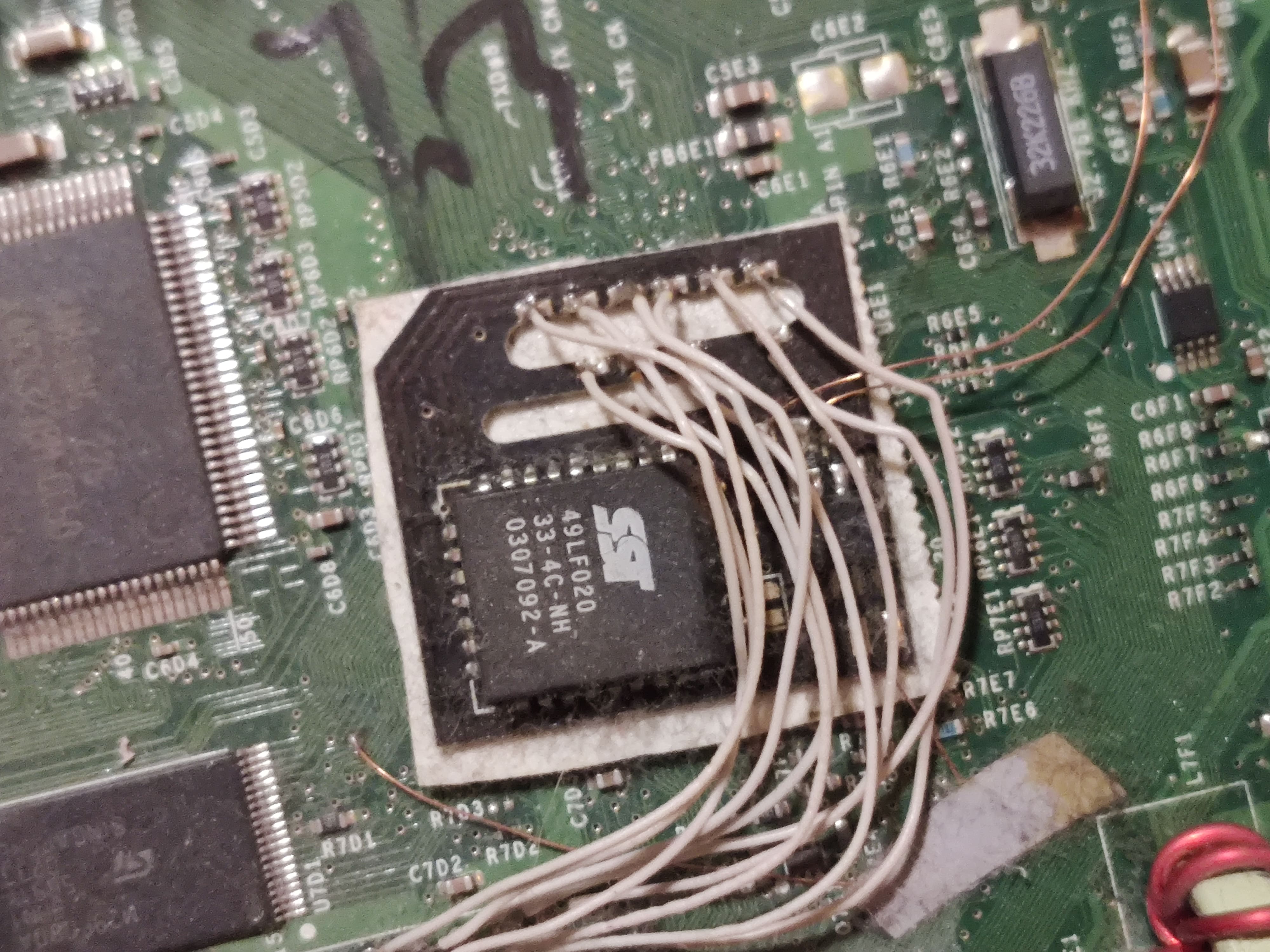

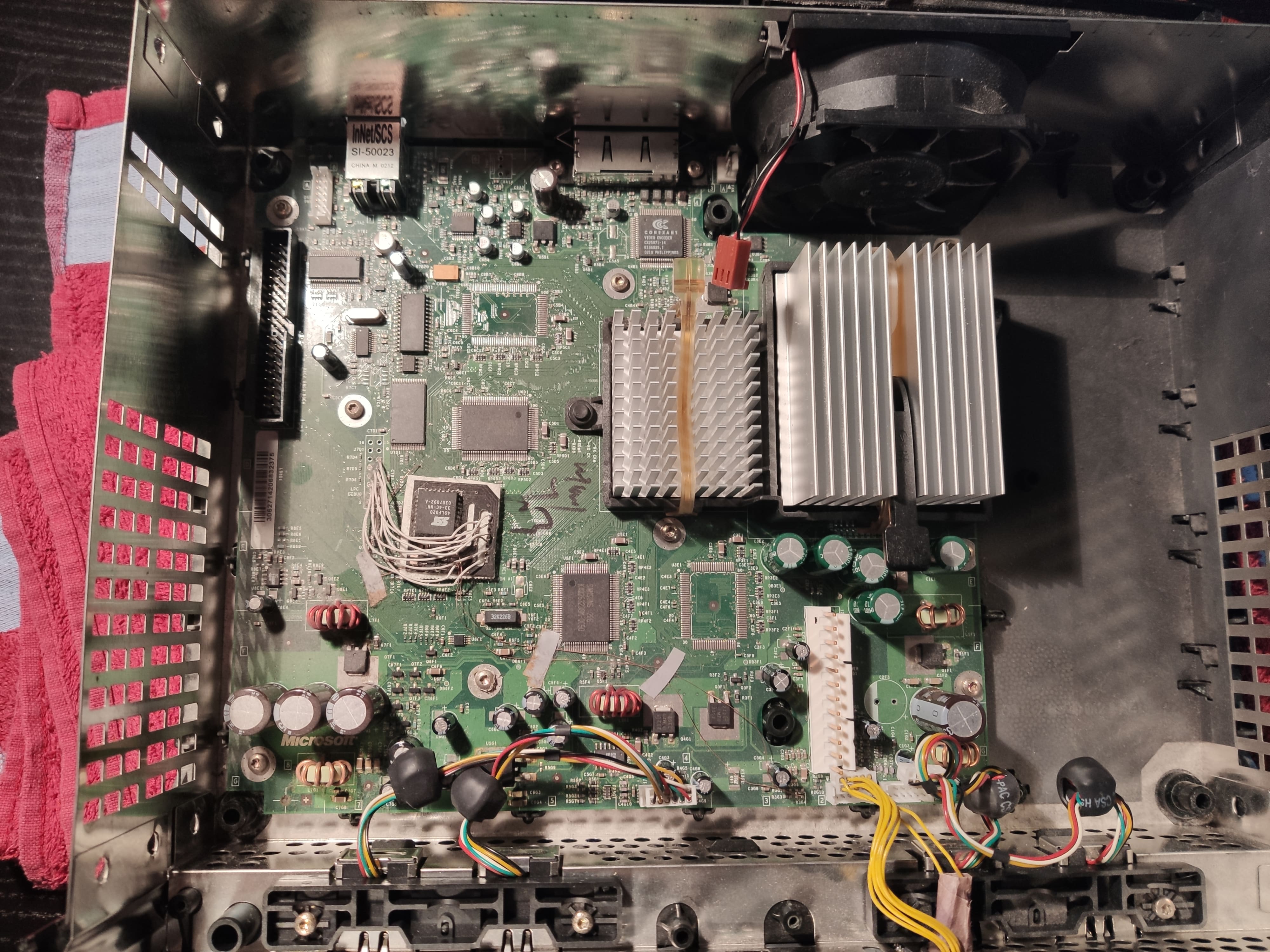

When opening the console to remove the clock capacitor, I noticed that a modchip is already installed.
Unfortunately, I can't find any information about this chip.
Can you help me further?

Can I just ignore the chip or should I pay attention to something?

Is it possible to simply install a SoftMod !



Thank you for your help !


Link to post
Share on other sites

Thanks for the quick reply!
The Xbox boots into the original dashboard and there are no logos or other signs of a modification. Is this normal for this type of mod, or do I need to pay attention to something?
And one last question:
What exactly does this modificaton. What functions does this chip offer?
Thanks for your help!


Link to post
Share on other sites
3 hours ago, lullatsch said:

Thanks for the quick reply!
The Xbox boots into the original dashboard and there are no logos or other signs of a modification. Is this normal for this type of mod, or do I need to pay attention to something?
And one last question:
What exactly does this modificaton. What functions does this chip offer?
Thanks for your help!


Hold the power button down for several seconds and see if it behaves differently.
The chip itself doesn't do anything other than allow a custom bios to boot. This is what circumvents all the protections and allows you to play homebrew and emulators.

  • Thanks 1
Link to post
Share on other sites
On 2/21/2021 at 12:34 AM, OGXbox Admin said:

Hold the power button down for several seconds and see if it behaves differently.
The chip itself doesn't do anything other than allow a custom bios to boot. This is what circumvents all the protections and allows you to play homebrew and emulators.

Your advice worked, thank you! When I hold down the power button, the Xbox boots into XBMC.
What is the best way to bring the Xbox up to date from here? (I have already successfully removed the clock capacitor. )

Is it necessary to update the software / bios? According to XBMC the BIOS: Xecuter 2 4977 is installed.
I have already downloaded the OGXBox Installer 2021 disc, but I am unsure how best to proceed.

Thank you for your help!

Link to post
Share on other sites
  • 2 weeks later...
On 2/23/2021 at 7:14 AM, lullatsch said:

Is it necessary to update the software / bios? According to XBMC the BIOS: Xecuter 2 4977 is installed.
I have already downloaded the OGXBox Installer 2021 disc, but I am unsure how best to proceed.



I think the newest version of your bios is 4981.  I haven't had a chance to use the OGXbox installer disk yet, but I do know Hexen 2019 has a bunch of bios that you can use to flash your chip to the newest version.  It's pretty simple, here's a video I found on it.  Keep in mind that you'll need the 256k flash option.





Edited by Chungaloid
Link to post
