Rochdaleguy

What Version XBox?

Recommended Posts

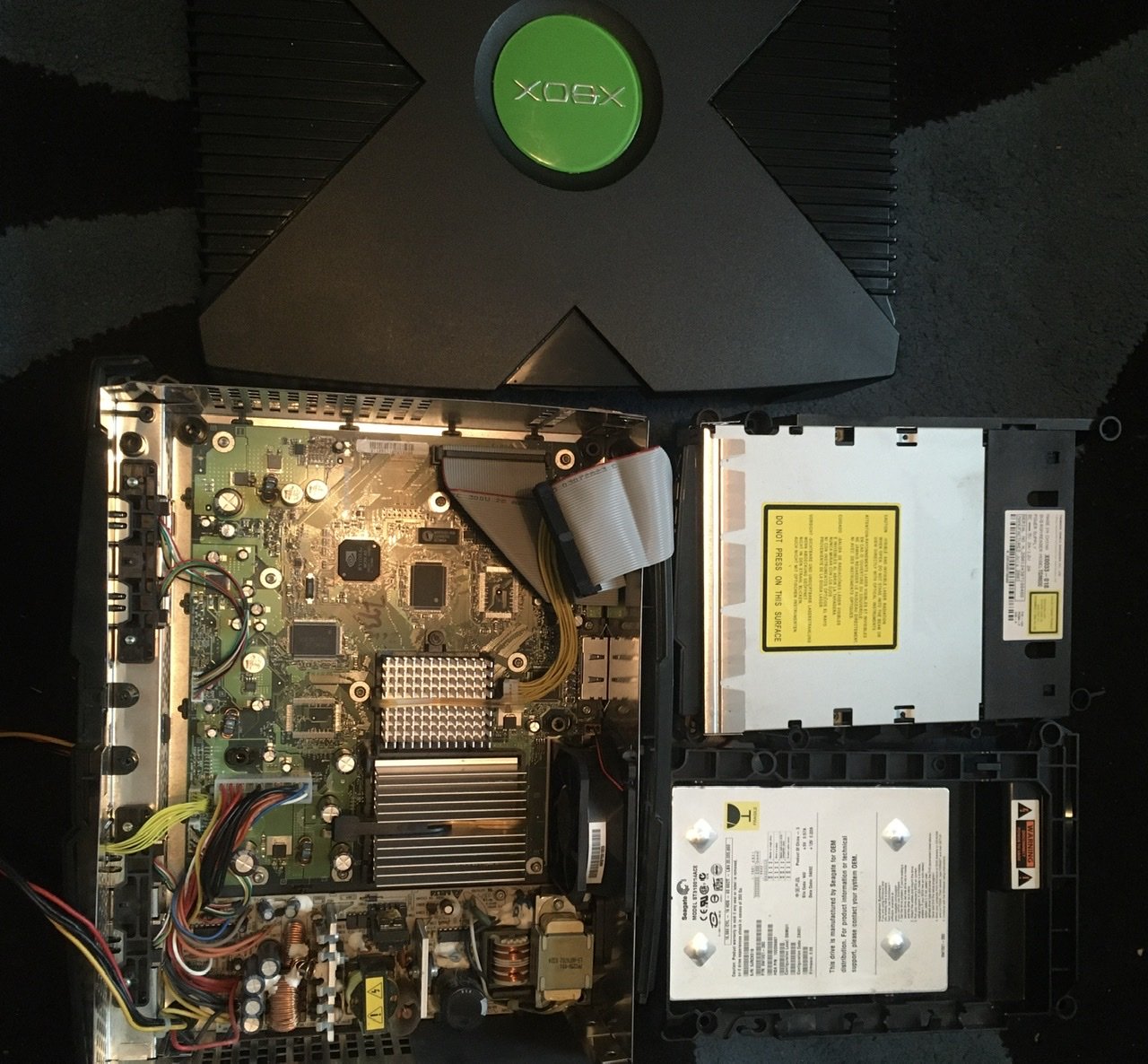

I just received an Xbox I bought from eBay really cheap which I was planning to use as spares.

ive just cracked it open, and wow. So clean. Hardly any dust, no pitting of steel, Capacitor leaks (I’ll still remove clock anyways).

i May even switch my main drive etc over to this one and softmod it

Is this a 1.2? Date on sticker says 2003-08-15.

Shame it’s a Thompson drive, but it still works.

Please login or register to see this attachment.

Share this post


Link to post
Share on other sites

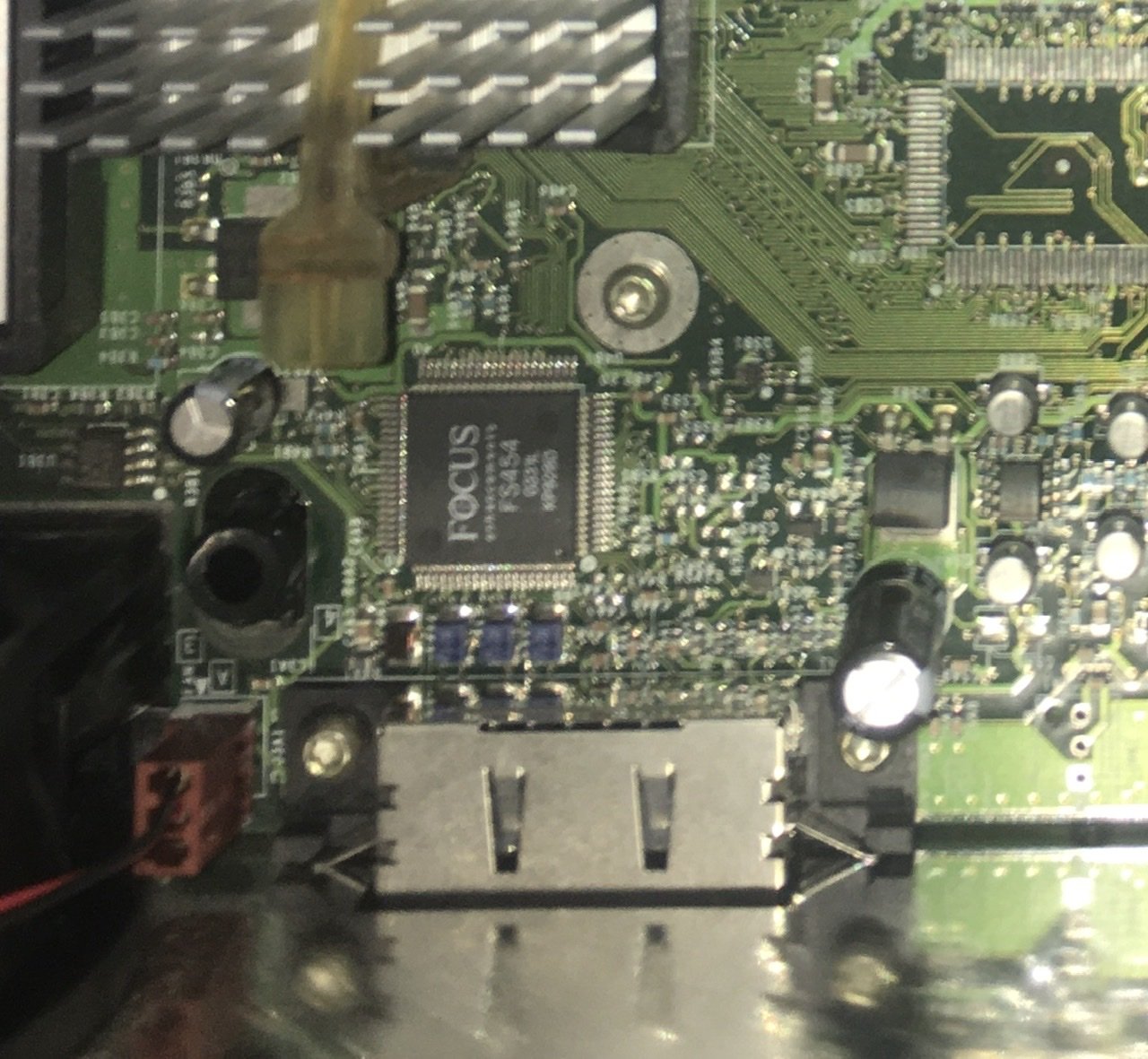

If this chip has Focus printed on it then it's a version 1.4



D72F228A-71BD-4F49-97B1-EFB7F5760013.thumb.jpeg.3b90dcdf119251ee7d08c8deff3b87a7.jpeg.9a459bcc429688cf5ff3dcc4b667206e.jpeg

The version 1.2 -1.4 of Xbox is slightly easier to TSOP flash as the 2 solder links are located  on the to side of the PCB circled in yellow.

1109807626_68532091_IMG_20200612_1846051(Copia).thumb.jpg.271546802245932f2fc85ccd03cd5743(1).jpg.1acbbd4bd49978331740bf662a8c19eb.jpg

With the version 1.2 -1.4 board I would use the IND 5004.67.bin BIOS as it's a 256kb TSOP chip and the BIOS is one that will support  a 2tb hard drive.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Share this post


Link to post
Share on other sites
1 hour ago, Ging3rguy said:

Or the elusive 1.5.

Although the date of manufacturing would be within the 1.5 version release. I thought there was no way to visually tell if one is a 1.5

arent they rare?

Edited by Rochdaleguy
Corrected digit
