Modchip Clearance Problem.

Recommended Posts

i did my 1st hard mod on a xbox today. i used an alladin modchip on a v1.4. the modchip wouldn't even go on because a cap was in the way so i heated the solder on the cap and leaned it back until it was hitting the cap behind it. now the modchip will go on but it is rubbing against the cap. i think it will eventually cause a problem. how can i fix this issue?

Share this post


Link to post
Share on other sites

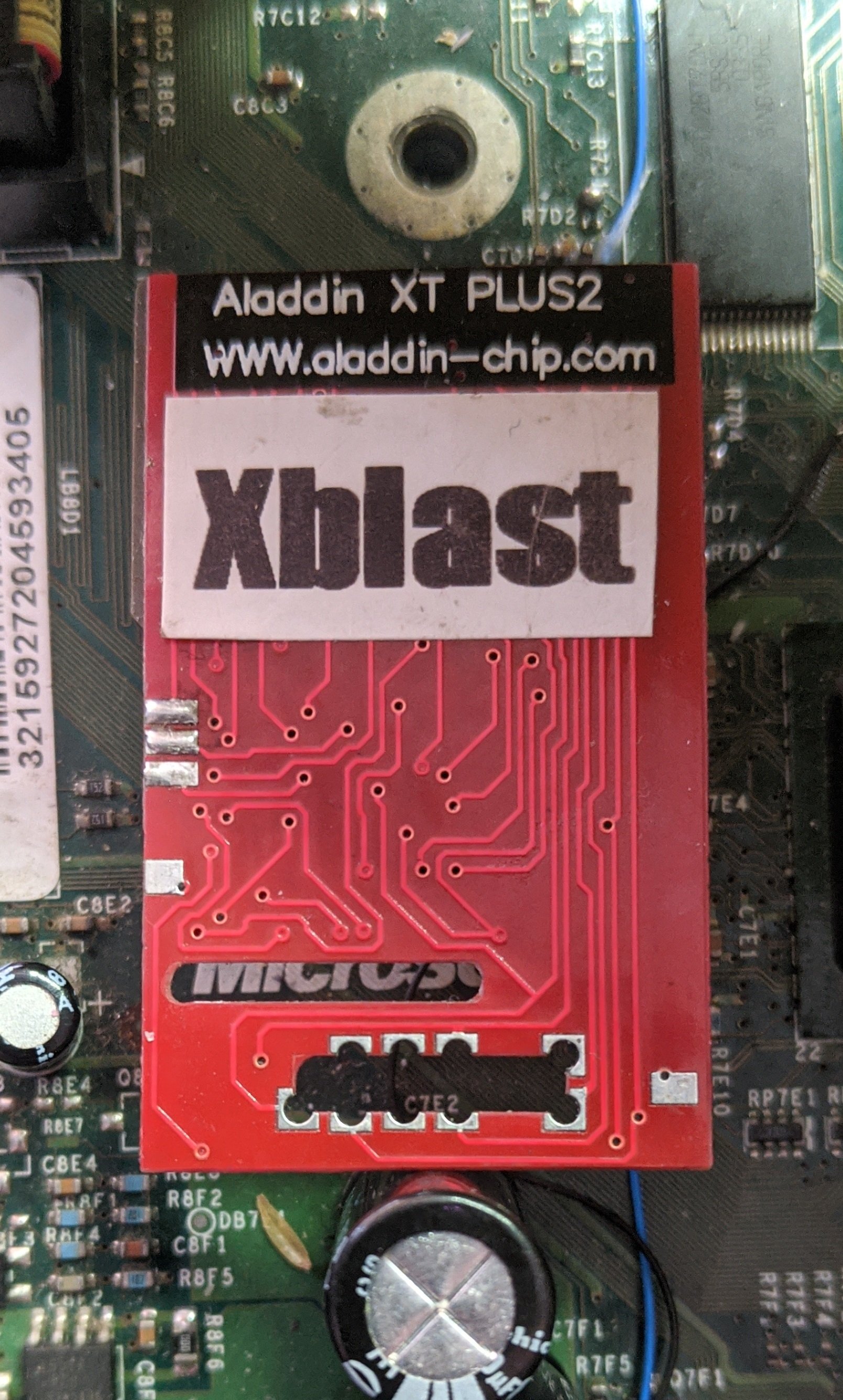

So like this and no it won't cause any problems.



Please login or register to see this attachment.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

  • Like 1
