Firmware from xblast is not working

[metel]

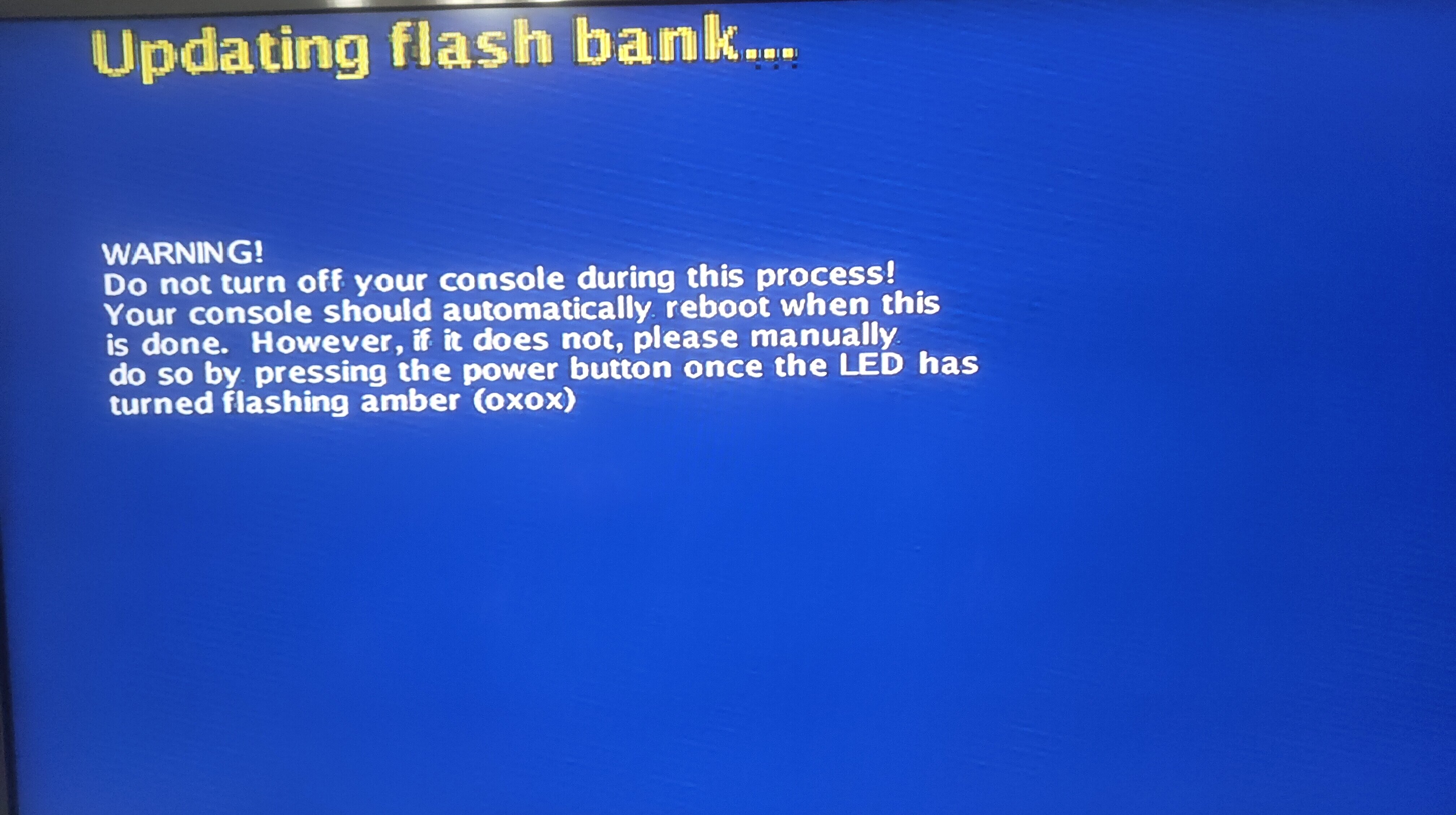

Hello everyone. Help please. Xbox 1.4, xblast tsop bios firmware. I can't flash cerbios. Freezes at the moment of the firmware.

[NokSueCow]

What tsop chip is it? You placed Cerbios.bin in C/Bios.

[metel]

STM29F002B chip. I created a folder on my hard disk c:\bios and copied the cerbios.bin file there.

[metel]

When trying to flash the BIOS over the network, after selecting the firmware in the browser, page 192.168... becomes unavailable

[metel]

I flashed the tsop bios on xblast os using the installation disk for the 128mb update. Now I can't go back to Cerbios. The memory test is successful

[SS_Dave]

You are not the 1st to have this issue when flashing Xblast to the on board bios chip,

I seem to remember there is onboard chip that Xblast can't flash..

The easiest way to fix this is fit a mod chip

The other option is replace the bios chip or remove it and re-flash it in a external device and refit it.



You could try fitting a mod chip to boot the Xbox to the HDD then remove the chip while it's running and then load the bios re-flash program.



Cheers

SS Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

[metel]

18 hours ago, SS_Dave said:

You are not the 1st to have this issue when flashing Xblast to the on board bios chip,

I seem to remember there is onboard chip that Xblast can't flash..

The easiest way to fix this is fit a mod chip

The other option is replace the bios chip or remove it and re-flash it in a external device and refit it.



You could try fitting a mod chip to boot the Xbox to the HDD then remove the chip while it's running and then load the bios re-flash program.



Cheers

SS Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

I installed the alladin chip, can you tell me, for the tsop firmware, is it enough to remove the chip when xbox is turned on, or do I also need to disconnect the d0 wire? is there a risk that something will burn during this process?

[metel]

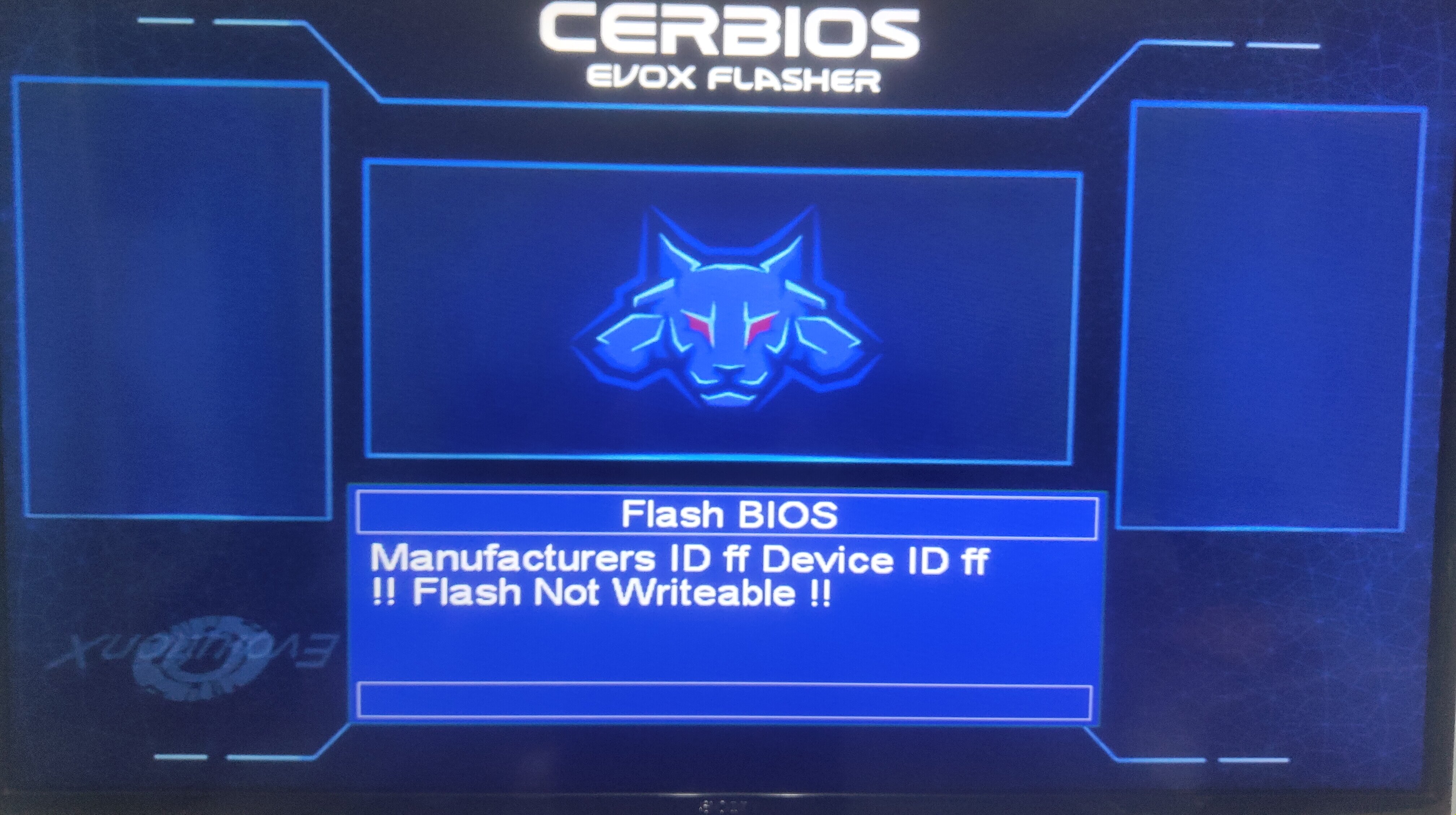

On the bios firmware screen, I disconnected the chip from the pins, and an error appeared.

[metel]

The TSOP chip in the RT809H programmer cannot be read, and a connection error appears. I guess that's where my attempts will end and stop at the mod chip.

[lopenator]

I recommend the endgame exploit.

[metel]

1 hour ago, Bowlsnapper said:

Какой это чип tsop? Кроме того, вы не можете обратиться к tsop, когда загружаетесь с чипа. Вы можете только прошить чип. И именно поэтому вы видите эту ошибку. Он может видеть, что чип исчез, когда вы его вытаскиваете.

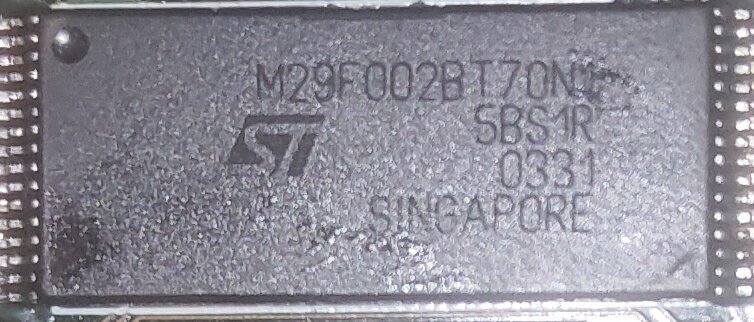

Photo of the TSOP chip

[metel]

57 minutes ago, lopenator said:

I recommend the endgame exploit.

I do not know how to enter into the dashboard from xblast to use endgame

[nikeymikey]

2 hours ago, metel said:

I do not know how to enter into the dashboard from xblast to use endgame

Does Xblast have a file manager? If so then you can use that to go to the C:\ drive and run xboxdash.xbe. That "should" launch the stock dashboard and from there you can try the endgame exploit. I remember now that it doesn't.

You could try burning an installer disc such as this https://www.ogxbox.com/forums/index.php?/topic/4407-ogxbox-installer-2021/ and use the file manager on there to run the xboxdash.xbe from the C drive.



[SS_Dave]

1 minute ago, nikeymikey said:

Does Xblast have a file manager? If so then you can use that to go to the C:\ drive and run xboxdash.xbe. That "should" launch the stock dashboard and from there you can try the endgame exploit.

No unfortunately.

Cheers

SS Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.





[SS_Dave]

1 hour ago, metel said:

I do not know how to enter into the dashboard from xblast to use endgame

You can't as far as I am aware..

Cheers

SS Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

[nikeymikey]

2 minutes ago, SS_Dave said:

No unfortunately.

Cheers

SS Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.





I was editing my post as you replied

[SS_Dave]

2 hours ago, lopenator said:

I recommend the endgame exploit.

Unless you can get to  the memory card manager EndGame won't work.

As the only dash he has available is Xblast that's not a option.



Cheers

SS Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

[SS_Dave]

I repeat



You are not the 1st to have this issue when flashing Xblast to the on board bios chip,

I seem to remember there is onboard chip that Xblast can't flash and you have it..

The easiest way to fix this is fit a mod chip

The other option is replace the bios chip or remove it and re-flash it in a external device and refit it.



You could try fitting a mod chip to boot the Xbox to the HDD then remove the chip while it's running and then load the bios re-flash program.



Cheers

SS Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

[SS_Dave]

15 minutes ago, nikeymikey said:

Does Xblast have a file manager? If so then you can use that to go to the C:\ drive and run xboxdash.xbe. That "should" launch the stock dashboard and from there you can try the endgame exploit.  I remember now that it doesn't.

You should burn an installer disc such as this  https://www.ogxbox.com/forums/index.php?/topic/4407-ogxbox-installer-2021/  and use the file manager on there to run the xboxdash.xbe from the C drive.



I really don't think this will work as Xblast is not set to load from the DVD drive as a boot drive..



Cheers

S.S. Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.



[SS_Dave]

This was on another site about 2 years ago from someone that did the same and the poster fixed it by replacing the bios chip from a salvage board



Cheers

S.S. Dave

Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.
