1.6 revision Xbox not powering on.

[Lina_Inverse_]

I have a 1.6 revision board which shut down in the middle of using it. I have tested the PSU which is working correctly (have tried in another system also).

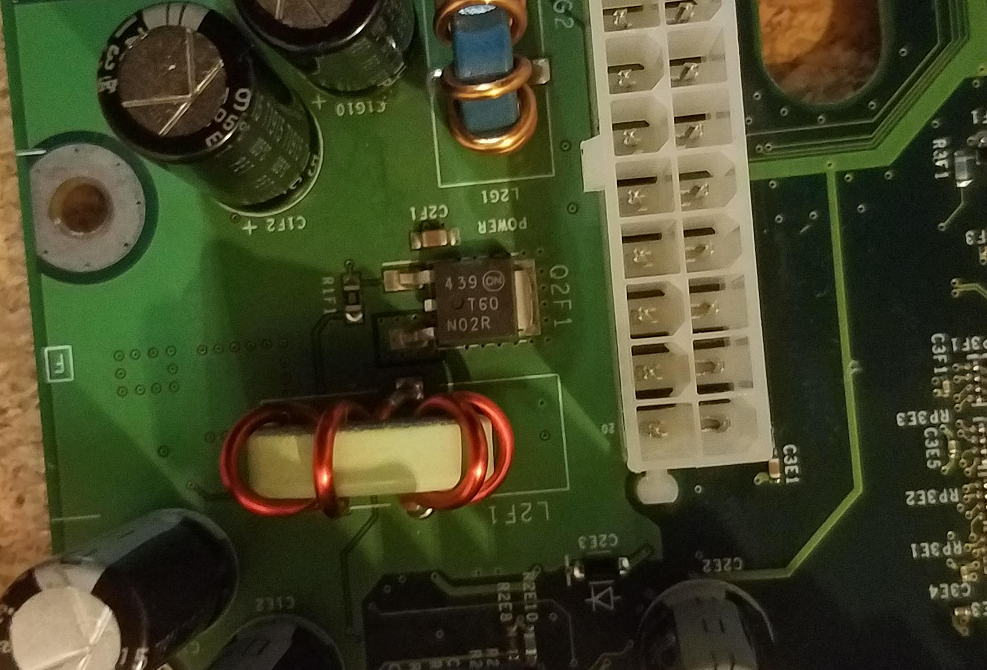

I have traced the problem to this MOSFET - Q2F1 not outputting 5V.Can anyone guide me on a replacement? The numbers on it don't give me a good guide on an equivalent/compatible one.

Edited February 9, 2024 by Lina_Inverse_

[TelaKeppi]

Could be T60N02R,

[Lina_Inverse_]

11 hours ago, TelaKeppi said:

Could be T60N02R,

That's it! I made the mistake of searching the numbers along with it. Thanks.

[FrostyMaGee]

19 minutes ago, Lina_Inverse_ said:

That's it! I made the mistake of searching the numbers along with it. Thanks.

Were you able to find a suitable replacement mosfet? I may have a 1.6 where this is also the issue but regardless I would like to add it to my list of replacement parts.

[supasweet]

On 2/9/2024 at 5:40 PM, FrostyMaGee said:

Were you able to find a suitable replacement mosfet? I may have a 1.6 where this is also the issue but regardless I would like to add it to my list of replacement parts.

im sure you have tried here  this could be a replacement  however verify values to be sure

STU65N3LLH5 STMicroelectronics | Discrete Semiconductor Products | DigiKey

and thank you for the help on my other post!







[Harcroft]

Pricy but here's 10 new old stock of the original component.
https://www.ebay.com/itm/292197822533?

https://www.digikey.com/en/products/detail/onsemi/NTD60N02R/1484798
This is the original part. Any N channel mosfet with the same pinout, in that package, the same voltage and equal or higher current rating should work for your needs.

Edited May 27 by Harcroft
