LED DVD MOD (electrical query)


Recommended Posts

Hello all

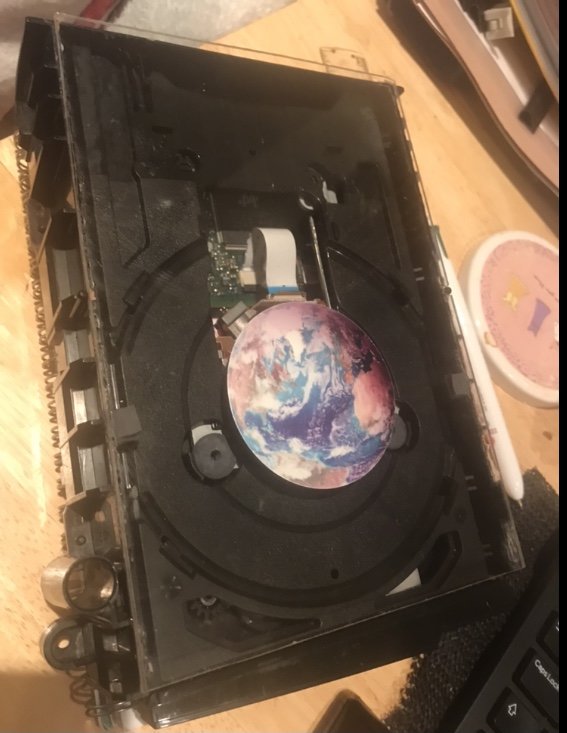

i have stripped my Samsung DVD drive to its bare essentials and made a clear Perspex Lid Mod.

I want to add a LED to this feature but don’t want long cables crammed inside

 can I get power straight from the DVD drive?

this would be beneficial if I want to take it apart I can just unplug from the cable.

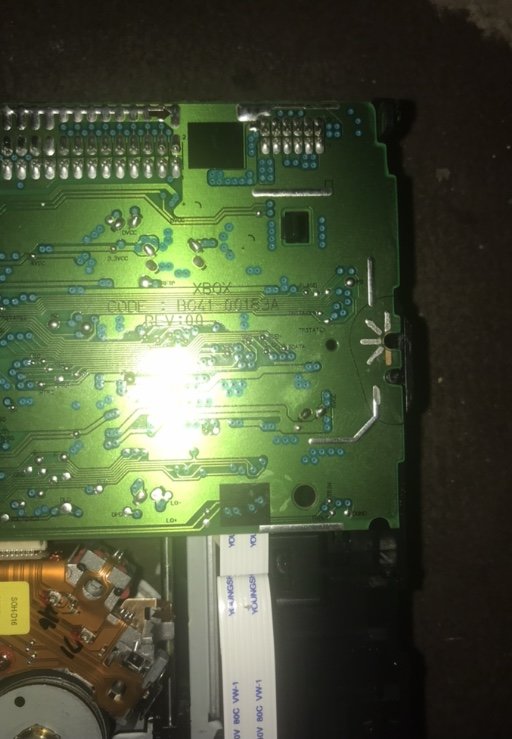

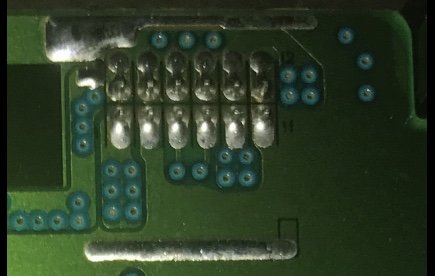

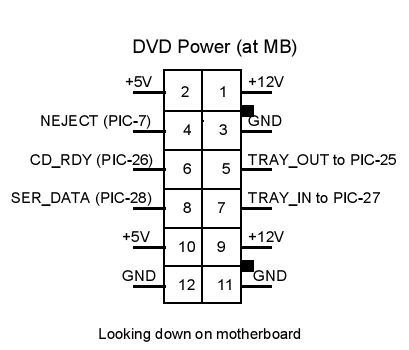

I have found a pin layout but it’s for the motherboard & I’m not sure if I’m correctly thinking I can copy the wires to what looking at on the bottom of the DVD drive





Edited by Lexieye
