Dtomcat18 Posted November 11, 2022 Author Report Share Posted November 11, 2022 No problem. I’ll let you know. Boards arrived today, but I’m on my way to Vegas. So probably Wednesday ish I’ll know if they work 2 Quote Link to comment Share on other sites More sharing options...
Dtomcat18 Posted November 14, 2022 Author Report Share Posted November 14, 2022 It works!!! Read/write EEPROM (at least on a 1.6). All from microSD card. Fast and easy 1 Quote Link to comment Share on other sites More sharing options...
Dtomcat18 Posted November 14, 2022 Author Report Share Posted November 14, 2022 Video of read function. I’ll make another later showing write function 1 Quote Link to comment Share on other sites More sharing options...
Natetronn Posted November 14, 2022 Report Share Posted November 14, 2022 Nice job! That looked easy enough. Quote Link to comment Share on other sites More sharing options...
Dtomcat18 Posted November 14, 2022 Author Report Share Posted November 14, 2022 Thank you. So far it is. Waiting on more stuff to ensure everything works (add on usb board and reset button to ensure you can upload firmware). Then I’ll test on my 1.0 board (vanilla… not modded in anyway… LPC holes still filled with solder) Quote Link to comment Share on other sites More sharing options...
Natetronn Posted November 14, 2022 Report Share Posted November 14, 2022 33 minutes ago, Dtomcat18 said: Thank you. So far it is. Waiting on more stuff to ensure everything works (add on usb board and reset button to ensure you can upload firmware). Then I’ll test on my 1.0 board (vanilla… not modded in anyway… LPC holes still filled with solder) I'm interested in seeing that and how you'll be hooking it up without the pin header. Quote Link to comment Share on other sites More sharing options...
Dtomcat18 Posted November 14, 2022 Author Report Share Posted November 14, 2022 7 minutes ago, Natetronn said: I'm interested in seeing that and how you'll be hooking it up without the pin header. https://www.digikey.com/en/products/detail/adafruit-industries-llc/5433/16584075 Quote Link to comment Share on other sites More sharing options...
rikoos Posted November 14, 2022 Report Share Posted November 14, 2022 If you have a spot left for buying one (count me in) Quote Link to comment Share on other sites More sharing options...

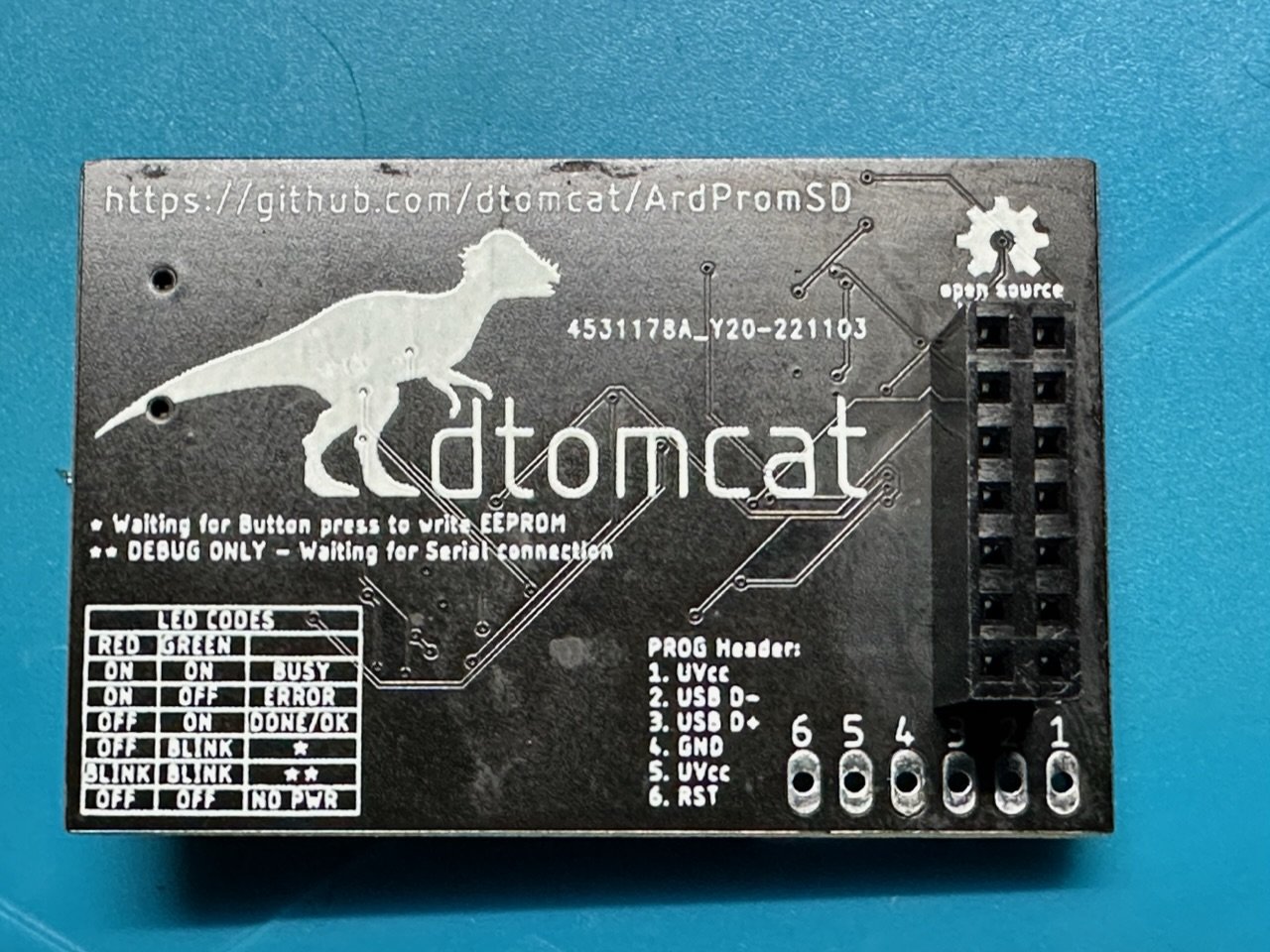

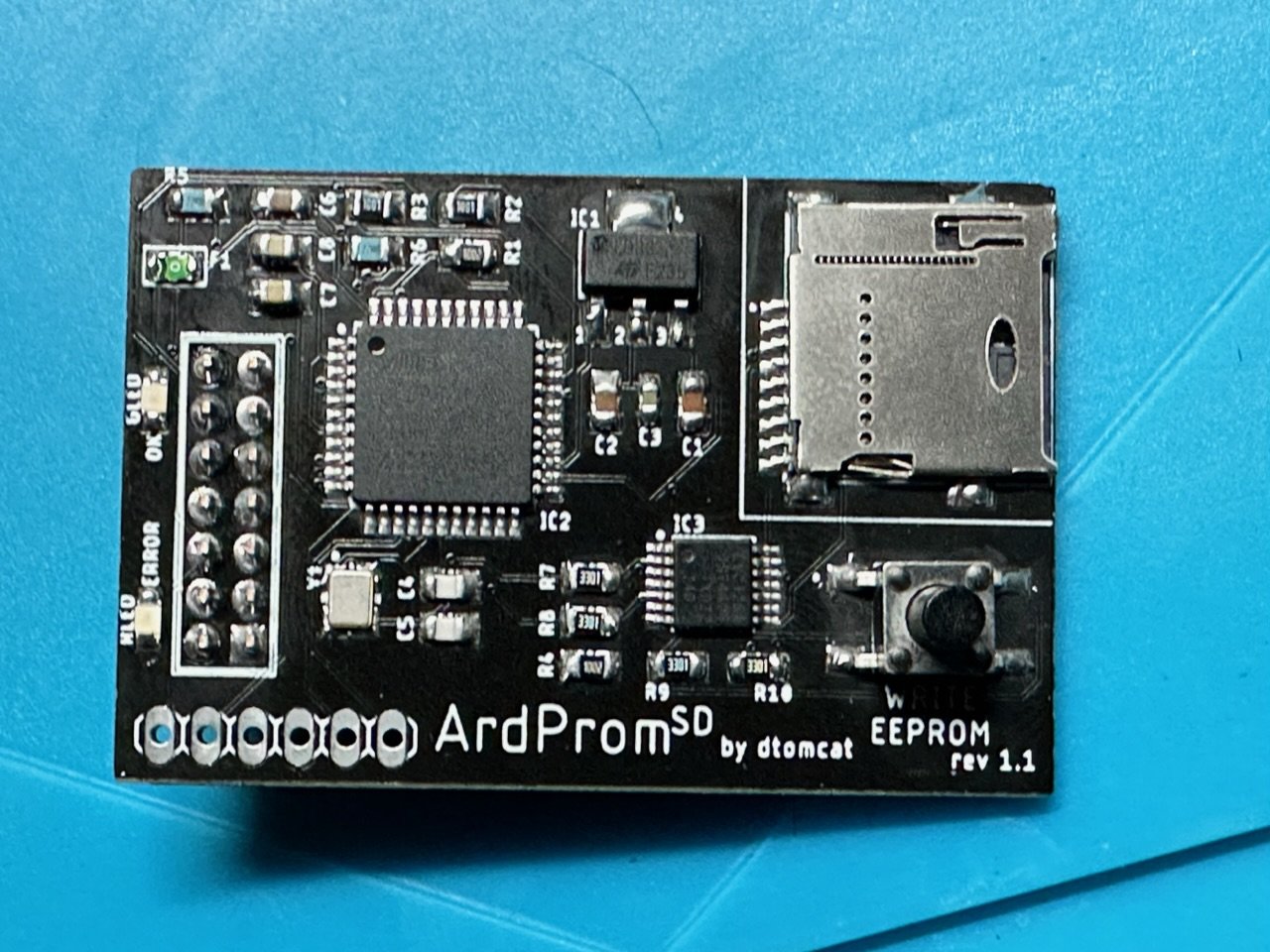

Dtomcat18 Posted November 18, 2022 Author Report Share Posted November 18, 2022 the board is all tested and passed! Works great. I did do some code change to make a bit better. I'll be making the boards promised next week (hopefully). I do have family coming to town, so may be pushed until after Turkey day. If you messaged me interested in a board, I'll message when I have all the boards made and tested. I do not foresee anything that will not make them work... but I'll keep you posted. Thank you for all the interest. P.S. Just thought of another test i wanted to do... so I'll try to run that test tomorrow. All my tests were on a hard modded 1.6 board... I do have a 1.0 board that is untouched. I'll see if it all works on that board... then I'll give the green light for the rest of the boards. Video: Quote Link to comment Share on other sites More sharing options...
Dtomcat18 Posted November 18, 2022 Author Report Share Posted November 18, 2022 (edited) Just tested on 1.0 board (couldn't wait lol)... it works! EDIT: didn't test how I thought I would. I wanted to use pogo pins, but they wouldn't fit into the pin header socket. So I just used some pins I had laying around and just pressed them onto the filled in LPC port. took a few tries, but it worked! I did not test writing, because keep the connection long enough might be an issue. If i made a jig with pogo pins, I know it would! So... it's REALLY easy if you have a pin header in the LPC port... if not, then you really need someway to get pogo pins connected. To write the eeprom, you'd only have to hold it in place like 10 seconds. it's really fast. Edited November 18, 2022 by Dtomcat18 Quote Link to comment Share on other sites More sharing options...
Natetronn Posted November 20, 2022 Report Share Posted November 20, 2022 I sent you a PM sometime ago to be added to the list and offering to help test if need be, but never heard back. So reaching out here as well. Quote Link to comment Share on other sites More sharing options...
Dtomcat18 Posted November 20, 2022 Author Report Share Posted November 20, 2022 Yes. Sorry. I’ll message you when they are made. Sorry. Thought I replied Quote Link to comment Share on other sites More sharing options...
Natetronn Posted November 20, 2022 Report Share Posted November 20, 2022 12 minutes ago, Dtomcat18 said: Yes. Sorry. I’ll message you when they are made. Sorry. Thought I replied All good, no need to say sorry, just double checking I'm on the list Quote Link to comment Share on other sites More sharing options...
nikeymikey Posted November 21, 2022 Report Share Posted November 21, 2022 I'd love one of these, I have a couple of consoles in the loft that have corrupted eeproms which my usual way of reading/writing has not fixed. I'm in the Uk though so shipping costs might make it impractical. Are you releasing the board layout etc? If so, hopefully someone on this side of the pond will pick up the design and produce a few for us fellow brits Quote Link to comment Share on other sites More sharing options...
Dtomcat18 Posted November 23, 2022 Author Report Share Posted November 23, 2022 On 11/21/2022 at 3:02 AM, nikeymikey said: I'd love one of these, I have a couple of consoles in the loft that have corrupted eeproms which my usual way of reading/writing has not fixed. I'm in the Uk though so shipping costs might make it impractical. Are you releasing the board layout etc? If so, hopefully someone on this side of the pond will pick up the design and produce a few for us fellow brits Yes. I’ll be releasing it as open source. Quote Link to comment Share on other sites More sharing options...
Dtomcat18 Posted November 23, 2022 Author Report Share Posted November 23, 2022 If other methods can’t reflash the eeprom… this probably wouldn’t either though Quote Link to comment Share on other sites More sharing options...
nikeymikey Posted November 23, 2022 Report Share Posted November 23, 2022 1 hour ago, Dtomcat18 said: If other methods can’t reflash the eeprom… this probably wouldn’t either though Looks like a solid solution you have developed here tho so its definitely worth a shot. Quote Link to comment Share on other sites More sharing options...

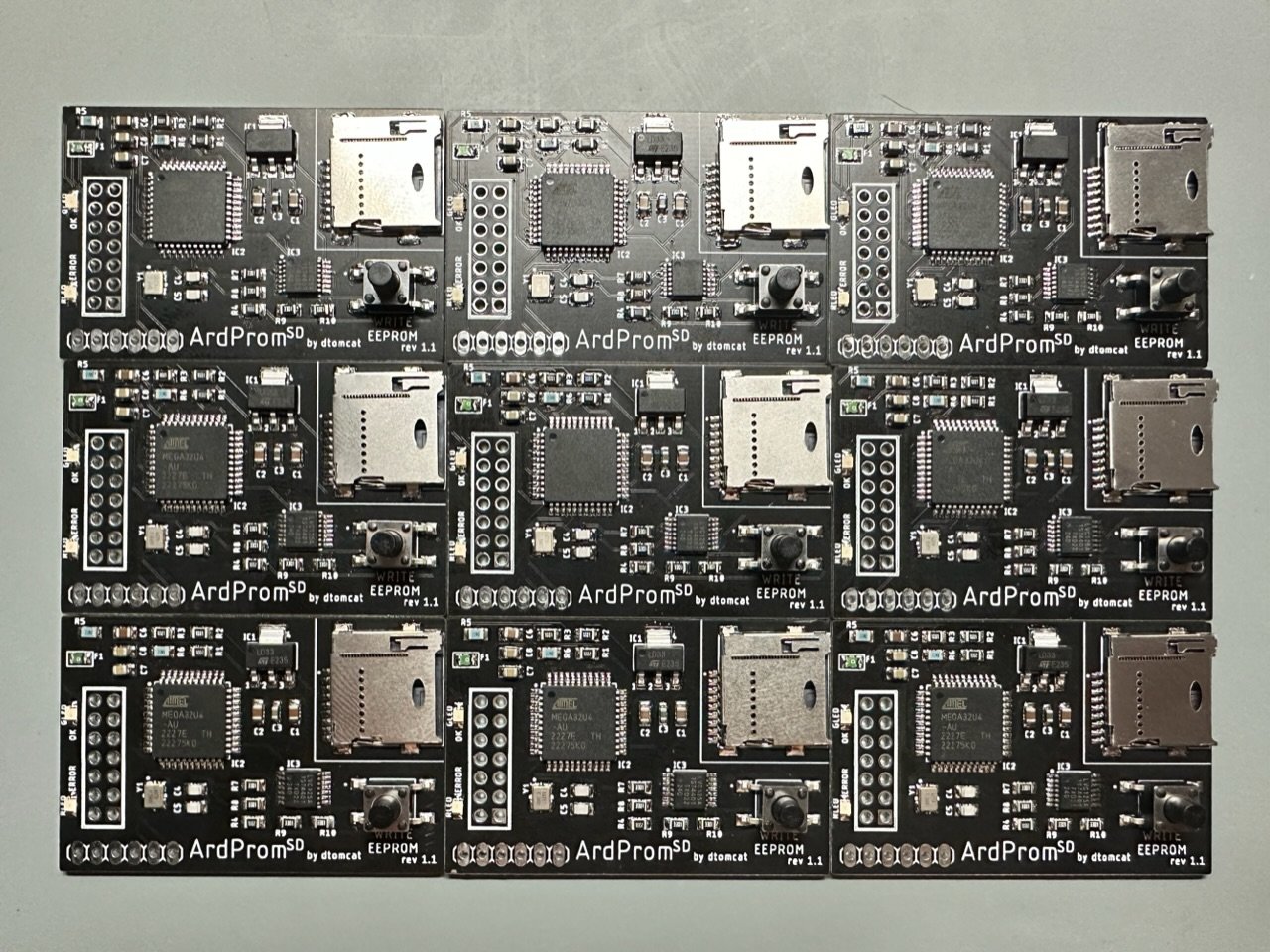

Dtomcat18 Posted November 30, 2022 Author Report Share Posted November 30, 2022 My boards are done and tested! All seems good! They still need pin header and test in Xbox (to test i2c). I don’t foresee any issues though. If all passes, I’ll try to get the board uploaded by this weekend. Also created a test firmware to ensure all components are working (aside from i2c). if you messaged me about wanting one… I’ll message you after final testing. Expect a message around Thursday/Friday. 3 Quote Link to comment Share on other sites More sharing options...
TheGatekeeper24 Posted November 30, 2022 Report Share Posted November 30, 2022 1 minute ago, Dtomcat18 said: My boards are done and tested! All seems good! They still need pin header and test in Xbox (to test i2c). I don’t foresee any issues though. If all passes, I’ll try to get the board uploaded by this weekend. Also created a test firmware to ensure all components are working (aside from i2c). if you messaged me about wanting one… I’ll message you after final testing. Expect a message around Thursday/Friday. Awesome to hear it! I definitely look forward to seeing the message. Quote Link to comment Share on other sites More sharing options...

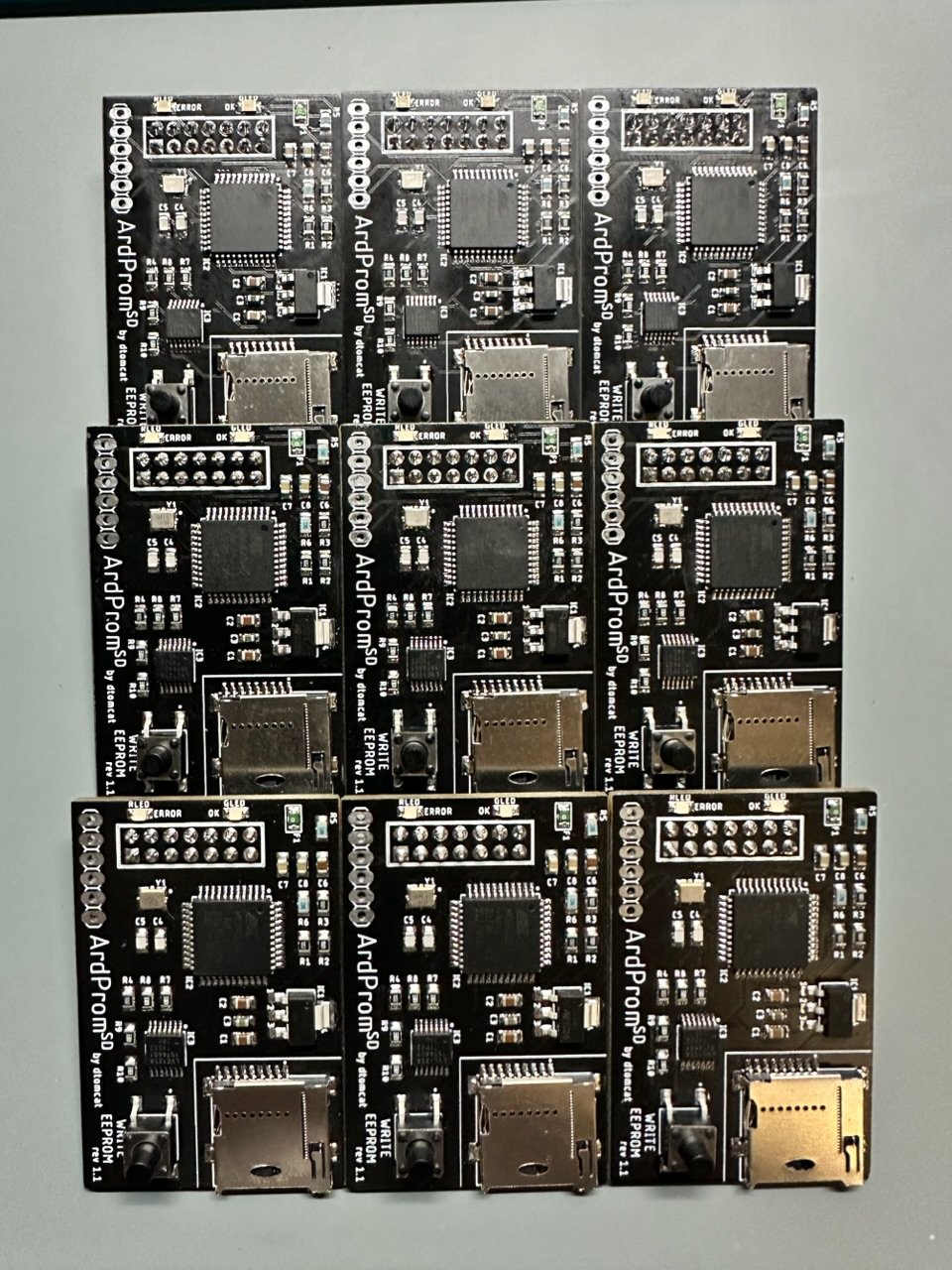

Dtomcat18 Posted November 30, 2022 Author Report Share Posted November 30, 2022 Burned the midnight oil… boards are completed and fully tested (on 1.6 board). My initial board was also tested on a 1.0. Should be good for any revision… but again only tested on 1.6 and 1.0. 1 1 Quote Link to comment Share on other sites More sharing options...
Dtomcat18 Posted December 2, 2022 Author Report Share Posted December 2, 2022 Example of backing up eeprom on unmodified console. 1 Quote Link to comment Share on other sites More sharing options...
Dtomcat18 Posted December 3, 2022 Author Report Share Posted December 3, 2022 working on the worst part of any project... Documentation! Looking for feedback on ease of understanding and if it raises any questions that should be answered. it's obviously not complete, but has the two main features covered! (read/write). Thanks! userManual.pdf Quote Link to comment Share on other sites More sharing options...
Dtomcat18 Posted December 4, 2022 Author Report Share Posted December 4, 2022 (edited) Boards and BOM are posted on my github. Everything should be up now that is needed to make one. Documentation on use is coming along. https://github.com/dtomcat/ArdPromSD EDIT: BOM is in the .kitspace folder. Edited December 4, 2022 by Dtomcat18 Quote Link to comment Share on other sites More sharing options...
Natetronn Posted December 7, 2022 Report Share Posted December 7, 2022 Just got my ArdPromSD. It arrived packaged very well in a black bubble bag, small box with a thank you sticker on it and thank you tissue paper inside and sliced cardboard padding on the bottom and the chip was inside an anti-static bag and although I haven't tested it yet, I'm confident it will work, as it has a QC Passed sticker on it lol. Looks like fine craftsmanship too. Thanks Dtomcat18! Quote Link to comment Share on other sites More sharing options...
Dtomcat18 Posted December 7, 2022 Author Report Share Posted December 7, 2022 Thank you! Appreciate that! I know how the mail can be… so I try to ensure the best journey I can! Quote Link to comment Share on other sites More sharing options...
