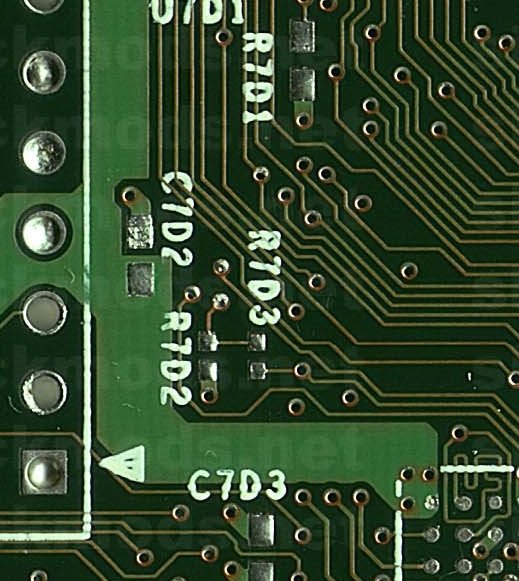

From what I can tell I butchered my r7d3 pad on the top of the 1.0 board. The bottom pad I did fine but I'm looking for the alternative now. I was looking at the pictures but just can't tell where to place the jumper now. Any help would be greatly appreciated. I linked a picture where I think I can and a picture of the board .Thanks !!

From what I can tell I butchet d my r7d3 pad on the top of the 1.0 board. The bottom pad I did fine but I'm looking for the alternative now. I was looking at the pictures but just can't tell where to place the jumper now. Any help would be greatly appreciated. Thanks !!

Please login or register to see this link.

Please login or register to see this link.

Share this post


Link to post
Share on other sites
9 minutes ago, Abittencookie said:

From what I can tell I butchered my r7d3 pad on the top of the 1.0 board. The bottom pad I did fine but I'm looking for the alternative now. I was looking at the pictures but just can't tell where to place the jumper now. Any help would be greatly appreciated. I linked a picture where I think I can and a picture of the board .Thanks !!

From what I can tell I butchet d my r7d3 pad on the top of the 1.0 board. The bottom pad I did fine but I'm looking for the alternative now. I was looking at the pictures but just can't tell where to place the jumper now. Any help would be greatly appreciated. Thanks !!

Please login or register to see this link.

Please login or register to see this link.

This should help








Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Share this post


Link to post
Share on other sites
2 minutes ago, SS_Dave said:

This should help



Please login or register to see this link.





Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

So was I correct in the jumper spot then? My pads seem gone if you check those pictures

Share this post


Link to post
Share on other sites

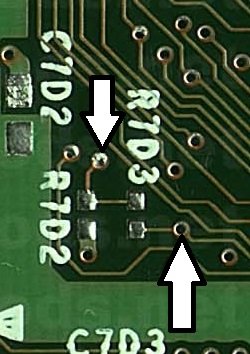

Yep link the 2 arrows and you should be good to go






Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.



Share this post


Link to post
Share on other sites
5 minutes ago, SS_Dave said:

Yep link the 2 arrows and you should be good to go



Please login or register to see this link.



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.



Perfect, it looks like I still can so I'll give it a shot. Board looked a little rough in there haha. Thanks !

Share this post


Link to post
Share on other sites
3 minutes ago, Abittencookie said:

Board looked a little rough in there haha

I have seen worse when people bring a Xbox in saying my mate(Yer sure)tried to mod it .

It's a bit late now but you should practice on a old non working circuit board (old computer board is ideal).



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.



Share this post


Link to post
Share on other sites
4 minutes ago, SS_Dave said:

I have seen worse when people bring a Xbox in saying my mate(Yer sure)tried to mod it .

It's a bit late now but you should practice on a old non working circuit board (old computer board is ideal).



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.



Haha good to know it's not too bad and yeah I was practicing on an old board doing fine for the bottom fine then this happened lol. Thanks again man

Share this post


Link to post
Share on other sites
