[question] Where To Find Built-In Greenshapes Skin?


Recommended Posts

I have a few skins on my Xbox which I think were installed by default (they're not in my E:/Skins folder). I'm trying to change the UXSplash.jpg for the GreenShapes skin, but I can't find the skin on my Xbox. Anybody know where I can find it?

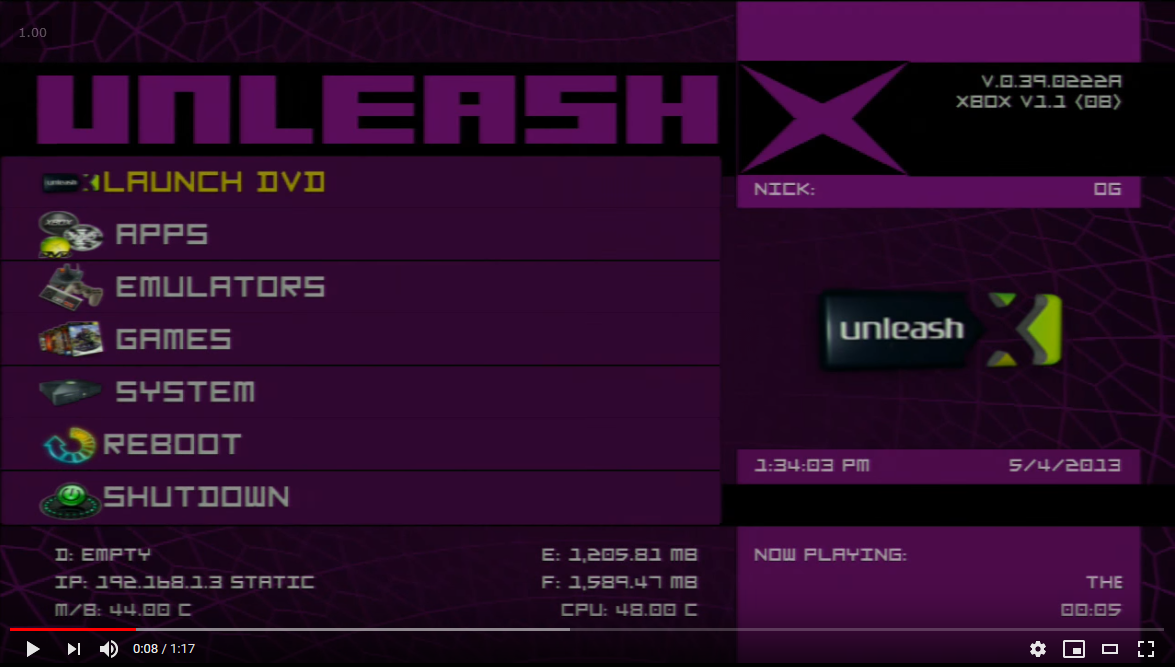

It's the skin like this:


Link to post
Share on other sites
  • 4 weeks later...

It's part of UnleashX's default.xbe, not a separate file in the skins folder. :(

All of the skins with names not surrounded by < and > are built into UnleashX.  Those with < and > are found in UnleashX's Skins subfolder.

The startup splash screen, UXSplash.jpg, is stored in UnleashX's save on the E drive.  You'll find it in the subfolder:

/E/UDATA/9e115330/0064122817A8/

Edit: Rocky5 has extracted the XML files from UnleashX's default.xbe.  I've attached the archive below.

To use a skin found in the archive, create a subfolder in the folder where UnleashX's skins are located on your hard drive with the name of the archive's XML file and change the file's name to skin.xml.

Reboot the console.  The new skins will have < and > surround their names.

skins.zip
