When You Have Damaged Your Pcb While Trying To Mod It.

Recommended Posts

When your tring to solder to a circuit board and you damage it don't despair most stuff up's can be fixed

If you have ripped the trace off the Xbox circuit board you need to STOP and try to relax, Walk away from the job for a minute or ten or more if neaded



This is the trace that is damaged and need's to be repaired.Damaged_PCB.jpg.65ca792edc8ed3cf4d6f8b4b495fc2b8.jpg

This is a pic of a undamaged PCB same location.Please login or register to see this attachment.

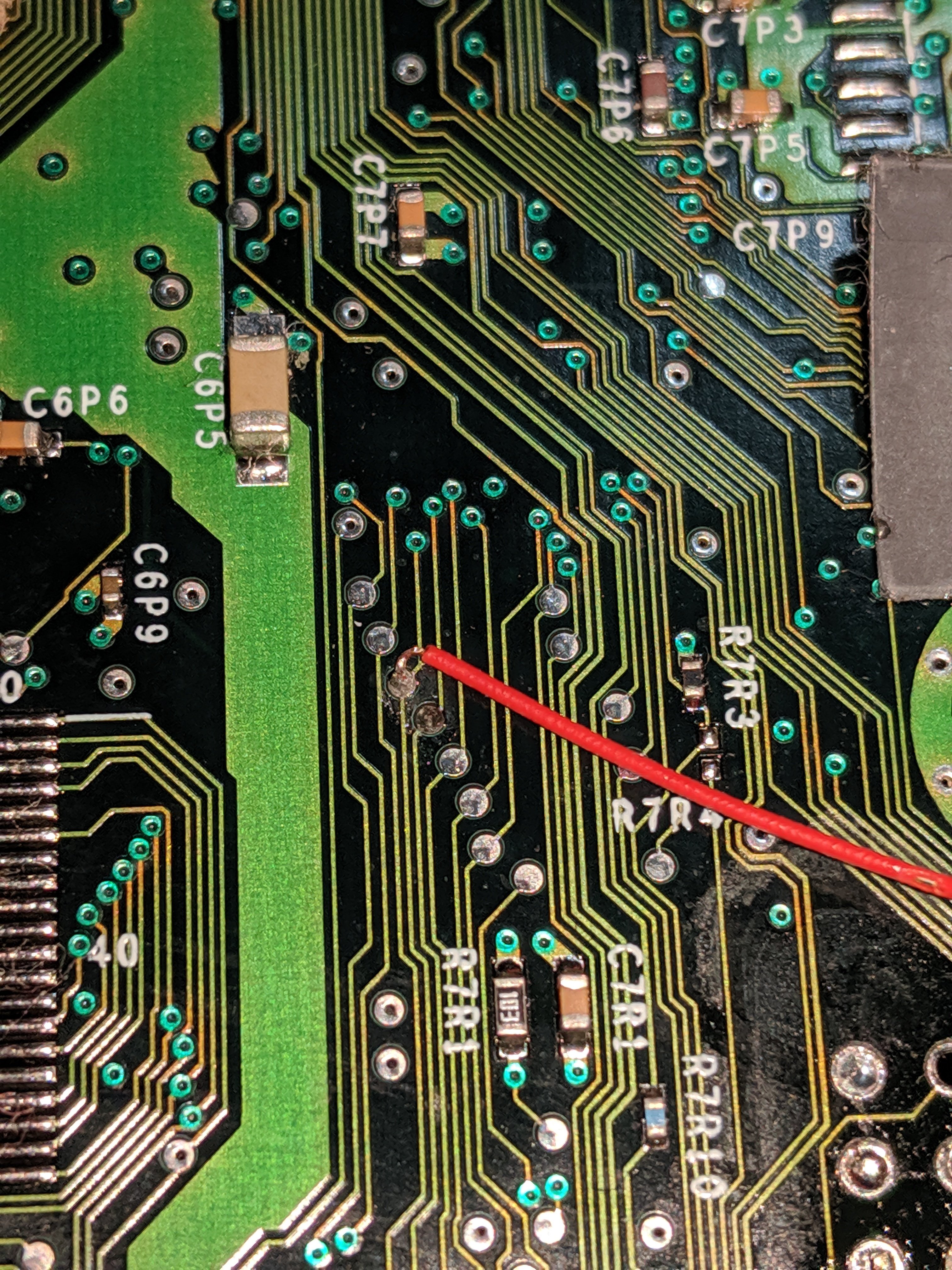

The red wire is what was suposed to happenPlease login or register to see this link.

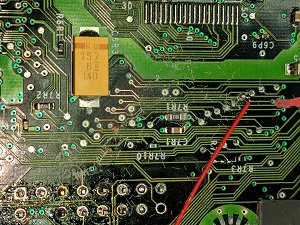

1st step Clean off the paint.

Please login or register to see this link.

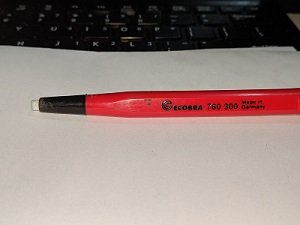

I cheated and used a Glass fiber pen to do that but gentley scraping the track is ok you only nead to remove the paint.

Please login or register to see this link. Please login or register to see this link.

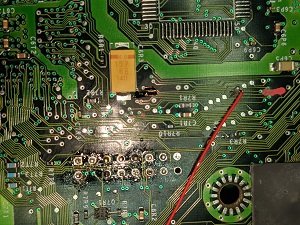

2nd Step Add flux to the board

Please login or register to see this link.

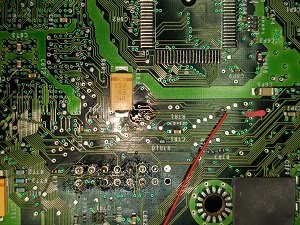

3rd Tin the trace

Please login or register to see this link.

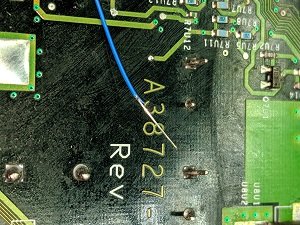

4th Prep the wire you are going to use. I use wirewrap wire for a repair like this one as it's a single strand.

Please login or register to see this link.

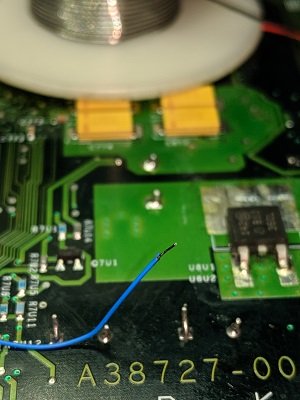

5th Tin and trim the wire. I should have trimed it a bit shorter

Please login or register to see this link.

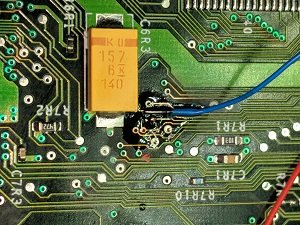

6th Lay the wire on the tinned trace and apply heat.

Please login or register to see this link.

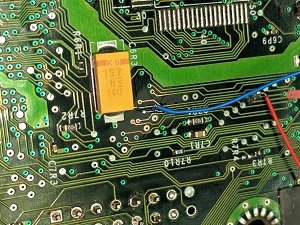

7th Clean up the PCB

Please login or register to see this link.



Now rince and repeat for the other end.

Once you have tested it and your happy a small dob of hot melt glue or even a dob(pin head sise) of super glue to stop the wire moving. Not on the solder joint say 5 to 10mm(1/4 inch) from the solder joint.
