Hi,
just picked up another xbox seeing as my last one went t*** up after a tsop bio flash.

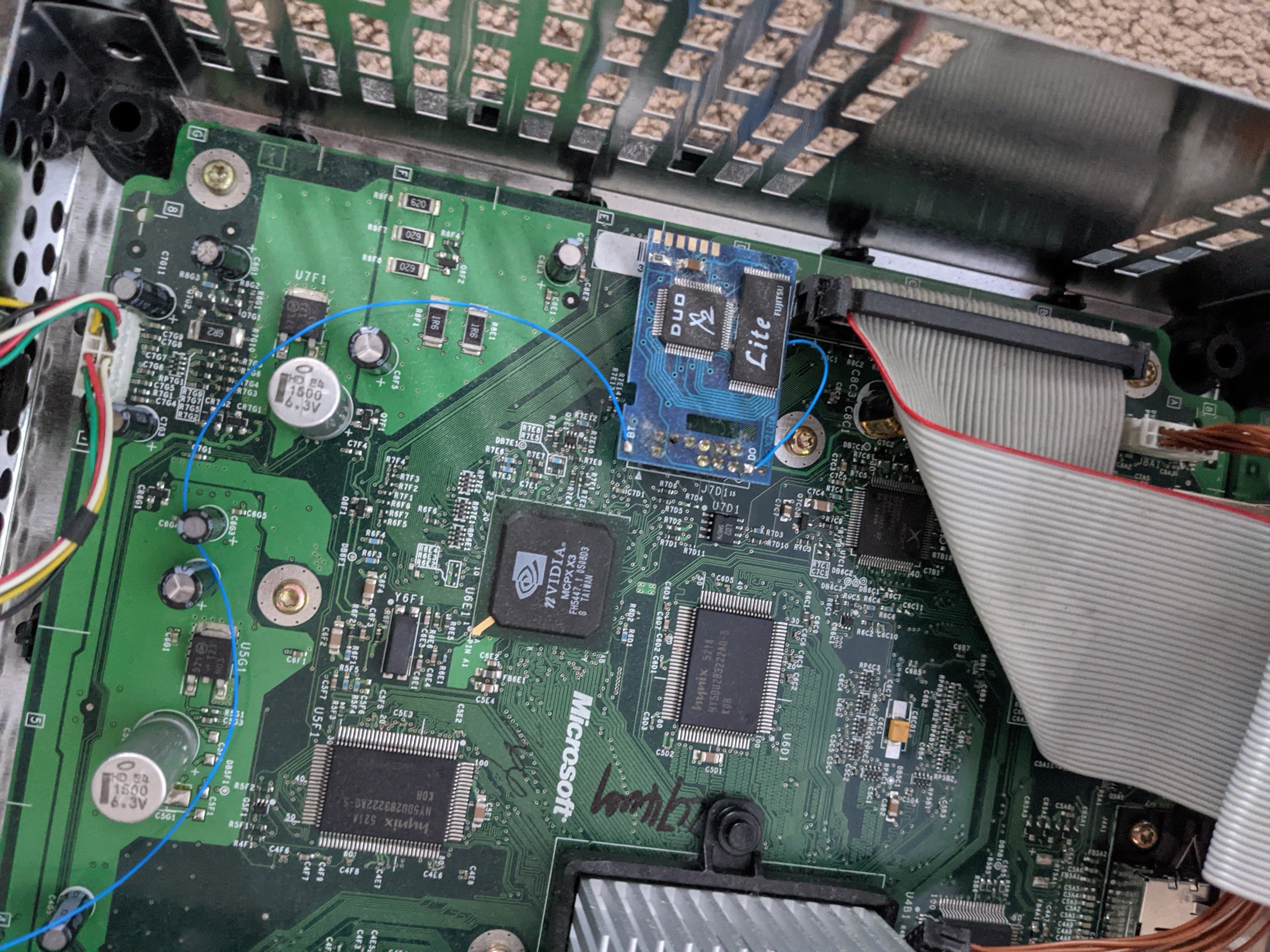

It's been opened already and upon inspection I found this.

Can anyone identify? Tnx




Edited by Haizum74
Link to post
Share on other sites
18 hours ago, SS_Dave said:

That chip supports a 512kb

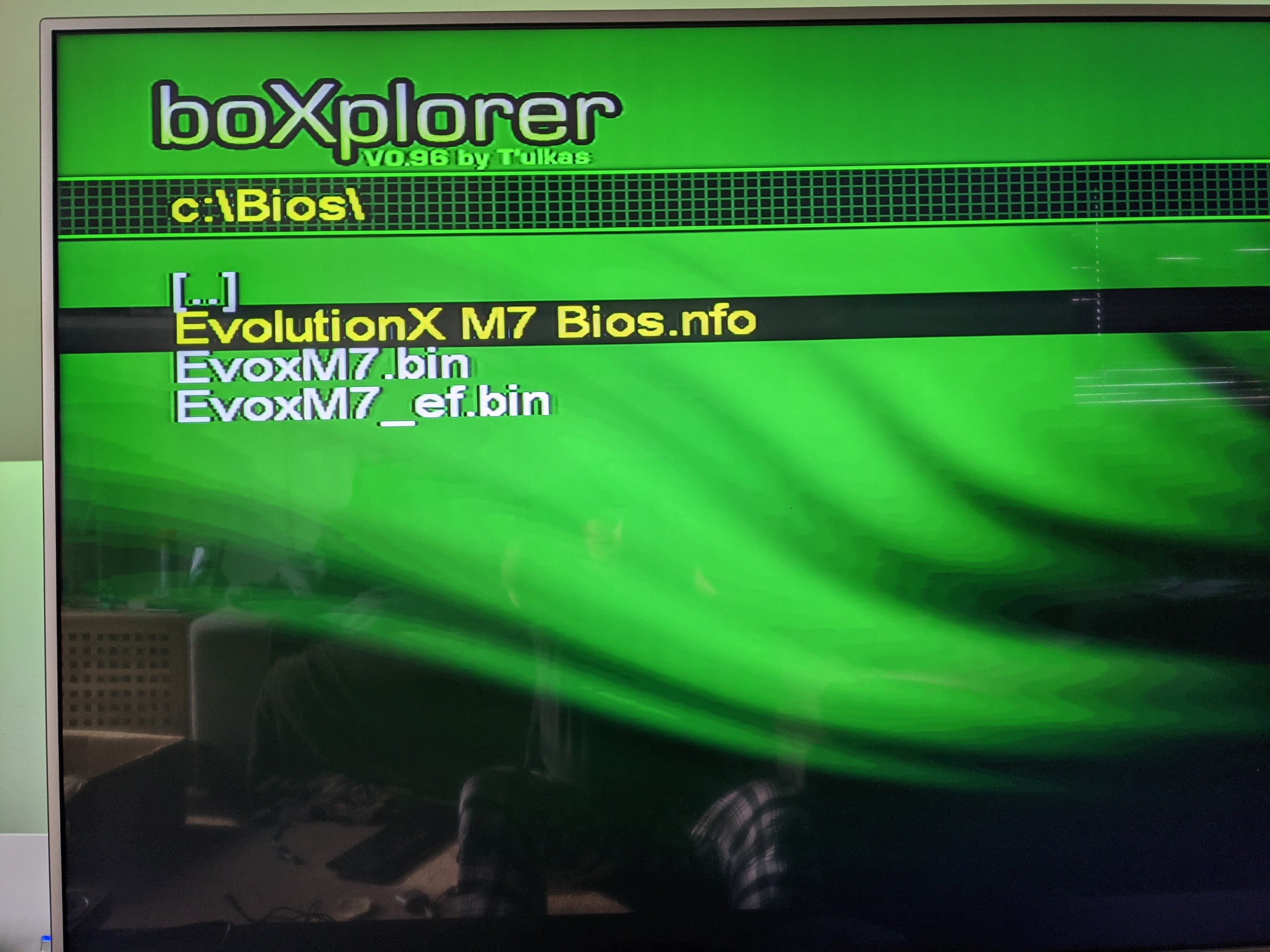

The M7 bios is old and only supports up to a 137gb hard drive

The EvoxM8plus supports up to a 3TB(2.2tb usable)

Evox m8+ 67 No DVD.bin 256 kB · 6 downloads



Cheers

SS Dave


Soft modding is like masturbating, It gets the job done but it's nothing like the real thing.

Cheers, got it done and flashed all ok. M7 bios will explain why I was having issues with a 1TB HDD.

  • Like 1
