Listing of materials tested:
OSSC V1.6 Chimeric HDMI Konig component Full RGB AV+optical Composite original Pound (2020) Mcable gaming Mclassic Monster component x400 Monster component x200 Variety of wall chargers and HDMI cables
All the combinations and configurations had tested.
Tested with 4 TV and two Xbox : V 1.6 no modded, V1.0 XBMC ( when it was possible, but no one did consequential differences )
Xbox+Chimeric+Mclassic (green led (alimented wall)) +Mcable gaming (alimented wall).
The monster component x400 was a little better than konig component, and the monster x200 was like composite because the three plugs are video x1 and stereo x2. Not three RGB like I had thinking. Next, I tested all settings of the OSSC expecting upgrade my video with a HDMI solution. The picture was worst than the monster. With the good material, perhaps it's possible. But the OSSC loose always a part of the signal, event it is alimented.
The pound (with mini usb port) was very poor. Yes, it's very better than composite but: Green filter. Not very sharp etc.
But it's wasn't a problem because I had bet all on the Chimeric.
Finaly, I recived the chimeric, and horror, the monster component smashes far more once again , with is colors very realistic and the picture very compatible with the signal source. I pluged the Mcable and the Mclassic, but this changed nothing.
I thinking pass all my life with monster x400.
There was some additionnal issues like horizontal lines "flapping" or noise in the textures.
After to have expected an issus of fabrication, I Shipped an message to Chimeric system. Before to receive a response, I had set up the stuff again, and this is it! It work fine. Mclassic was alimented in the pc port, but we need to put it in the wall. We need to find the perfect Tv setting too because the signal is different of any sources. So the best mode need to be (desatured with wider spectrum. All spectrum of light and colors).
Now it is better than the monster component.
And better than the chimeric only. The stuff do all that it must to do.
But, after that, I upgraded the output video another time with an astuce.
I bought some different wall charger more powerful and the video become consequently much higher.
Now with the good wall charger.
It's a masterpiece.
How setting this Winning combination.
Xbox dashboard- Audio : Use Stereo if you have 2 speakers (or stereo+DTS). Souround + dolby for 5 speakers.
Mclassic: Mode green. Alimented by a wall charger 5v- 1.8 A. Little bit hight or less.
Mcable Gaming: Alimented by a wall charger 5v -2.4 A
Tv(Flat): Here my setting for exemple : Contraste 100, Brillance 63, Couleur 50, Netteté 100, image-ia EF, cats HF, reduc HF
If the TV has more pixels than the video source, zoomed in will not do appear new details in the pictures, but increase the sharpenes and clarity of theirs . See picture 1-2. A higher format TV will provide more sharpeness and natural with this set up. But it's the inverse result with a cheap ultra-HD tv. Picture 3-4.
The winnig TV was : 1080p Panasonic TC-L32U3. Second place : Panasonic TC-L32X5. The two other TV ultra Hd (were very bad) : LG 47LN5750-UH and SAMSUNG UN50TU7000F
The V1.6 xbox, with Panasonic tv and Chimeric, added vertical shadow lines with halo 2 and halo 1 on the sky and on the pale background textures. But nothing else. It run perfectly since 2004.
The V1.0 XBOX XBMC added horizontal artefacts with all the games and emulators. But don't has the precedent problem with the shadow lines. His cd drive works poorly.
The second best set up was : Pound alimented wall (with the same settings and stuff) . Only switch the chimeric by the Pound. For exemple, the set up with Chimeric seem that.
The monster component x400 do the best picture and sound for easy and low budget. And the colors are more natural than the Pound.
Konig: AV component RGB+optical in one. Show details clear. Dont't blur. But did a video quality inferior than Monster x400.
The V1.6 OSSC : With all the settings, in x1 and x2 too, and with two TV, did the signal and the colors loose their intensity. The picture was pale and bleach. And in X1, there was no global difference compared good component (except the previews problems). In x2, the game was pixelised like 2D 1987 games, without degrad. He was made for keep the squarred pixels of old console. He was not made for the Xbox or consoles 480p or more. Audio problems : Not make to transfer the best audio possible because he can not out put the audio by HDMI. To plug somewhere, it need an extra connector because the input is a jack 1/8. and that cause a losing of signal. He is not do for the Xbox or console 480p or more.
Good Generique HDMI cable: Make the stone texture more natural than the mcable gaming, but was less good for the shiny-lustred surfaces and did the picture more pixelised. The mcable gaming did the surfaces that was clear or polish (like water, electricity, and metal) more realistic and upgraded. Halo2 has textures 3d-like based on the details of mapping. So, when I added extra signal boost with the wall chargers, and used the mcable gaming, it was like if new textures was appears.
Chimeric: Added red filter with the TC-L32U3 TV, and perhaps very little with the samsung TV . He did thin shaded lines in the bleach textures of Halo2 with the V1.6 xbox.
Pound: Added green filter impossible to remove completly. Plus has the same issu than the chimeric (horizontal shaded lines) but this lines were only with halo 2 on the panasonic TC-L32U3 and the xbox V1.6)
Mclassic : Works with all. TV Cartoon too. Need wall charger of 1.8 A (approximately). The two modes don't affect the defenition. Only the resolution.
Souround 5.1=5 speakers . Stereo=two speakers. That mean that dolby souround on XBOX is useless if you don't have the stuff. Note that the sound was really better with a good component than with the composite. But, I noticed no audio differences between monster and this winning set up. My external stereo speakers cleared the sound compared to my internal tv speakers. If you want speakers, you need receiveur Yamaha. Speakers only don't work. If you want for gaming, select the speakers with a natural sound, and did for classic-JAZZ musics. Games need hight frequency sound ( metalic, robots, cars crash, bullet impacts, shield, bird cry, wind, radio, snap-crunch). And take speakers that have not box shape, to have realistic sound. I am using a Yamaha receiver R-s300 with two small Paradigm that have a rounded plastic shape.
Finaly, the https://makemhz.com/ seems to be better than the chimeric. So I will change the chimeric for it and keep all the settings and materials in this set up.
Thanks SS_Dave for help.
By Kevin G.
Hey guys, new member...but not new to the scene. I have been a member over at XBMC4XBOX for years. I initially modded this box in 2010/2011-ish. I had run XBMC on it for my daughter for a number of years, with the help of the fine folks over at X4X, have updated it several times...added some SNES ROMS and had quite a bit of fun messing around with it and the scene. As it got to be a little longer in the tooth for HD streaming, and several devices that are smaller and much more powerful that can do much more, I packed it away.
My son is now 15, and loves all things gaming. I would like to get this back up and running with more ROMS that he and his friends can enjoy. Several months ago, I updated the dash with Rocky5 1.17 disc, but could never get anything to boot off of it. I only got Rocky5's gray dash, and the downloader working. XBMC would boot to a red error screen, and XBMC Emustation/XBMC4Gamers would not do anything...no matter how much I tried. I posted over at XBMC4XBOX several times to get some help, but really received no answers. In the last few weeks I have found this site, and have been reading as much as I can.
I got the box out today, and had forgotten that in a fit of desperation, I tried HEXEN 2018 to try to wipe the mod and start over. It still had UnleashX as the main dash, and booted right up to it. XBMC 3.5 was still in the E: folder, but still booted to the red printed error screen. When I tried to switch to it as a dashboard I couldn't get UnleashX back. I put HEXEN back in and ran through some tools and kept getting more errors. Just dug Rocky5 out again, and ran through the softmod updater.
It is a stock (other than the softmod) 1.4 that I believe was warranty repaired by Microsoft at one time. I purchased it from a friend at work, and it had previously been opened up, but no mods had been done. Booted fine to stock dash with all his game saves. I had done the original mod with the Replay card and 007 with Krayzie's, I believe. It worked great, and I was constantly reading and messing with updates and dashboard appearance for it when it was in my daughter's room.
I would really like to clean this thing up. Rocky5 is now updated, and I installed the XBMC4Gamers, and booted to the dash...it worked! Now that I am a little more encouraged, I want to get this as clean as possible before adding ROMS, etc...
I feel all of my attempts have left junk behind, and I want it gone...Is there a utility or anything that will get my softmod to a point that it has only what it needs to run? Then I can begin again. Like a "fresh install" or "refresh"? I have old XBMC builds, and who knows what else cluttering up the disk. Or possibly a folder structure diagram that I can follow, and clean up manually? I had incorrectly assumed that the softmod updater or HEXEN would wipe everything for me, but that was not the case. I've poured through both discs and have not seen anything like this in any menus.
Thanks in advance...love the site

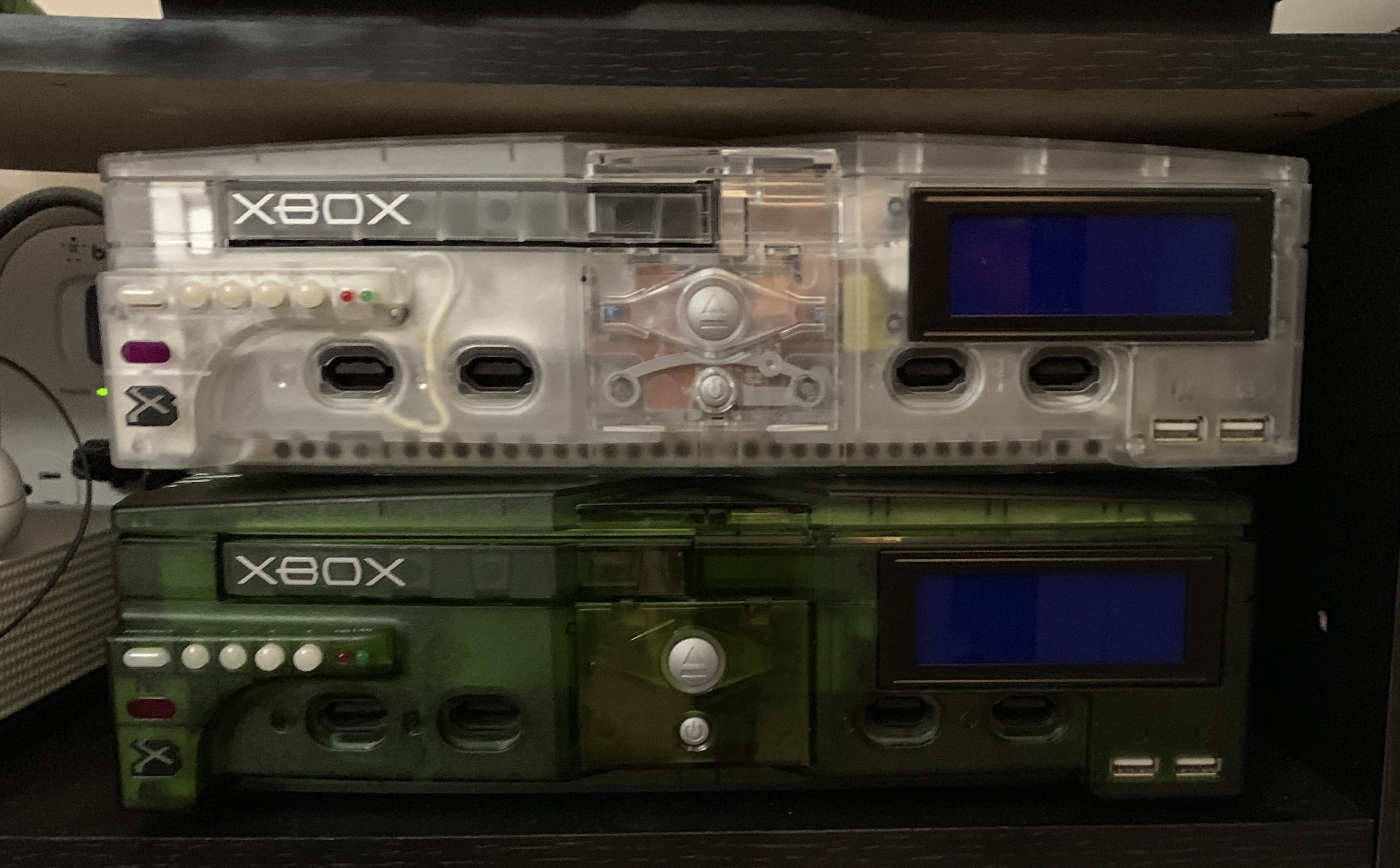

You've all be great in helping me get my two Xbox's to be awesome, I've got them both to a point I consider them perfect, my last little gripe is the time, they boot up thinking it's 2007. I've noticed the Xbox has a time server function where it can automatically connect to internet time servers and update the time with UnleashX and also XBMC, however every time server address I put in there doesn't work, even though the time servers do work on windows. Is there a time server anyone has found that actually works on the Xbox? I remember years ago I used to use this function and it used to work fine. If I can sort this out it's the last peace of the puzzle to Xbox perfection for me.
