sasheeboy

Mod Chip Question

Recommended Posts

hey everyone, forgive me for asking the question, but can somebody identify this mod chip? when the screen boots Xecuter 2 displays, it plays back ups and loads xexen disk, the forum is quite and most people are on facebook page so thought i'd start a new post, dont want to stuff anything up before i start tinkering with the xbox, help me!


Share this post


Link to post
Share on other sites

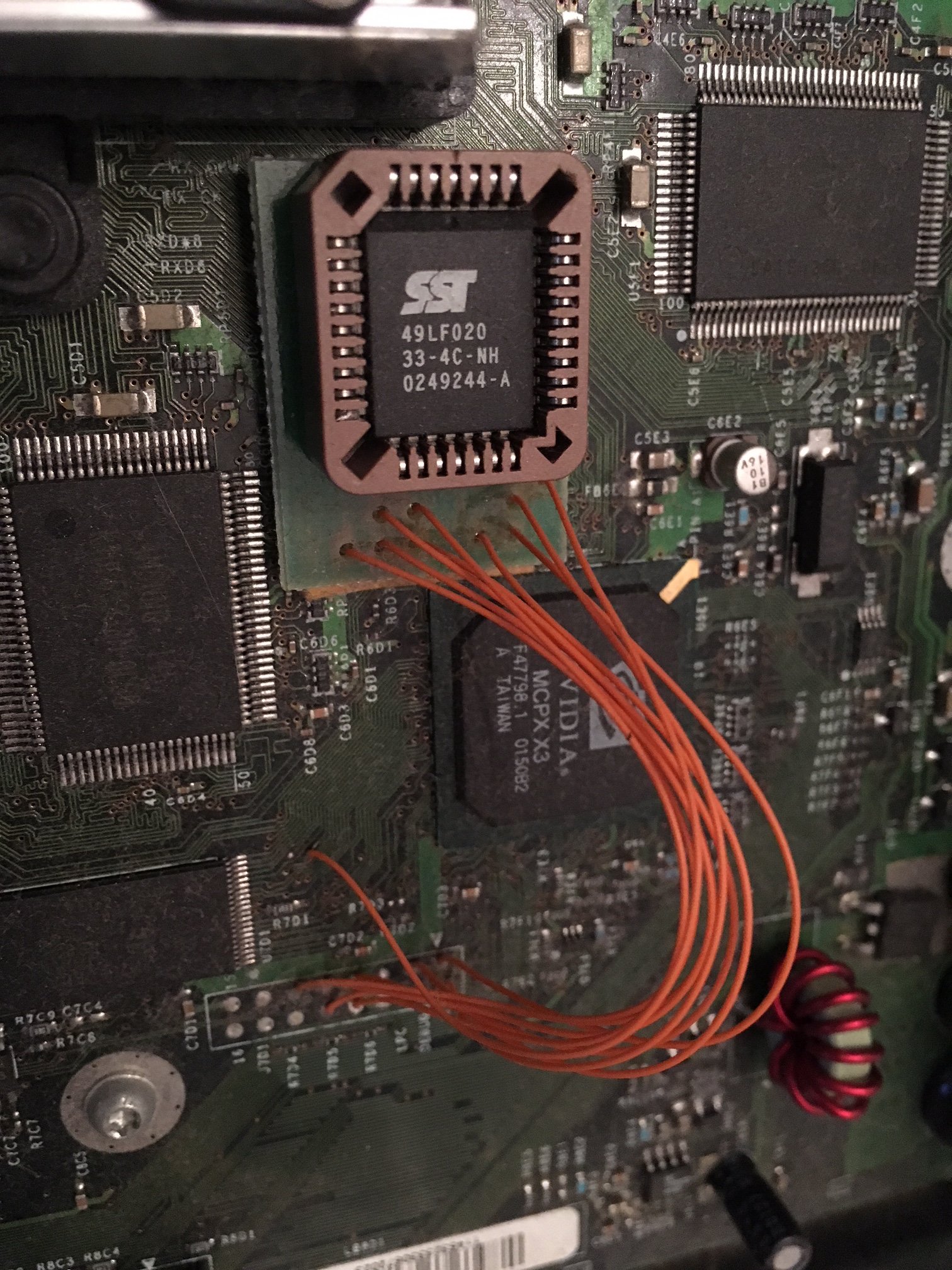

It's a simple Cheapmod-based modchip.  It uses an SST49LF020 256KB (020 - 2,048 Mbit) flash with LPC-interface.

Which specific modchip it is is hard to tell, Many were created all around the globe from "Please login or register to see this link. " mounted to printed circuit boards with or without a socket, installation by wires to LPC debug port (as your's), quicksolder castellations, or pin header.

Some could be reflashed in the Xbox while others could not be. The flash memory chip had to be removed from the socket and flashed with an external programmer then re-installed in the socket to update the BIOS.

Design: www.warmcat.com - pages no longer there but have been archived here - Please login or register to see this link.

Which kernel version is in use? (There are several versions of the Xecuter 2 BIOS.)

What replacement dashboard is running?



Edited by KaosEngineer
  • Like 1

Share this post


Link to post
Share on other sites
On 9/6/2018 at 5:52 AM, sasheeboy said:

the original dash board loads up with the date/time. but i have just removed the clock capacitor and am cleaning the board.

how do i check the kernel version?

MS Dashboard Settings -> System Info.  At the end of the scroller, the version of the dashboard (D:) and Kernel (K:) are displayed.

Share this post


Link to post
Share on other sites
20 hours ago, Brennyg Davies said:

Alluding xeno fx chip, can be solder directly to board instead of using wires

Best to use wires or pin header install as the quick solder method is much harder to remove if the need ever arises.

Share this post


Link to post
Share on other sites
