wikati

Softmod Error Code 6

Recommended Posts

so i gave my brother a v1.6 softmod so he could toy with it and play some games.

had it set up nice with xbmc4gamers

started to show him what goes on with that skin and then it just black screened and reset...

now error code 6!!! over and over. then all of a sudden it boot again.

weird?

now. back to error code 6. never booting again. race home and install stock drive and error code 9!!!! omg wtf!!!!!!!

i have a mod chip here. could be an easy fix... but...
i have tried the ide cable and the adapter, not the problem.



one insight. i had the jumper set to slave when it was first booting,
its strange because i had set-up the entire XVGM on this console and then xbmc4gamers because i didnt like xvgm for this one. it just wasnt as stable.

dont know. bad hdd? how do you explain the stock drive giving an error? strange.

Share this post


Link to post
Share on other sites

New drive error 6 - cannot unlock the drive.  HDD locked with a different Xbox's HDDKey.

Old HDD now giving error 9 sounds like the old HDD is dying.  Try reseating  all of IDE connectors: MB, DVD and HDD.

Make sure the HDD is set to MASTER or Cable Select.

Don't know how it was working when set to SLAVE.

Clock cap leaked electrolyte corroded traces on the bottom side of the board can cause phantom power on/off symptoms.

Four (4) fine traces run along the outer edge of the motherboard from the Front Panel connector to the System Management Controller (SMC) either a PIC processor v1.0-1.5 or Xyclops v1.6.

For v1.1 boards, these traces from innermost to outermost are:

  • SMC pin 2 (RED LED control line) to an in series resistor (R3V2) on to LED PNP drive transistor (Q2V2).
  • SMC pin 3 (GREEN LED control line) to an in series resistor (R3V3) on to LED PNP drive transistor (Q2V1).
  • Voltage-divider processed Eject button signal to SMC pin 5.
  • Voltage-divider processed Power button signal to SMC pin 18.

The SMC (PIC processor) on a v1.1 motherboard is at location U7B2.

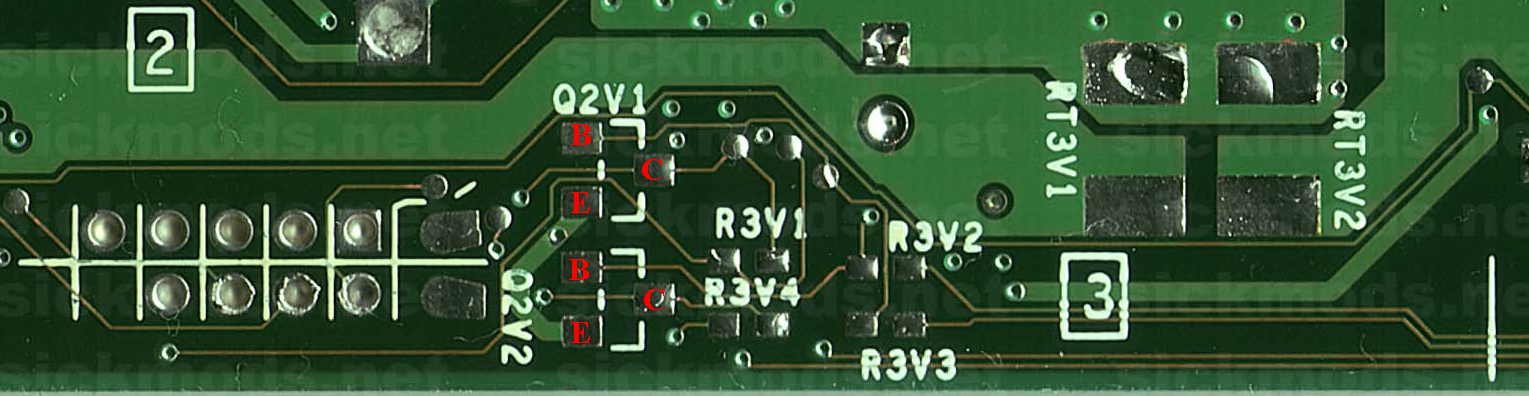

5adeae8367492_ogXboxV1.1Motherboard(bottom)FrontPanelConnector(J2G2).thumb.png.45675dd352a9974c3b535b07c34fa33d.png
The 4 traces seen on the lower right-side of the above image.

I've not traced out these signals on a v1.6 console to verify that they are in the same order or to which Xyclops pin they attach. :(

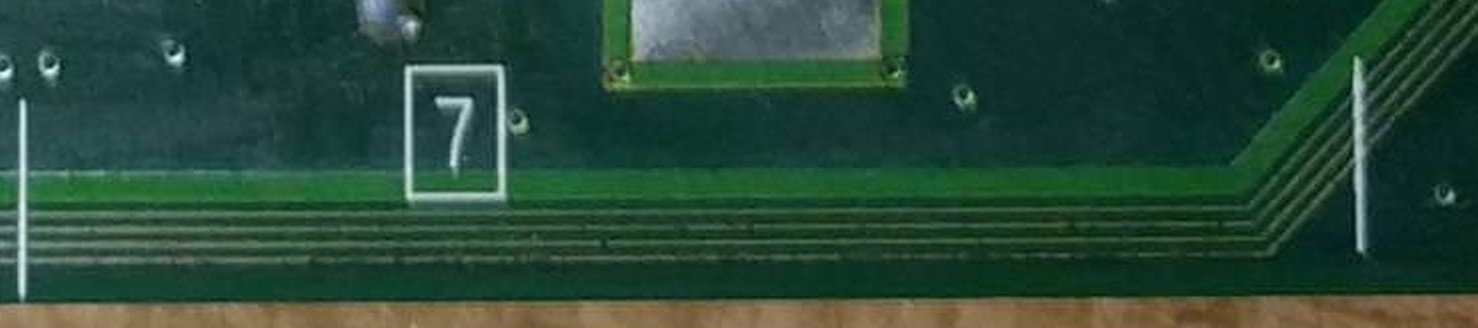

5adeb33ab5f99_tracedamagesection7frontedgeofXboxmotherboard(solderside).thumb.jpg.7a0f987f53d229ebc516578f7be6134b.jpg
Damage visible as tiny breaks in the traces.

Edited by KaosEngineer
  • Thanks 1

Share this post


Link to post
Share on other sites

Hey, I just wanted to follow up.

It sat for a week and i plugged it in today to see it boot. very surprising.

it then shortly after gave the same results as before.

i tore it down to inspect for signs of fault in the hardware.

i remembered something loose inside when id last put it all back together. sure enough i found a bolt lodged in under the board.... hmmm, it works after cleaning it all up and removing the bolt. not sure exactly where that liitle guy was, maybe stopping the fan or something?

i cant say for sure the bolt was lodged under the board but i can say getting it out has given results. boots every time and never crashes. VERY ODD. wonderful to fix tho.

  • Like 1

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

Sign in to follow this

Board Life Status


Board startup date: April 23, 2017 12:45:48
  • Similar Content

    • By psnap777
      I have softmodded a v1.1 XBOX with a Sharp TSOP using Softmod Deluxe v5.11 and have experienced a few issues:
      When sending files to the XBOX via Filezilla, the system frequently freezes and sometimes restarts. This happes especially with large files. The lights around the eject button behave differently than stock. When I make changes in settings they don't seem to work. For instance, even when I set it to do so, the light around the eject button will not flash when the drive is busy. Also, even when I set the light to be green, it is green when I first turn the system on, then changes to orange while the softmod is booting then turns back to green again. When I make changes to settings in the settings menu of the UnleashX dash, they don't carry over to the settings menu in the softmod menu. I find I have to make setting changes in two places. Have you guys experienced this? Is this normal for this softmod?
      Which softmod do you guys prefer between NDURE and Softmod Deluxe? If I want to switch to NDURE, do I select the remove softmod option in Softmod Deluxe, then install NDURE? Or can I install NDURE over Softmod Deluxe without removing it first.
      (I've decided to just leave this XBOX softmodded since it has the Sharp TSOP chip which is more involved in TSOPing than the others.)
      Thank you very much for all of your help and advice.
    • By psnap777
      Hi Guys. I'm new to modding the XBOX. Just soft modded a V1.1 XBOX and using Softmod Installer Deluxe v5.11. Everything seems to have gone fine but now the light around the eject button is solid orange and the eject button doesn't blink when the dvd drive is reading a disk. From what I have read, this seems to be normal after modding and I have also read about where to go into settings to adjust the lights. But what I have not been able to do is figure out how to get it back to looking stock. In other words, I just want the light to be solid green when booting up and while running, and have it flash green when the system is busy. I have tried setting it this way in settings but it doesn't seem to work. I'm not sure what I'm missing. Any suggestions would be greatly appreciated.
×
